4S 14.6V Lithium Iron Phosphate Battery Protection Board, BMS High Current 100A Protection Plate

4S 14.6V Lithium Iron Phosphate Battery Protection Board, BMS High Current 100A Protection Plate Beskrivelse

This high-power lithium battery protection board is designed for outdoor power supplies, inverters, UPS, car emergency power supplies, and other storage devices. It adopts an advanced integrated solution, ensuring product reliability and stability.
Onboard high-quality low-resistance MOSFETs, combined with thermally conductive silicone pads, provide rapid heat dissipation and can withstand 100A high current operation for extended periods. The unique disconnection protection function adds another layer of protection for your battery pack.

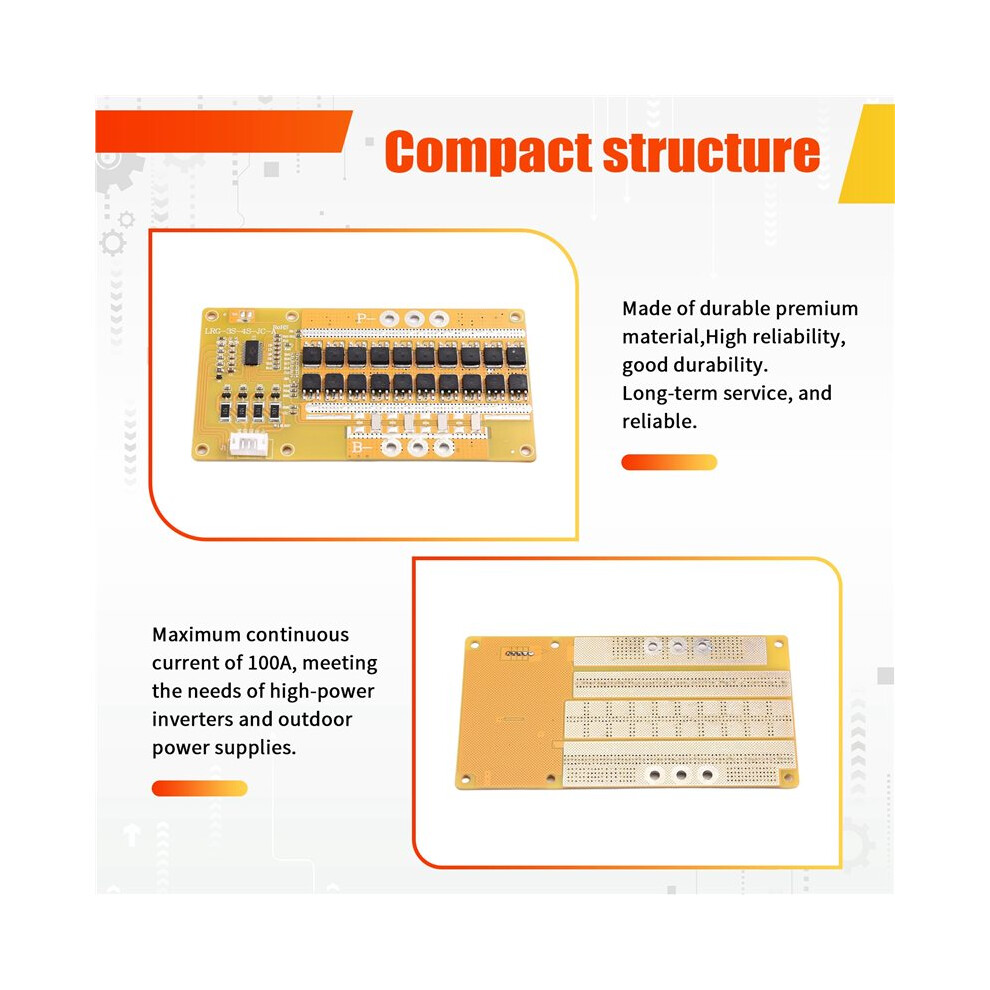

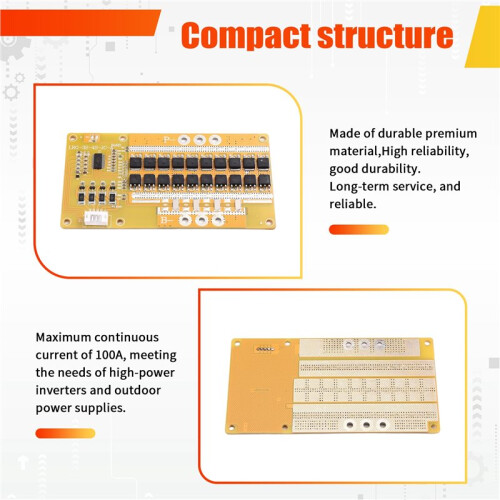

High Current Bearing: Maximum continuous current of 100A, meeting the needs of high-power inverters and outdoor power supplies.
Disconnection Protection Function: Automatically cuts off the output when a cell connection is abnormal or the cable is disconnected, effectively protecting the battery pack from damage.
Multiple protections: Integrated overcharge protection, over-discharge protection, overcurrent discharge protection, short circuit protection, and temperature control protection.

Parameters:
Number of cells: 4S, suitable for 12V/12.6V/14.6V universal platforms.
Overcharge protection: Single cell overcharge detection voltage 3.850.05V; overcharge release voltage 3.50.05V.
Over-discharge protection: Single cell over-discharge detection voltage 2.00.05V; over-discharge release voltage 2.50.1V.
Equalization parameters: Equalization detection voltage 3.60.025V; equalization current 365mA.
Continuous discharge current: 100A
Charging current: 30A
Main circuit conduction resistance: 10mΩ
Operating temperature range: -30~+80
Color: Yellow
Material: PCB

Package Contents:

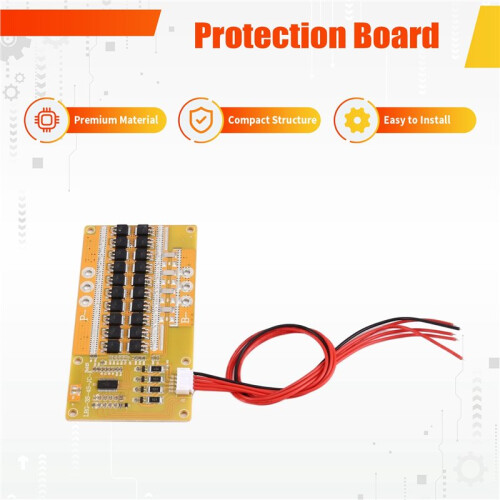

1 * Protection Board
1 * Cable (Random color)
