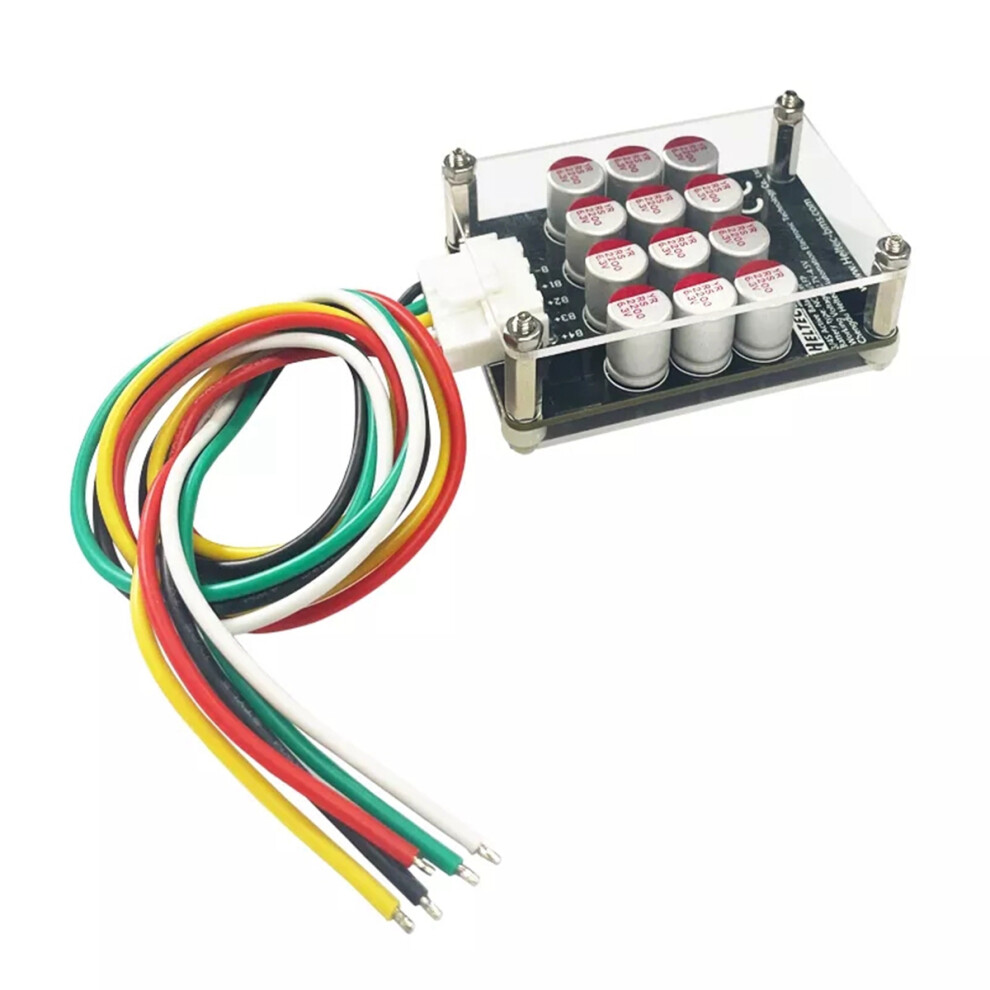

4S 5A Cluster Equalizer Active BMS Board Lithium Battery Lifepo4 Battery Equalizer Capacitor (with Case+Terminal Wire)

4S 5A Cluster Equalizer Active BMS Board Lithium Battery Lifepo4 Battery Equalizer Capacitor (with Case+Terminal Wire) Beskrivelse

1. Lithium battery active balance transfer board Lithium battery active equalizer high-efficiency transfer balance
2. Capacitive transfer equalization board (high precision 5mv, whole group equalization, not adjacent equalization)
3. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
4. Working principle, the capacitive fit transfers the charge transporter, the equalization board is connected to the battery to start the equalization work, the new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalization current 0-5.5A, the more the battery is, the more the equalization current is Small, reserved for the dormant wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
5. The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH. With under-voltage sleep protection, the voltage will automatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.

Product Name: 4S Capacitive Transfer Equalizer Board (with Housing)
Applicable battery type : for NCM/LFP/LTO
Product size : 66 x 46 x 16 mm
Working range of single voltage : NCM/LFP:2.7-4.2V LTO:1.8-4.2V
Balanced method : The whole battery pack participates in the active balance of transfer at the same
Under voltage protection sleep voltage : NCM/LFP: Less than 2.7V LTO:Less than 1.8V
Working temperature : -10~+60
External power : No need for external power supply, relying the internal transfer of the battery to achieve the balance of the whole group
4S quiescent current Full state : (4.2v x 4cell) 16.8V 9mA
Different production batches,
