4X 3.6V 4.8V 6V 12V High Voltage Pulse Generator 3KV-11KV Super Electric Arc Modules

4X 3.6V 4.8V 6V 12V High Voltage Pulse Generator 3KV-11KV Super Electric Arc Modules Beskrivelse

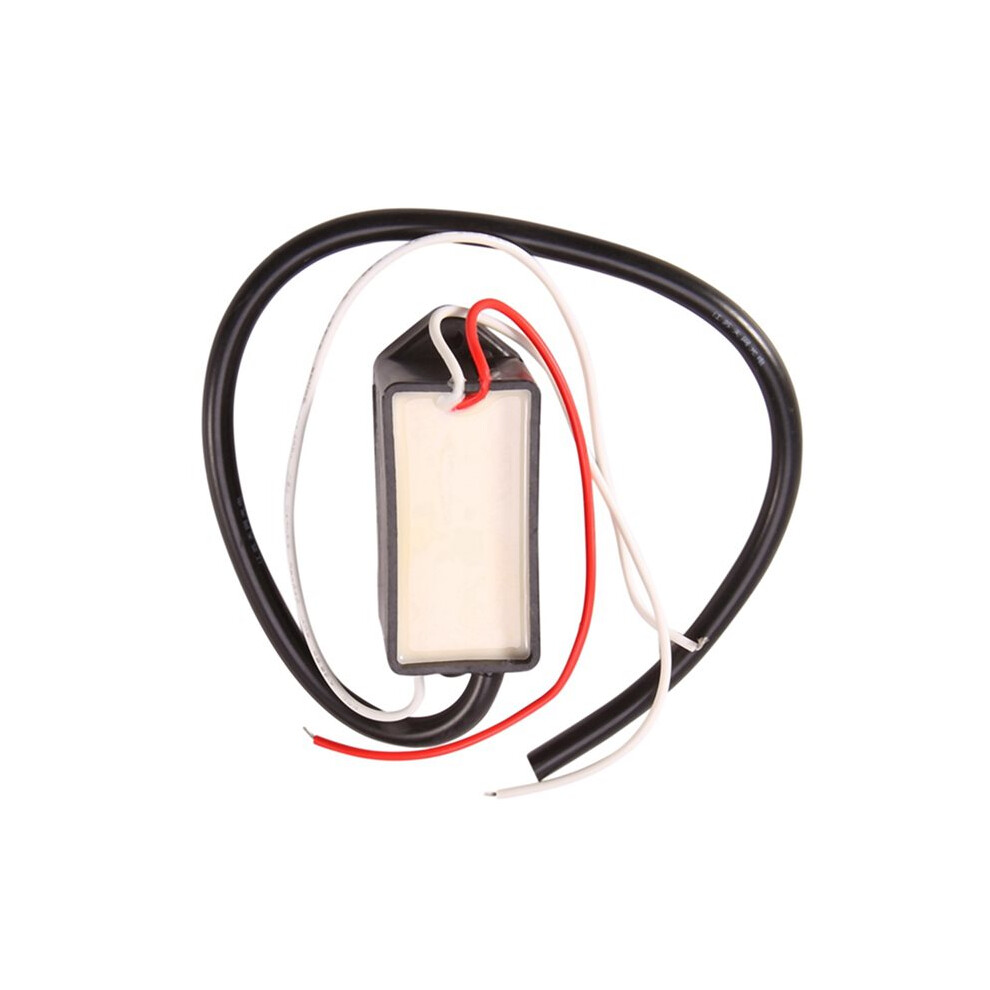

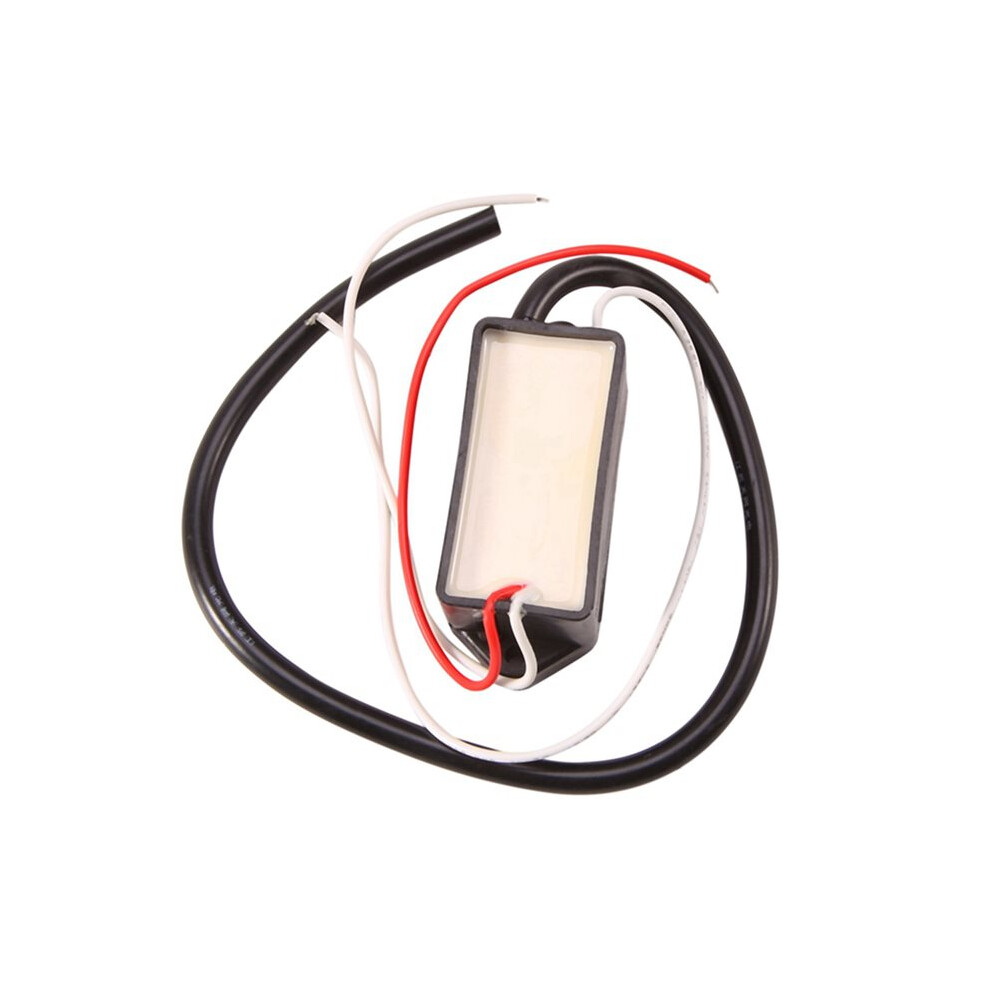

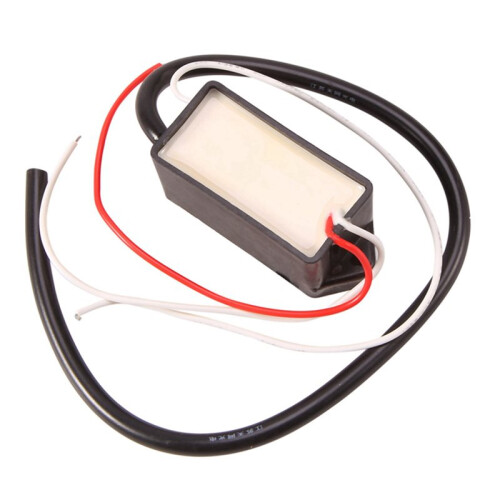

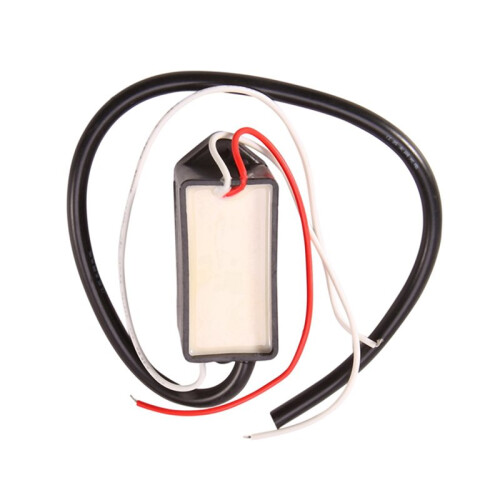

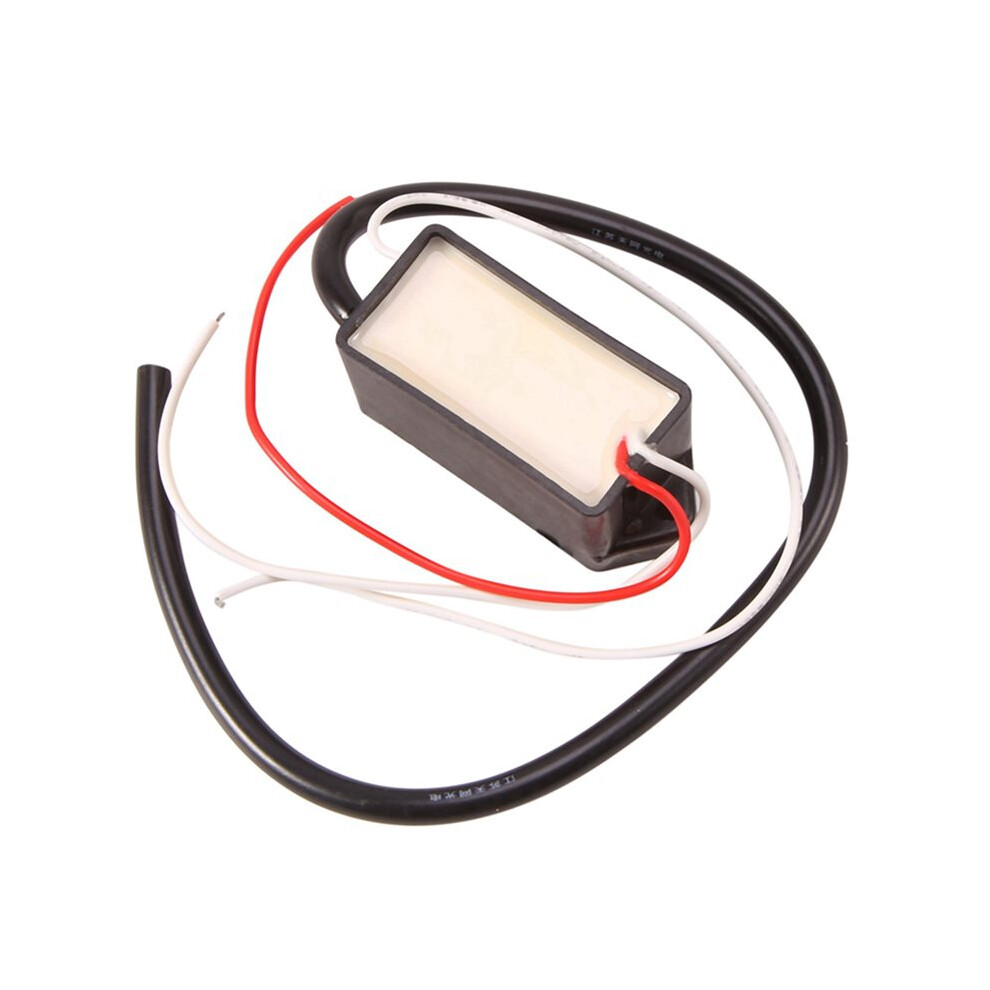

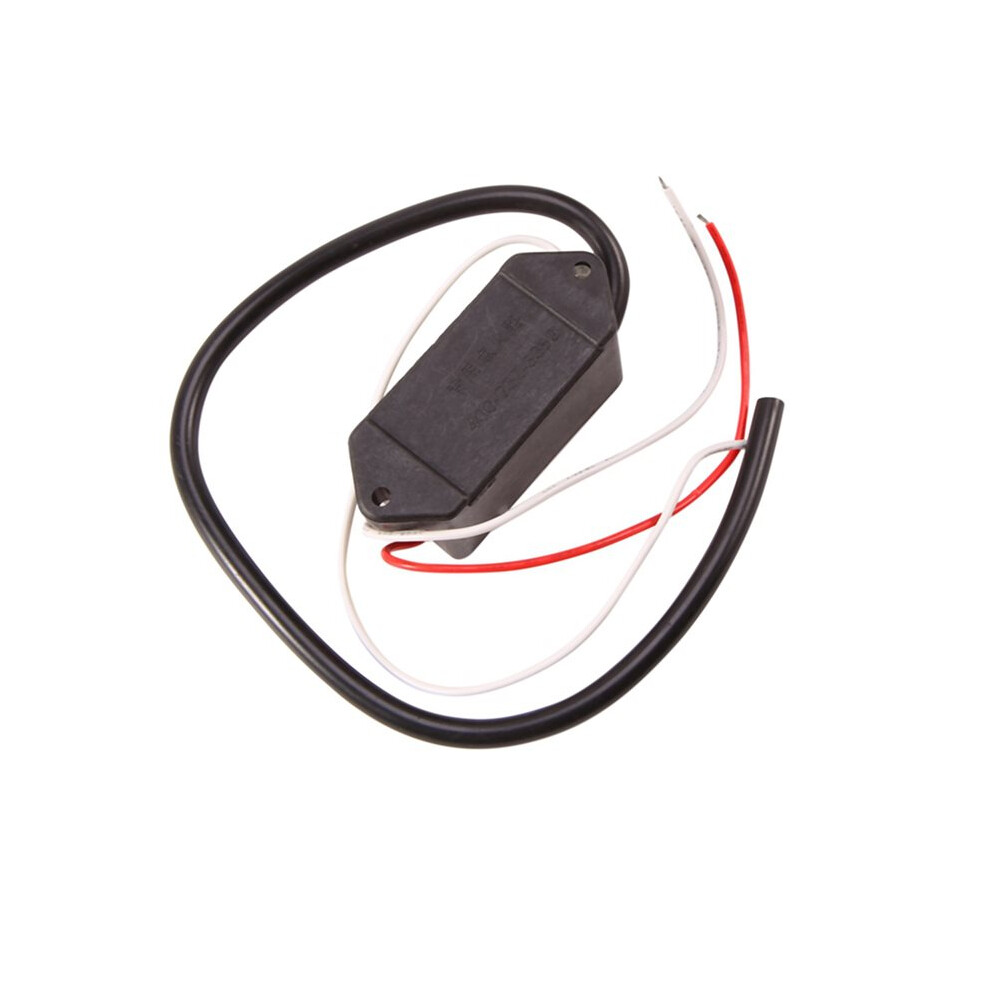

This module is a finished module of high voltage negative-ion generator.
It can output high voltage pulse current, small size and high efficiency.
The input voltage is DC3.6V/4.8V/6V/12V and will output DC3kV-11kV high voltage.
It can be used for fogger, electric salute, gas stove, etc.
The peripheral circuit is simple, simply connect to and battery, and the discharge is great.

Input Voltage: 3.6 V, 4.8 V, 6 V, 12 V
Output Voltage: 3 kV~11 kV
Arc Distance: 10 mm
Working Current: 1000 mA
Input Wire Diameter: 20.03 mm
Output Wire Diameter: 6.80.03 mm(Live); 2.20.03 mm(GND)
Input Wire Length: 200 mm
Output Wire Length: 270 mm(GND); 380 mm(Live)
Input Wire Color: Red(positive), White(negative)
Colour:As shown
Material:Plastic + Metal

Package Contents:
4 x High Voltage Generator
