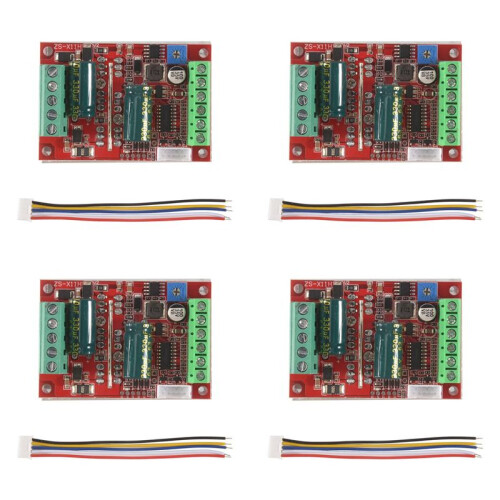

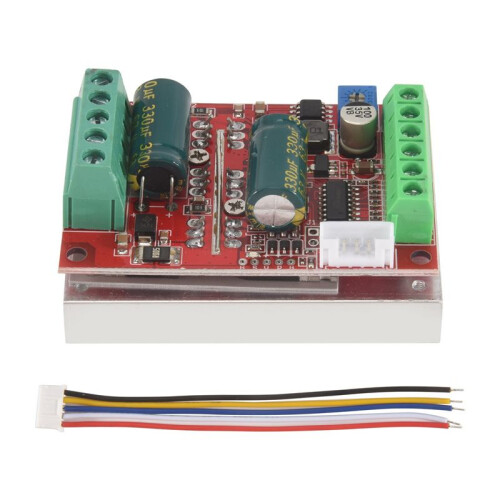

4X 6-60V 400W BLDC Three Phase Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V

4X 6-60V 400W BLDC Three Phase Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V Beskrivelse

Working voltage:6-60V (limit 60V with margin for use)
Working current:rated16A, 20A
Power:Rated 200-300W, 350W (with allowance for enhanced heat dissipation when using high power)
Overcurrent protection:Yes

INTERFACE DESCRIPTION
1. MA MB MC phase output connected to motor

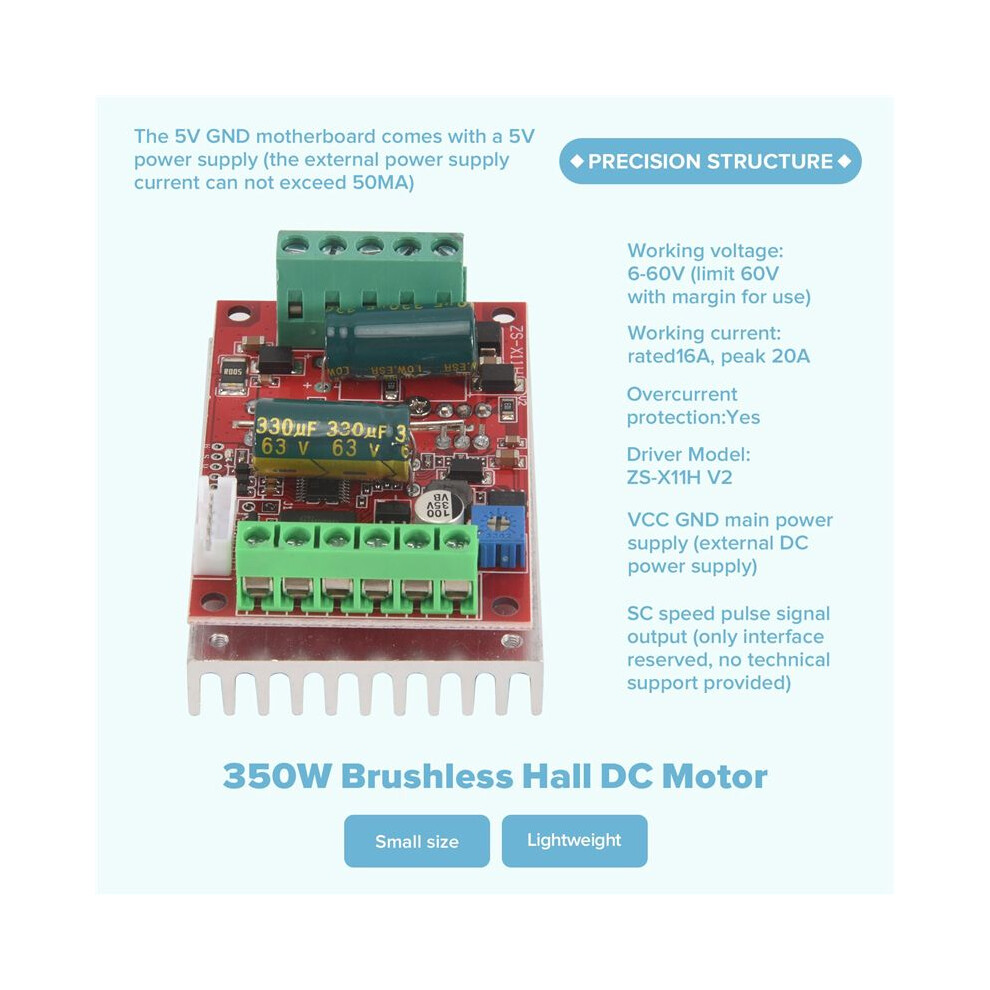

2. The 5V GND motherboard comes with a 5V power supply (the external power supply current can not exceed 50MA)
3. VCC GND main power supply (external power supply)
4. SC speed pulse signal output (only interface reserved, no technical support provided)

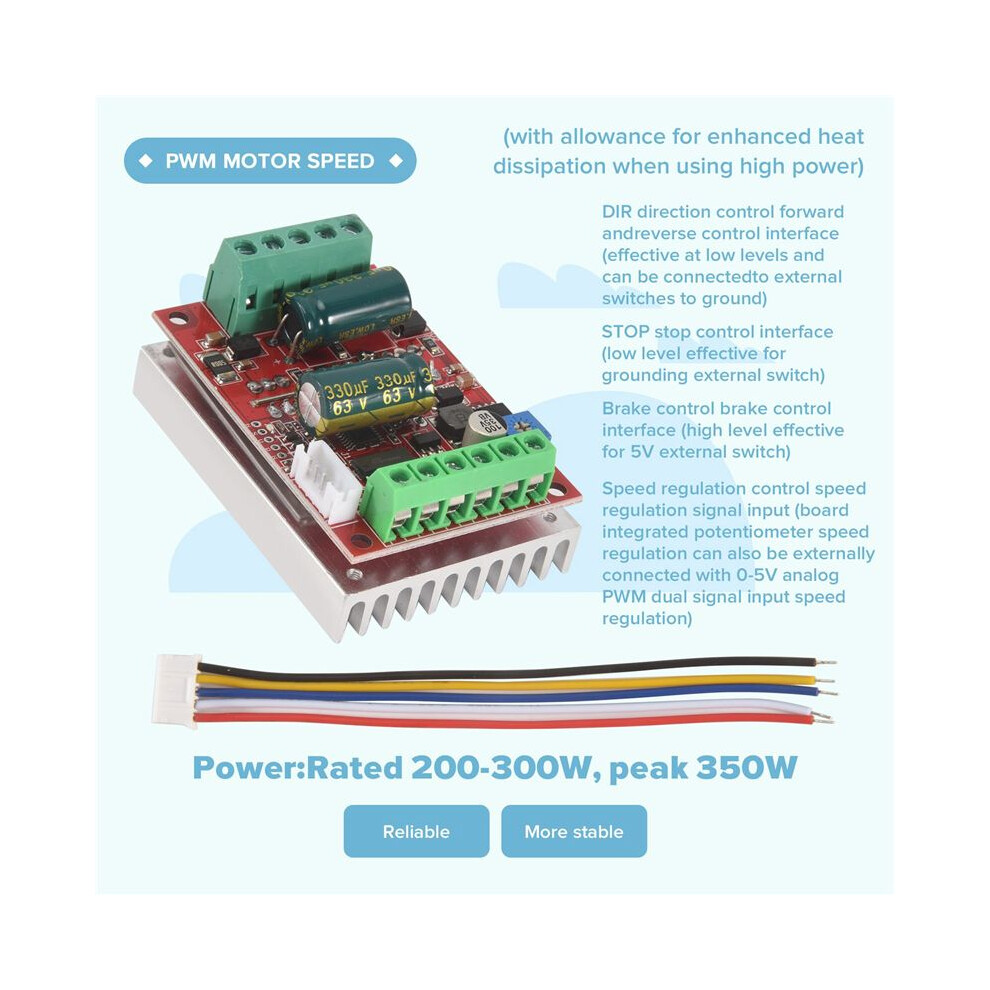

5. DIR direction control forward and reverse control interface (effective at low levels and can be connected to external switches to ground)
6. STOP stop control interface (low level effective for grounding external )
7. Brake control brake control interface (high level effective for 5V external )
8. Speed regulation control speed regulation signal input (board integrated potentiometer speed regulation can also be externally connected with 0-5V analog PWM dual signal input speed regulation)
9. Ha Hb Hc+5V GND Hall signal power supply input interface, TZT, generally motors with Hall have corresponding 5 wires

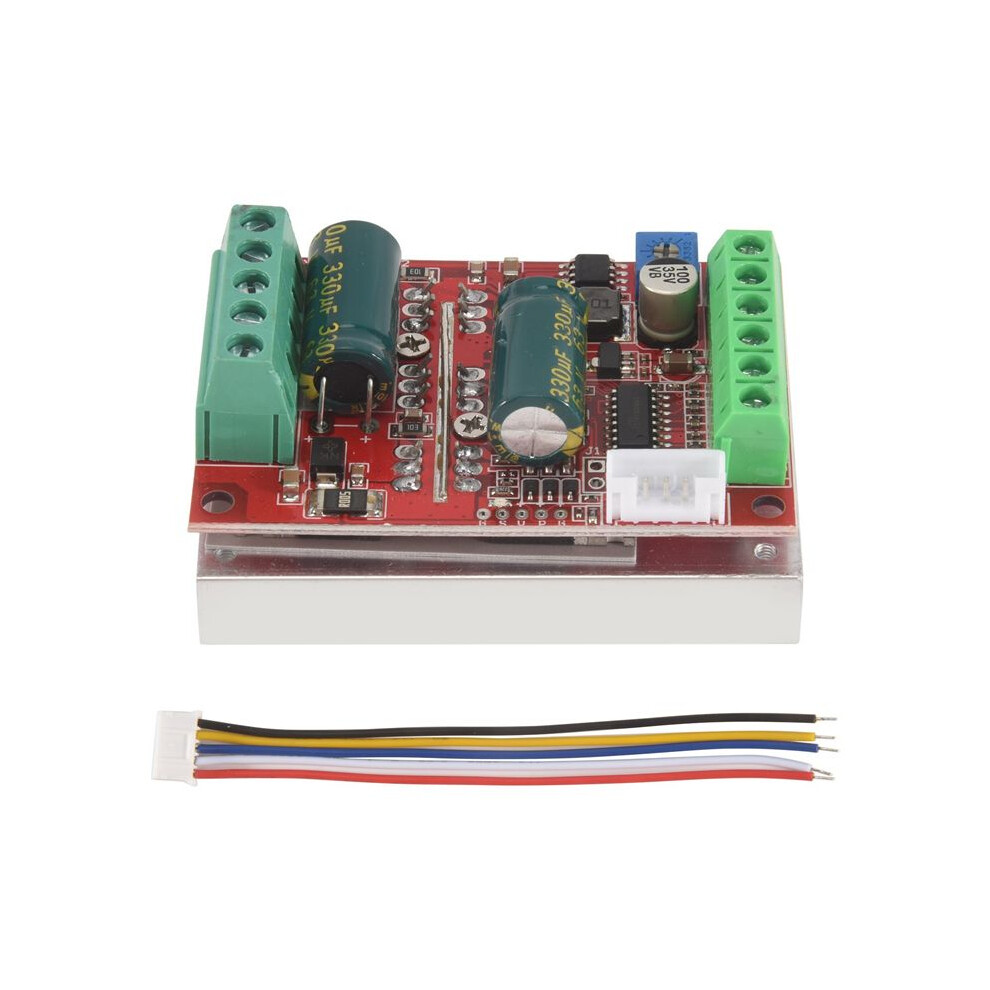

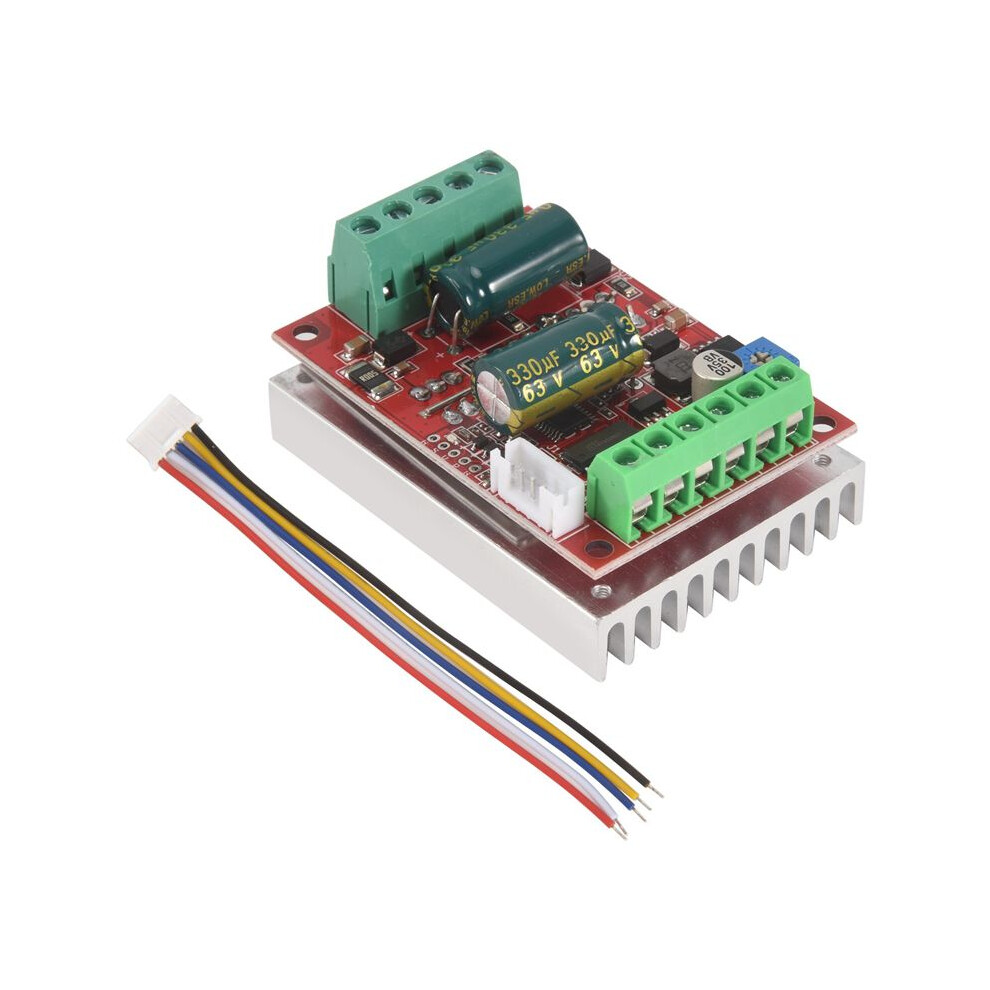

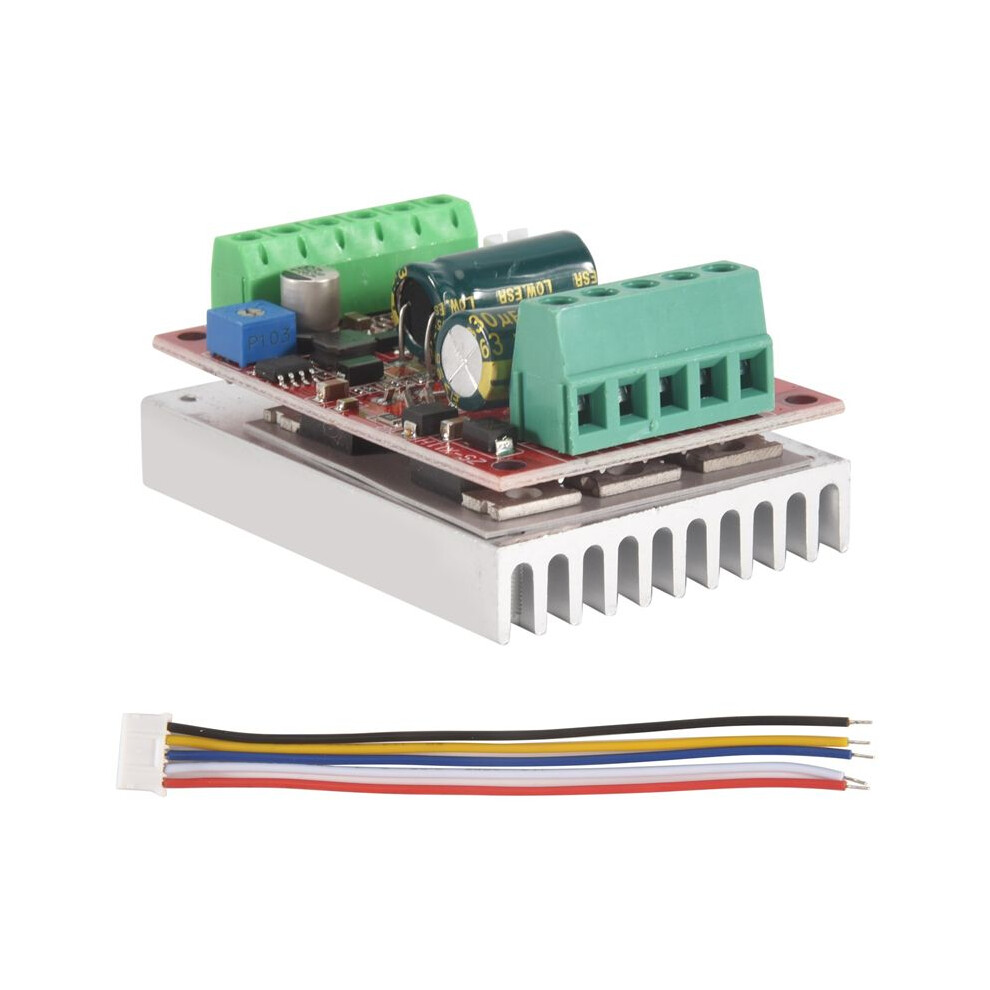

Product Name:350W Brushless Hall Motor
Driver Model:ZS-X11H V2
Colour:As Shown
Material:Metal+Plastic

Package Contents:

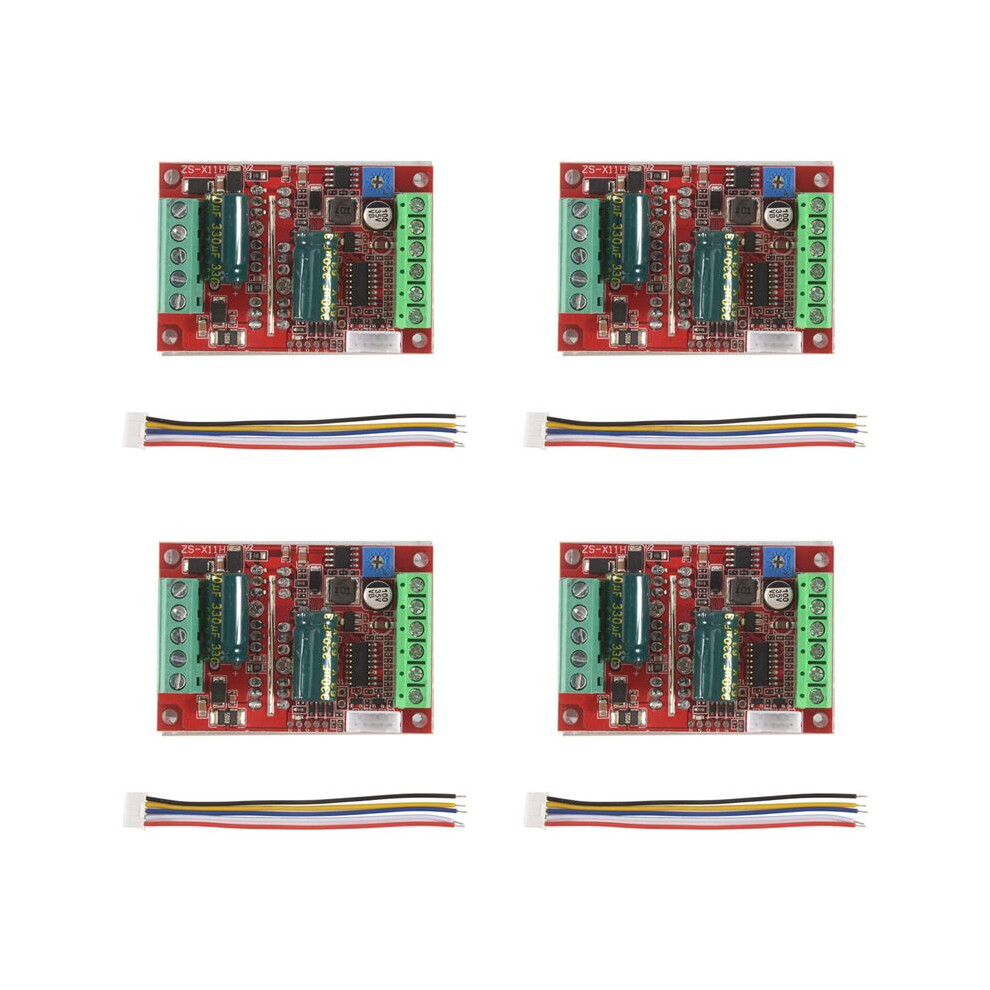

4 set x motor controller
