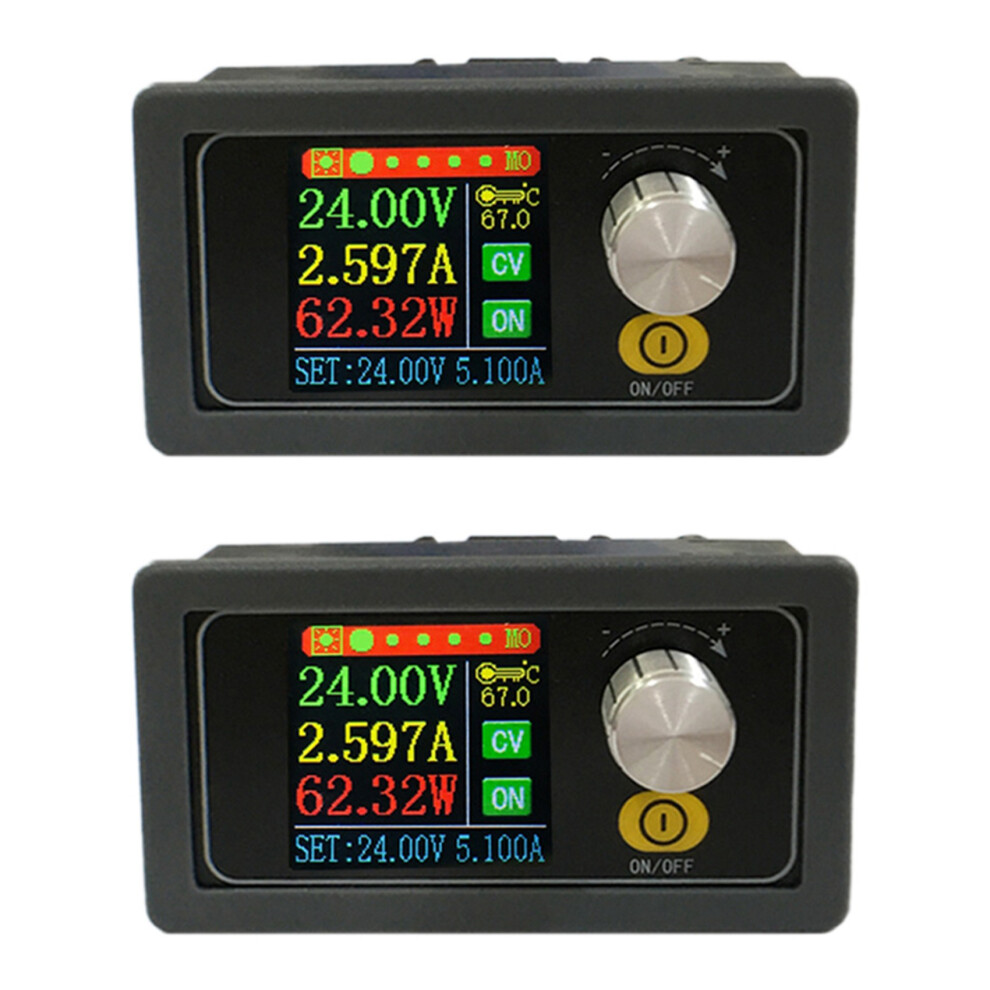

4X XYS3580 Buck Boost Converter CC CV 0.6-36V 5A Power Module Adjustable Regulated Power Supply Variable

4X XYS3580 Buck Boost Converter CC CV 0.6-36V 5A Power Module Adjustable Regulated Power Supply Variable Beskrivelse

Press the key of coding potentiometer briefly to activate the parameter to be set;The of parameter name and bit selection is realized by short pressing the key of coded potentiometer;After selecting the parameter name, the parameter name will be displayed in reverse , and the parameter to be set will be switched by rotating the encoding potentiometer;
After bit selection, the corresponding bit will be displayed in reverse , and parameters will be set by rotating encoder;After the setting is completed, long press the key of the encoding potentiometer for 2 seconds or more, and no key operation will automatically exit the setting;All parameters are saved automatically after exiting.
Data group function description:10 sets of data groups of M0-M9 can be saved. By default, the data group M0 can be saved. Press and hold the key of coding potentiometer for 2 seconds any interface to quickly call the M1/M2 data group, and the serial number of the current data group will be displayed at the interface index;
In the power parameter setting interface, select the data group, and rotate the encoding potentiometer to call the corresponding data group;
After the parameters in the data group are modified and exited, the corresponding parameters will be stored in the current data group by default.

Set voltage U-SET:0.6-36V;
Set current I-SET:0-5.1A;
Input undervoltage protection LVP default: 4.8V, self setting;
Output overvoltage protection OVP default: 37V, can be set by itself;
Output over-current protection OCP default: 5.2A, can be set by yourself;
Output over power protection OPP default: 81W, self setting;
Maximum operation OHP: when the parameter is not set to 0, turn this function. When the operation reaches the set , the power will automatically turn off the output;
Maximum c
