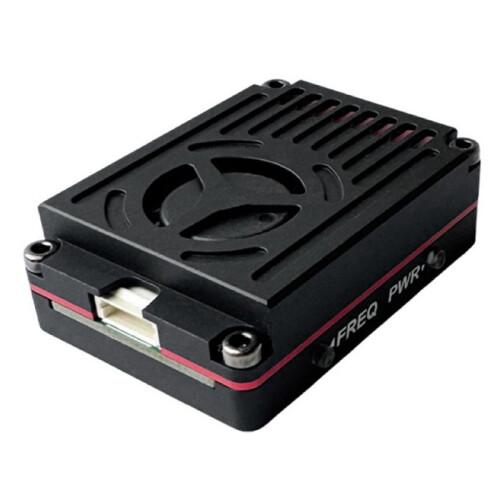

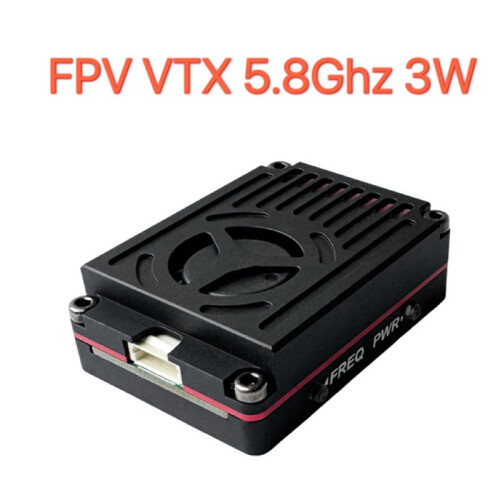

5.8G 3W FPV VTX 64CH FPV Audio Video Transmitter PAL/NTSC Support OSD Parameter Adjustment for FPV Long Range RC Drone

5.8G 3W FPV VTX 64CH FPV Audio Video Transmitter PAL/NTSC Support OSD Parameter Adjustment for FPV Long Range RC Drone Beskrivelse

Weight: 22g (without antenna)
Dimensions (length x width x thickness): 41x30x13mm (without button protrusion). Fixing hole 20x20mm spacing, M1.6 threaded hole.
Working voltage: DC7V-36V (2s-8s)
Working current: 1100MA100MA at 12v
Maximum power consumption: 14 watts

RF transmission power: greater than 34.8dbm (3.0 watts)
64 working channels, button selection settings
4 power levels, button selection settings
5.8GHz video transmission transmitter (compatible with PAL and NTSC) compact structure, small size, high transmission power
Using large-scale integrated circuits and automotive-grade components, high reliability
Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability using digital phase-locked loop circuit, no temperature drift phenomenon
Support TBS protocol osd parameter adjustment
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
The straight or elbow of the connecting is random, and the designation is not accepted.
Color:Black
Material:Aluminum Alloy

Package Contents:
1 * VTX Kit(The color and appearance of accessories are random, and the designation is not accepted)
