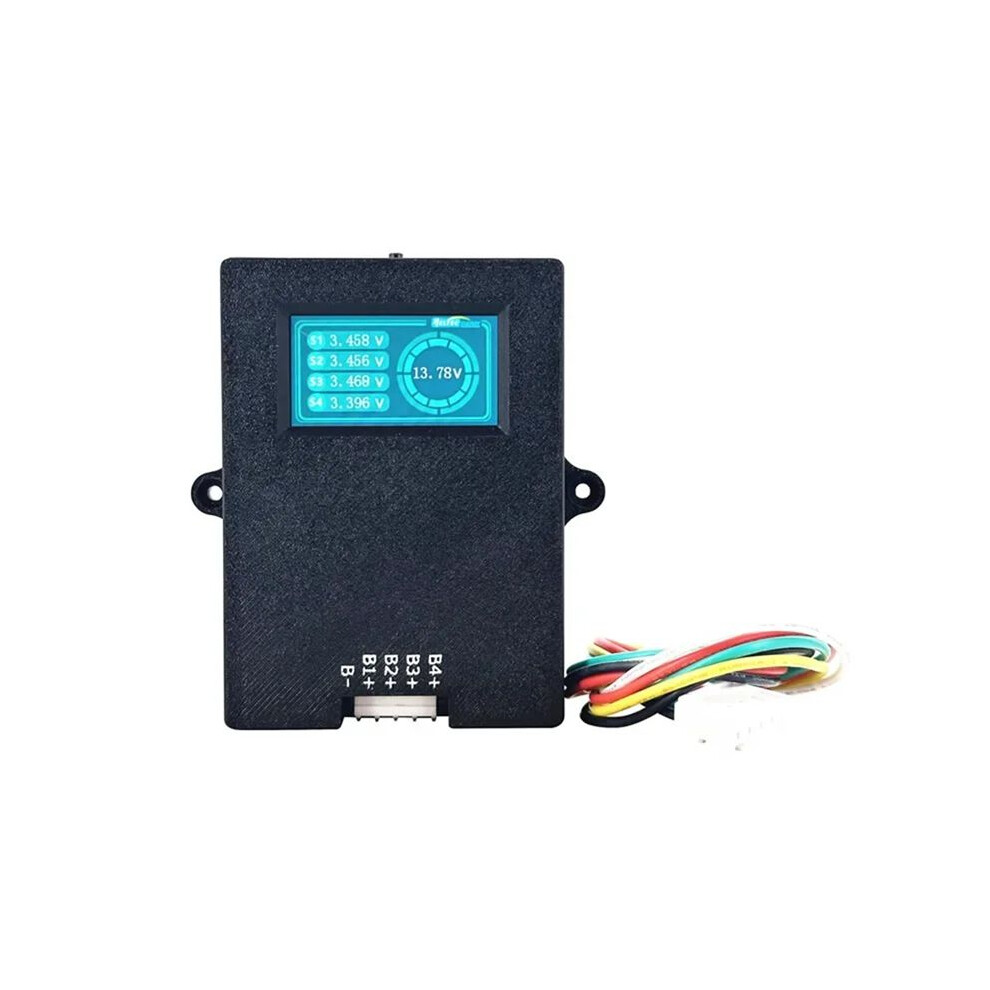

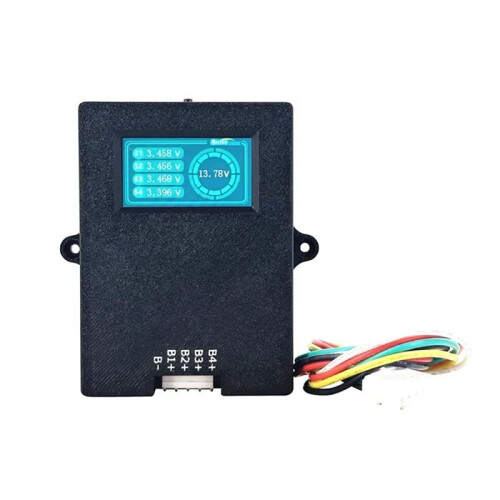

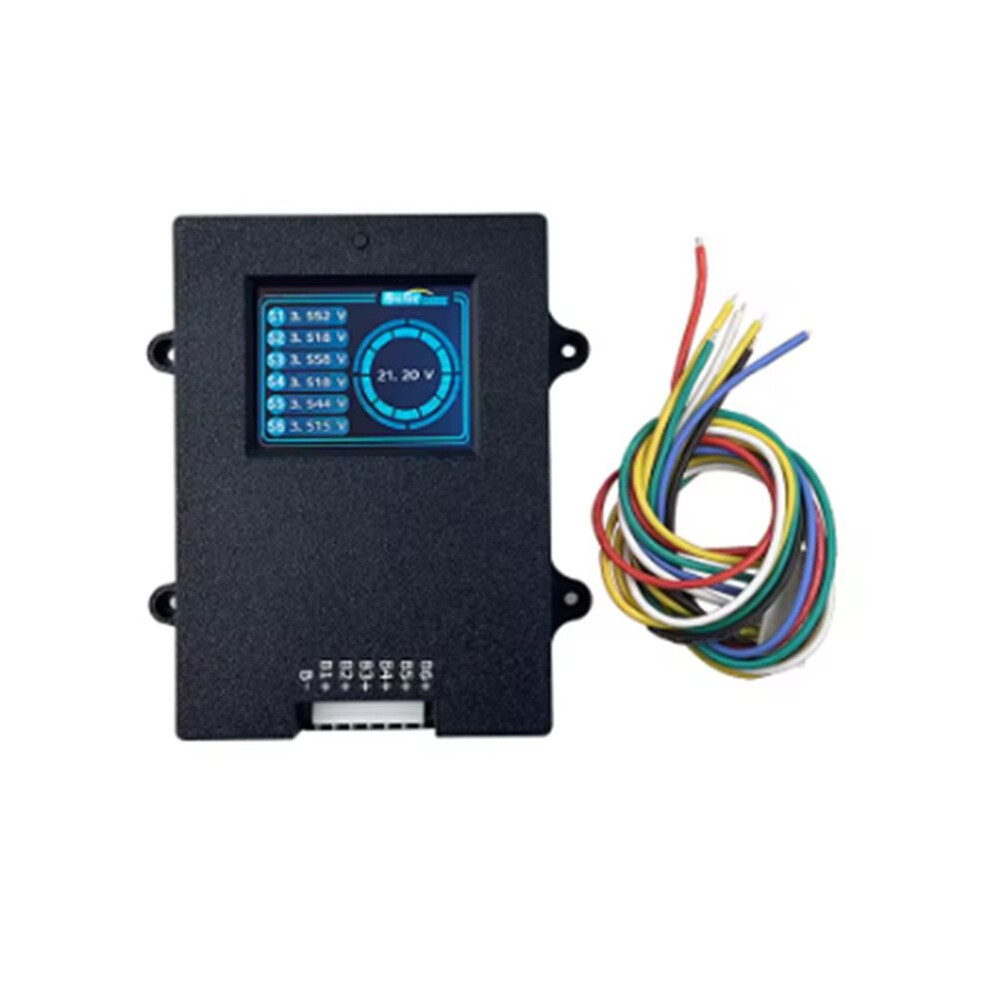

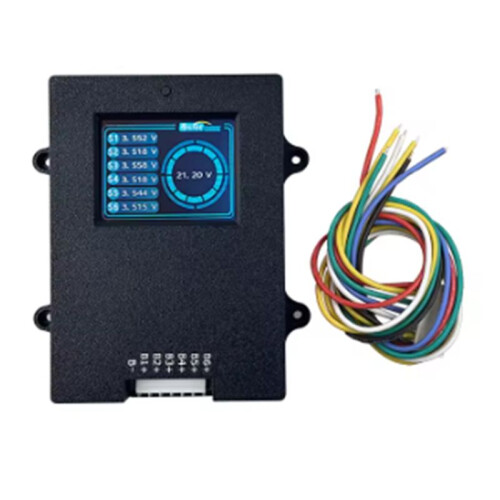

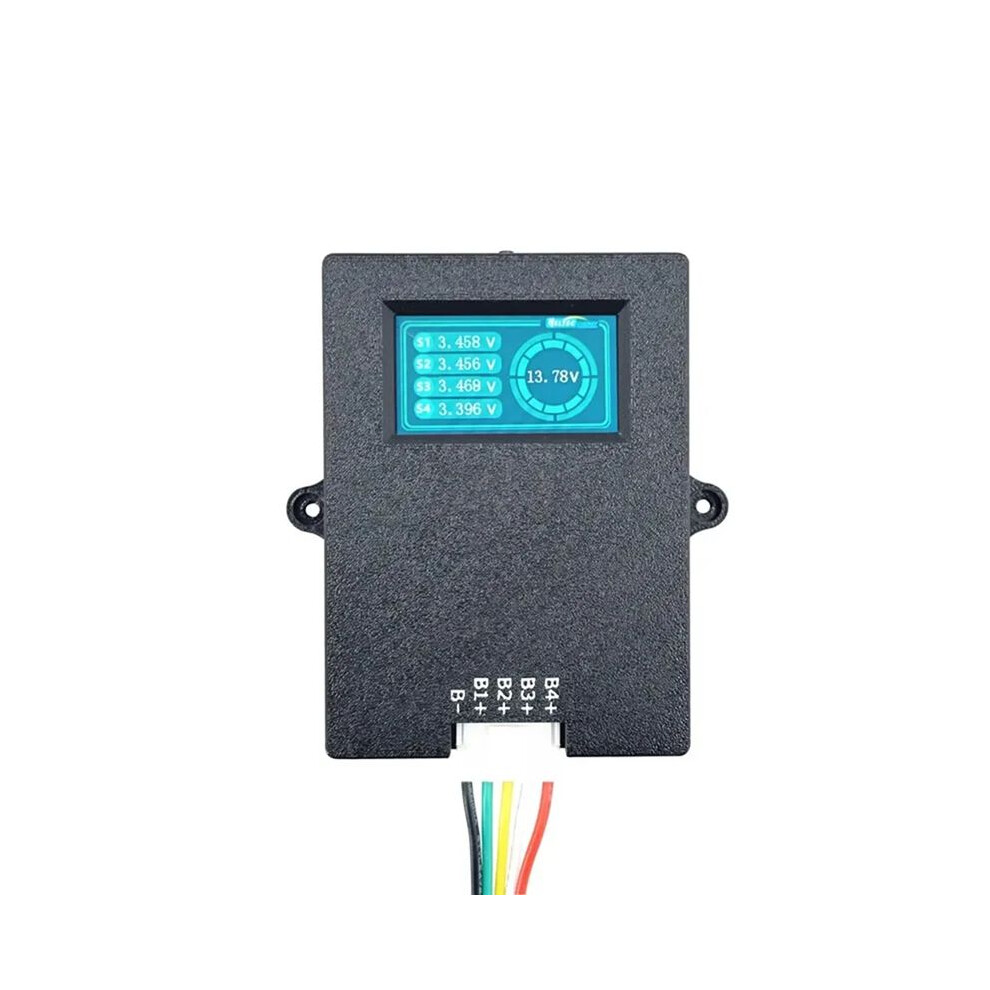

5A LTO Active Balancer 6S with Voltage Dispaly 12V Lithium Battery Transfer Active Equalizer

5A LTO Active Balancer 6S with Voltage Dispaly 12V Lithium Battery Transfer Active Equalizer Beskrivelse

Working voltage:1.8V-4.5V
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The new ultra-low internal resistance MOS, 2OZ copper thickness PCB.
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep , sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

need balancer:
As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance. The battery effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance. In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery effect and prolongs the problem. The battery pack has a service life.
The accuracy of a single string is 0.001V, and the total voltage is 0.01V.
Specifications:6S LTO
Color:Black
Material:plastic

Package Contents:
1 * active balancer
