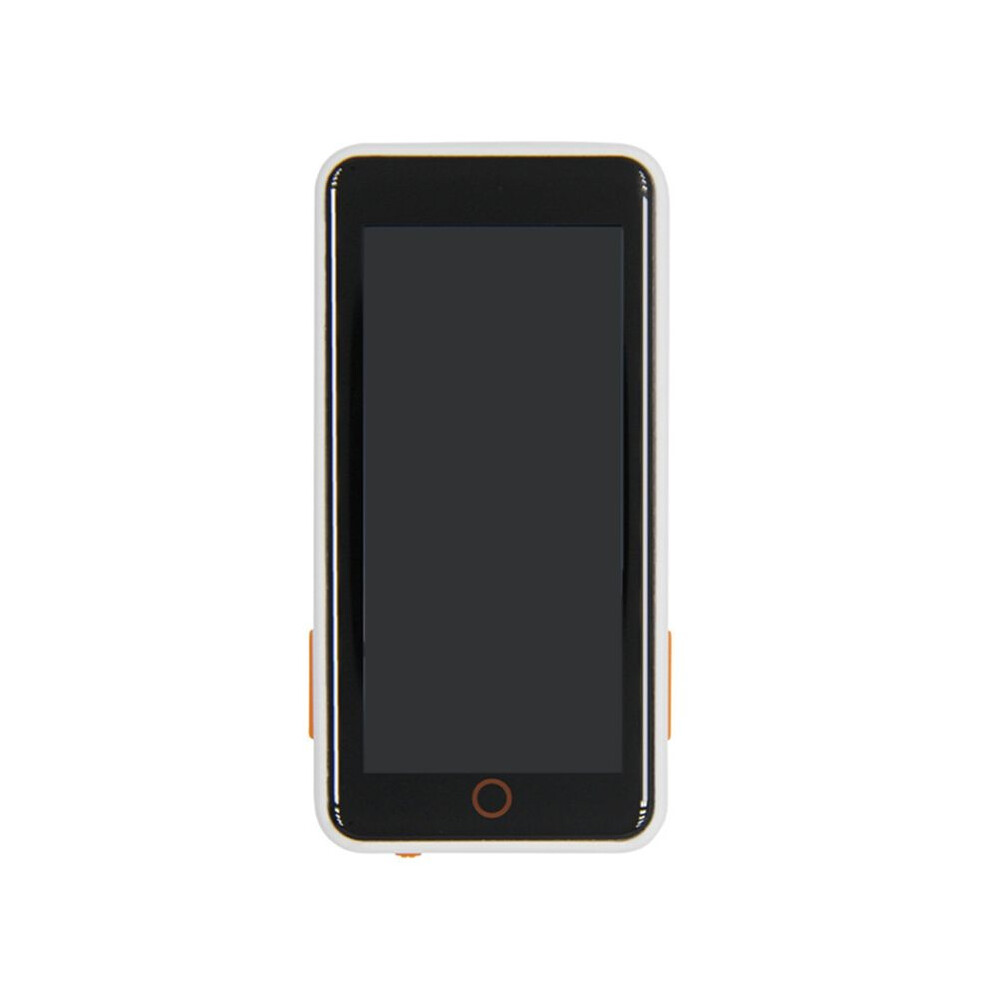

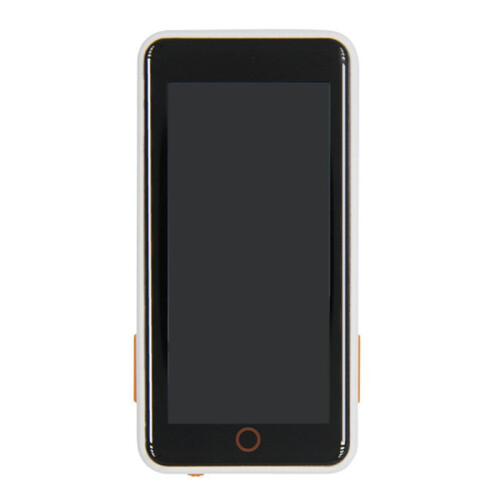

5MP OV5640 Camera T-Display-S3-Pro ESP32-S3 Touch Display 2.33inch LCD Development Board I2C Sensor Module WiFi D
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (23,90 kr.) | fre. 10. - tor. 16. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Oversigt
- Upgraded Features: The T-Display-S3-Pro is an advanced version featuring a larger 2.33-inch LCD screen and the addition of the SY6970 chip for enhanced OTG phone support.
- It retains the robust ABS casing and offers expandability via a POGOpin for camera modules. The board includes a built-in 3.8V 470mA battery, ambient light, and proximity sensors, dual QWIIC ports, and a power switch for battery management.
- Support and Resources: Access sample code and technical support on GitHub to maximize the board's capabilities.
- Support USB OTG function
- Camera ESP32-S3 LCD
5MP OV5640 Camera T-Display-S3-Pro ESP32-S3 Touch Display 2.33inch LCD Development Board I2C Sensor Module WiFi D Beskrivelse
Upgraded Features: The T-Display-S3-Pro is an advanced version featuring a larger 2.33-inch LCD screen and the addition of the SY6970 chip for enhanced OTG phone support.
It retains the robust ABS casing and offers expandability via a POGOpin for camera modules. The board includes a built-in 3.8V 470mA battery, ambient light, and proximity sensors, dual QWIIC , and a power for battery management.
Support and Resources: Access sample code and technical support GitHub to maximize the board's capabilities.
Support USB OTG function
2.33 inch Touch IPS TFT LCD: Resolution: 222(H)RGB x 480(V)
MCU: ESP32-S3R8,Dual-core LX7 microprocessor
Wireless communication protocol: Wi-Fi 802.11, BLE 5 + BT mesh
Programming platform: for -ide, for Micropython
Flash: 16MB
PSRAM: 8MB
Onboard functions: Boot + Reset + custom buttons (1012+1016)
OV5640 Camera:5MP, auto focus
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:D:White & Orange
Material:Plastic
Package Contents:
1 * LCD Development Board
Detaljer
| OPC | PVB7HHJ |
|---|---|
| Koder | 4712181089076 (EAN) |
Produktdata
| Height | 8cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.3kg |
| Colour | White & Orange |
| Material | Plastic |
