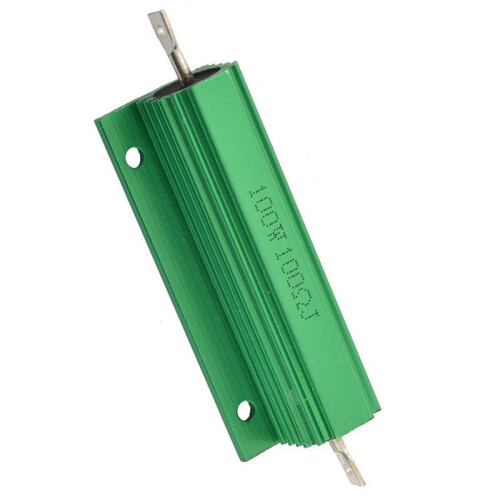

5X Aluminum Shell 100W Watt 100 Ohm Wirewound Power Resistor
New
149,32 kr.
Would you like us to let you know when it's back?
Beskrivelse og detaljer
Oversigt
- Product Name : Aluminum Housed Resistor;Resistance Value : 100 Ohm;Power Rating : 100W
- Resistance Tolerance : ± 5% (J);Body Size : 59 x 15mm/ 2.3 inch x 0.6 inch (L x D)
- Mounted Hole Size : 3.3mm/0.129 inch;Total Size : 82 x 21 x 17mm/ 3.2 inch x 0.8 inch x 0.7 inch (L x W x T)
- Casing Material : Aluminum;Color : Green
- Resistor
5X Aluminum Shell 100W Watt 100 Ohm Wirewound Power Resistor Beskrivelse
Product Name : Aluminum Housed Resistor;Resistance Value : 100 Ohm;Power Rating : 100W
Resistance Tolerance : Â 5% (J);Body Size : 59 x 15mm/ 2.3 inch x 0.6 inch (L x D)
Mounted Hole Size : 3.3mm/0.129 inch;Total Size : 82 x 21 x 17mm/ 3.2 inch x 0.8 inch x 0.7 inch (L x W x T)
Casing Material : Aluminum;Color : Green
Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment.
Small size, high power load, standard and non-inductive winding types.
High insulating capacity, good performance in vibration.
Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator, audio and high requirement equipment industry.

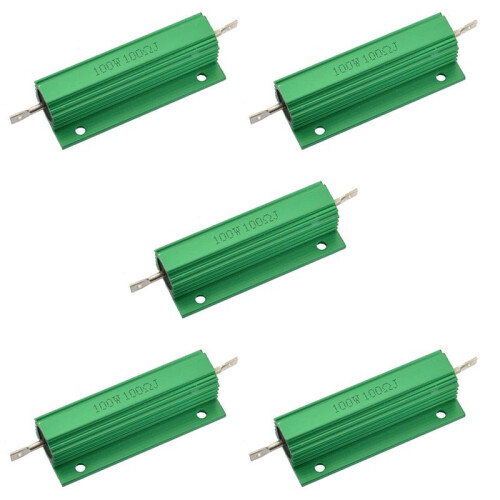

Package Content : 5 x Aluminum Housed Resistor
Detaljer
| OPC | PWNJJJC |
|---|---|
| Koder | 6031439770442 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 10cm |
|---|---|
| Width | 3cm |
| Length | 9cm |
| Weight | 0.15kg |
| Colour | green |
| Material | Aluminum |
