5X K-1000C Controller K1000C WS2812B WS2811 APA102 T1000S WS2813 LED 2048 Pixel Program Controller DC5-24V

5X K-1000C Controller K1000C WS2812B WS2811 APA102 T1000S WS2813 LED 2048 Pixel Program Controller DC5-24V Beskrivelse

32 levels-65536 levels of gray control, software gamma correction processing.
Support points, lines, areas, rules and shaped handles.
Single port output can support 2048 pixels.

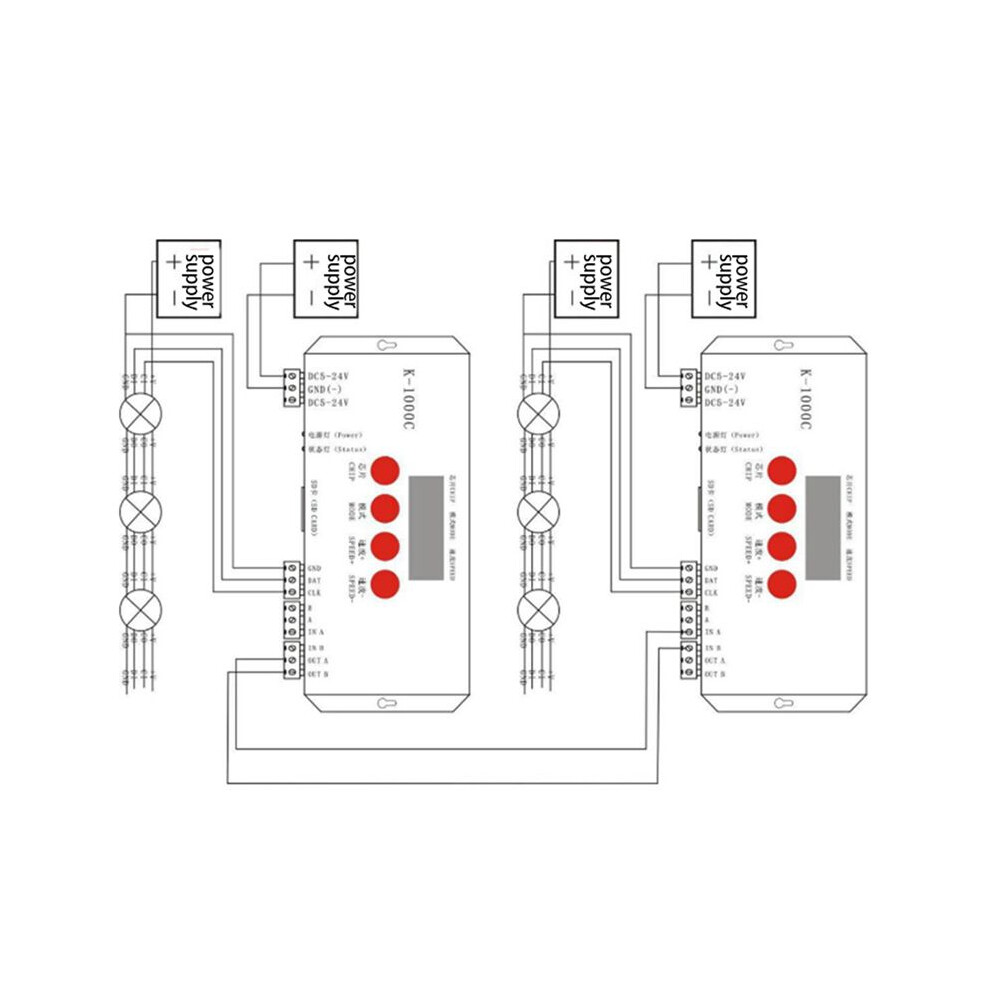

Multiple controllers can be cascaded together and work synchronously
Compatible with single-wire or two-wire chips.

Memory card Type: card
Capacity: 128MB-32GB
Physical parameters:
Weight: 1kg
Temperature: -40-85 degrees
Voltage gate: DC5V / DC7.5-24V
Features: K1000C controller
Power: 3W
Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.
2. For a single-channel lamp with a load, K-1000-W needs to be selected. At this , a channel represents a pixel, and the software effect is white.
Precautions:
1. Before copying the file to the card, the card must be formatted first. Note that it must be formatted before each copy.
2. The card must be formatted into "FAT" format or "FAT32" format.
3. The card cannot be hot swapped, that is, every the card is plugged and unplugged, the controller must be disconnected from the power supply.
size:159 x 89 x 24mm
Material:metal
colour:White

Package Contents:

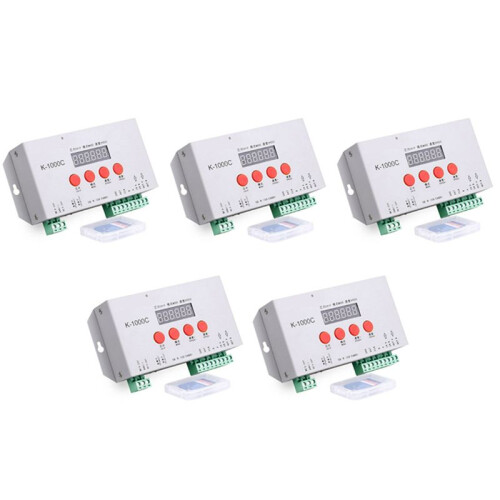

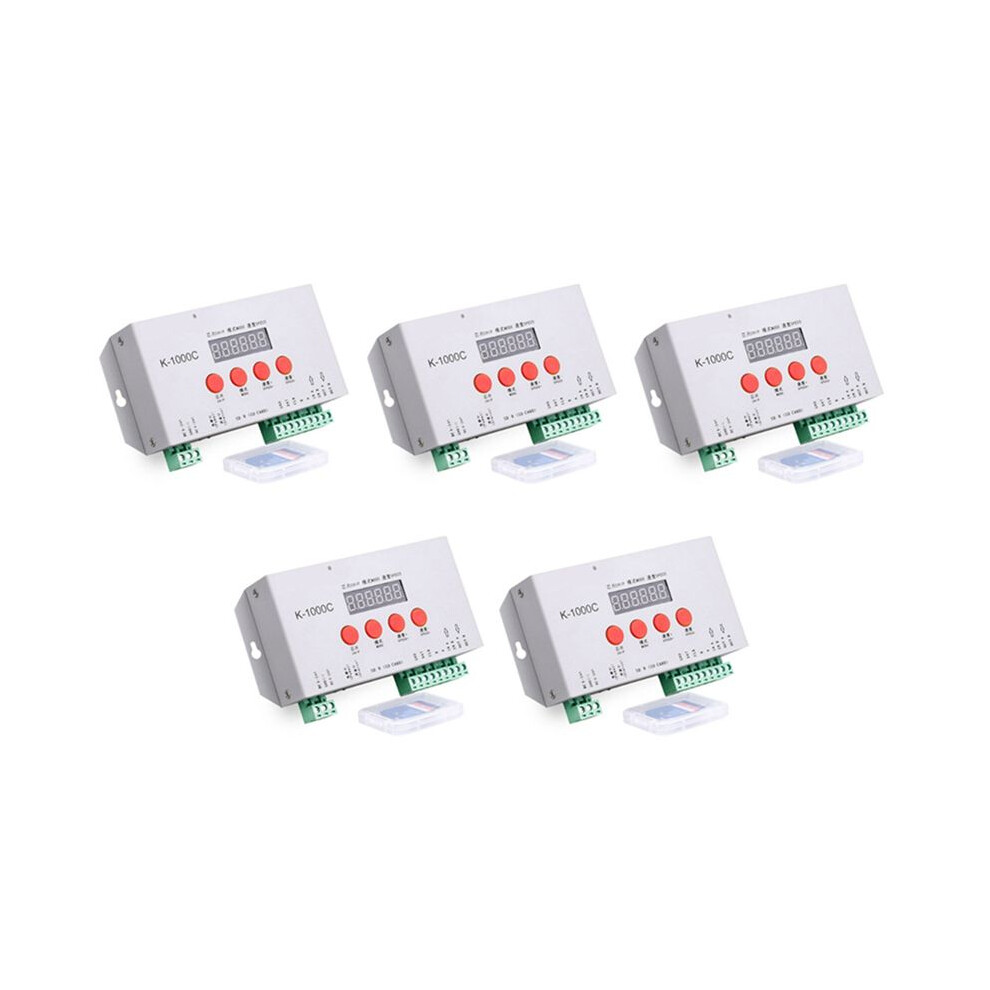

5 x K-1000C Pixel Program Controller
5 x 256M memory card
