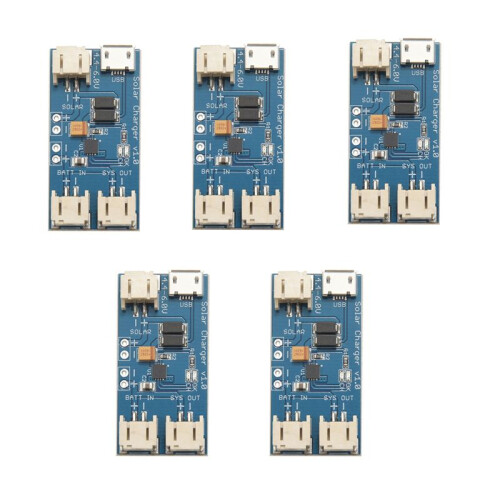

5X Solar Lipo Charger Board CN3065 Lithium Battery Charger Board Module
Brand Typecat
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
140,05 kr.
166,37 kr.
Spar 16%!
+31,63 kr. levering
1%
Tjen 1,40 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | fre. 24. - ons. 29. jul.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Beskrivelse og detaljer
Oversigt
- This is a super mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip.
- This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!
- The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It's recommended that batteries not be charged at greater than their capacity rating.
- CN3065
- Lithium Battery Charger Board
5X Solar Lipo Charger Board CN3065 Lithium Battery Charger Board Module Beskrivelse
This is a super Solar Lipo charger based the CN3065 - a single lithium battery charge management chip.
This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set- is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!
The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It's recommended that batteries not be charged at greater than their capacity rating.
color:
Material: PC + metal
Solar panel input: 4.4-6V
Max charge current: 500mA
Interface: 2-pin JST connectors(or PH2.0)
Short circuit protection
Continuous Charge Current to 500mA
Battery status indication ( Red : Charging , Green: Charged )
Support USB Charge (Micro-USB Connector)
Size:2cm x 4cm
Package Contents:5 x module
Detaljer
| OPC | PTGQXMY |
|---|---|
| Mærke | Typecat |
| Koder | 6032664141120 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 3cm |
| Length | 5cm |
| Weight | 0.025kg |
| Colour | blue |
| Material | PC + metal |
