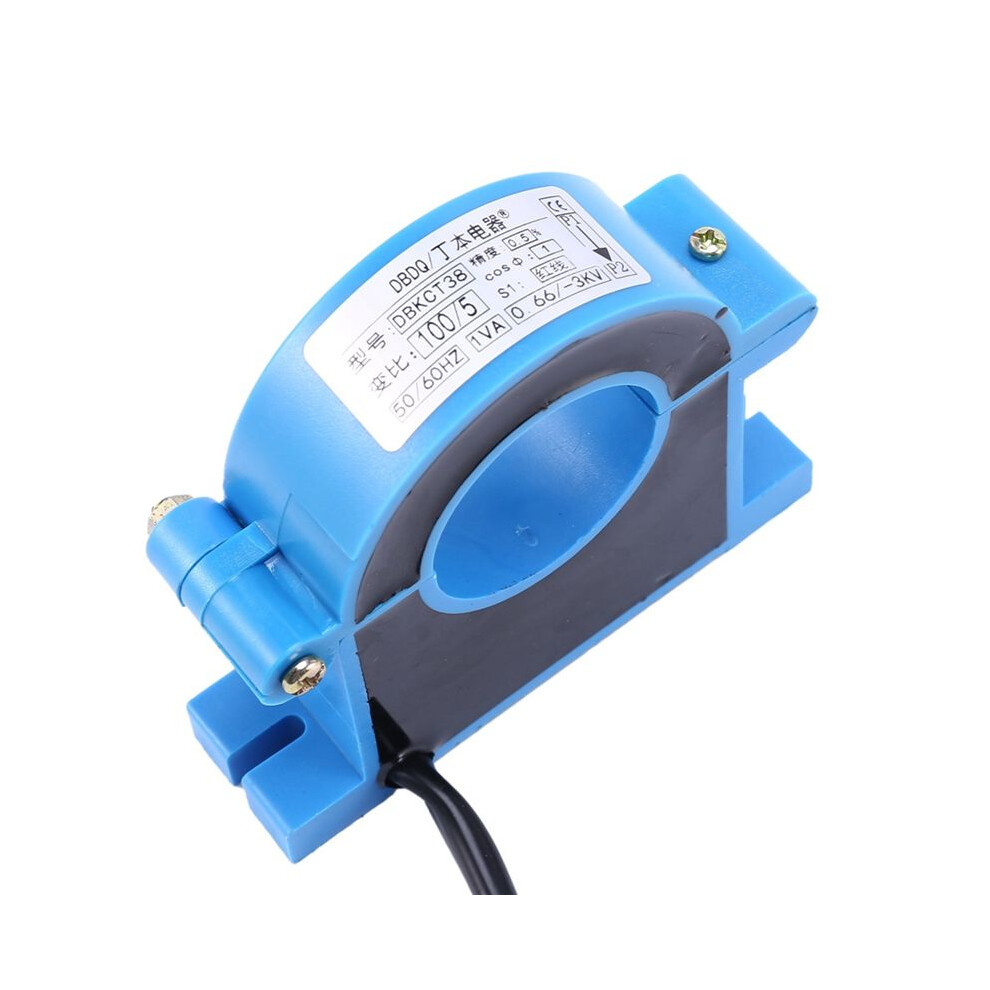

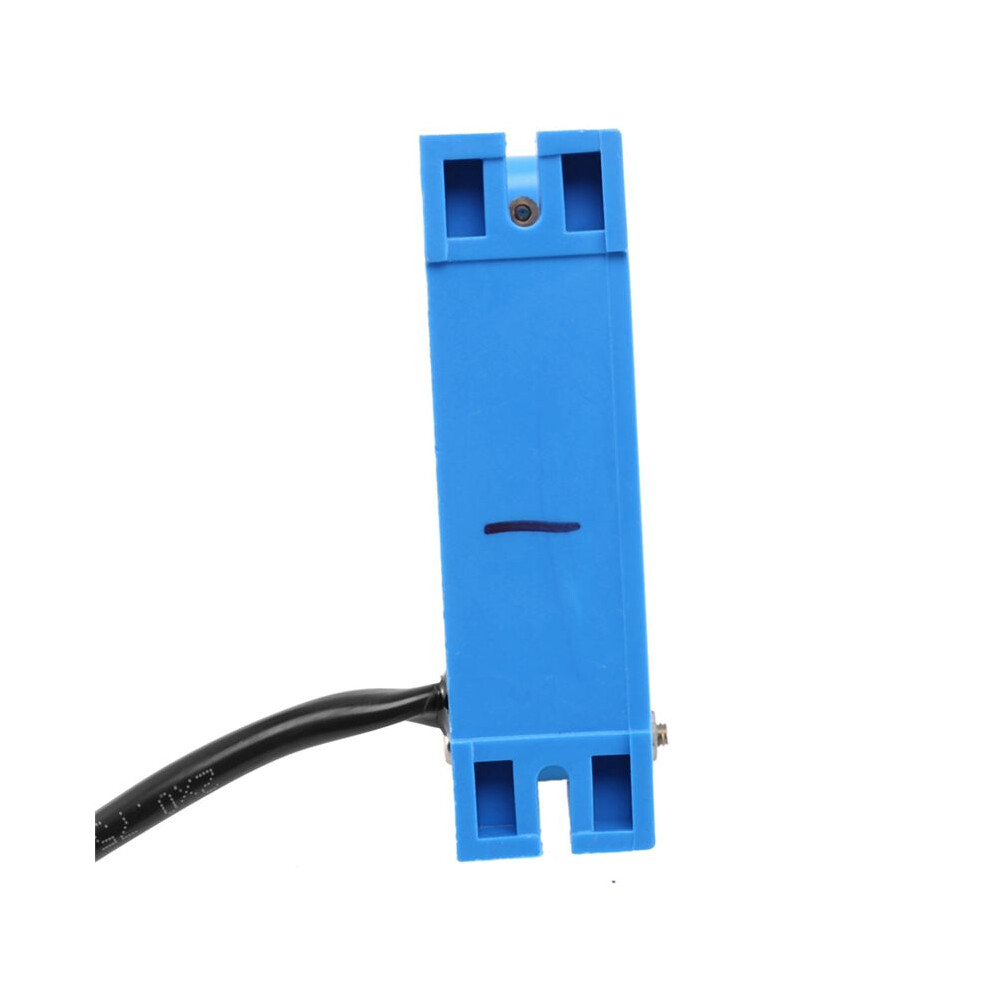

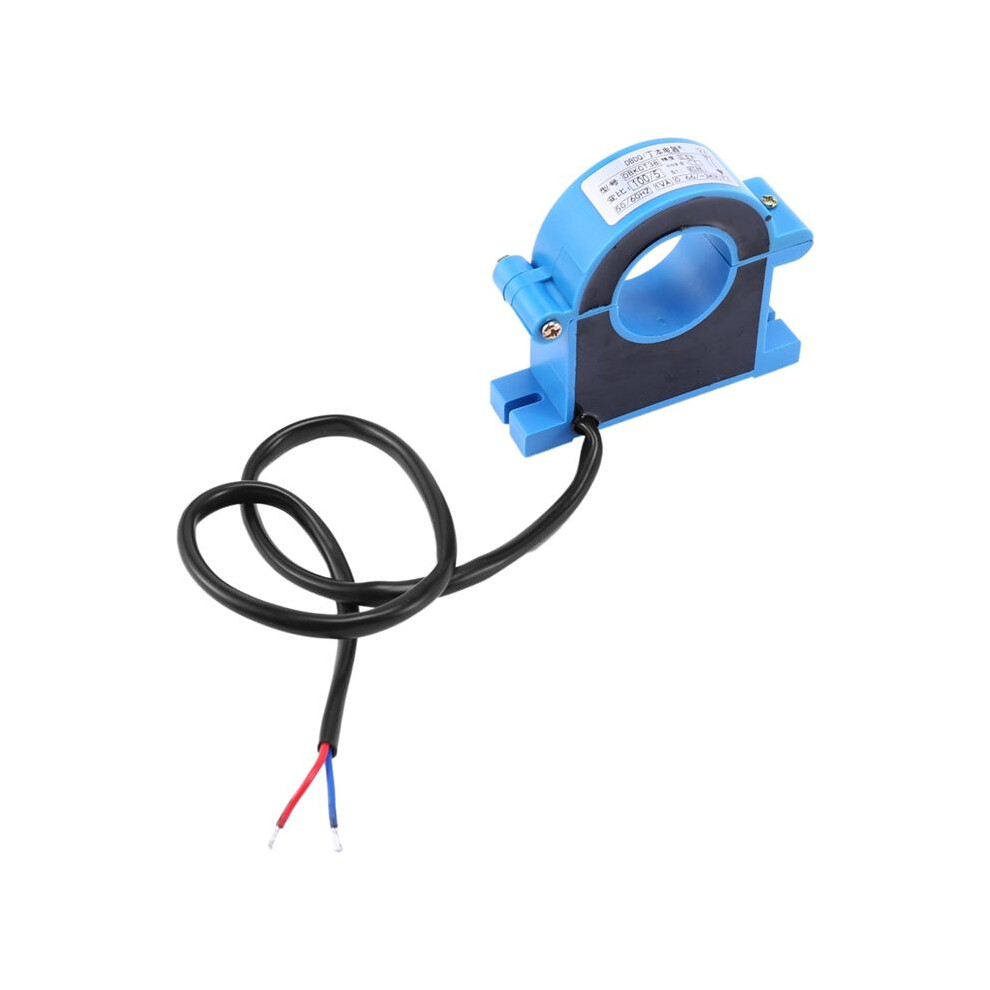

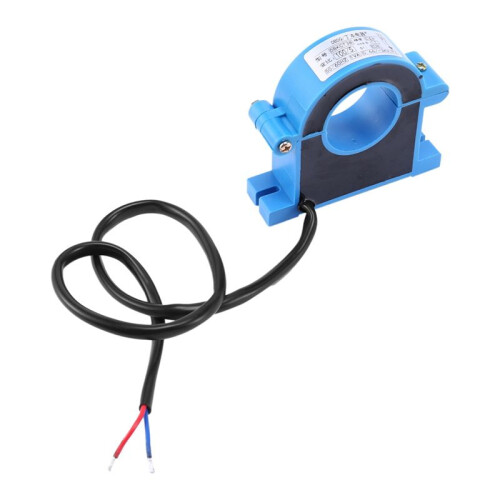

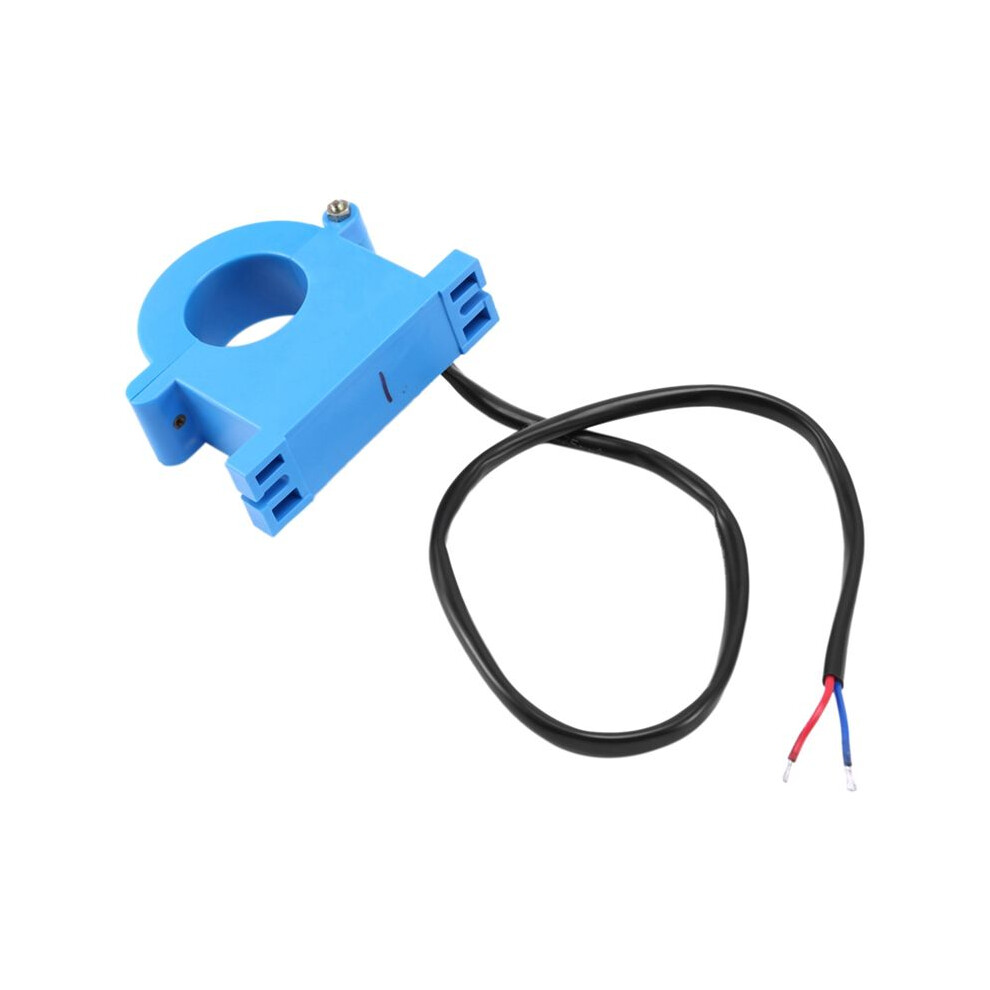

6 Piece / Batch Small Ac Current Transformer Ct 100A/5A Level Current Transformer Ac Split Core Ct Sensor

6 Piece / Batch Small Ac Current Transformer Ct 100A/5A Level Current Transformer Ac Split Core Ct Sensor Beskrivelse

The structure of the self-locking, safe, easy to install, portable
Wide inner window, allowing clamping of cables or bus-bars
Wide range of sizes to accommodate all the existing installations
Isolated plastic case recognized
Wires plugs, Audio plugs, Power plugs and so five kinds of plugs

Meet the standard IEC60044-1 and ANSI C12.20
High accuracy class ,wide linearity
Superitor stability ,separate the external magneitc field interference
Measure the current directly
It is with the diode to save people's life
Usage: Current

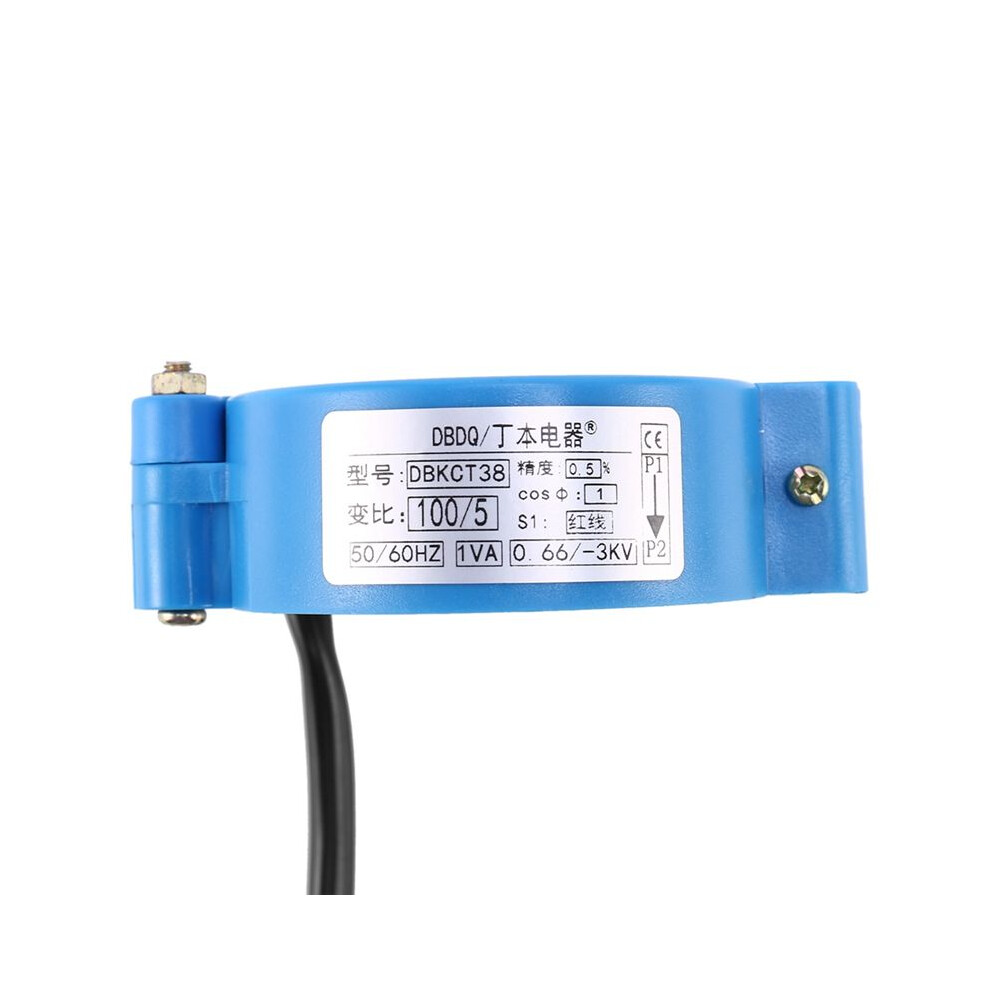

Model Number: KCT38
Phase: Single
Coil Number: Autotransformer
Coil Structure: Split Core
Ratio: 100/5A
window size: 38MM
Accuracy: 0.5
Application: Electricity Measuring
Operating Temperature: -40C~+70C
Note:
1. The current transformer primary should be connected in series with the current loop to be measured. The primary should be close to the circuit short circuit.
2. Current mutual inductance primary circuit is not allowed to open circuit, so please do not install fuse
3. The open current transformer should be connected to the secondary circuit if it is charged, and then connected to the primary circuit.
colour: + black
Material:plastic

Package Contents:

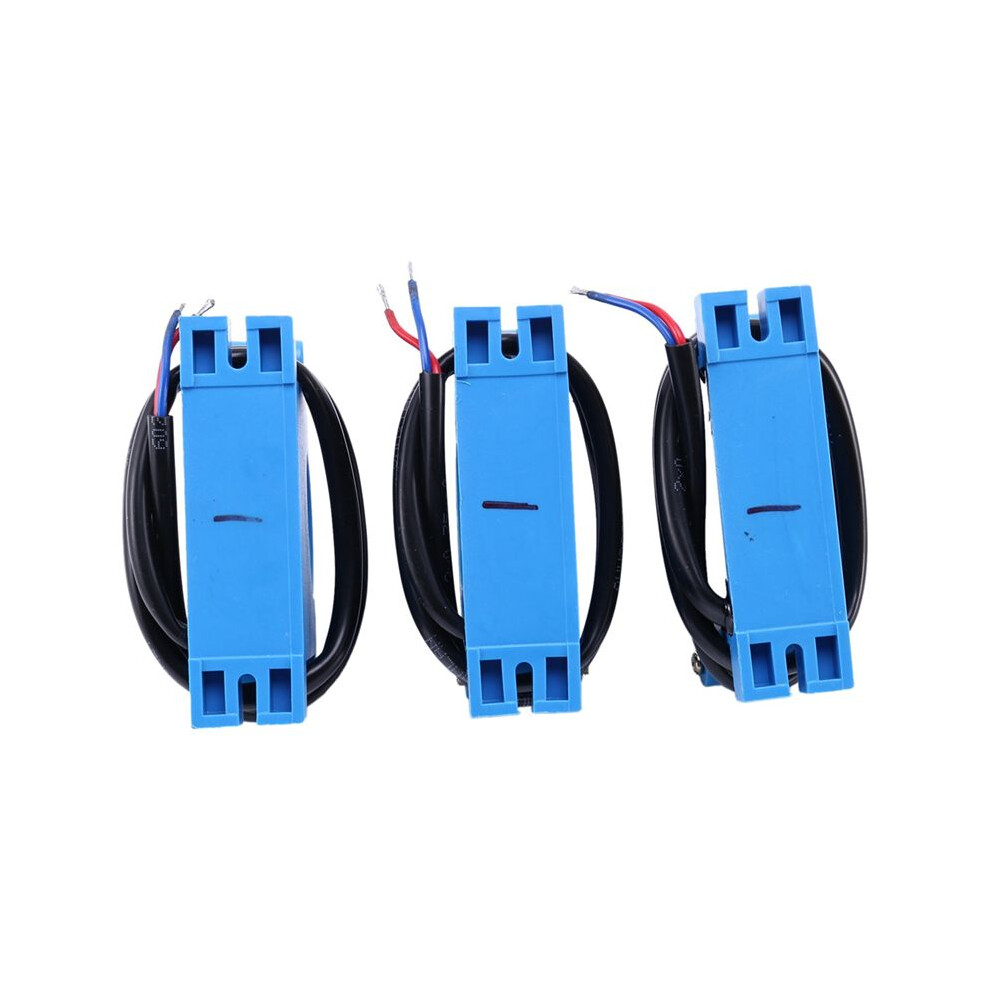

6 * Current Transformer
