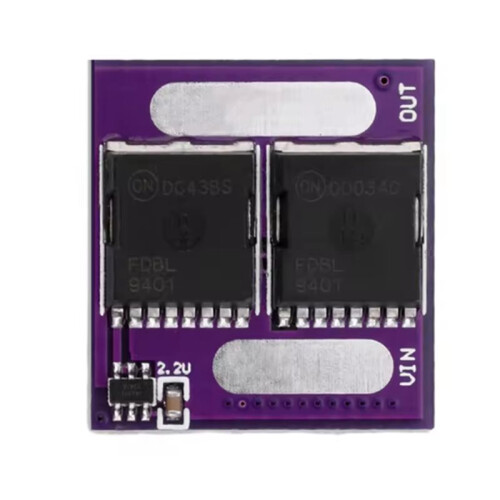

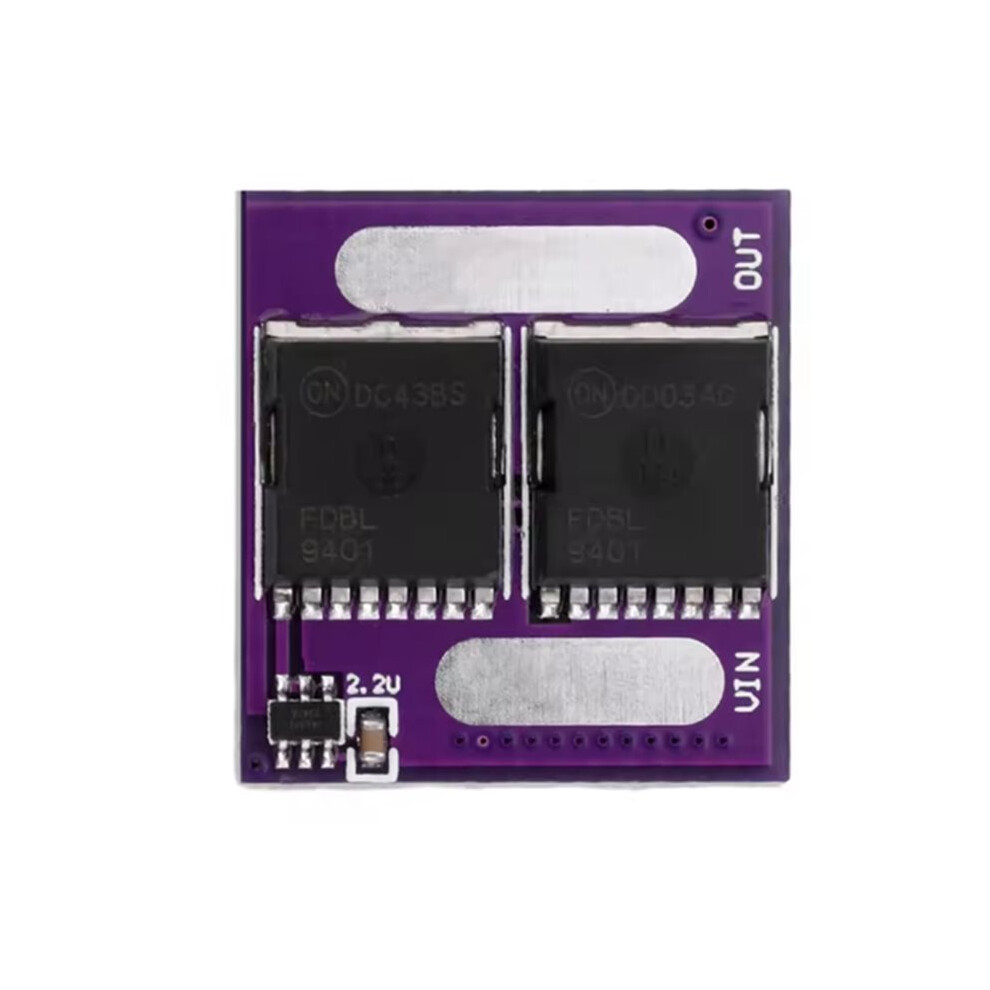

60A Diode Module No Voltage Limitation Anti Reverse Irrigation Battery Charging Anti Backflow Protection Rectifier Board

60A Diode Module No Voltage Limitation Anti Reverse Irrigation Battery Charging Anti Backflow Protection Rectifier Board Beskrivelse

No voltage limit 60A:

No voltage limit
Usage range 5V
At room temperature (25C), can run 30A for a long
With heat dissipation, can run above 60A
With grounding, more stable
Fast response within 150ns
Ultra-low static power consumption of 50uA -40C
to+85C

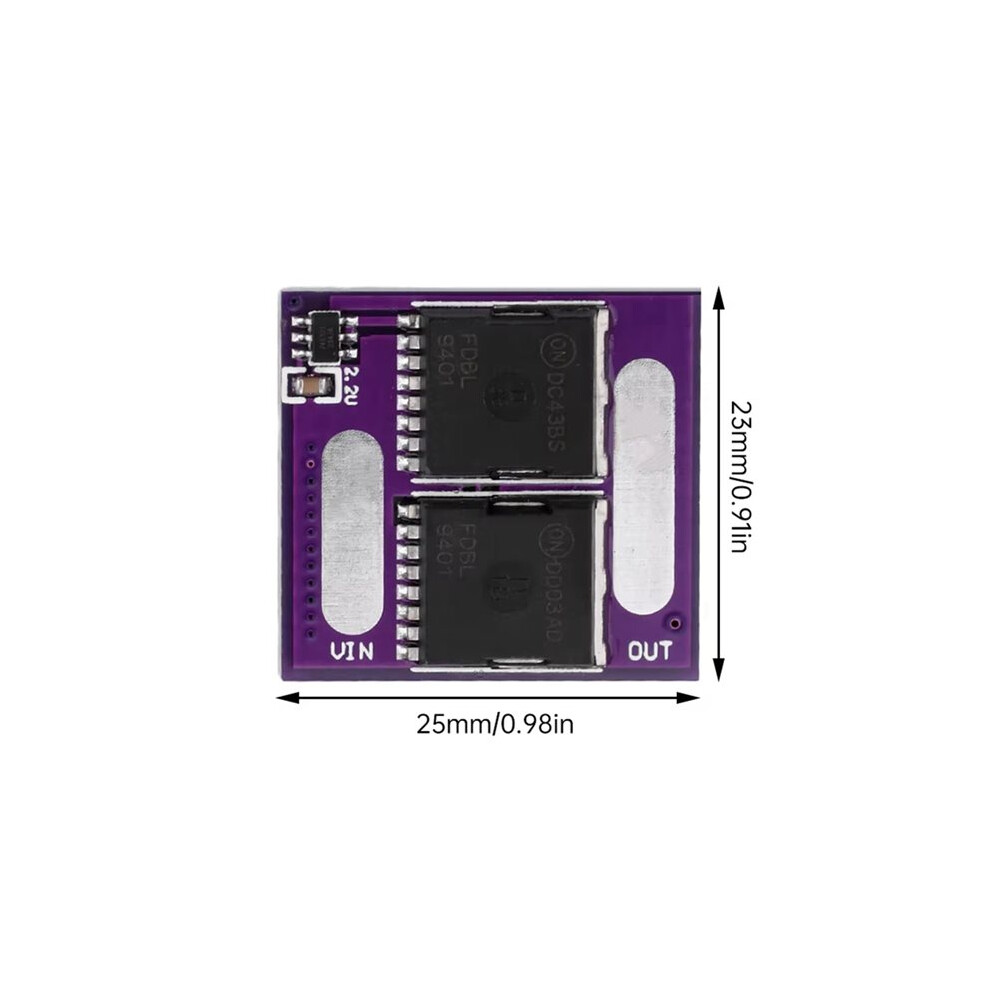

Size: 25*23*4MM
IN: Positive pole welding input.
OUT: Positive pole welding output.

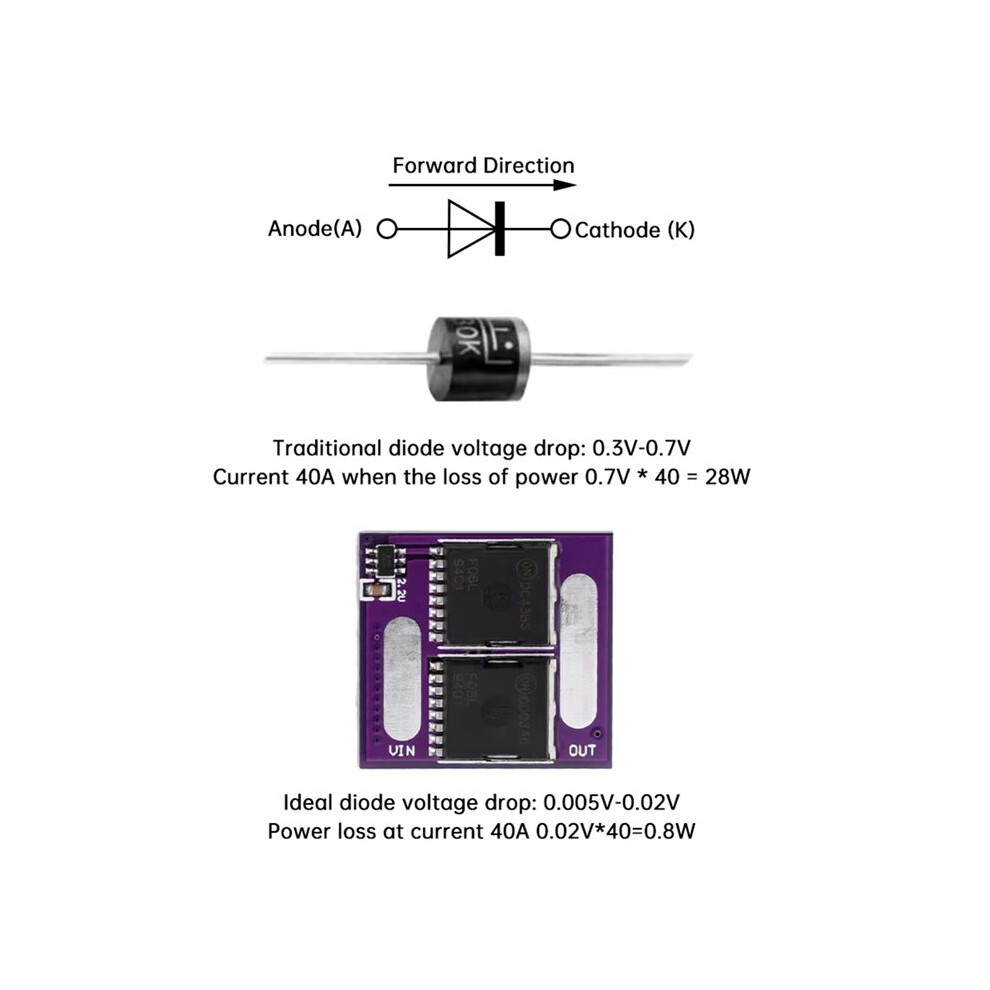

The ideal diode module adopts a dedicated chip to simulate an ideal diode rectifier. It uses 0.8mR low-resistance MOS in parallel, which has a small voltage drop during high current operation, avoiding the high voltage drop of 0.7V of ordinary diodes. In actual wind-cooled conditions, it can handle to 40A. The module can theoretically handle more than 60A when attached to a large heat sink. The module requires a grounding wire. Compared to the ideal diode without a ground wire, it has better anti-interference ability, a wider range of applications, and more stable output.
Color: As Shown
Material: PCB

Package Contents:
1*Module
