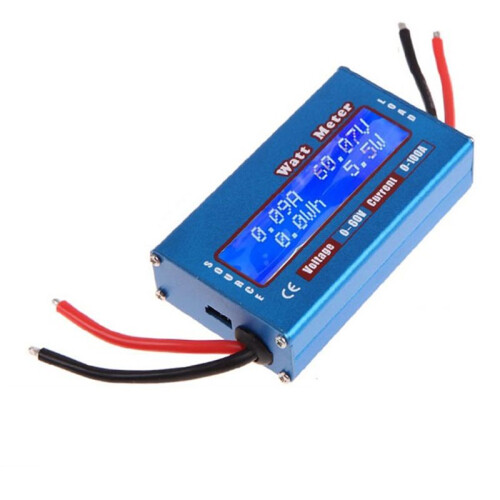

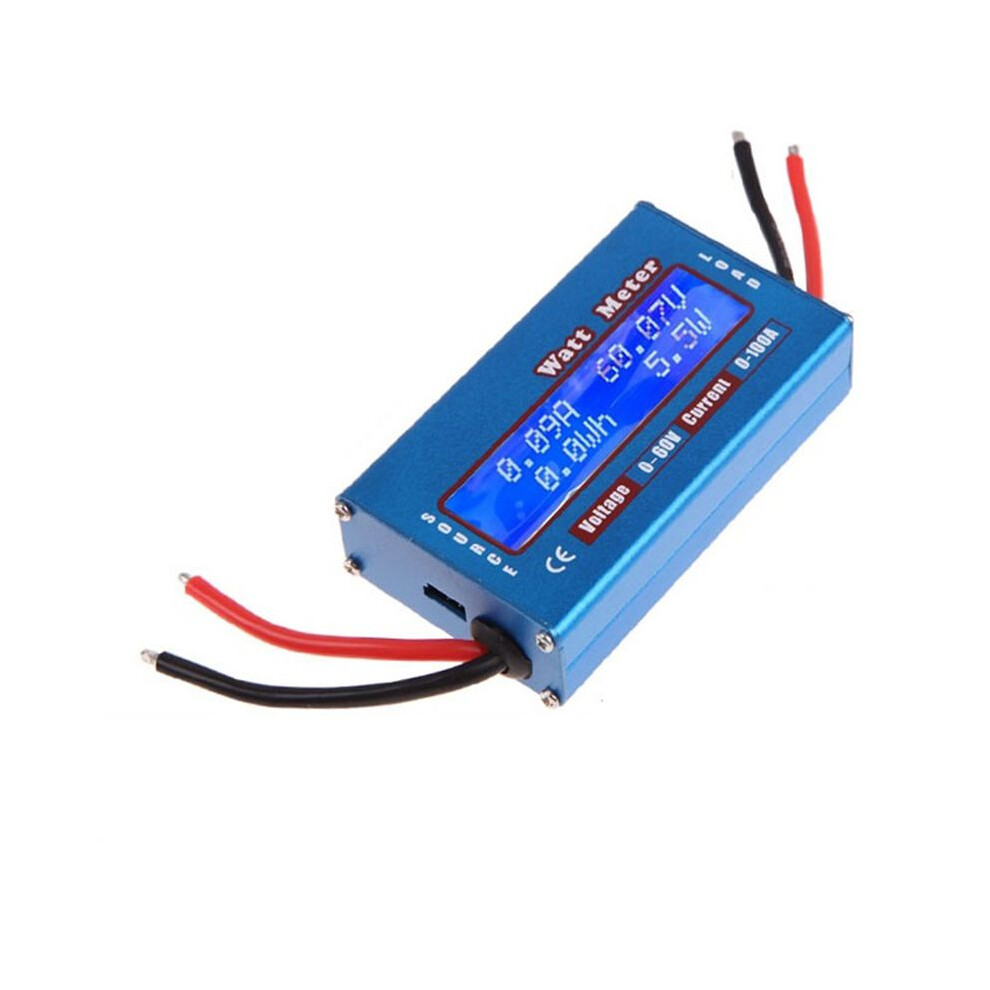

60V 100A WATT Meter Power Analyser Solar Wind Analyzer LCD Digital Current Meter Power Analyser

60V 100A WATT Meter Power Analyser Solar Wind Analyzer LCD Digital Current Meter Power Analyser Beskrivelse

Easy-to-use power analyser 0 - 60V 0 - 100A for measuring power flow in a low voltage circuit such as the flow - in Watts - and the cumulative rate of flow - in Watt-hours - from a solar panel or a wind generator into a battery.
Simple +positive/-negative (GND) two-wire input (Source) and two-wire output (Load) for series insertion into circuit.

Two- LCD - updated every 0.4 seconds - displays eight different values:
Power 0 - 6554 Watts to 0.1W resolution
Current 0 - 100 Amps (max) 50A continuous to 0.01A resolution
Voltage 4 - 60 Volts to 0.01V resolution
Power flow rate 0 - 6554 Watt-hours (Wh) to 0.1Wh resolution
Current flow rate 0 - 65 Amp-hours (Ah) to 0.001Ah resolution
current in Amps
power in Watts
Voltage minimum (dip) over monitoring period
Low in-circuit resistance just 0.001 Ohms negligible 7mA circuit load.
Due to different batches, there may be differences in the appearance, color, and printing of the product, which will not affect its use.
Colour:
Material:Metal

Package Contents:
1 x Analyser
