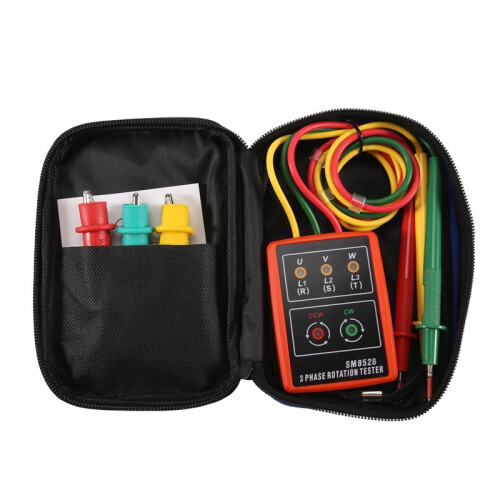

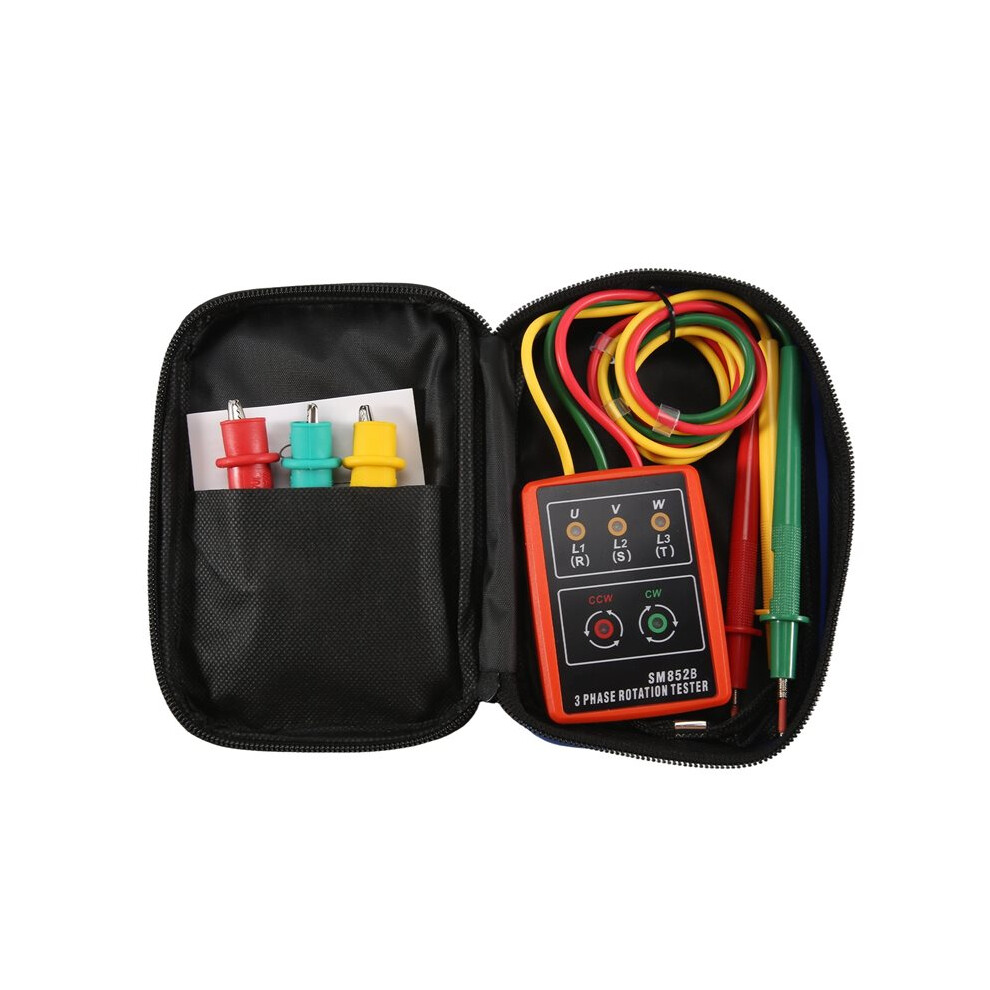

60V-600V AC Three Phase Rotation Indicator Meter Phase Sequence Tester LED Buzzer with Portable Pouch

60V-600V AC Three Phase Rotation Indicator Meter Phase Sequence Tester LED Buzzer with Portable Pouch Beskrivelse

Designed to check the phase sequence.
With LEDs to show if the phase is open or not, Supports Buzzer indication.
Highly reliable, can check a large of 60V to 600V AC three-phase.
With Alligator Clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
Small, light and portable, convenient for using.

DIY Supplies:Electrical
Accuracy Class:0.1
Operation Voltage:60V-600V AC, three phase
Limit Support Voltage:2000V/minute (Impulse voltage 4000V)
Operation Frequency Range:20Hz-400Hz
Limit for Continuous Use:
60 minutes maximum at 200V AC
4 minutes maximum at 600V AC
Phase Sequence Indicator LED:
Green for correct phase sequence, Intermittent Beep
Red for reverse phase sequence, Continuous Beep
Test Leads:
Double insulation, Approx. 80cm cable length
Yellow for U phase (L1.R)
Green for V Phase (L2.S)
Red for W phase (.T)
Net Weight:189g
Colour:As Shown
Material:Plastic
Size:8 x 6 x 2.4cm

Package Contents:
1 x 3 Phase Sequence Tester
3 x Alligator Clips
1 x Pouch
1 x English User Manual
