6X AC 120V 220V Delay Relay Power Delay OFF 1-480Min Adjustable Delay Power OFF Automation Controller

6X AC 120V 220V Delay Relay Power Delay OFF 1-480Min Adjustable Delay Power OFF Automation Controller Beskrivelse

Function: Stop power supply after a delay,Delay 1-480Min Adjustable.
Module function: This module is a delayed power-off module. When the set delay expires, stop power supply.
Applicable scenarios: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.
Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.

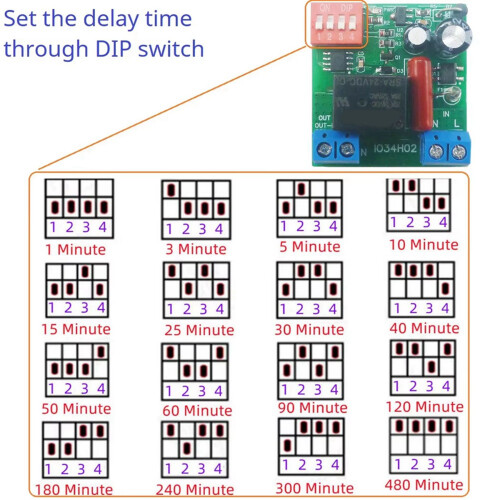

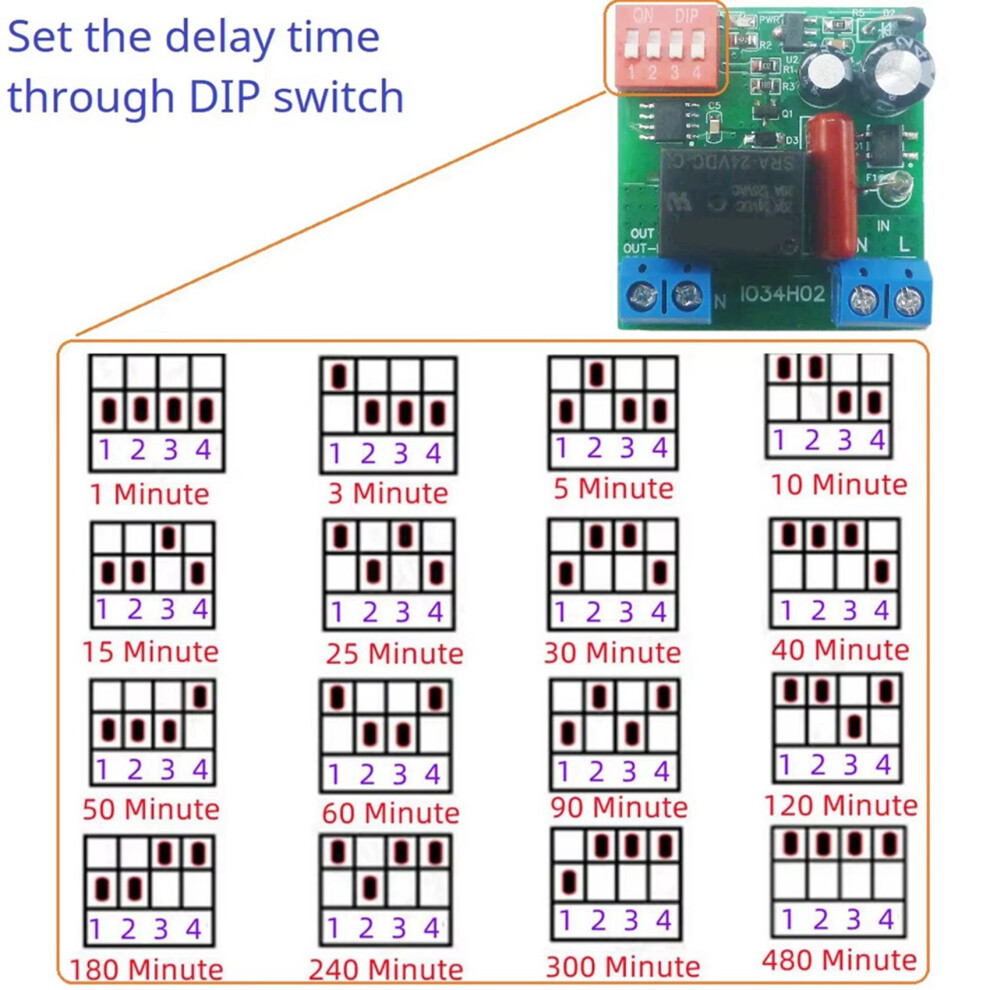

Working status: After the power is turned , the indicator (PWR) will remain ; after the delay is over, the indicator (PWR) will continue to flash. 16 delay modes can be selected (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes, 300 minutes, 480 minutes)

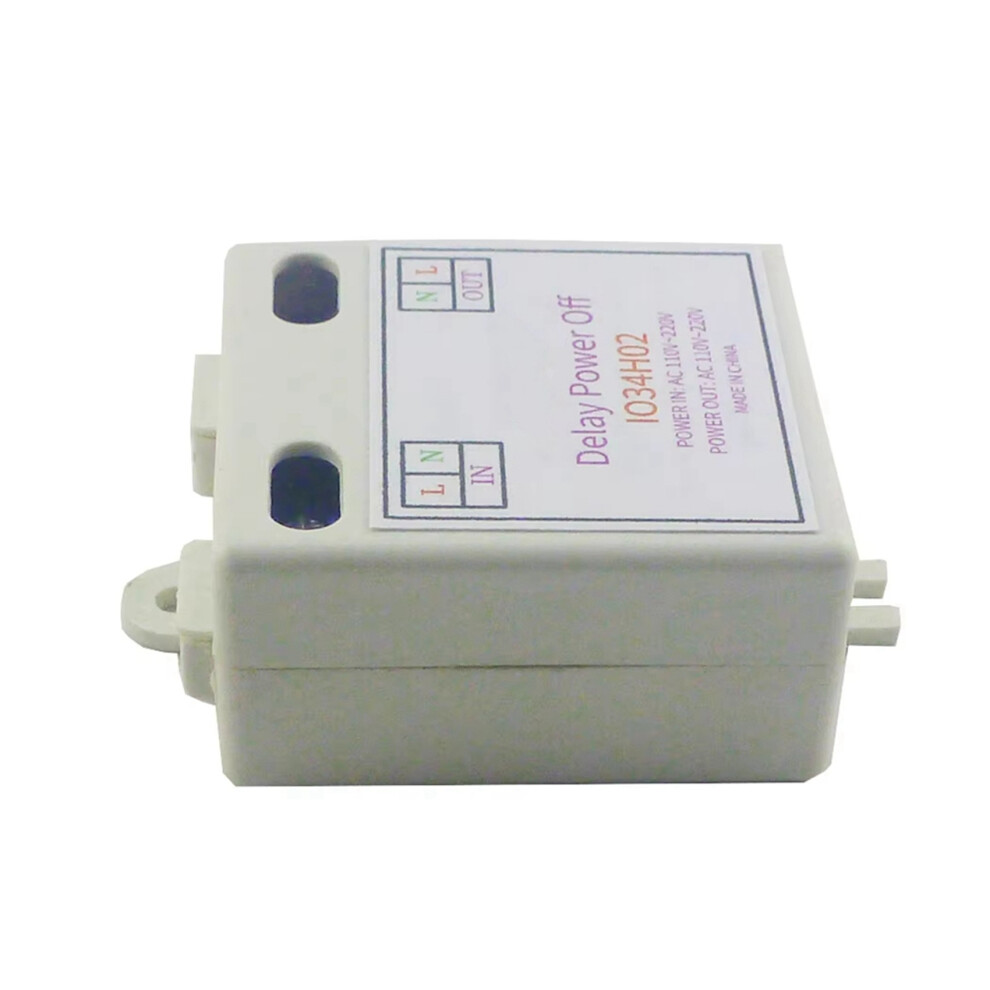

Model: IO34H02
Load capacity: 10A 120VAC 5A 220VAC
Working power consumption: 42mA
Output voltage: AC 110-220V
Power supply voltage: AC 110-220V
Maximum standby power consumption: 12mA
Number of control channels: 1 output
Control power: incandescent lamp 1000W (maximum), -saving lamp 300W (maximum).
With LED indicator light to show the working status (steady means working, flashing means the end of delay).
How to use:
①: Set the you need to delay (no live settings are allowed);
②: After checking that the wiring is OK, power , the module starts to work after power , (the indicator light is always ), and the module stops power supply when the is (indication light flashes).
1. If it needs to be turned off in advance during use, directly disconnect the main power supply of the module.
2. Start the second delay: re-power .
Note:
When a new delay mode needs to be set, in order to ensure personal safety, it must be set in a power-off mode, and live operation is prohibited.
Due to d
