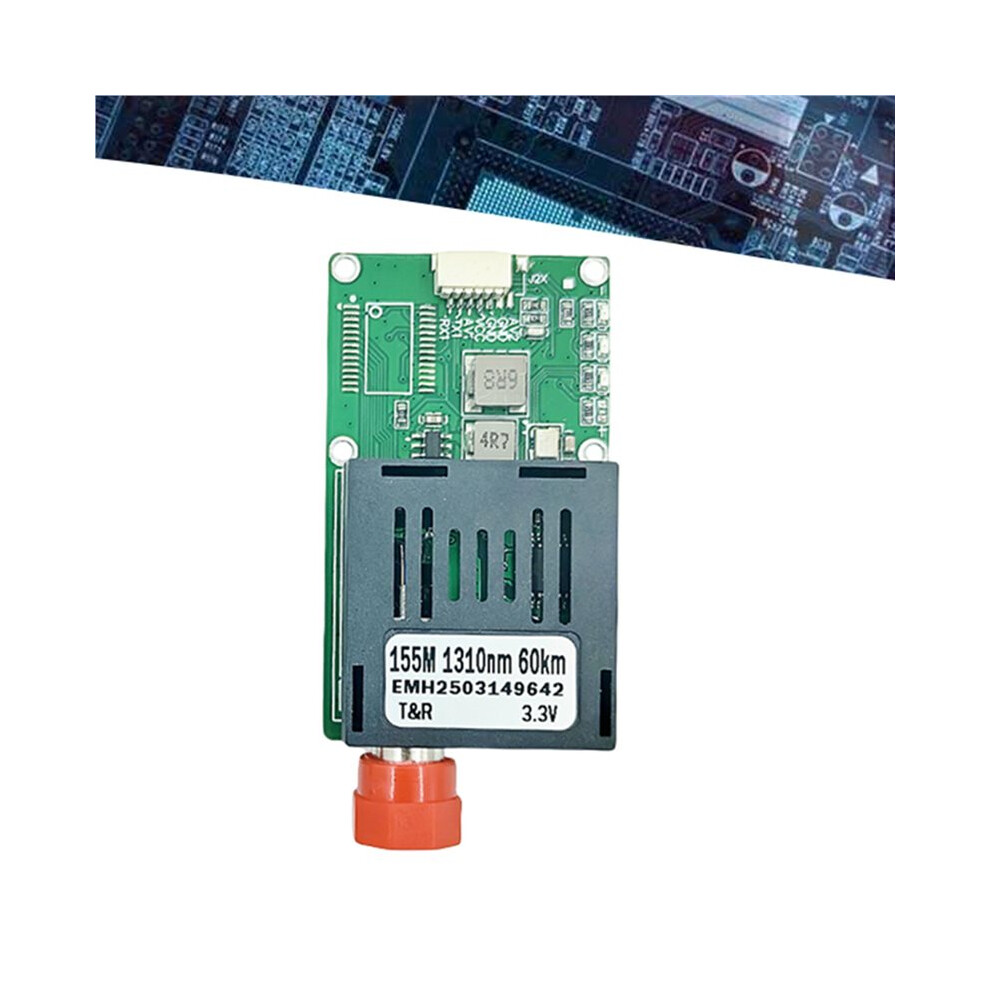

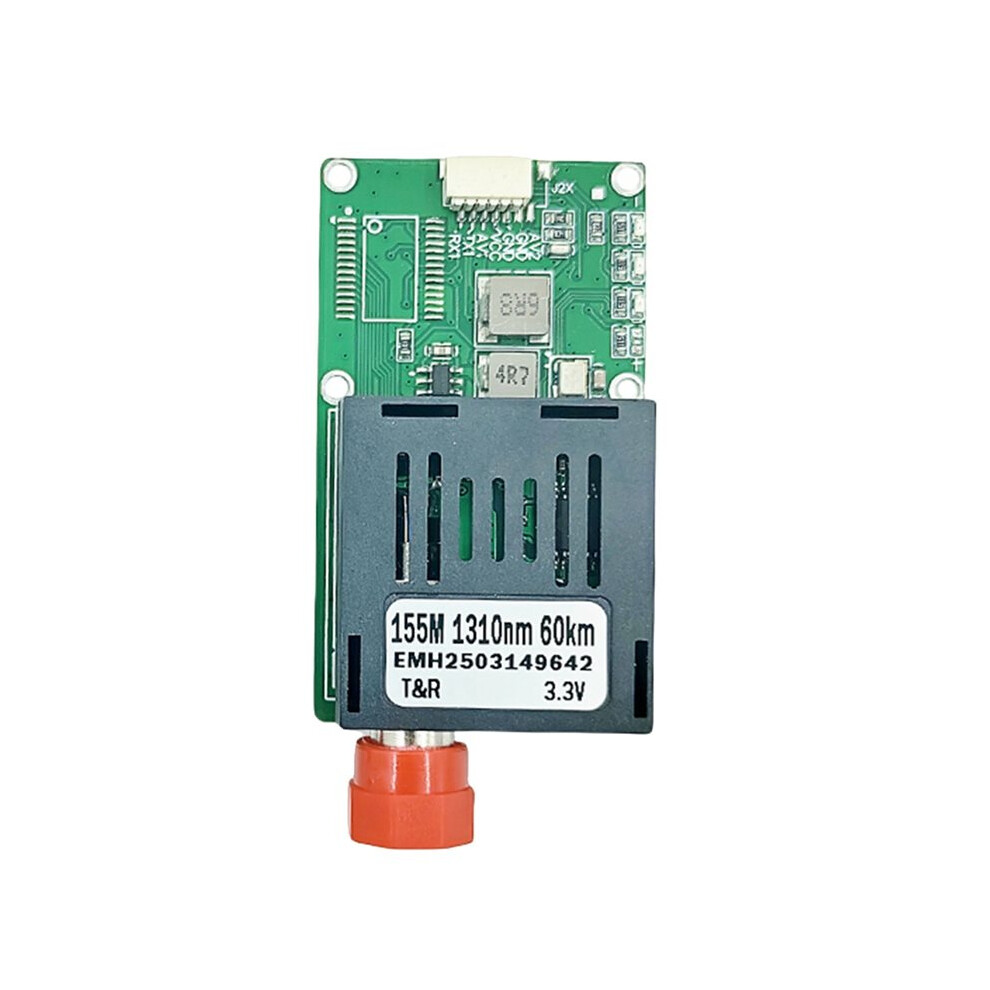

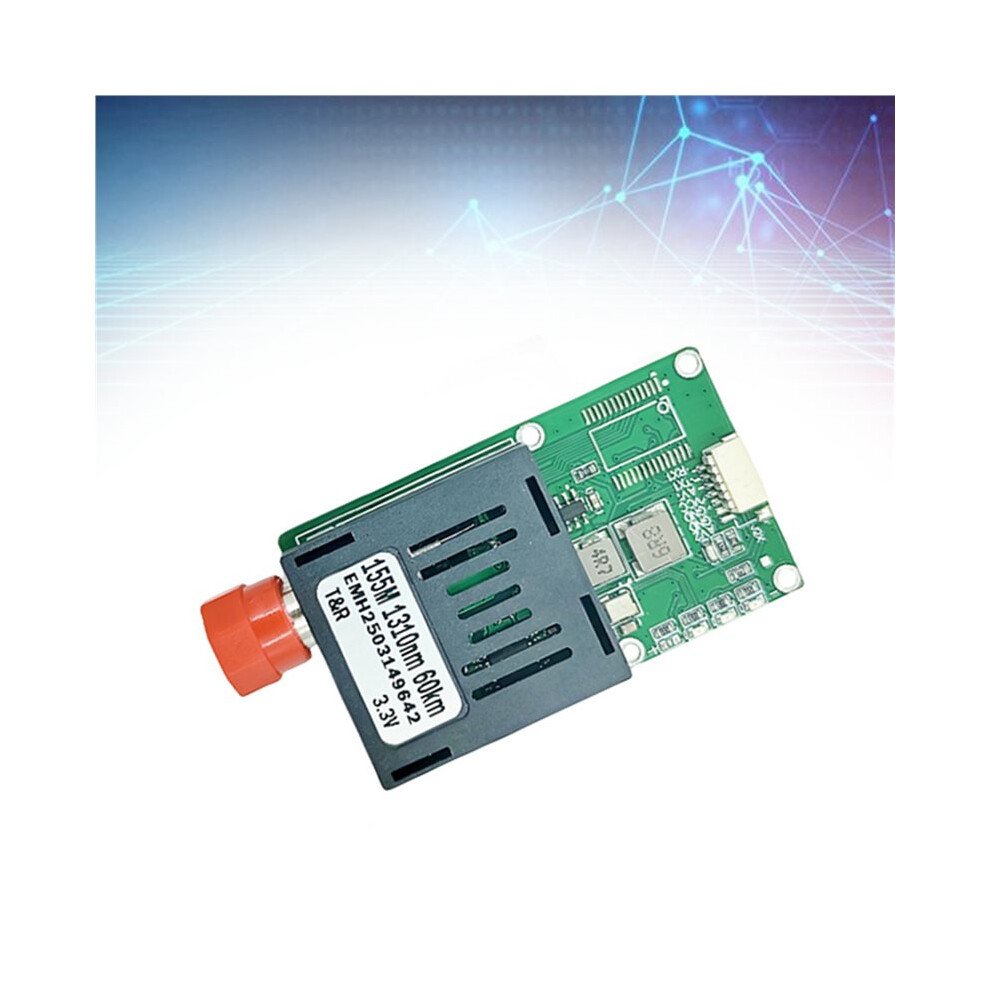

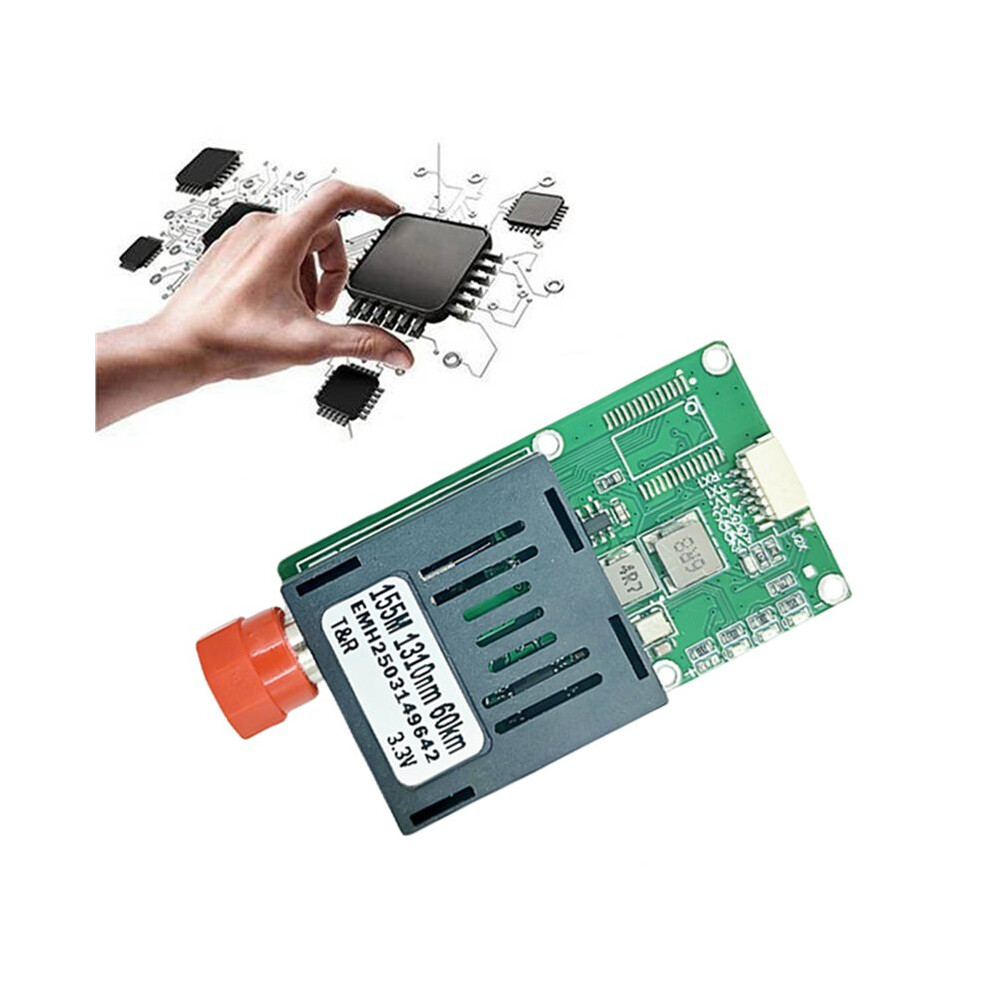

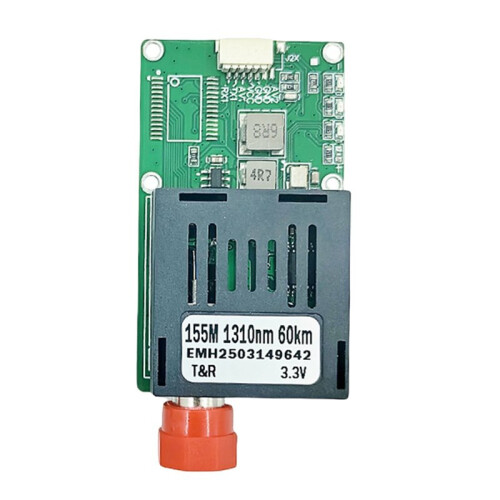

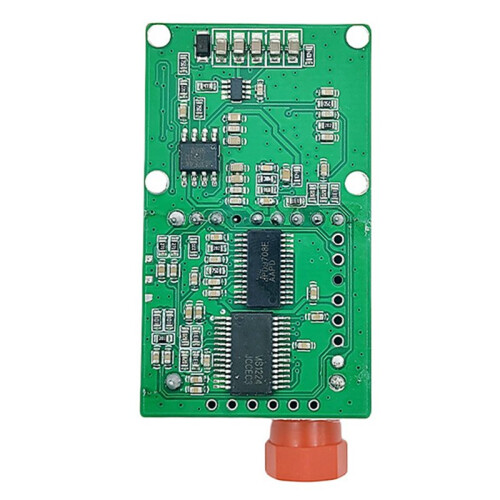

6X TTL Optical Transmitter Module 60KM Optical End Device Dedicated Optical Port St Interface Module UART/SBUS

6X TTL Optical Transmitter Module 60KM Optical End Device Dedicated Optical Port St Interface Module UART/SBUS Beskrivelse

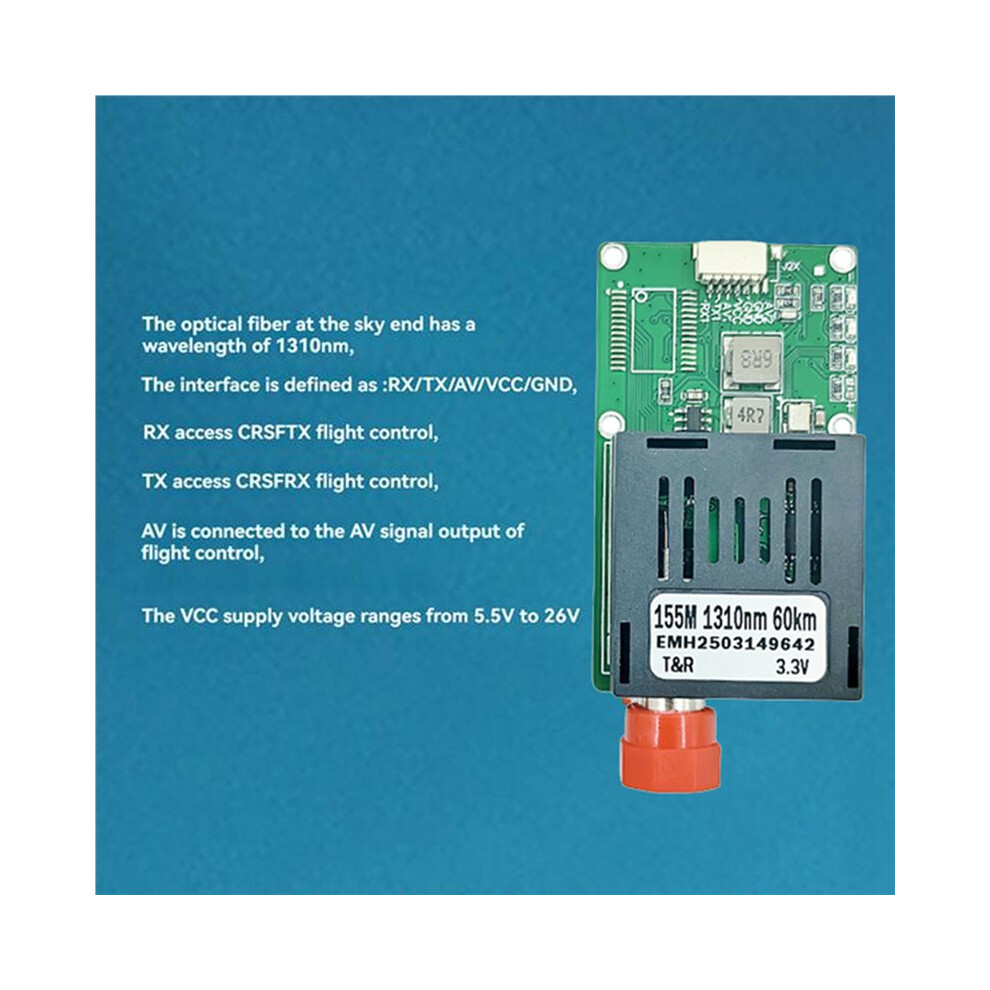

The wavelength of the fiber the sky side is 1310nm
The interface is defined as: RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the flight control, and TX is connected to the CRSFRX of the flight control
The AV the sky side is connected to the AV signal output port of the flight control, and the VCC power supply voltage is 5.5V~26V

Dimensions: length x width x height - 50mmx30mmx8.5mm
Power supply: 5.5V-26V: (2S-6S battery, Without battery)
Power consumption: less than or equal to 5W
Communication interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port
Fiber optic interface: FC: Communication distance: maximum 60KM
Note: The product indicator lights from top to bottom are: power light, fiber optic light, video light, data light; GND is the ground wire, VCC is the power supply, AV is the video, TX is the TTL signal output, and RX is the TTL signal input.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: PC+Plastic

Package Contents:

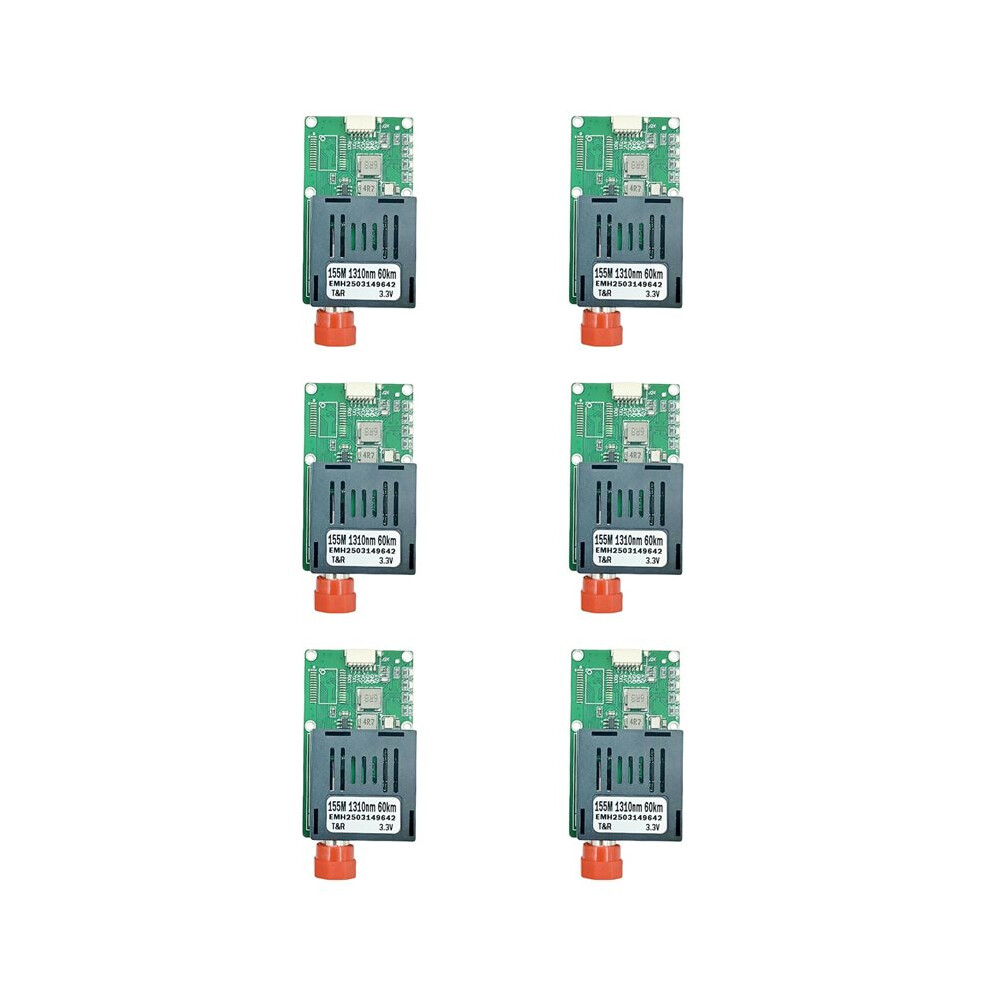

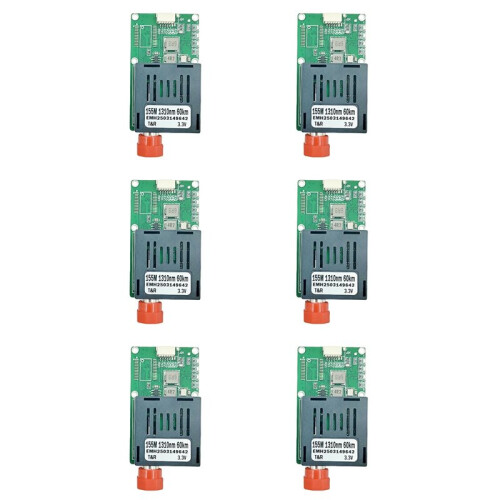

6 x Transmitter Module
