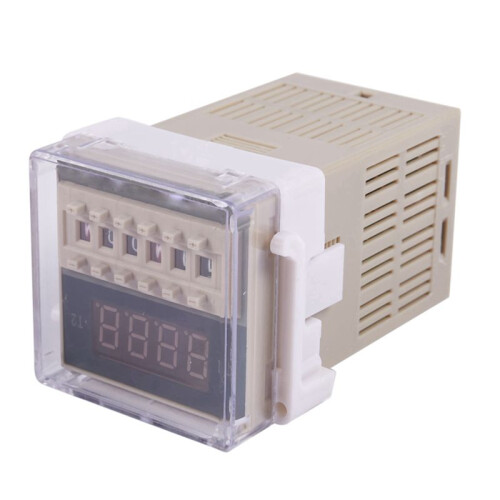

8X AC 220V 5A Programmable Double Delay Relay Device Tool DH48S-S

8X AC 220V 5A Programmable Double Delay Relay Device Tool DH48S-S Beskrivelse

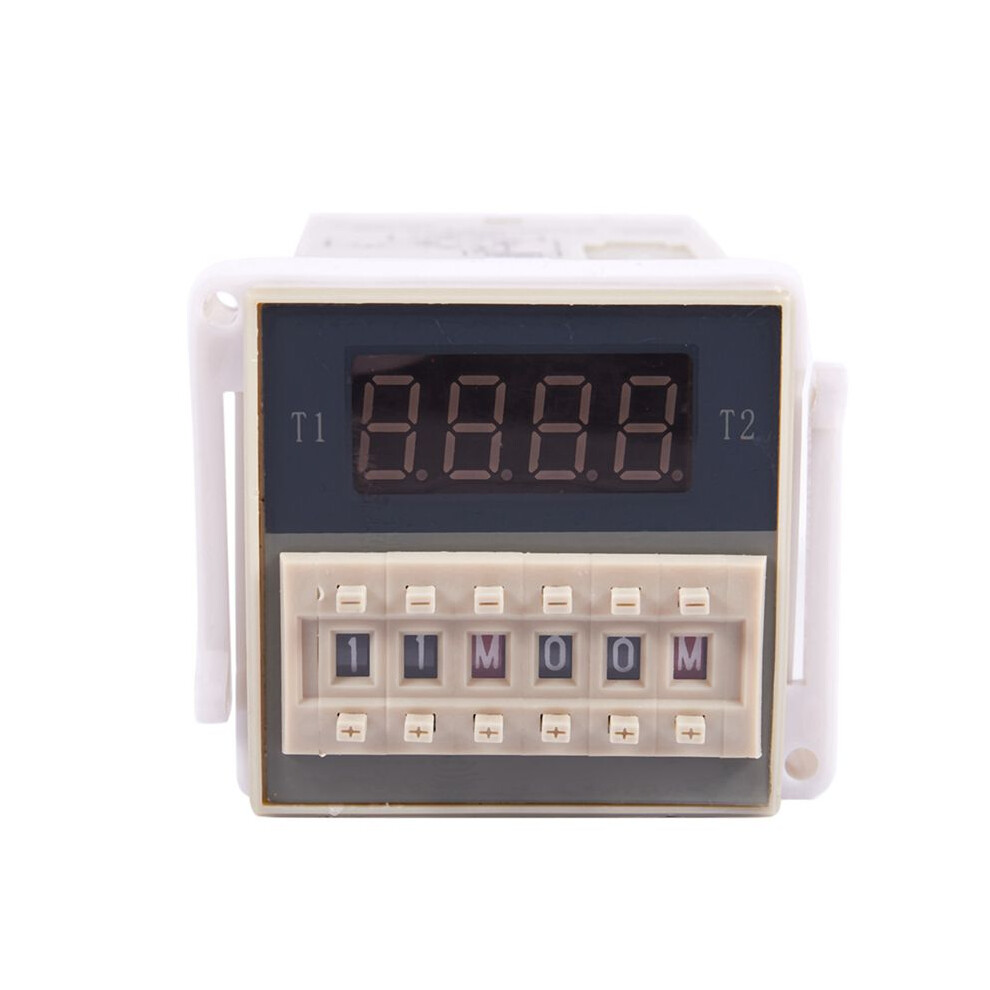

The use of advanced large-scale integration and LED digital tube display, beautiful
appearance, wide range of delay, high precision, low power consumption, long
life, high contact capacity, etc., suitable for automatic control system.
Model:DH48S-S
Power supply: 85-110% rated voltage

AC: 220V
: 24V
Delay control accuracy: Less than equal 0.3% 0.05s.
Ambient temperature: -10-50 Celsius
Power consumption: Less than equal 5W
Altitude: Less than 2000m
Contact capacity: 5A DC30V / 5A AC220V (resistance)
Size:11 x 5.5 x 5cm
Material: Plastic / Metal
Instructions
Preset delay value, and then the use of power

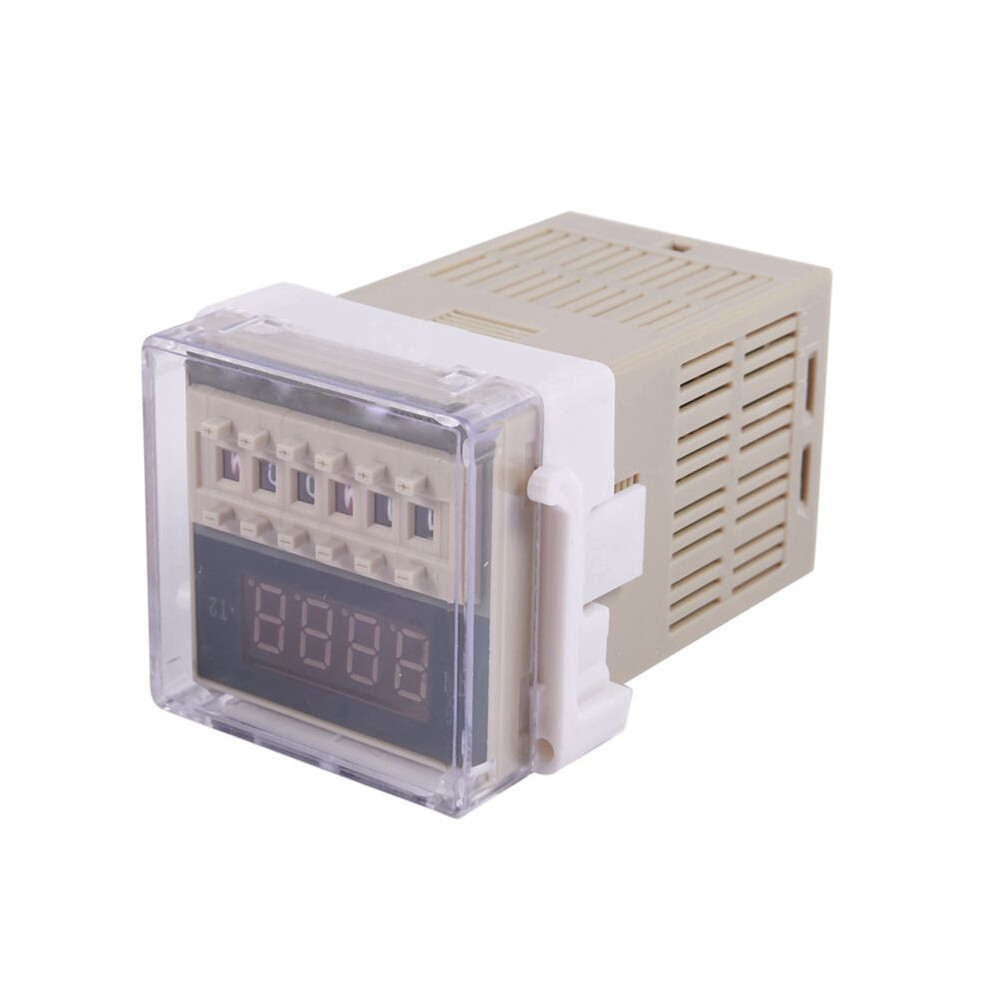

When the preset is finished, the cover is covered with a protective cover.
Drive larger current to be used with AC contactor
At any when the reset function is connected to the 1,3 terminal, the contact
will be restored to its original position, and it will start from 0 after disconnection.
Reset and pause wire, please use the shielded wire
Pause and reset terminal voltage

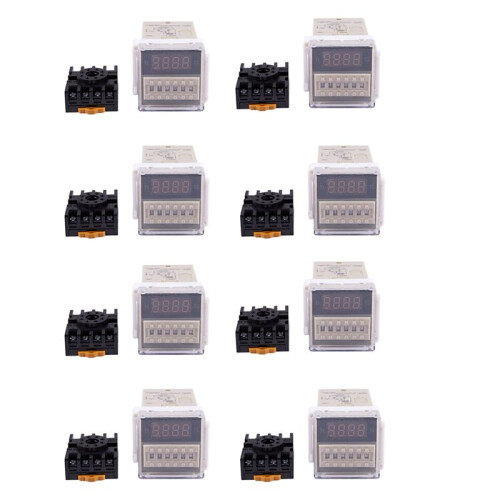

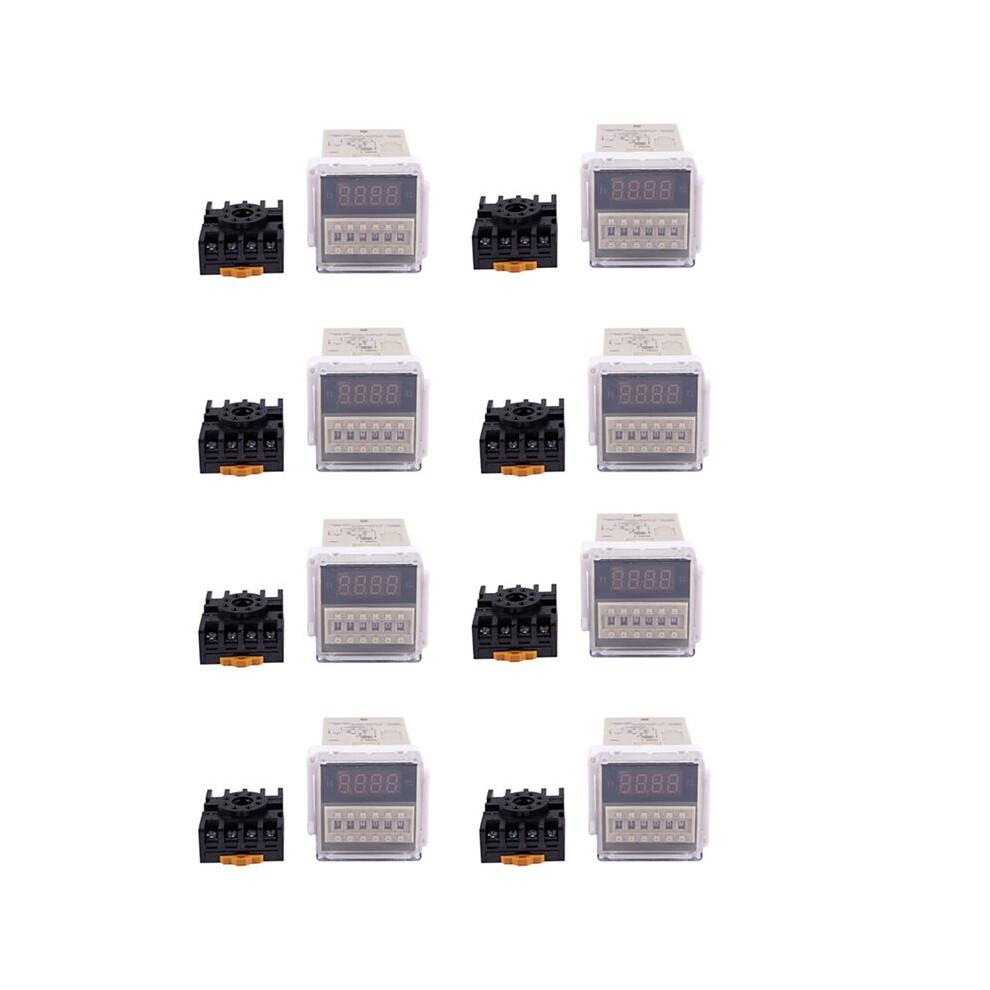

Package include:8 x Delay device
