Beskrivelse og detaljer
Oversigt
- 1. The PCB adopts 1.6MM thick double-sided glass fiber board, 2.0 oz copper thickness, and tin spraying process to ensure good passage of large currents
- 2. High-quality power modules replace traditional transformers, with low energy consumption, high efficiency, ultra-stable, low heat generation
- 3. 105-235V wide voltage, applicable at home and abroad
- 4. HF-105F-1 high current 30A power relay, stable and reliable performance, maximum power can support 2000W
- 5. The power switch uses a touch switch, which is convenient and flexible.

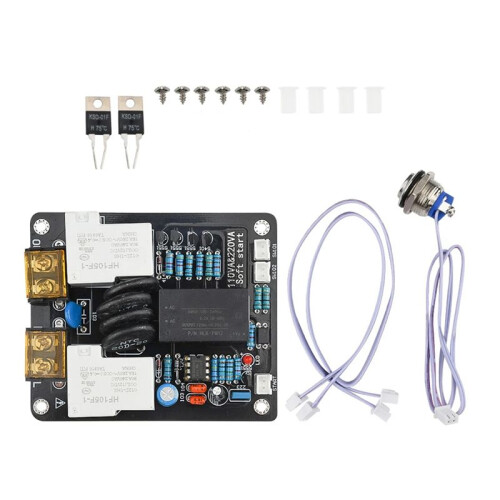

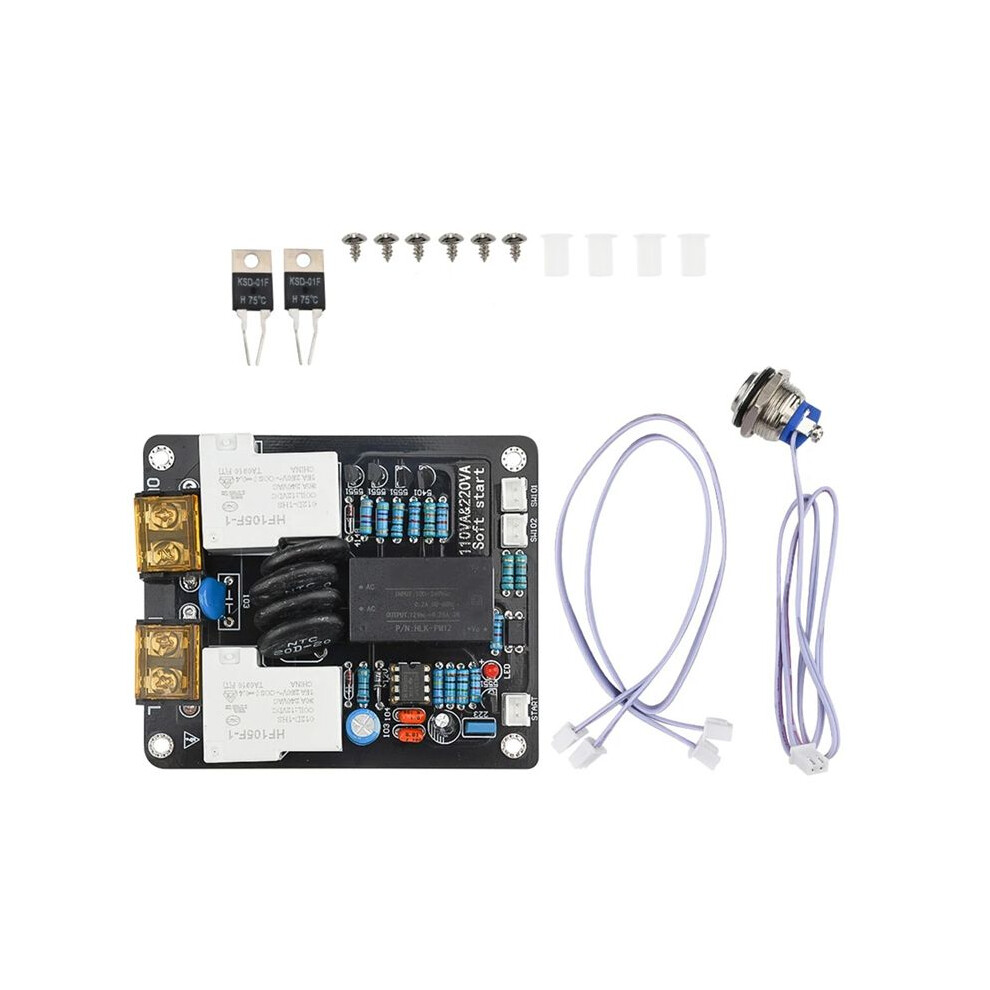

AC105-235V Amplifier High Power Supply Soft Start Board Light Touch Double Temperature Control Overheat,A Beskrivelse
1. The PCB adopts 1.6MM thick double-sided glass fiber board, 2.0 oz copper thickness, and tin spraying process to ensure good passage of large currents
2. High-quality power modules replace traditional , with low consumption, high efficiency, ultra-stable, low heat generation
3. 105-235V wide voltage, applicable at home and abroad
4. -105F-1 high current 30A power relay, stable and reliable performance, maximum power can support 2000W
5. The power uses a touch , which is convenient and flexible.
Working voltage: 220V
Maximum load: 2000W
Control : touch
Relay rated power: 30A*2
PCB board size: 9.8CMx8CMx2.2CM
PCB hole pitch size: 7CMx8.6CM
Product Features:

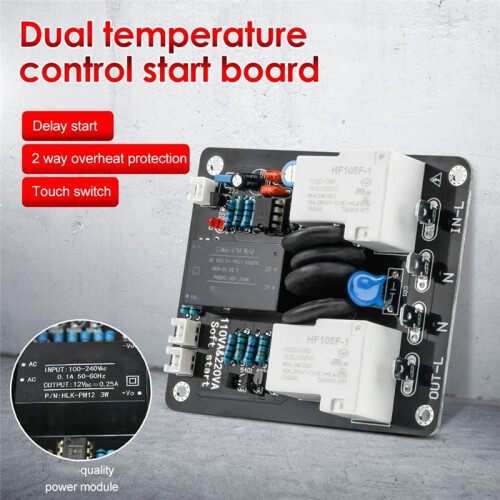

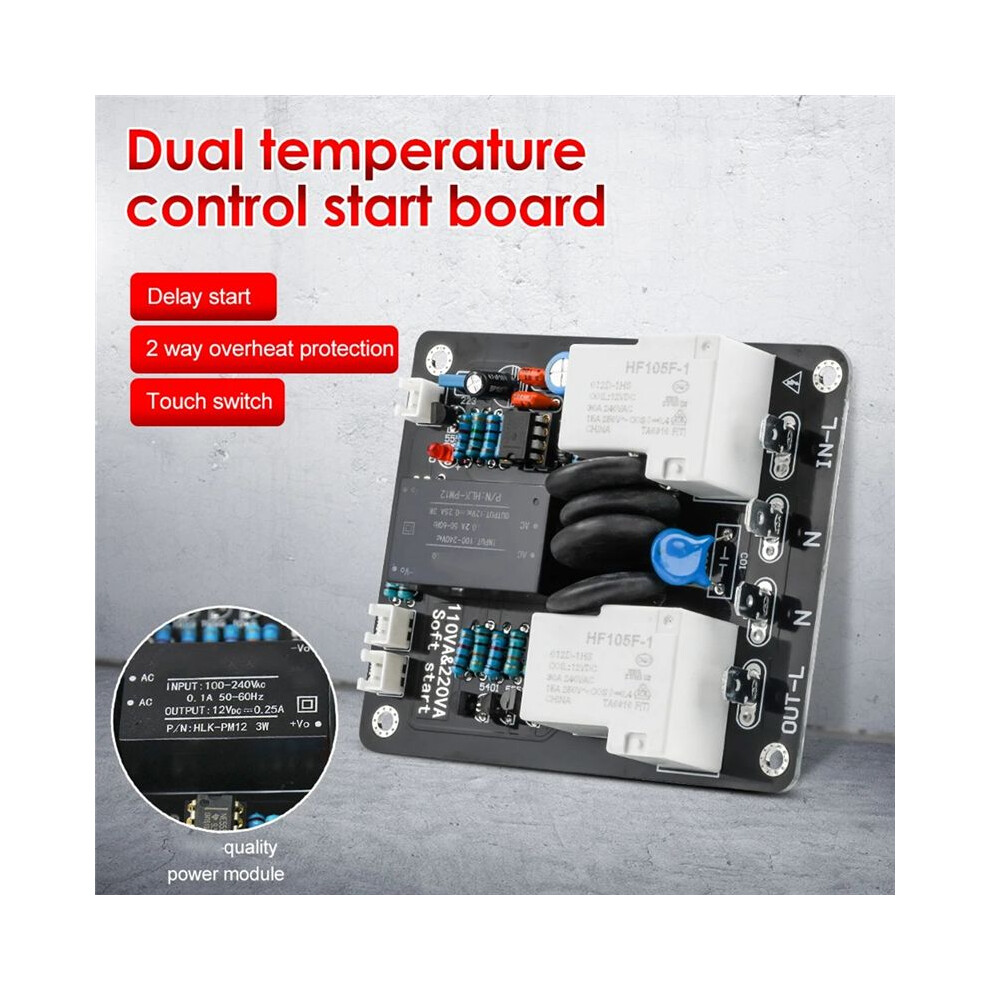

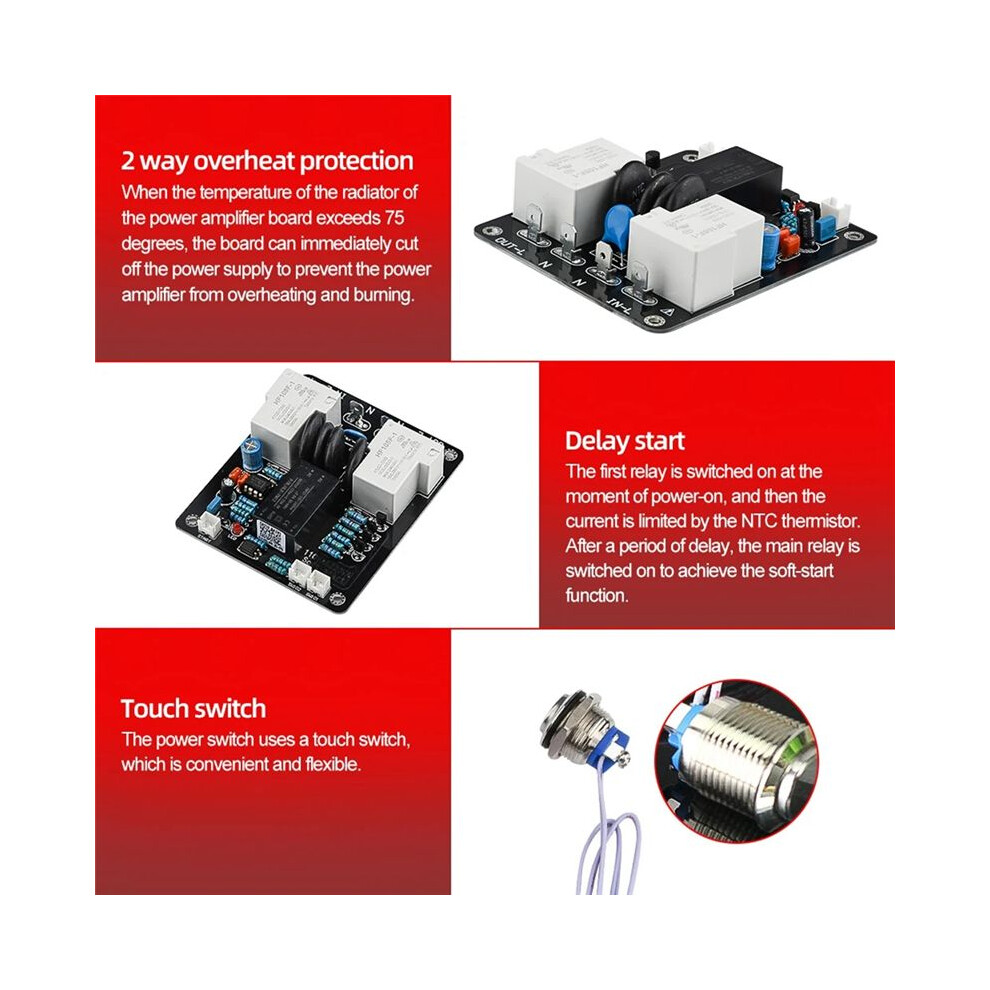

1. Delayed start, the first relay is closed at the moment of power-, and then the current is limited by the NTC thermistor. After a delay, the main relay is turned to achieve the soft start function. Suppress the instantaneous surge current when the power amplifier is turned .
2. Road overheating protection, use the attached 75 degree temperature control to install the radiator, When the temperature of the radiator of the power amplifier board exceeds 75 degrees, the board can immediately cut off the power supply to prevent the power amplifier from overheating and burning. The power amplifier can not be restarted until the temperature of the radiator drops below 75 degrees, otherwise the power amplifier cannot be turned .
Note: This finished board does not support self-locking
Specifications:A:16-piece set
Colour:Black
Material:ABS
Package Contents:
1 set * AC105-235V Amplifier
Detaljer
| OPC | PWG798G |
|---|---|
| Koder | 6031648669513 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 11cm |
| Length | 12cm |
| Weight | 0.1555kg |
| Colour | Black |
| Size | 16-piece set |
| Material | ABS |
