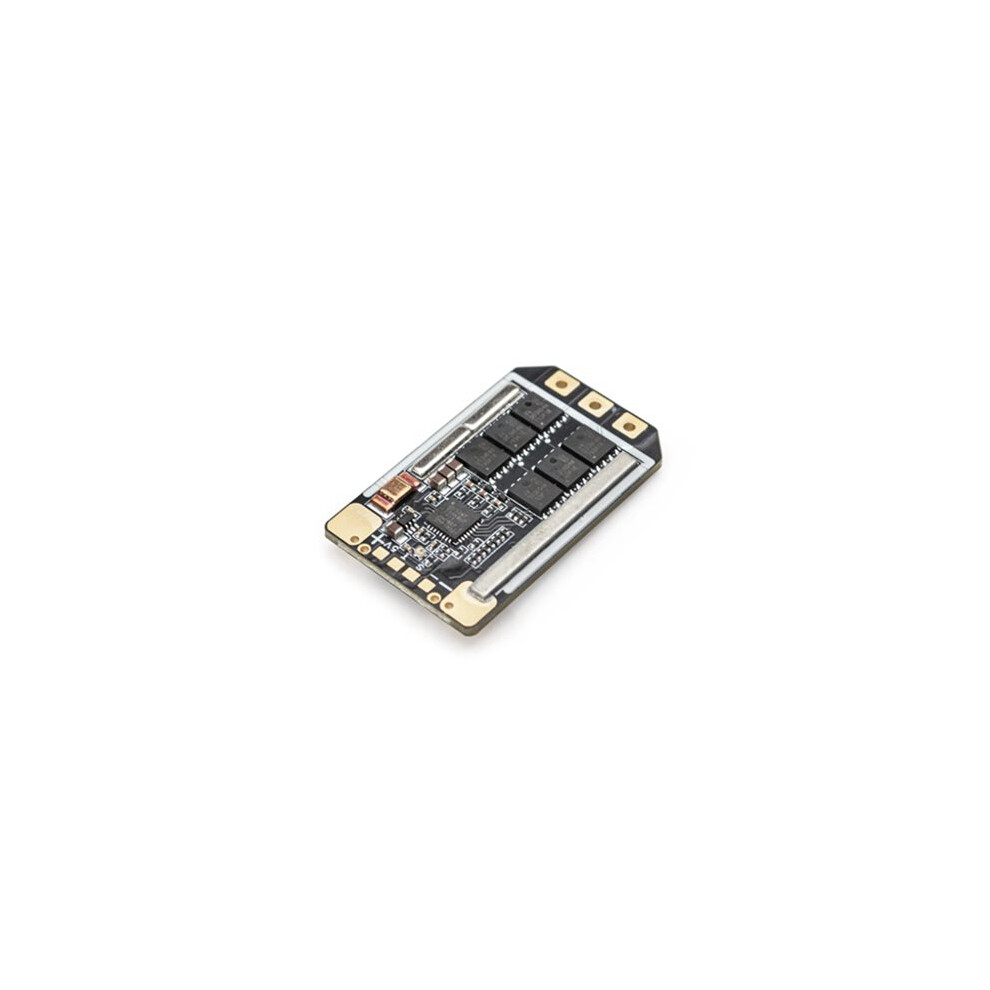

AM32 6S 65A Single ESC for 13" FPV Drone Fixed Wing Boat Car Model, High Current Brushless Electronic Speed Controller
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
236,54 kr.
390,29 kr.
Spar 39%!
+33,00 kr. levering
1%
Tjen 2,37 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (33,00 kr.) | man. 3. - lør. 8. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Batteriopladere til husholdninger
Populær
Beskrivelse og detaljer
Oversigt
- BEC output of 5V 3A for reliable power supply
- High-performance ARM Cortex-M4 core with a main frequency of up to 120MHz
- Supports a wide voltage range of 12V-25.2V (3-6S) lithium batteries
- Continuous current rating of 65A and burst current of 75A for high-demand applications
- 6-layer PCB design with 2 ounces copper thickness for enhanced durability and performance
AM32 6S 65A Single ESC for 13" FPV Drone Fixed Wing Boat Car Model, High Current Brushless Electronic Speed Controller Beskrivelse
BEC output of 5V 3A for reliable power supply
High-performance ARM Cortex-M4 core with a main frequency of to 120MHz
Supports a wide voltage range of 12V-25.2V (3-6S) lithium batteries
Continuous current rating of 65A and burst current of 75A for high-demand applications
6-layer PCB design with 2 ounces copper thickness for enhanced durability and performance
Specifications:

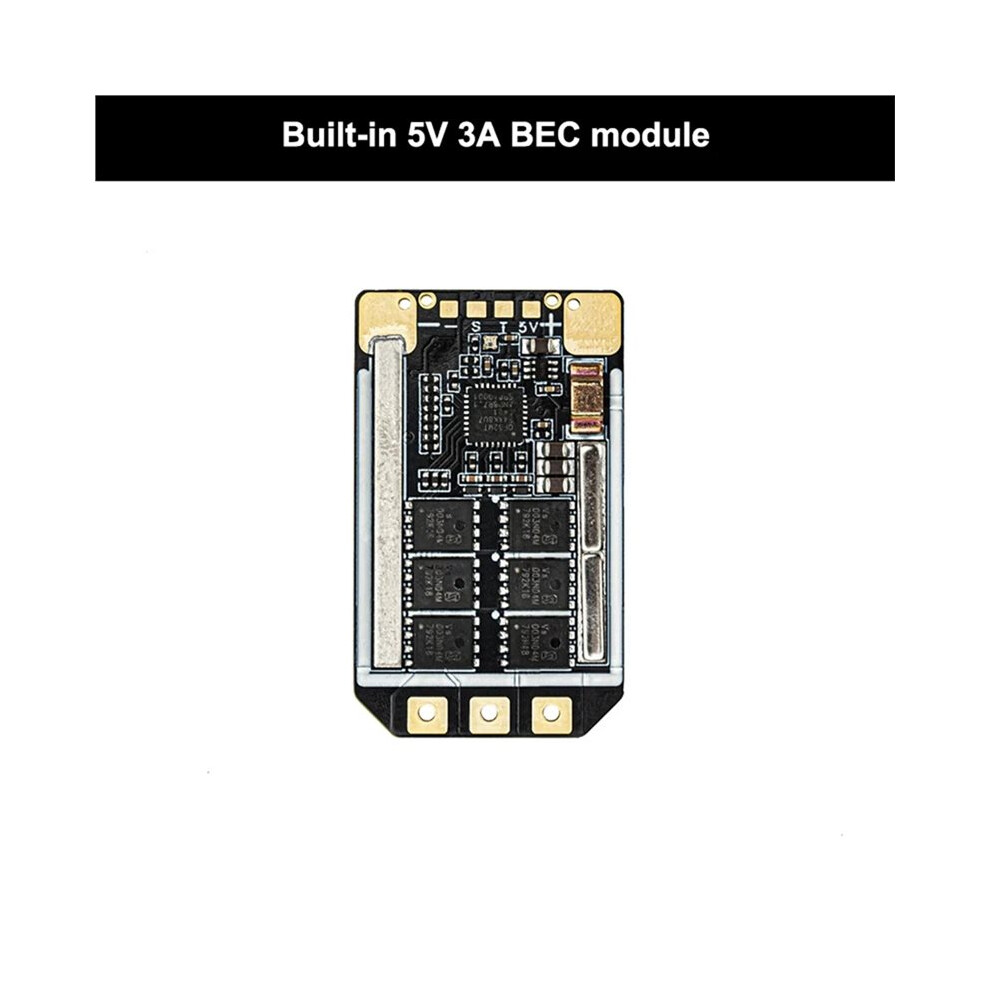

BEC: 5V 3A
Color: Black
one
Firmware: AM32 PA2
MCU: AT32F421 with a main frequency of to 120MHz and operating speed

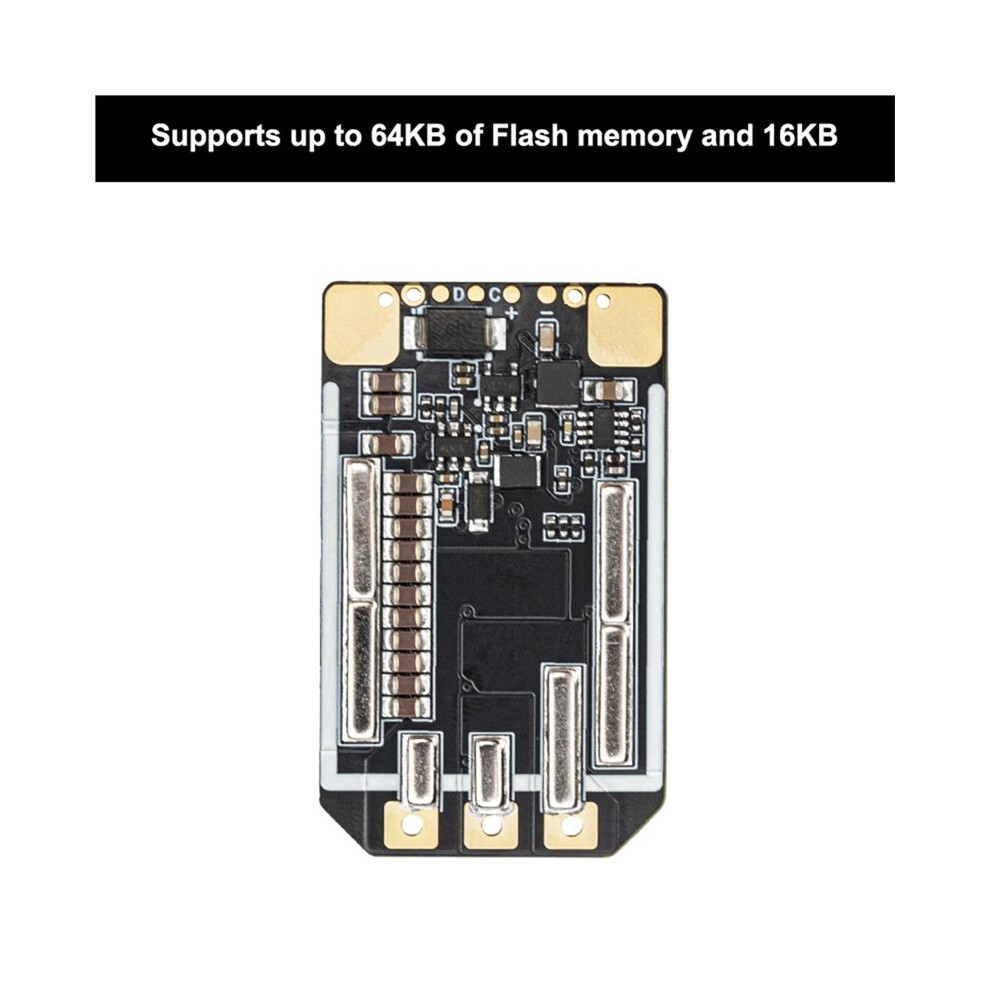

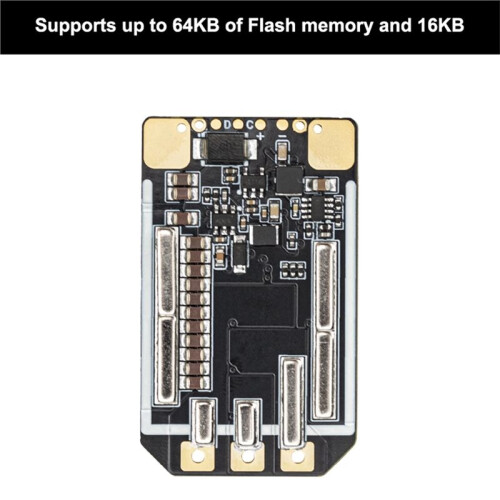

Memory: Supports to 64KB of flash memory (Flash) and 16KB
Working temperature: -40 to 70 degrees Celsius
power: 1800W
PCB board: 6-layer board, both inner and outer copper thickness are 2 ounces
Size: 36.2x24.3 millimeters
Used for 10-13 inch FPV drones, fixed wing aircraft, ship models, car models, etc.
Characteristic: Variable PWM frequency, built-in 5V 3A BEC module, sine wave startup mode.
Material: PCB
Package Contents:
1*AM32 single ESC 1*aluminum heatsink 2*35V 1000uf electrolytic capacitors 1*interface with XT60 connector
Detaljer
| OPC | PTPBQKZ |
|---|---|
| Koder | 4714231665131 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 8cm |
| Length | 13cm |
| Weight | 0.12kg |
| Colour | As Shown |
| Material | PCB |
