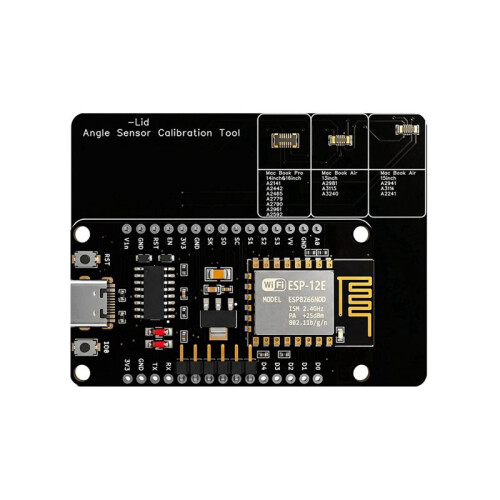

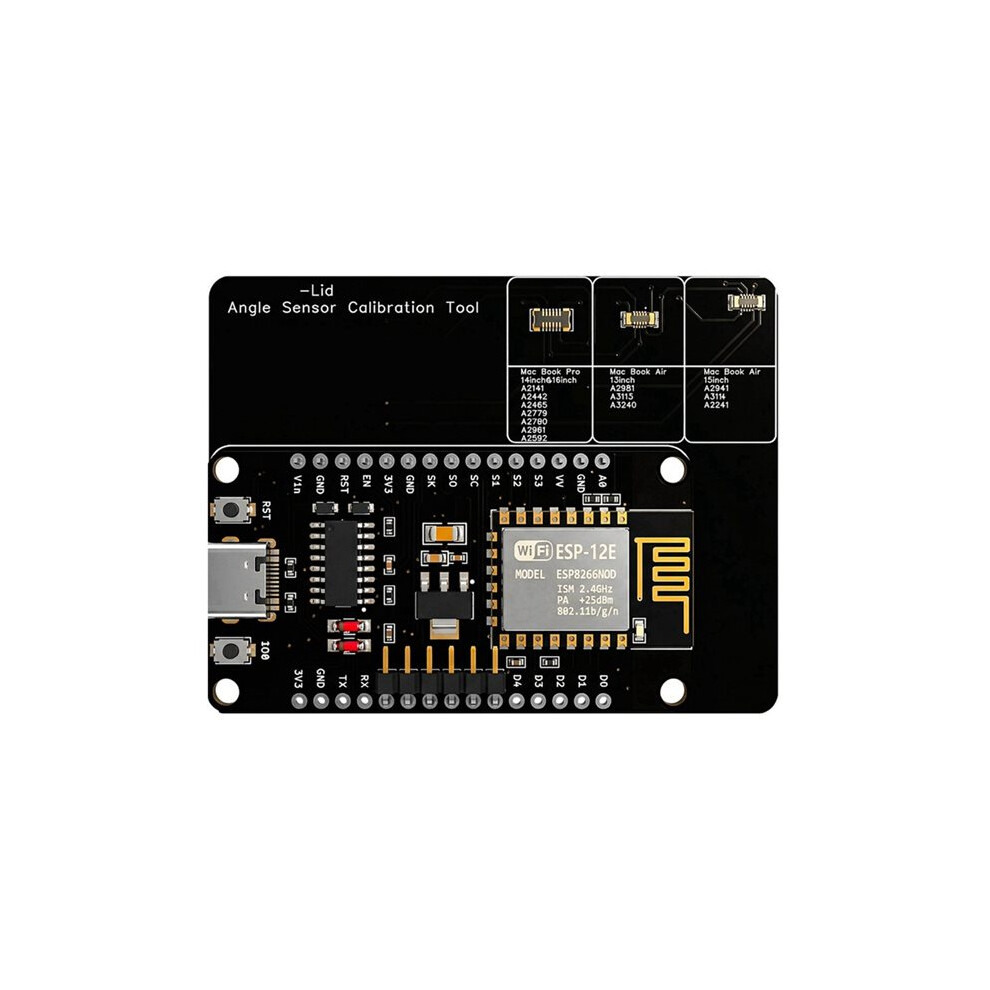

Angle Sensor Calibration Tool for A2141 A2442 A2485 A2779 A2780 A2681

Angle Sensor Calibration Tool for A2141 A2442 A2485 A2779 A2780 A2681 Beskrivelse

This tool can be used to calibrate a for A2141. A2442 A2485 A2779 A2780

First, briefly press the IO button to to the desired operating mode. The selected mode is indicated by the flashing of the LED (1, 2, and 3 respectively). Note: Calibration must be performed with the lid closed. In Mode 1, press and hold the IO button for one second to calibrate the PRO series (A2141, A2442, A2485, A2779, A2780). If calibration is successful, the LED will light for 3 seconds.
In mode 2, press the IO key for one second to calibrate the AIR series (A2681). If the calibration is successfully completed, the LED indicator will light for 3 seconds.
In mode 3, press and hold the IO button for one second to activate the sleep angle recognition function (if the lid is open, the LED lights ; when the lid is closed, the LED turns off).
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: PCB

Package Contents:
1*Angle Sensor Calibration
