AS5600 Magnetic Encoder 3.3V 12bit High Precision Magnetic Induction Angle Measurement Sensor Module 10Set

AS5600 Magnetic Encoder 3.3V 12bit High Precision Magnetic Induction Angle Measurement Sensor Module 10Set Beskrivelse

Innovative Working Principle: The AS5600 encoder operates a non-contact Hall effect basis, capturing magnetic field changes via a built-in Hall sensor array as the magnet rotates. This process is converted into a precise 12-bit digital output, ensuring accurate angle measurements without physical contact, thus eliminating wear.
Offering a 12-bit resolution, the AS5600 provides 4096 distinct position points per 360 rotation, translating to an approximate 0.088 per position. It boasts a minimal angle error of 0.3 across the full range and supports real- detection at speeds to 1000 RPM with a 10kHz sampling frequency, ideal for high-speed applications.
Durability and Reliability: Engineered for longevity, the AS5600 magnetic encoder surpasses 10 million operational cycles due to its contactless magnetic detection mechanism. It features an IP50 rating, ensuring resistance against dust and oil, which makes it suitable for harsh environments.

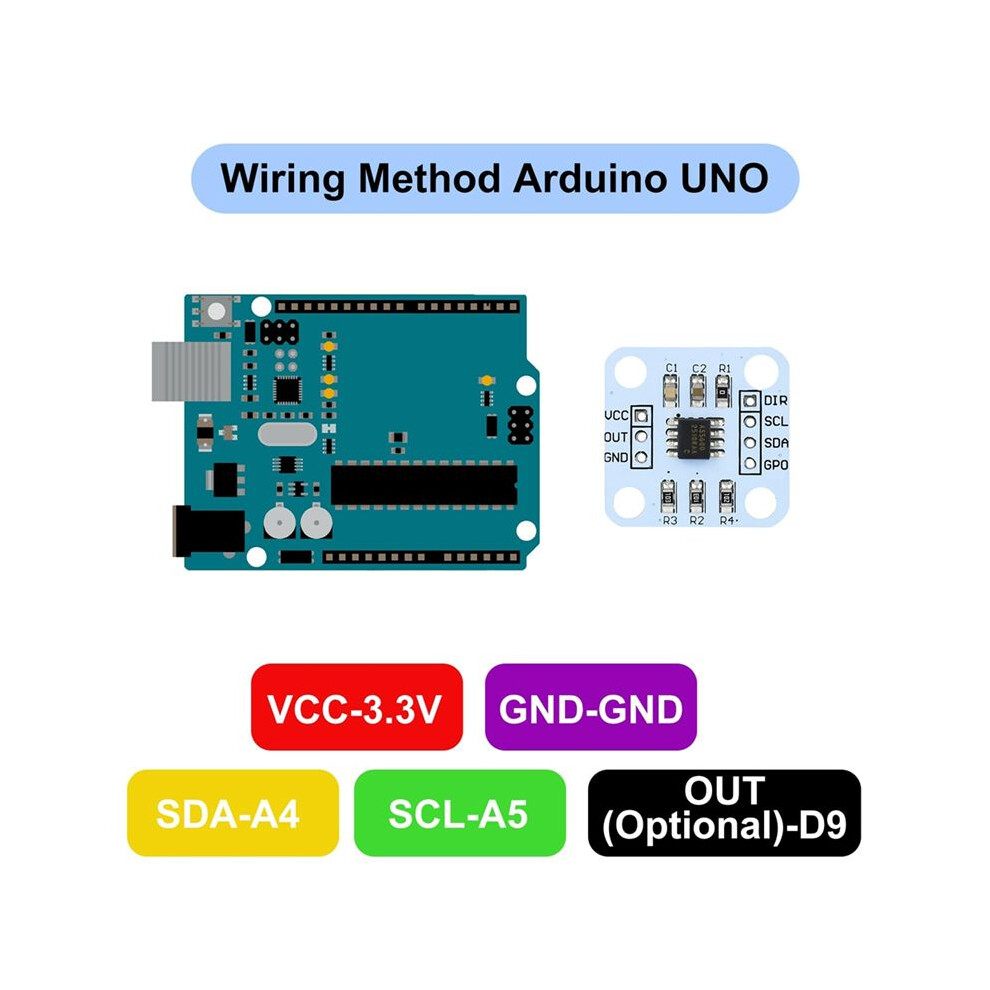

User-Friendly Integration: This sensor module simplifies setup with an integrated ADC, temperature compensation, and a linearization algorithm. It supports a 400kHz I2C communication rate and allows for cascading multiple devices. Outputs include PWM and a linear analog voltage range from 0.5V to 4.5V, correlating directly to the rotational angle.

Versatile Applications: Ideal for precise motor control in drones and servo motors, industrial automation in rotary valves and robotic arm, user interface controls like audio knobs, and steering angle measurements in robotics. The AS5600's versatility extends to various high-demand applications.
Quantity:10Set
Color:White
Material:PCB

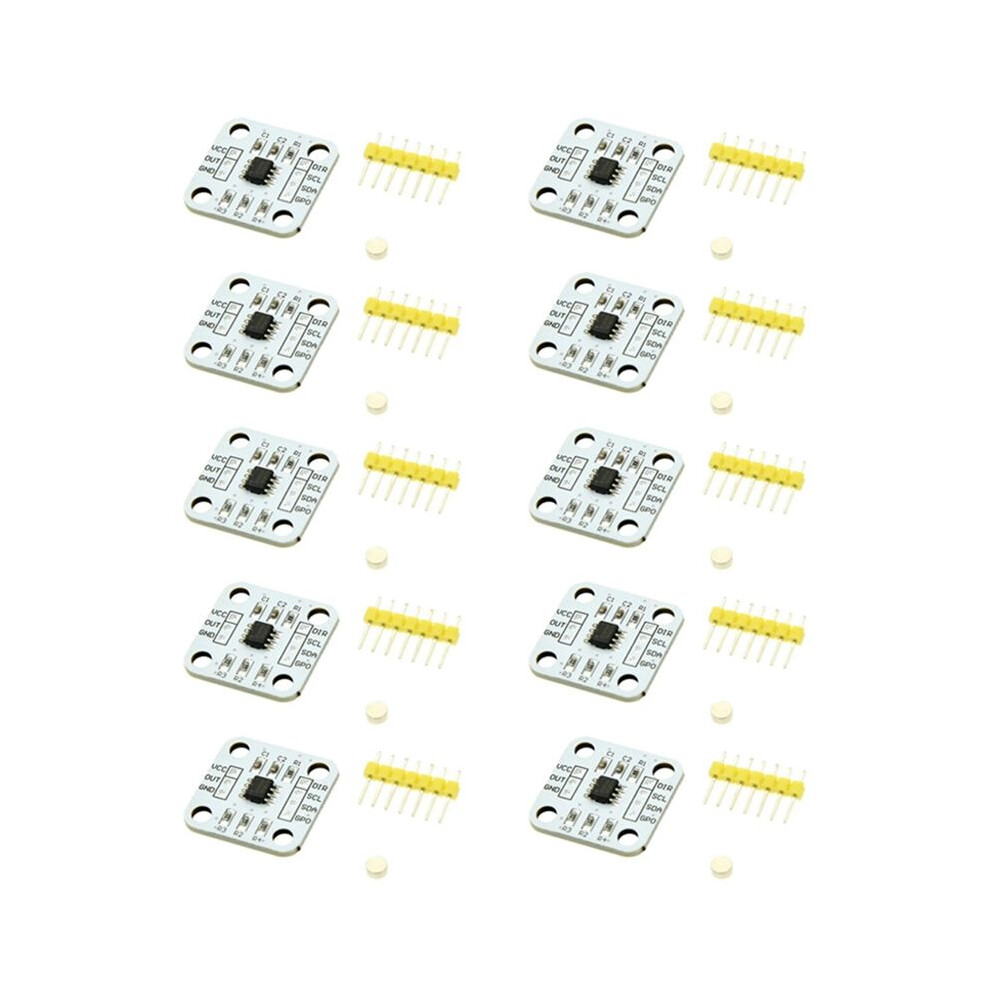

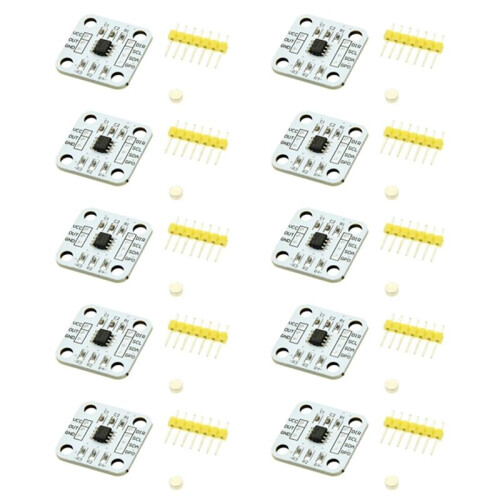

Package Contents:
10 * Magnetic encoder
10 * Magnet(The color is random, and the designation is not accepted)
10 * pin(The color is random, and the designation is not accepted)

Only the above package content, other products are not included.
Note: Light reflection
