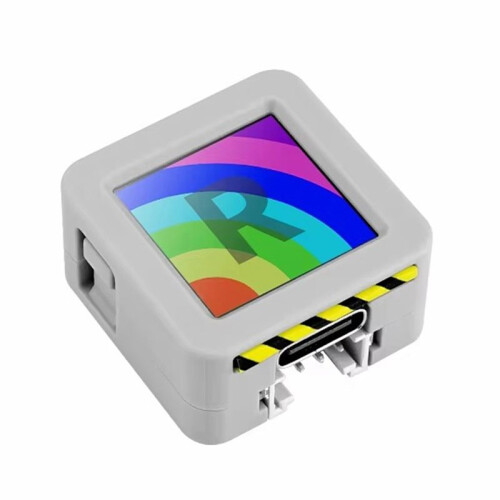

ATOMS3R Highly Integrated Programmable Controller with ESP32-S3 0.85-Inch IPS Screen Built-in WiFi for IoT Applications

ATOMS3R Highly Integrated Programmable Controller with ESP32-S3 0.85-Inch IPS Screen Built-in WiFi for IoT Applications Beskrivelse

AtomS3R is a highly integrated programmable controller based the ESP32-S3 main controller. It features the ESP32-S3--1-N8R8 main controller with built-in WiFi, 8MB onboard FLASH, and 8MB PSRAM. It comes with a 0.85-inch color IPS screen, with a programmable button beneath the screen.
The device includes a 5V to 3.3V power circuit, a built-in three-axis BMM150 geomagnetic sensor, and a six-axis BMI270 attitude sensor. It also has a Type-C interface for power supply and firmware downloads, along with a HY2.0-4P expansion port. Six GPIO and power pins are reserved at the bottom for easy expansion.
Compared to previous products, the 3D antenna of the AtomS3R has been enhanced, offering better performance and greater stability. AtomS3R is compact, making it suitable for various embedded device applications.
Download Mode: press and hold the reset button (about 2 seconds) until the internal green LED lights , then release the firmware. At this , the device has entered download mode, waiting for burning.
When controlling the LCD backlight, the PWM frequency is recommended to use 500Hz.

Specifications:
Integrated ESP32-S3--1-N8R8 main controller
Nine-axis sensor system (six-axis BMI270 + three-axis BMM150 geomagnetic sensor)
8MB Flash and 8MB PSRAM
Supports infrared control functionality
Programmable button
0.85-inch LCD screen
Expandable pins and interfaces
Development platforms: for , UIFlow, Micropython
Applications:
Motion detection and direction sensing
Wearable devices
device control
IoT applications
Color: White
Material: Plastic
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.

Package Contents:
