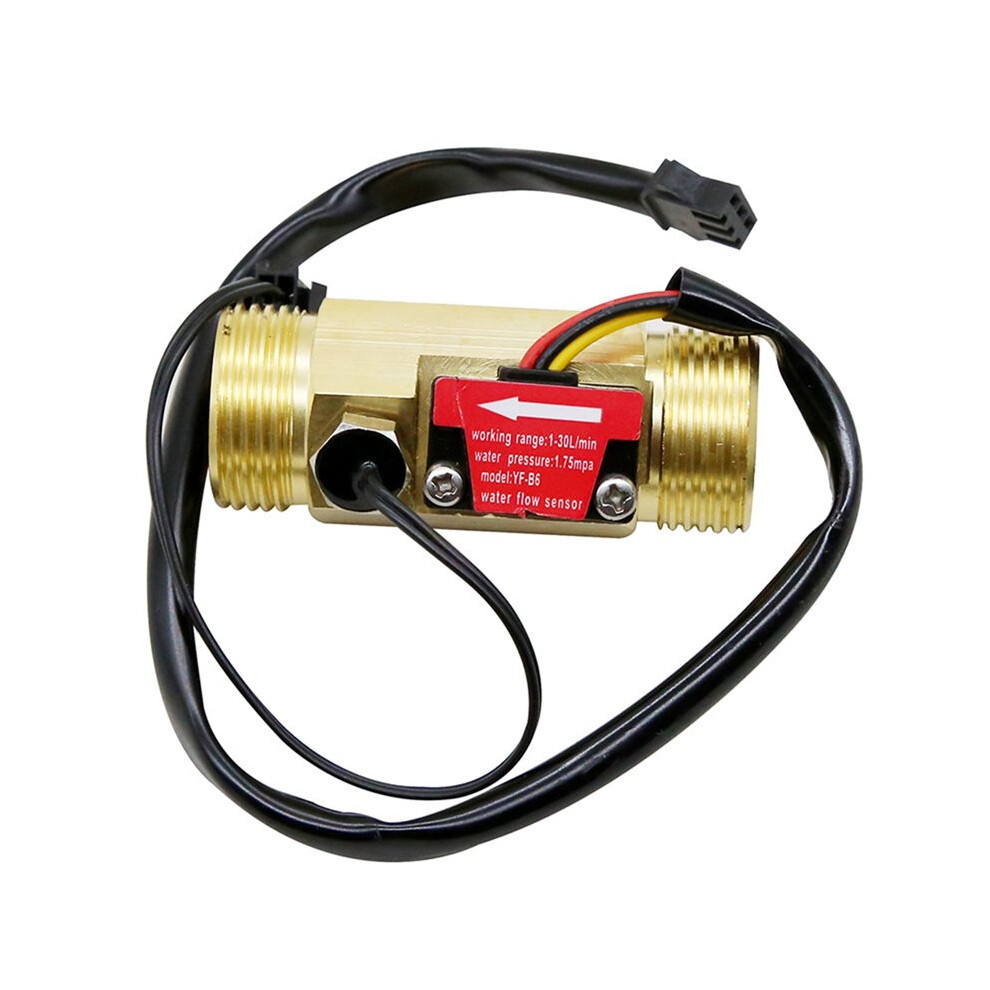

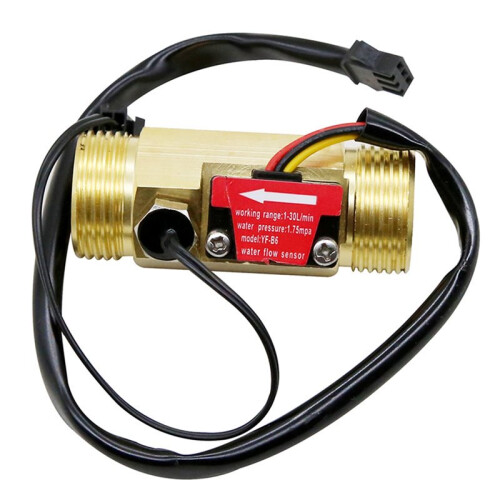

B6 Brass Water Flow Sensor Hall Effect Flow Meter Liquid Flow Rate Sensor Flow Detector with Temperature Probe

B6 Brass Water Flow Sensor Hall Effect Flow Meter Liquid Flow Rate Sensor Flow Detector with Temperature Probe Beskrivelse

This Brass Water Flow Sensor is designed for accurate water flow measurement.
APPLICATION: Suitable For: Hot water heaters, campus drinking fountains, direct drinking machines, vending machines, and card-operated systems.
With temperature detection.
Light weight, compact, easy to install.
Note: The YF-B6 and ZJ-B6 labels the product are sent randomly, but they have the same function and will not affect usage.
PARAMETERS:
Connection Size: G3/4
Voltage: DC3.5-24V
Pressure: 1.75MPa
Suitable medium: Water (no impurities)
Medium temperature: -20~100C
Insulation resistance: Greater than 100MΩ
Flow Range: 1-30L/min
Pulse range: F=(6.6*Q) error 3%, i.e., 396 pulses per liter of water
Output pulse high level: Greater than DC4.7V (input voltage DC5V)
Output pulse low level: less than DC0.5V (input voltage DC5V)

Usage Guidelines:
Sensor Usage Notice: Install a filter at the water inlet to prevent debris. It is recommended to install the sensor indoors or inside equipment to avoid humidity, high temperatures, or harsh environments. Keep it away from vibrations and magnetic materials to ensure accuracy. Unauthorized disassembly is prohibited.
Color: Gold
Material: Brass

Package Contents:
1 * Flow Sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
