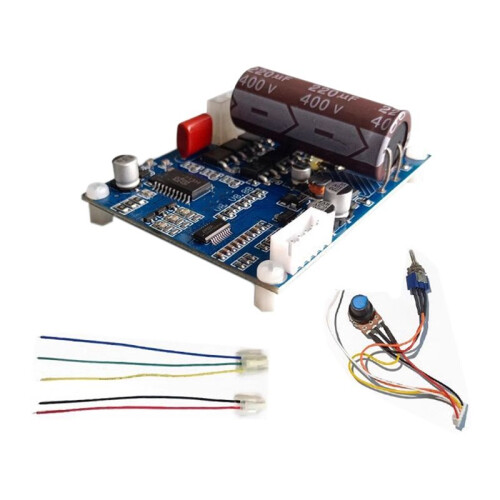

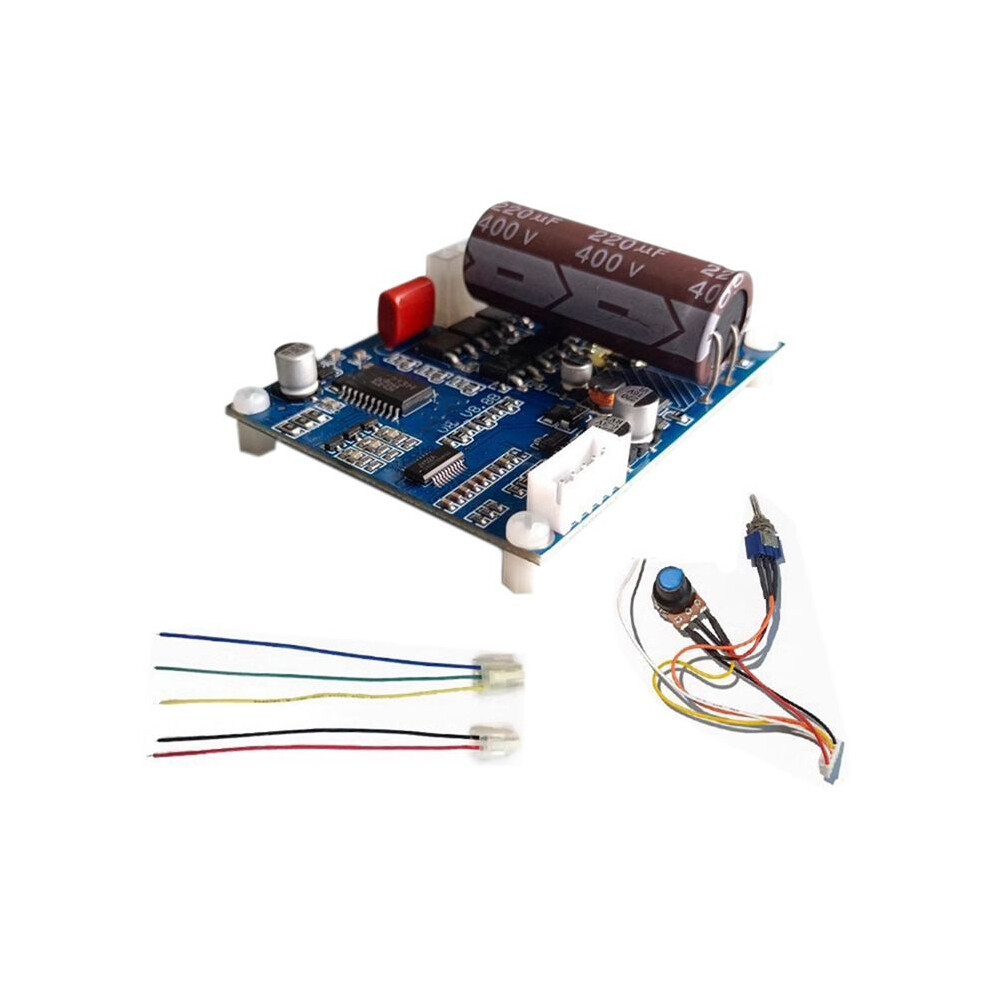

Brushless Motor Drive Control Board High Voltage Drive Module with over Temperature/Overload/Overvoltage Protection B

Brushless Motor Drive Control Board High Voltage Drive Module with over Temperature/Overload/Overvoltage Protection B Beskrivelse

1.Experience enhanced performance and safety with our Brushless Motor Drive Control Board, designed for both AC110V and AC220V setups. This high-voltage module is essential for applications requiring reliable motor control and robust protection mechanisms.
2.Advanced Over Temperature Protection ensures the motor operates within safe thermal limits.
3.Overload Protection to prevent motor damage under high load conditions.
4.Overvoltage Protection maintains stability and extends the lifespan of your motor.
5.Perfect for industrial applications, this module provides a comprehensive solution to maintain efficiency and protect your equipment.

Working voltage range: 110V/220V AC (50HZ-60Hz)
Working environment temperature: -40-85
Working environment humidity: Less than 90%
Speed control: analog voltage (0.1V-5V), PWM
Direction control: high and low level (5V)
Speed signal output: 5V pulse signal
Protection function: overload, abnormal current, stall, soft commutation, overtemperature, overvoltage and undervoltage protection.
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Specification:B: control board + + direction +
Colour:As Shown
Material:PCB

Package Contents:
1 x Motor driver board kit
