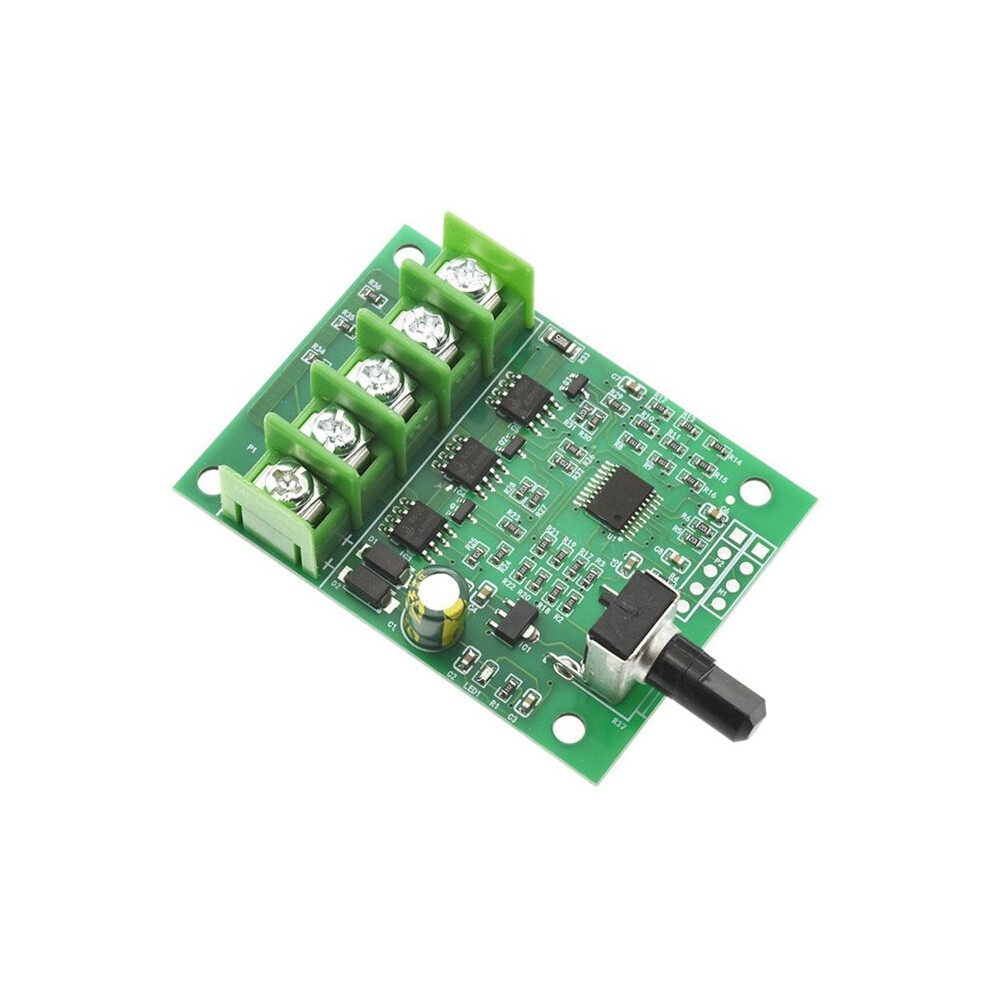

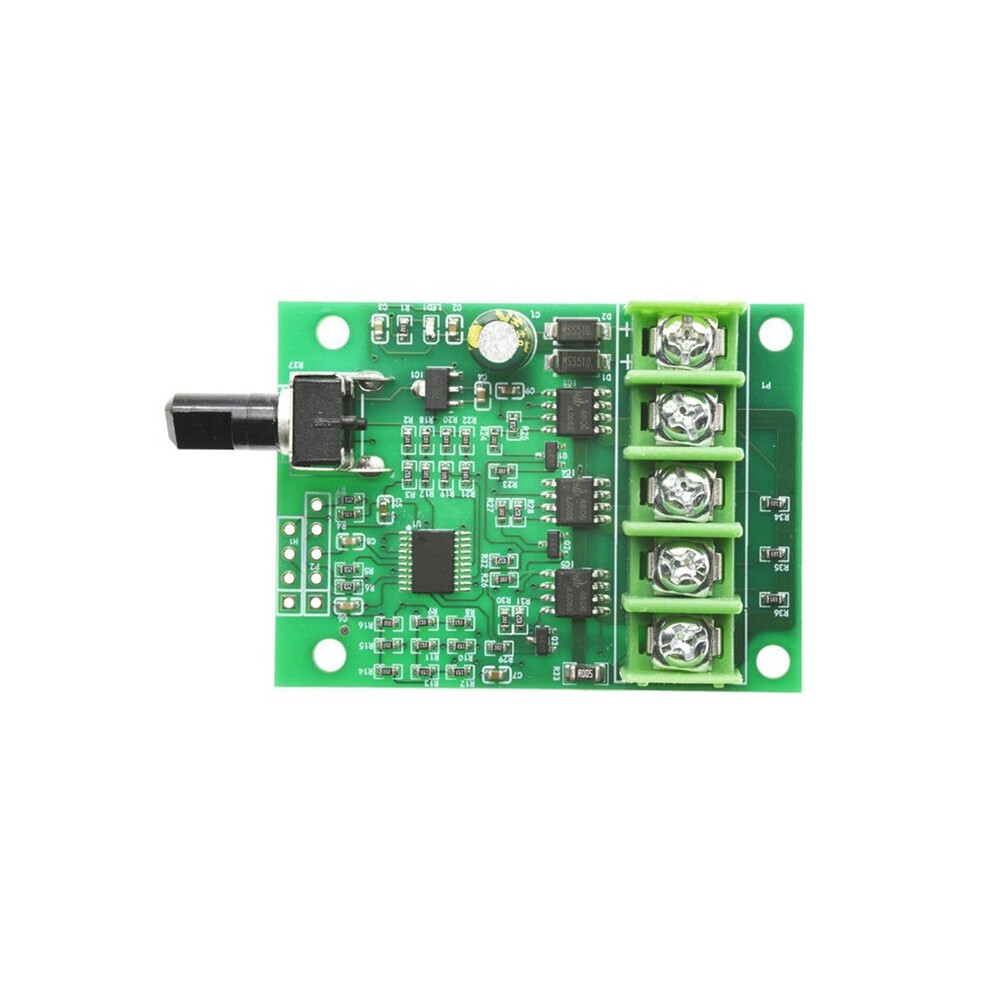

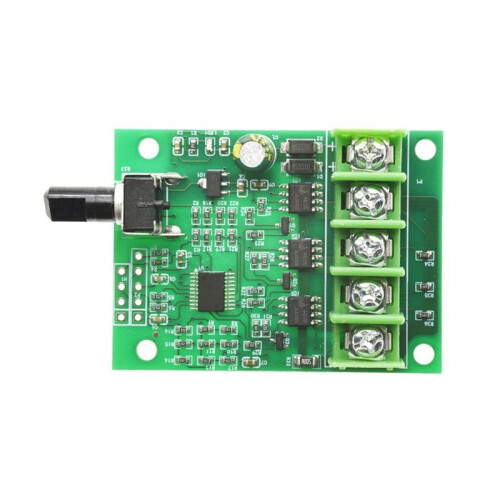

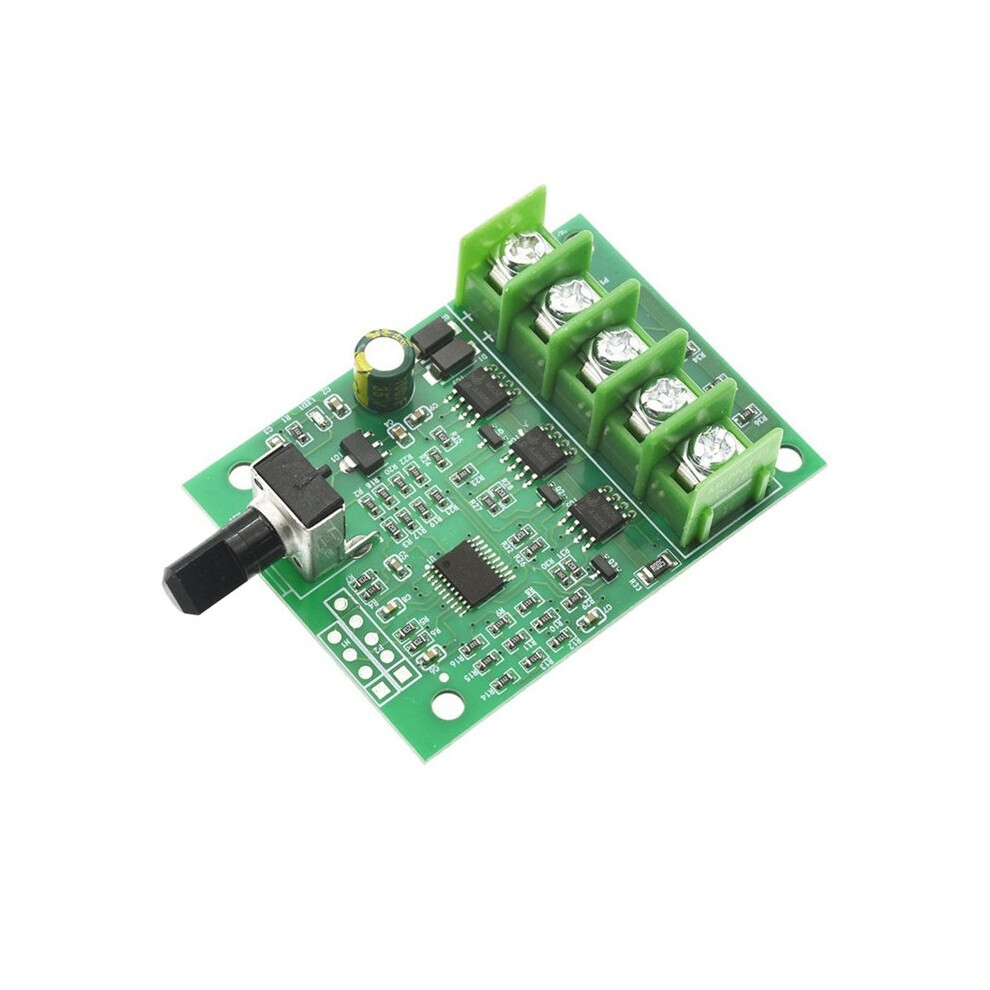

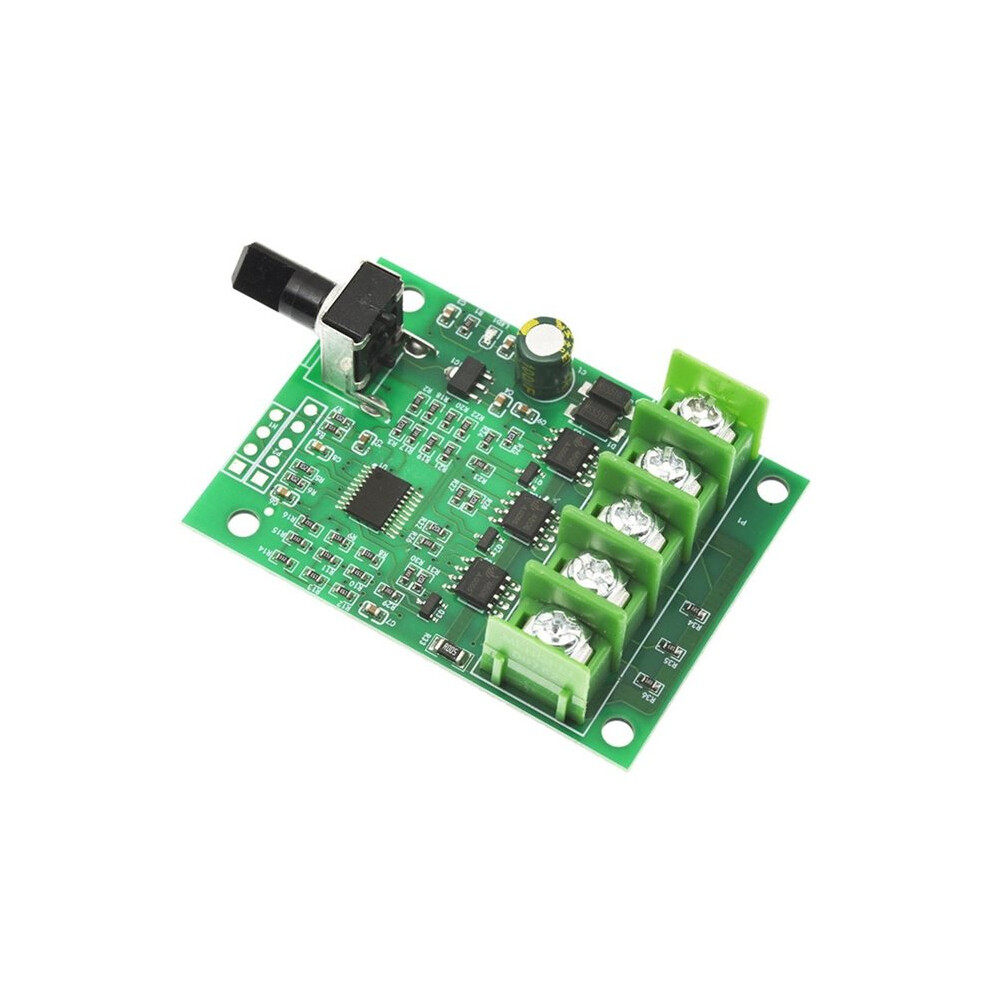

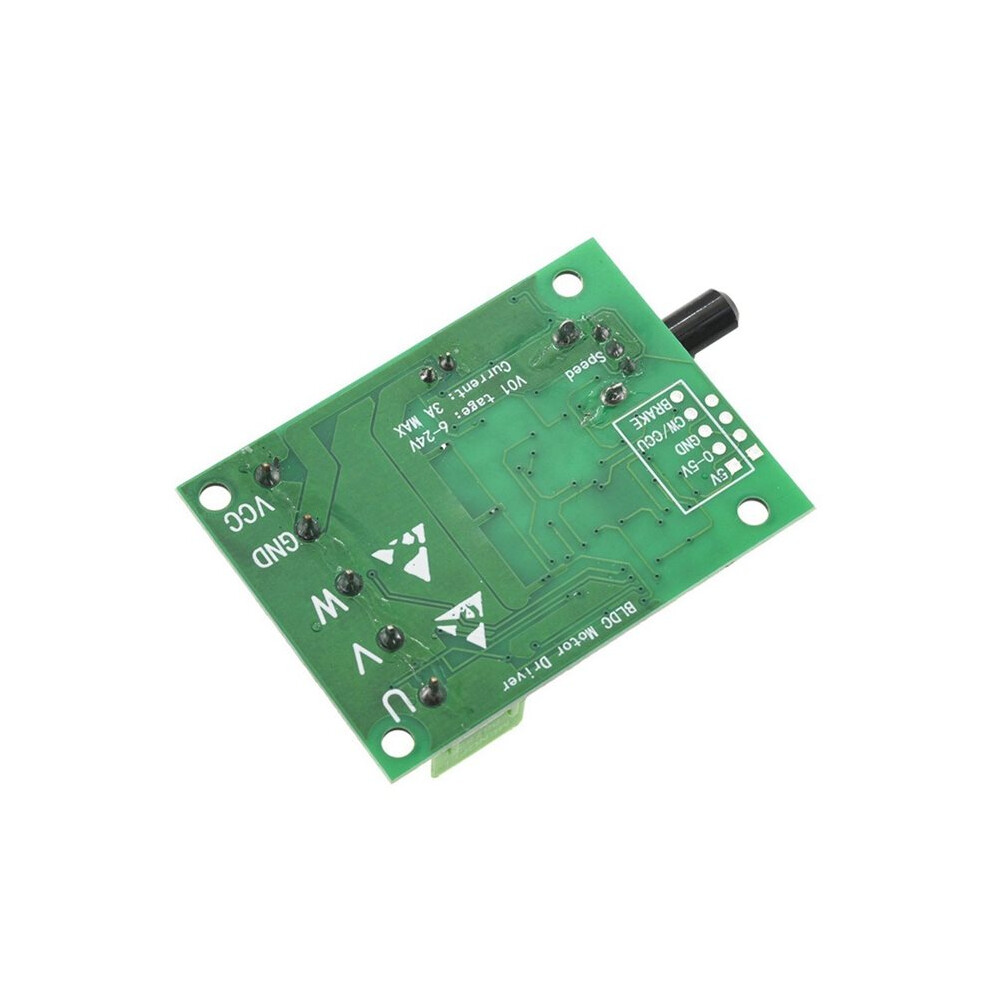

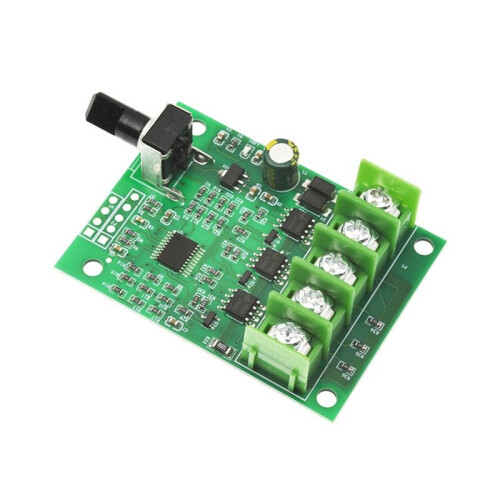

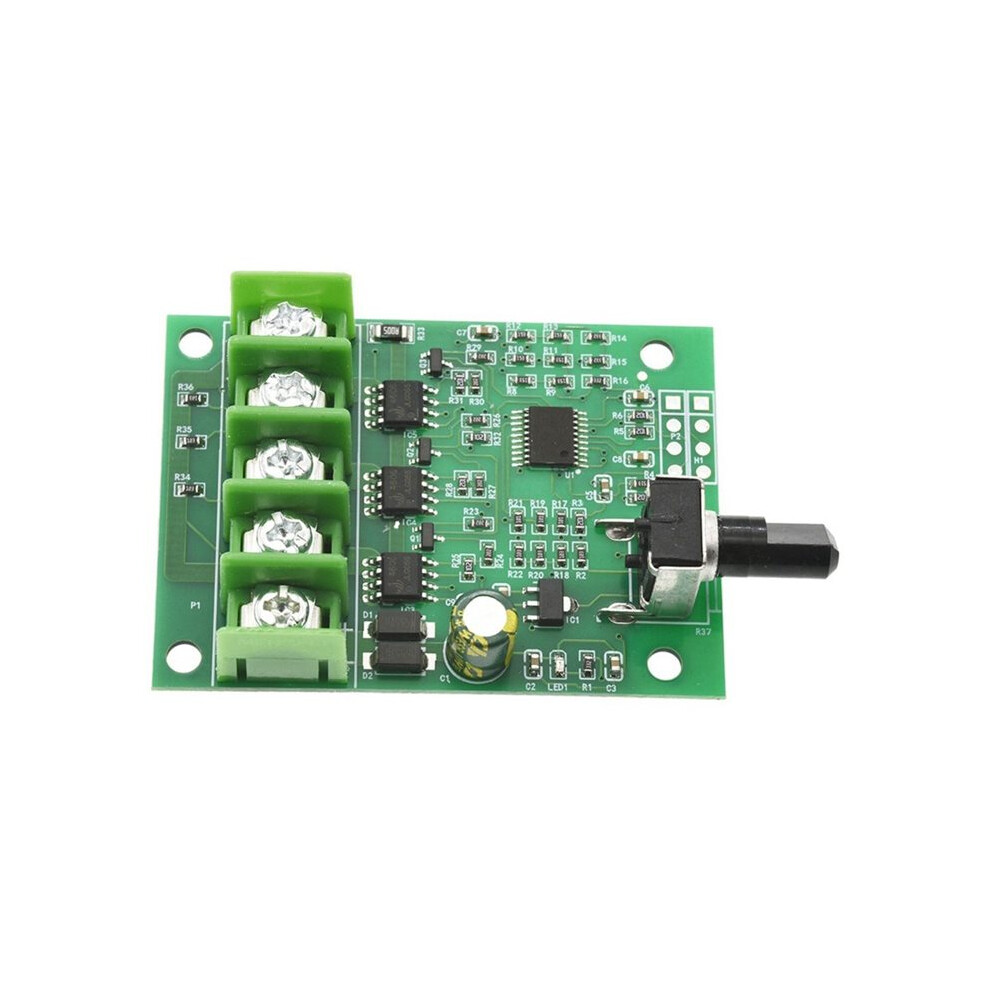

Brushless Motor Driver Board Speed Regulator Controller Module for DIY Project and Equipment Modification

Brushless Motor Driver Board Speed Regulator Controller Module for DIY Project and Equipment Modification Beskrivelse

Key Features

Power Supply Reverse Polarity Protection: Built-in reverse polarity protection circuitry at the power input effectively prevents board damage caused by wiring errors.

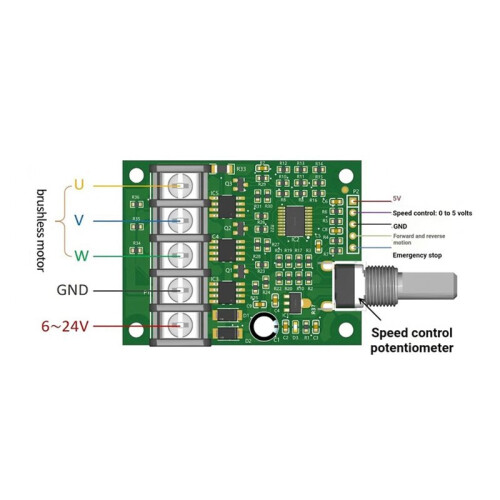

Multiple Speed Control Modes:
(1)-board Potentiometer Control: Stepless speed adjustment via the -board potentiometer-no external components required.

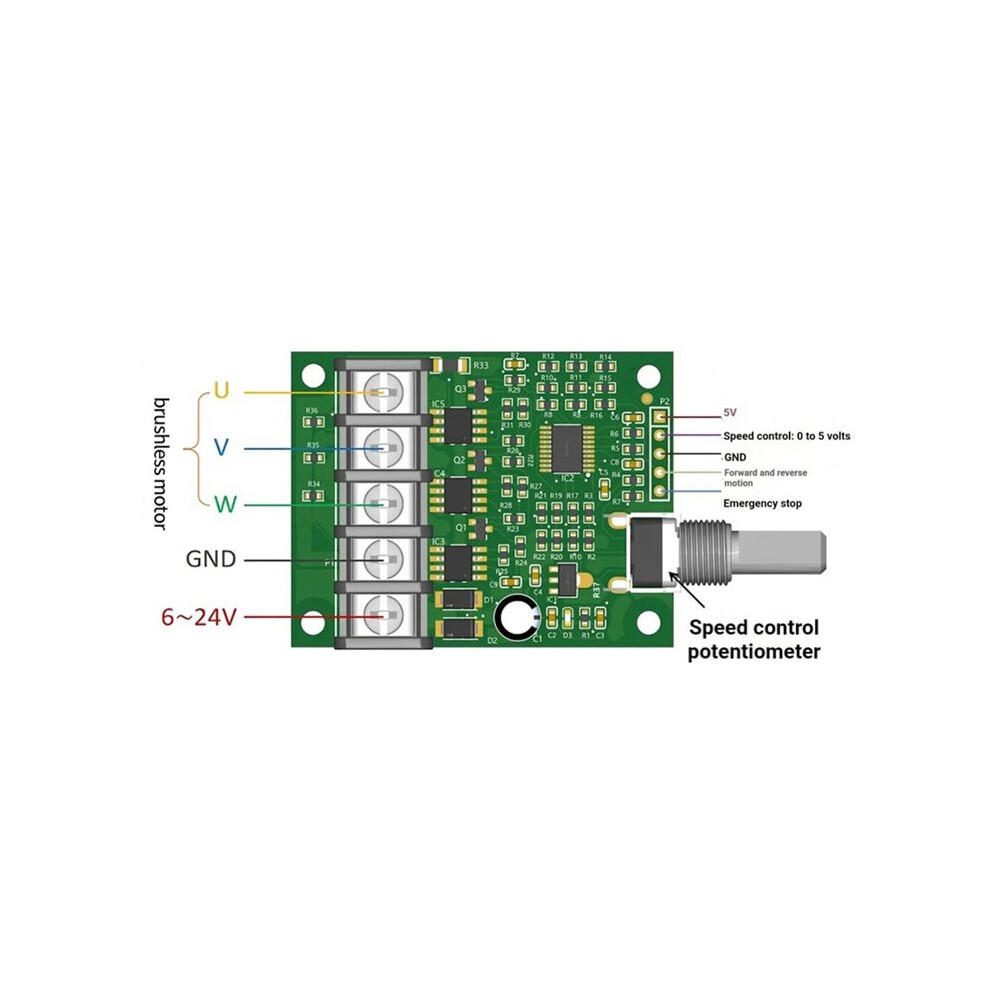

(2)External Potentiometer Control: Provides 5V, GND, and 0-5V signal interfaces, allowing for convenient connection to a control panel for manual speed adjustment.
(3)Industrial Analog Control: Supports external 0-5V analog voltage signal input, facilitating centralized control within automation systems.
Multifunctional Logic Control:
(1)Supports forward/reverse rotation control and emergency braking.
(2)Control signals are active-low; compatible with physical buttons and switches, and can also connect directly to signal terminals microcontrollers or industrial control boards.
Specifications
Input Voltage: 6V to 24V
Operating Current: Continuous operation recommended within rated limits; current must not exceed 3A.

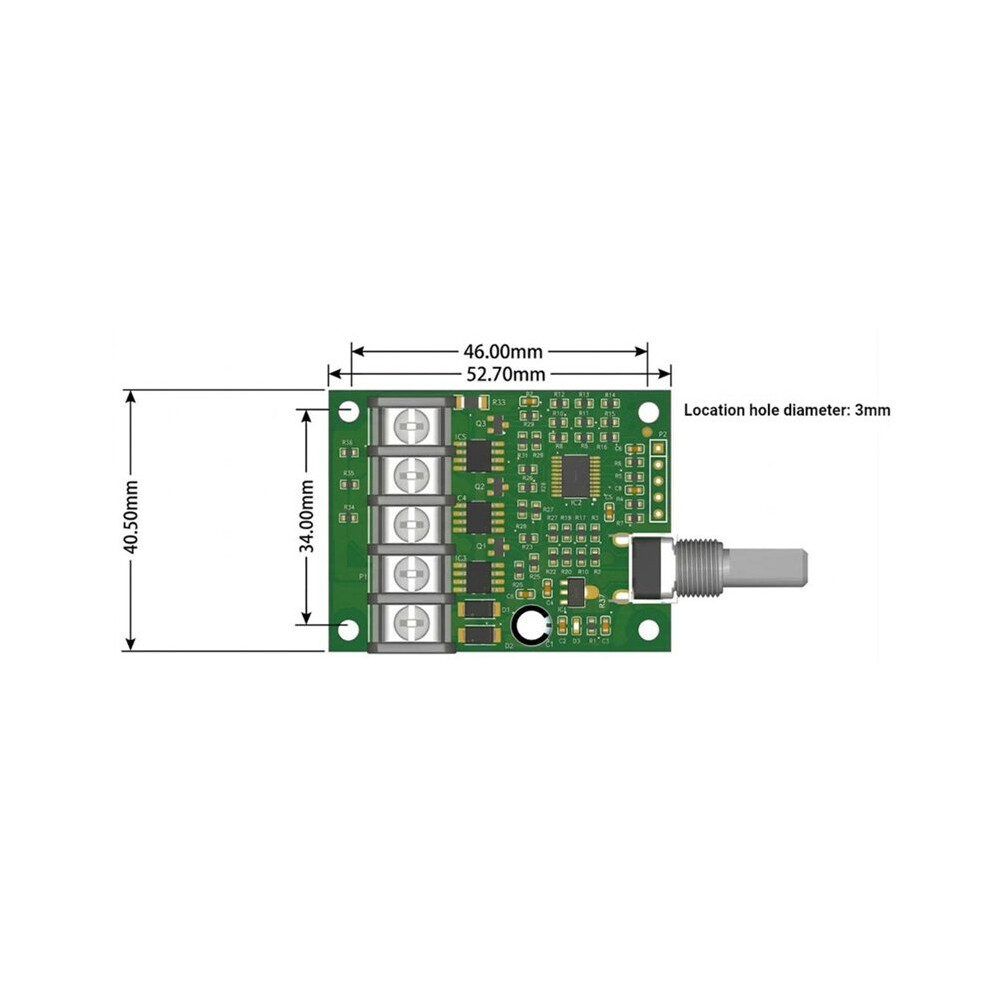

Mounting Holes: 3mm screw mounting holes
Compatible Motors: Hard drive motors, brushless fans, micro pumps, and common micro three-phase brushless motors.
Color: As Shown
Material: PCB

Package Contents:
1*Module
