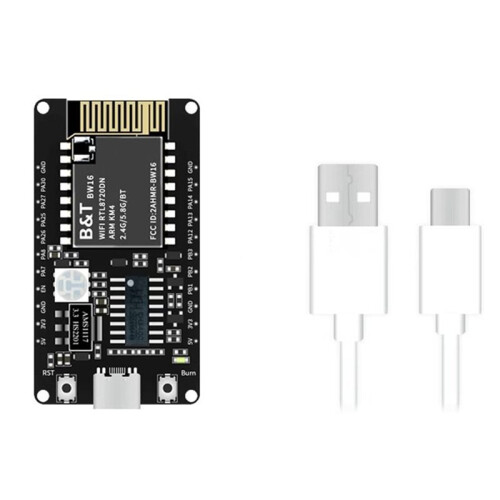

BW16-Kit Development Board RTL8720DN Dual-Band 2.4G and 5G Wi-Fi Low-Power BLE Module Type-C Interface

BW16-Kit Development Board RTL8720DN Dual-Band 2.4G and 5G Wi-Fi Low-Power BLE Module Type-C Interface Beskrivelse

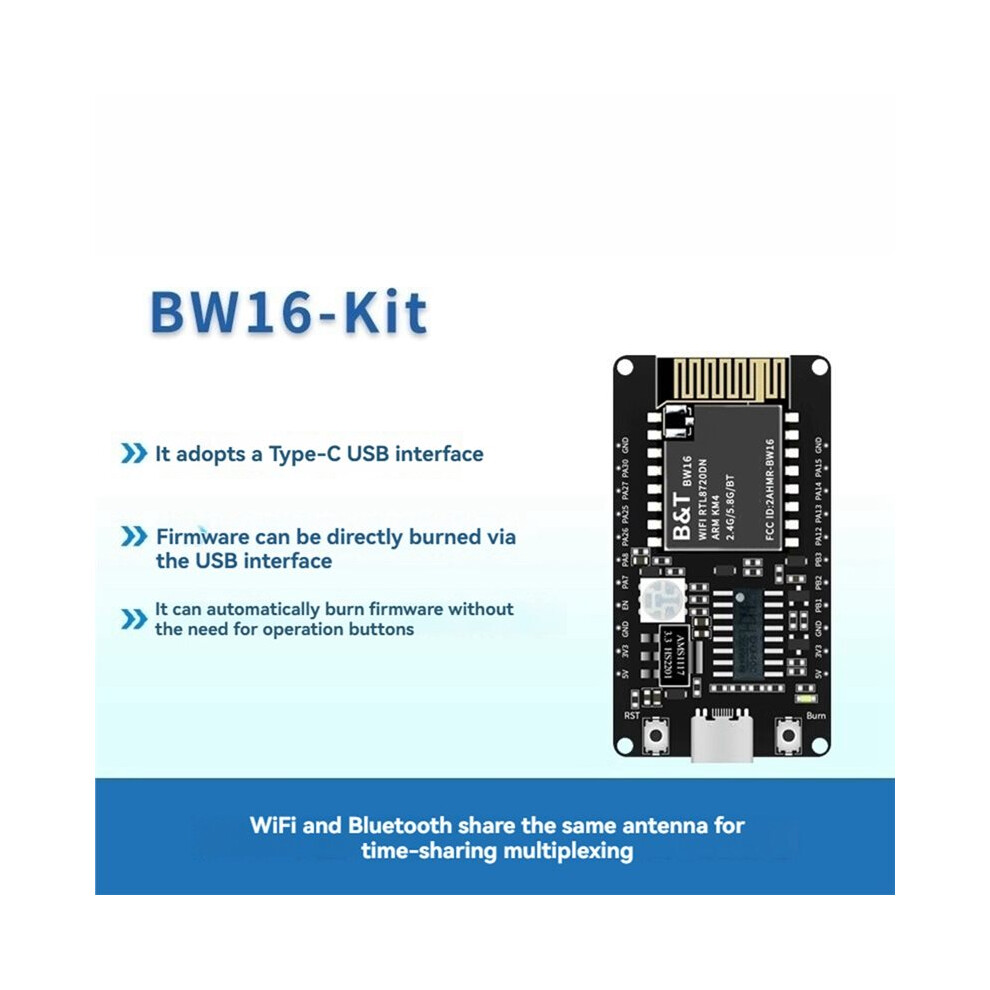

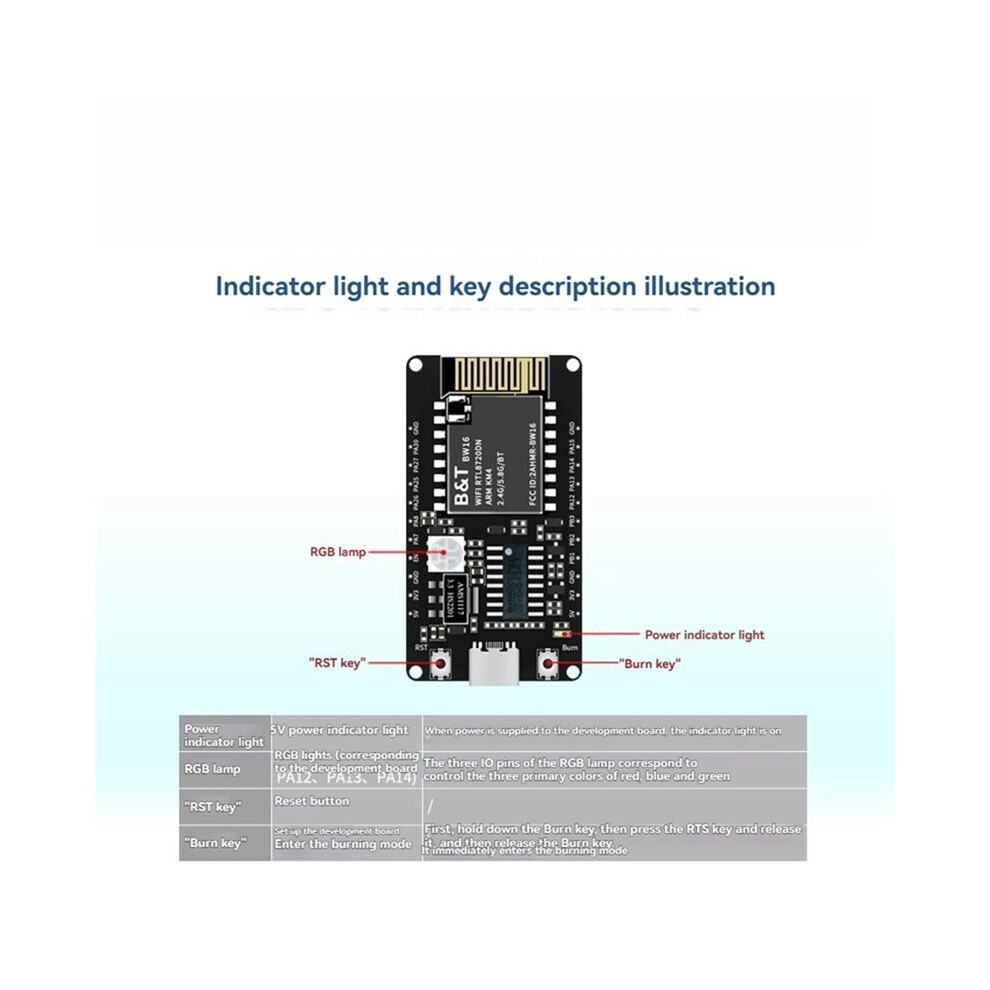

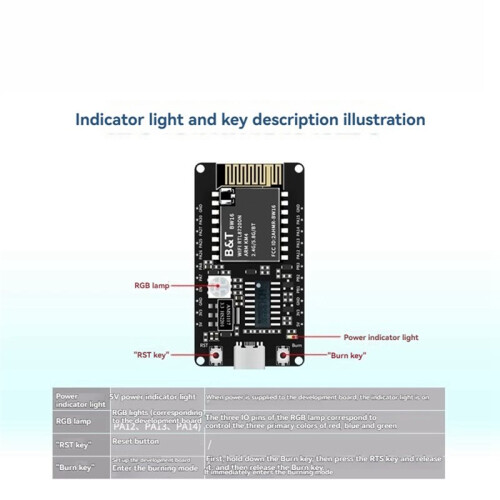

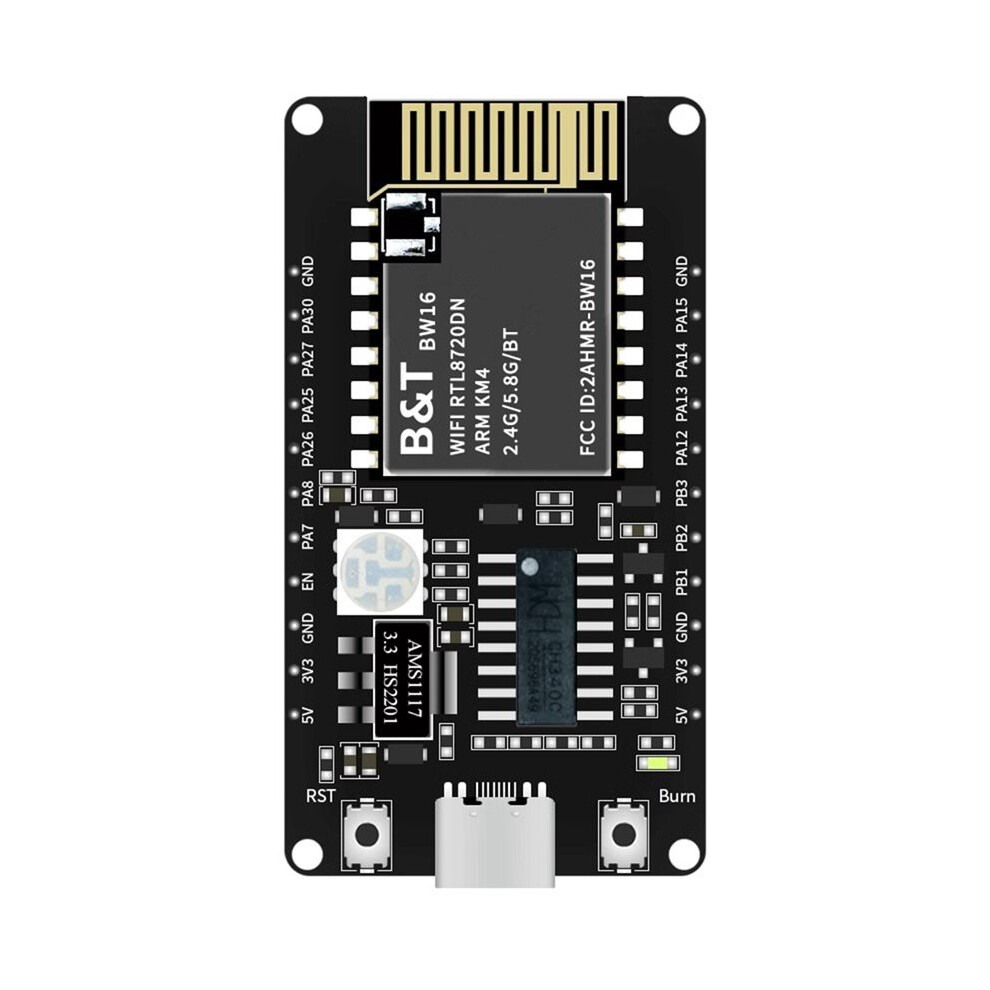

The BW16-Kit development board is a core development board designed for the BW16 module. It continues the classic design of the NodeMCU development board, bringing out all I/O pins to both sides. It features onboard RGB LEDs, and developers can connect peripherals according to their needs.

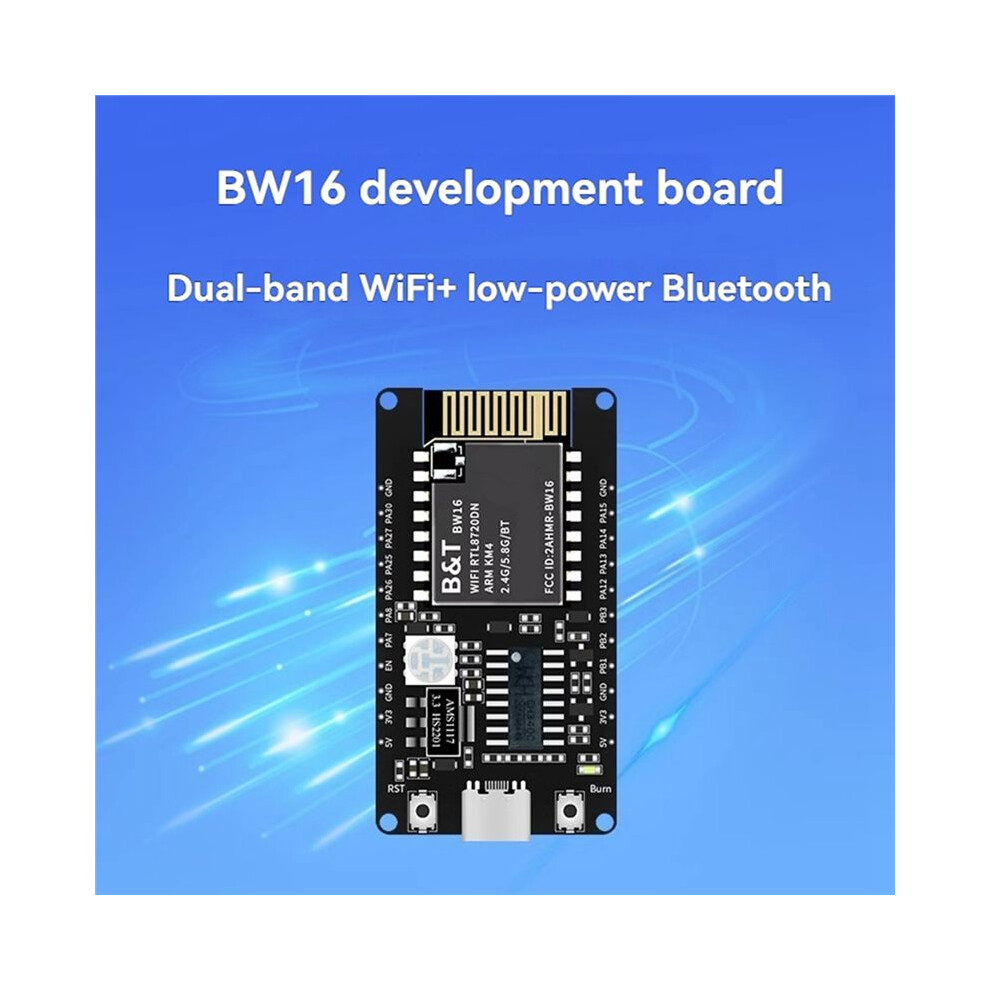

BW16 is a dual-band Wi-Fi+ SoC module developed based RTL8720DN.BW16 supports dual-band (2.4GHz or 5GHz) WLAN and low-power 5.0;
It integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11a/b/g/n), , baseband and RF baseband, and provides a set of configurable GPIO for control of different peripheral devices.
BW16 also integrates internal storage, supports simple application development, and can realize full Wi-Fi and BT 5.0 protocol functions.
Specifications:
Development Board Model: BW16-Kit
Compatible Module: BW16

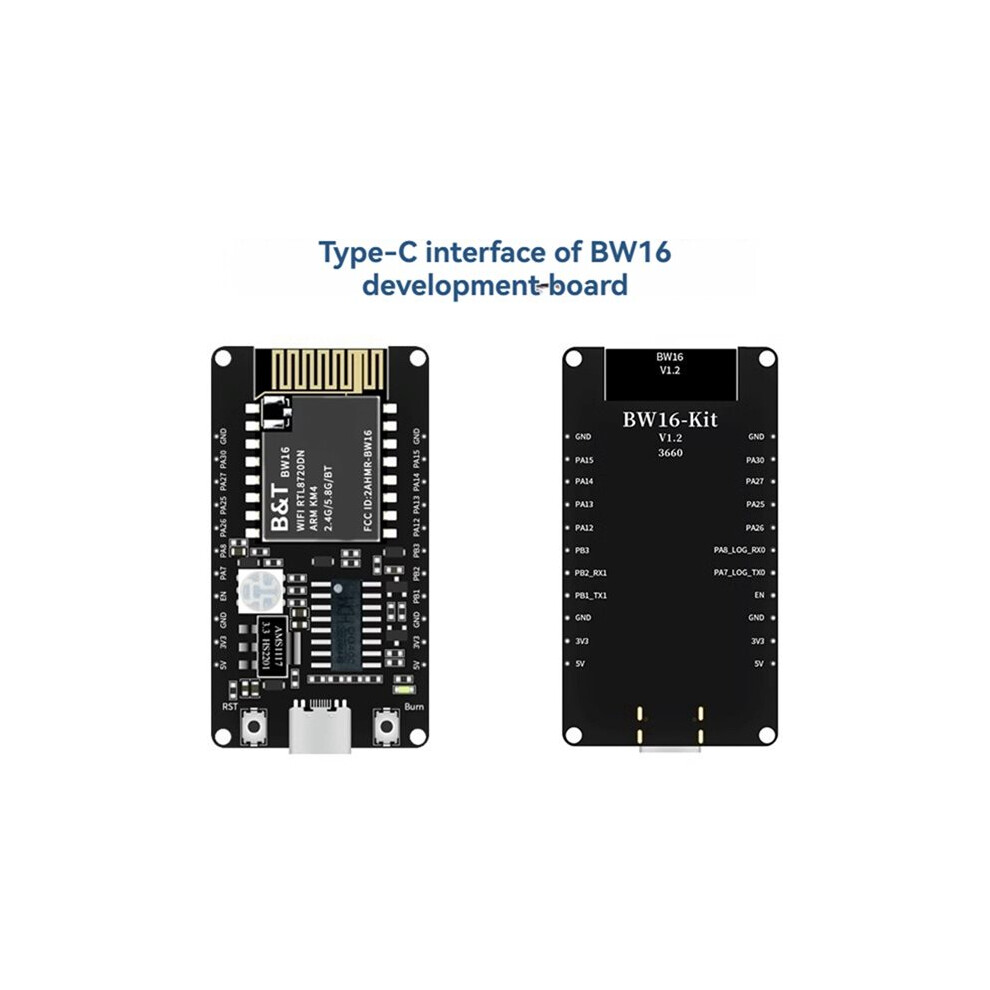

Package: DIP-22 (2.54mm pitch standard header)
Antenna Type: Onboard PCB Antenna
Spectrum Range: 2400-2483.5MHz or 5180-5825MHz
WiFi: Supports 802.11a/b/g/n
: BLE 5.0
Operating Environment: -40C~85C
Storage Environment: -40C~125C, 500mA

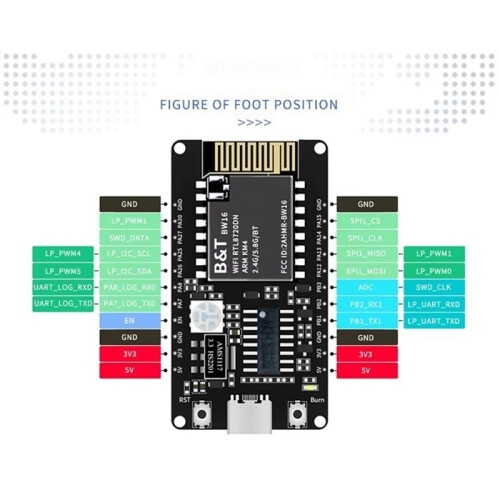

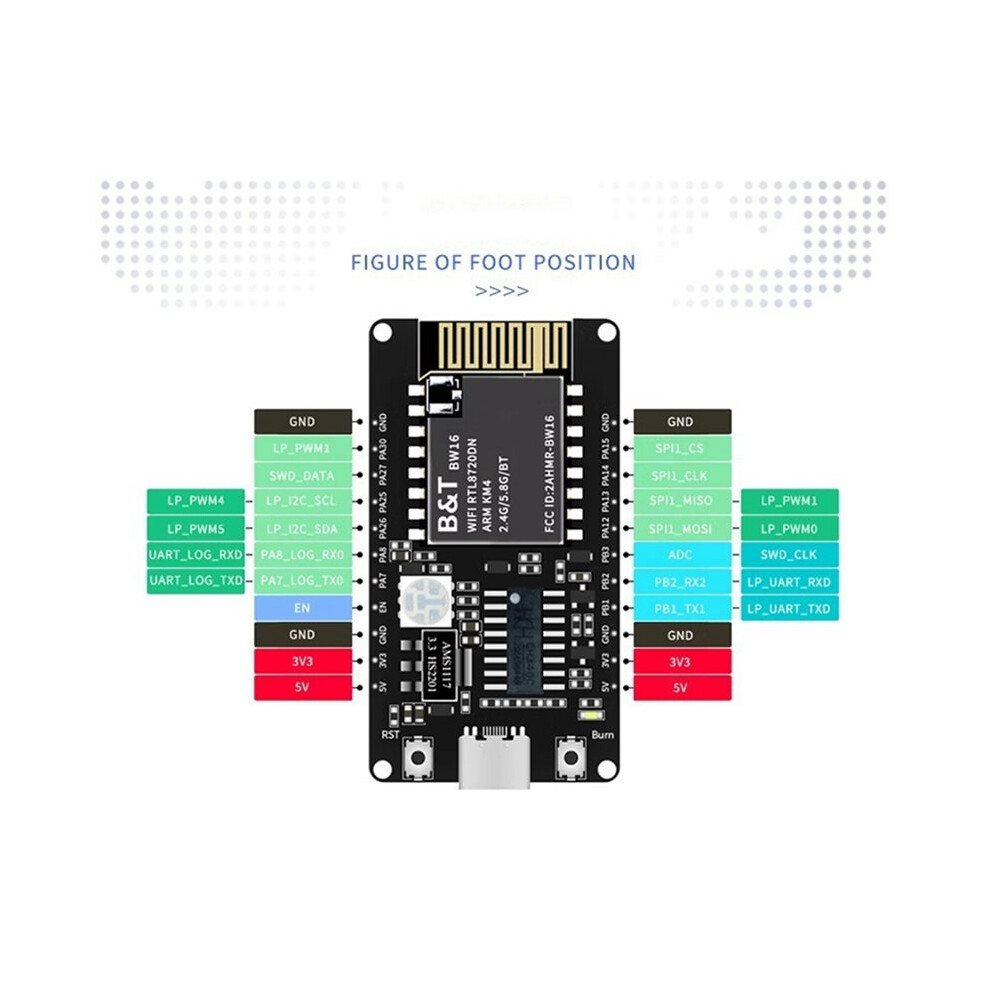

Supported Interfaces: UART/GPIO/ADC/PWM/IC/SPI/SWD

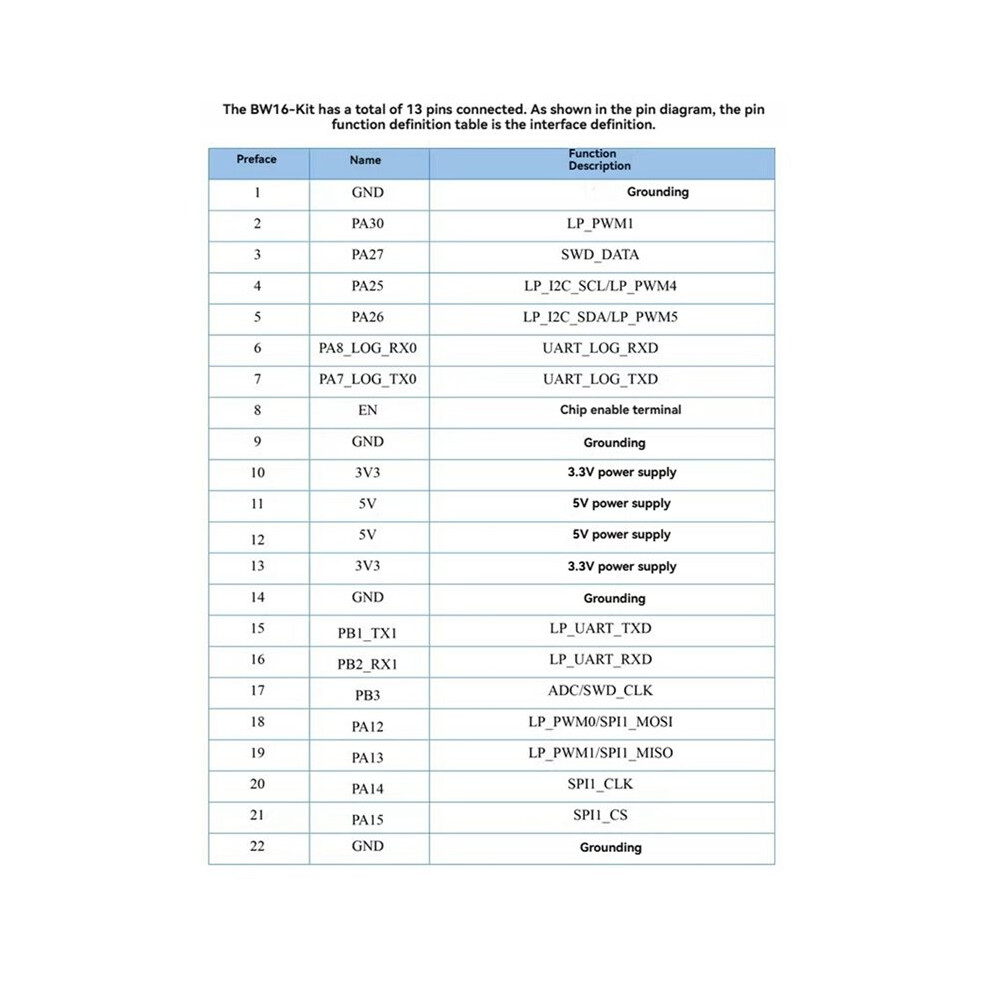

Number of GPIO : 13 (TXO, RXO, TX1, RX1)
Security: AES/DES/SHA
Flash: 4MB
Color: Black
Material: PCB

Package Contents:

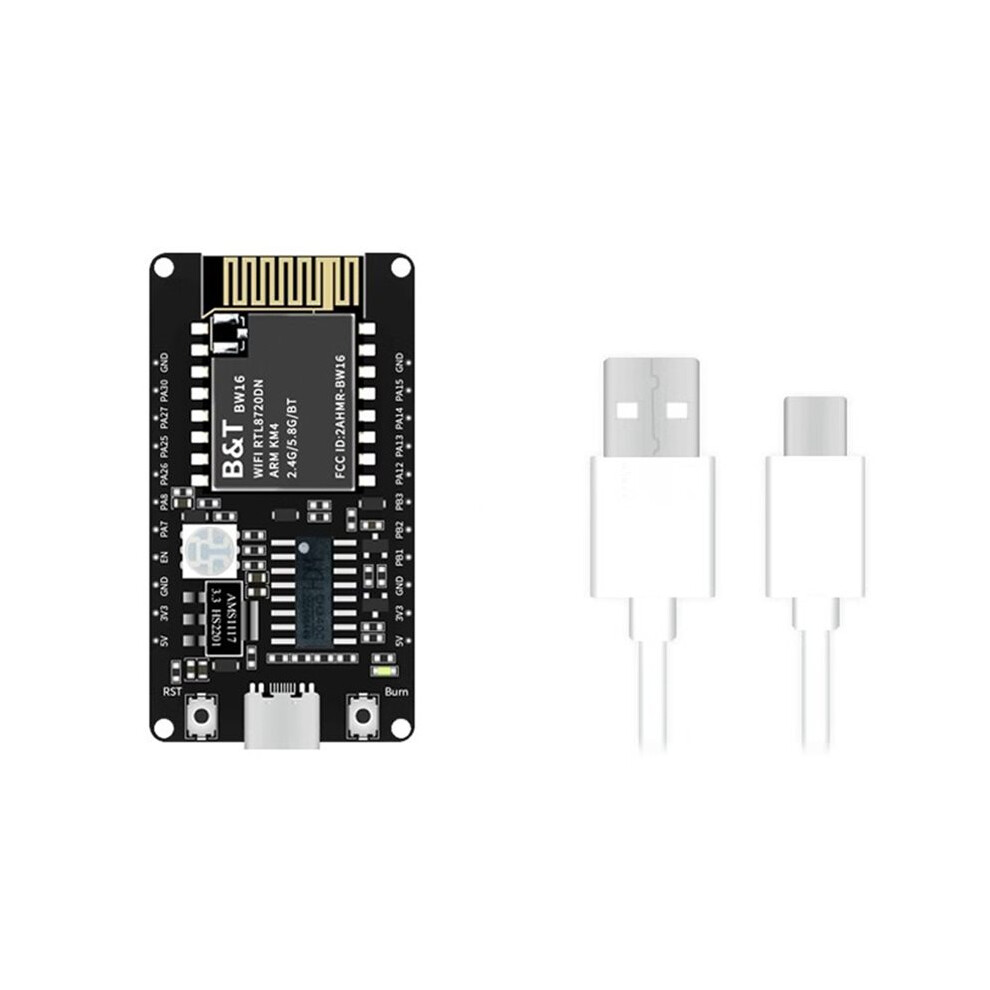

1 * Development board
1 * Type-C data cable (color random)
