CANable USB to CAN Module CAN Debug Adapter CAN Bus Analyzer Debugging Assistant Non-Isolated Version

CANable USB to CAN Module CAN Debug Adapter CAN Bus Analyzer Debugging Assistant Non-Isolated Version Beskrivelse

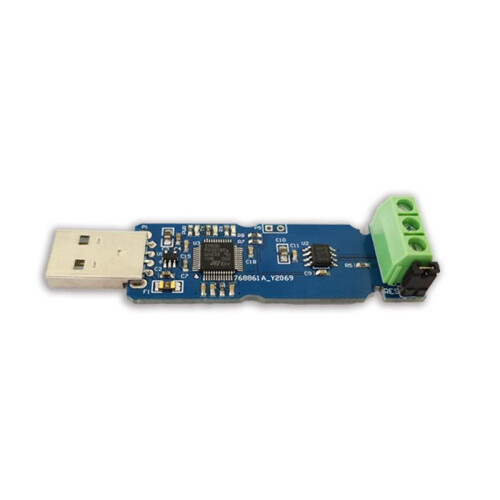

USB to can module is transplanted based open source project, can be used to analyze the CAN bus protocol.
Support: open source host computer CAN protocol analysis software.
Style: CAN non isolation chip TJA1051T/3 is adopted, and the baud rate can reach 1M.
Functional features: Input voltage: 5V (USB power supply)
Chip: TJA1051T/3

Baud rate: to 1M
Status indicator:three color LED
Instructions:
The RES jumper cap is inserted, which means the 120Q terminal resistor is connected. If not required, the jumper cap can be removed.
Connect CAN_ H and CAN_ L is connected to CAN bus, and GND can be connected or not.
Plug in the computer, and the CAN device will appear in the device manager.
Turn the upper computer.
Select the required baud rate and sampling point, click OK, and the -board tri color light will be , Can send and receive data the CAN bus.
Colour: & Transparent
Material:PCB+electronic components+Plastic

Package Contents:
1 * USB to CAN module
