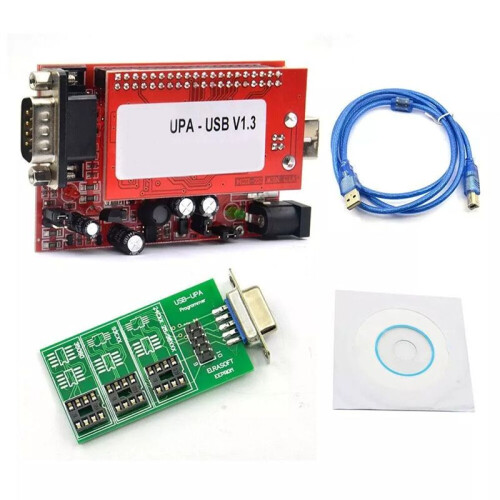

Car UPA USB Programmer Diagnostic Tool UPA-USB ECU Programmer V1.3 with Adapter for 2014 Version Main Unit Support
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | man. 3. - fre. 7. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Alkometre
Oversigt
- Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
- For Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.
- Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
- for 2014 Version Main Unit
- V1.3 With Adapter
Car UPA USB Programmer Diagnostic Tool UPA-USB ECU Programmer V1.3 with Adapter for 2014 Version Main Unit Support Beskrivelse
Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
For MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated both the cable and the adapter) and also the 10-pin ISP connector the main board.
Select the VCC supply source via the bridge the main board next to the ISP connector ( = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
1. Language: English.
2. Hardware Version: V2014
3. Software Vesion: V1.3
4. Support Function, but Has No Adapter in the Package
for STMicroelectronics: ST62-40/45/49; NSC:CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
for Microchip: PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)
for :
MC68HC05-B6/B8/B16/B16/B32/E6/E6/H12/L28/P3/P3*/X16/X32
MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A, MC68HC11/A1/A8/E9/EA9, MC68HC11-E20/F1/K4/KA2/KA4/KG4/KS2/KS8/L6/P2/PA8/PH8
MC68HC912-B32/BE32/D60/D60A/DC128A/DG128/DG128A, MC9S12-D64/A128/DG128/DG256/H128/H256
for Atmel 8051 Architecture: AT89S-51/52/53/8252/8253
Colour:As Shown
Material:plastic

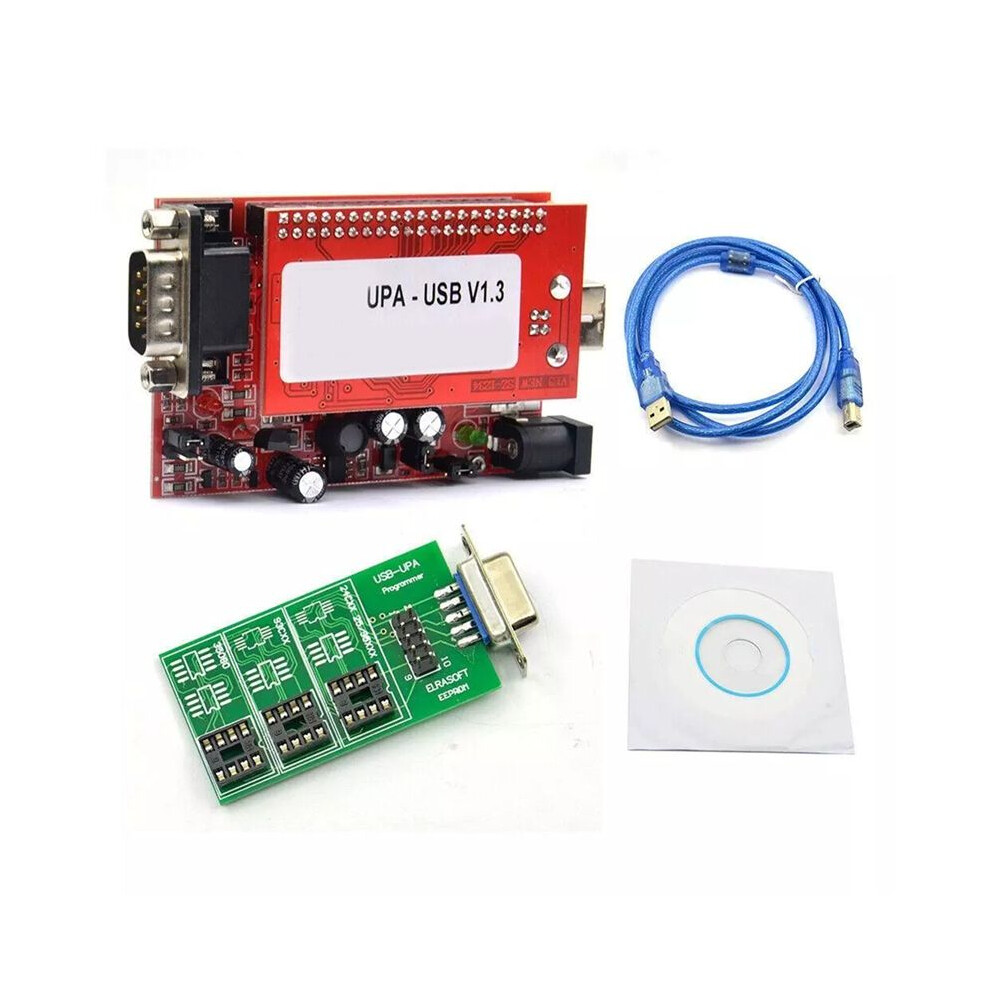

Package Contents:
1 x UPA programmer
1 x UPA-USB cable
1 x Ma
Detaljer
| OPC | PVWQRKX |
|---|---|
| Mærke | Exogio |
| Koder | 4711148166553 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 12cm |
| Length | 19cm |
| Weight | 0.1925kg |
| Colour | As Shown |
| Material | plastic |
