CC1101 Module Wireless Communication Module E07-900M10S 855- 925MHz SPI Serial Communication Protocol for Home

CC1101 Module Wireless Communication Module E07-900M10S 855- 925MHz SPI Serial Communication Protocol for Home Beskrivelse

CC1101 is a high-performance wireless communication module. It uses E07-900M10S module solution (built-in CC1101 low-power Sub-1 GHz RF transceiver), operates in the 855~925MHz frequency band, and supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation schemes, providing stable wireless data transmission while maintaining low power consumption.
The module uses an SPI communication interface and has onboard DIP switches for flexible switching of communication pins, supporting multiple modules stacked simultaneously for functional expansion.
It is suitable for wireless control applications such as industrial automation, home, automated lighting and robotic equipment.

SPI Serial Communication Protocol

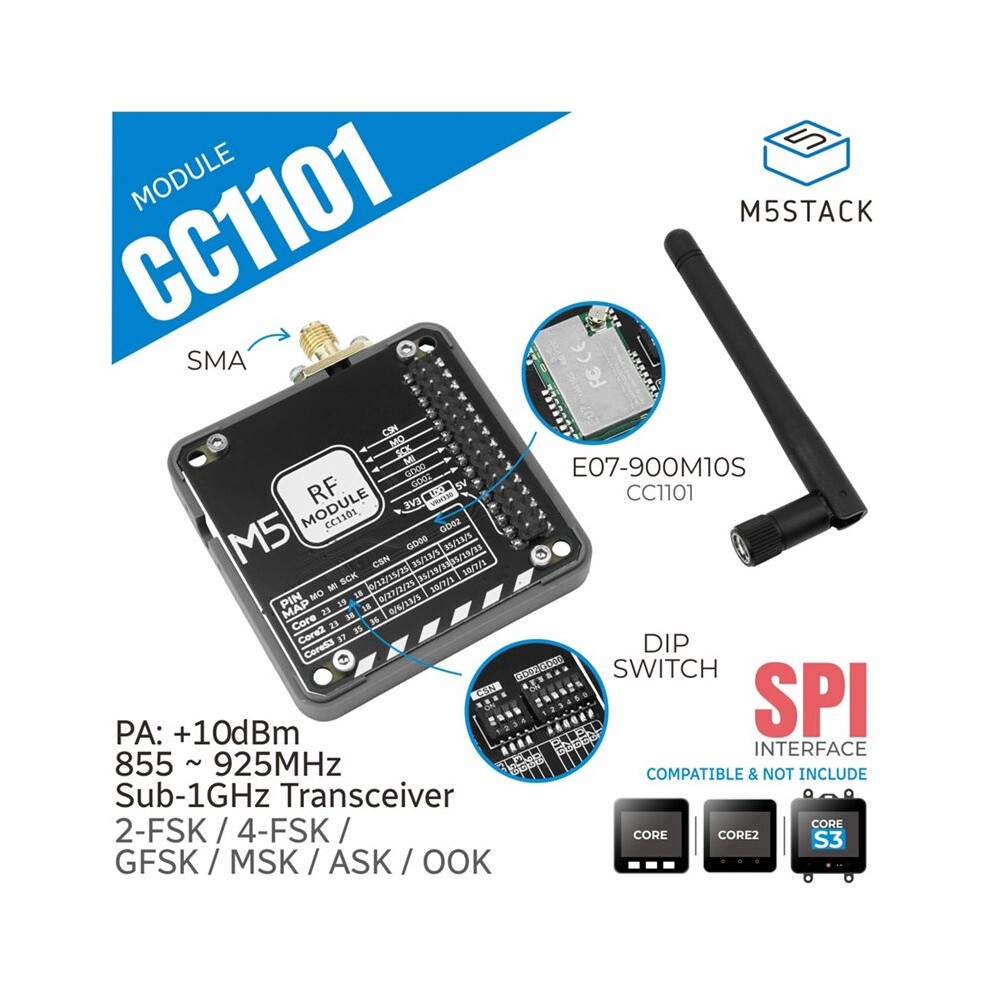

E07-900M10S Module (Based CC1101)
Built-in DIP Pin Switching
Multiple Units Can Be Stacked
CC1101 Low-Power Sub-1 GHz RF Transceiver
Independent 64-byte RX FIFO and TX FIFO
Supports RSSI (Received Signal Strength Indicator) and LOI (Link Quality Indicator)
Operating Frequency Band 855~925 MHz
Supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK Modulation Modes
Receiver Sensitivity: to -109 dBm (1.2kbps rate)
Low Power Consumption in Sleep Mode

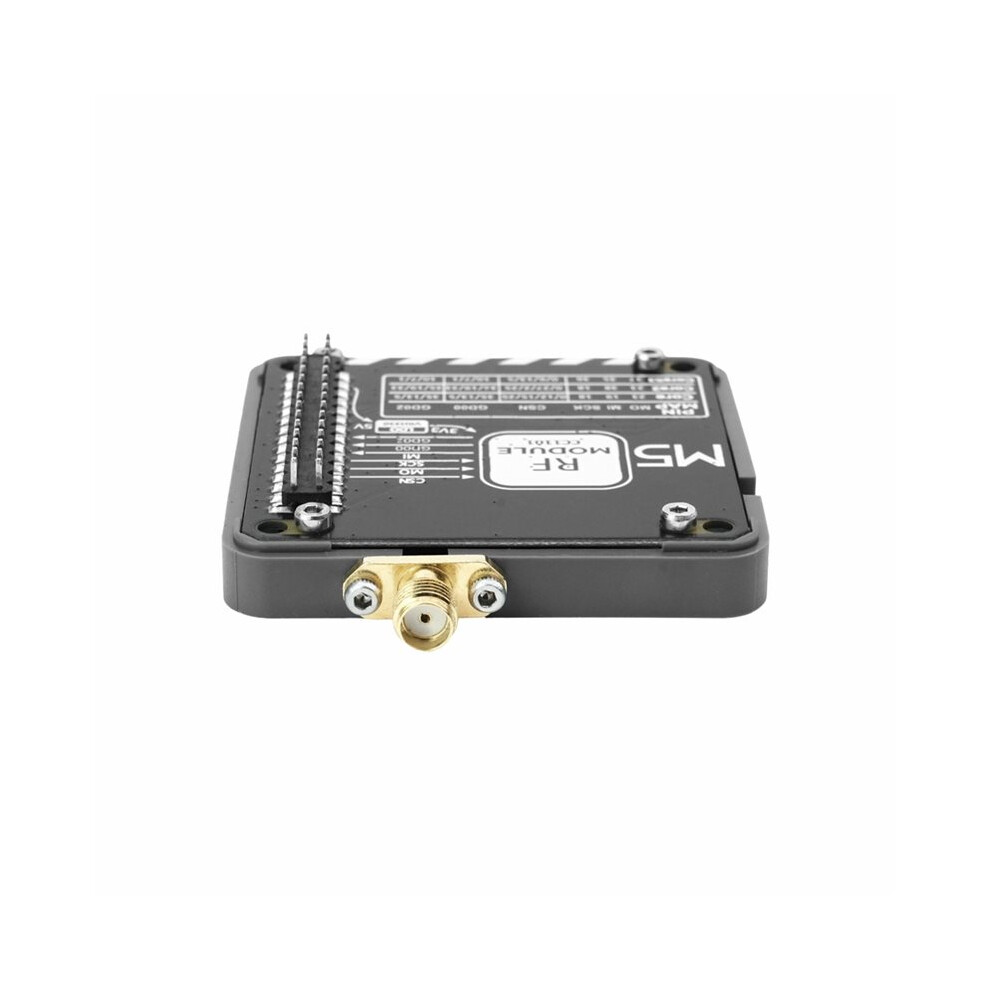

External SMA Antenna Interface
Development Platform: , UiFlow2
Color: Black & Gray
Material: PCB+Plastic

Package Contents:
1* CC1101 Module
