CNC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Constant Current 35W Module

CNC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Constant Current 35W Module Beskrivelse

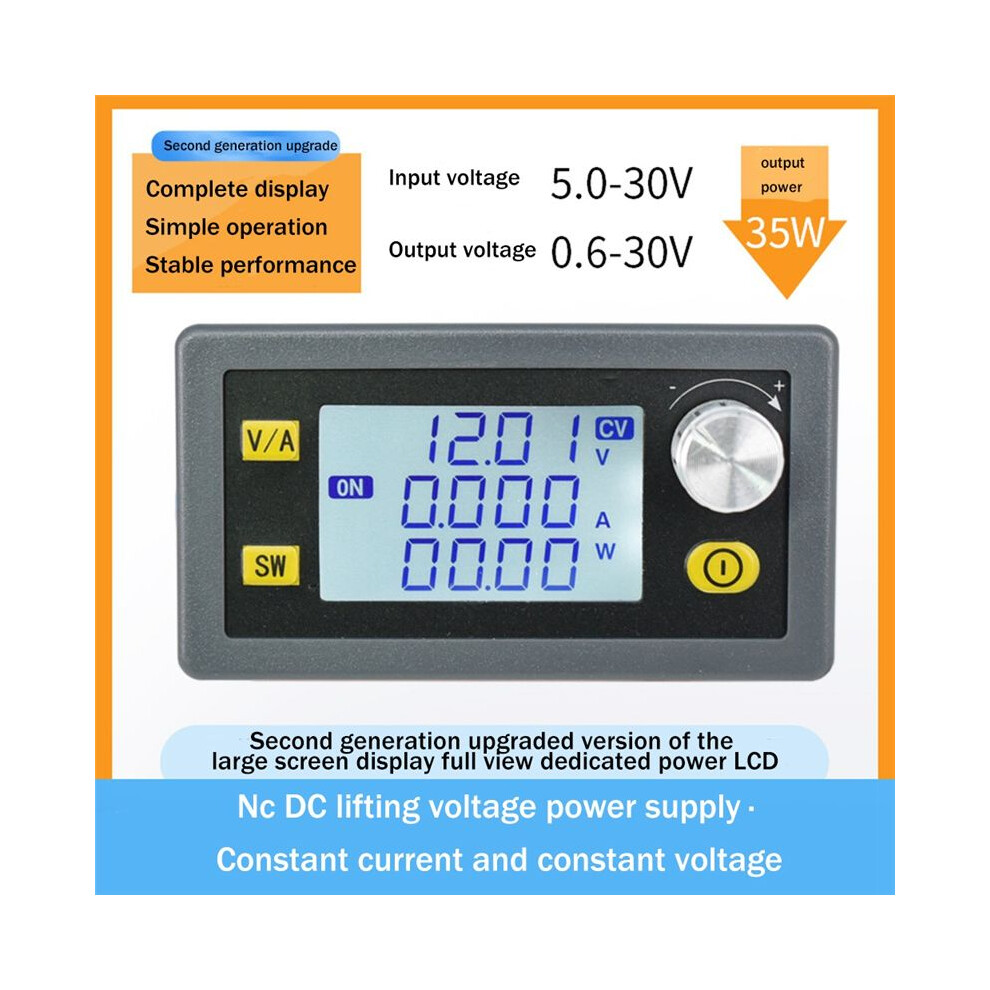

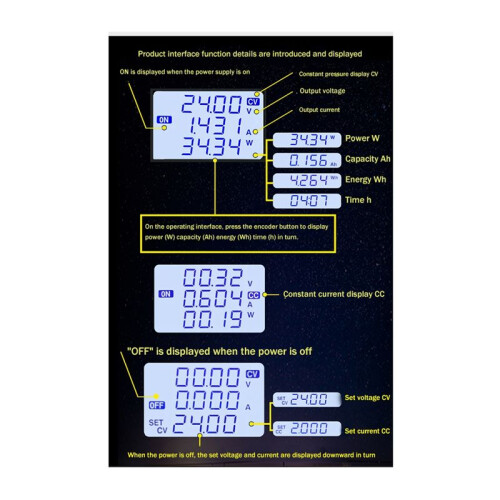

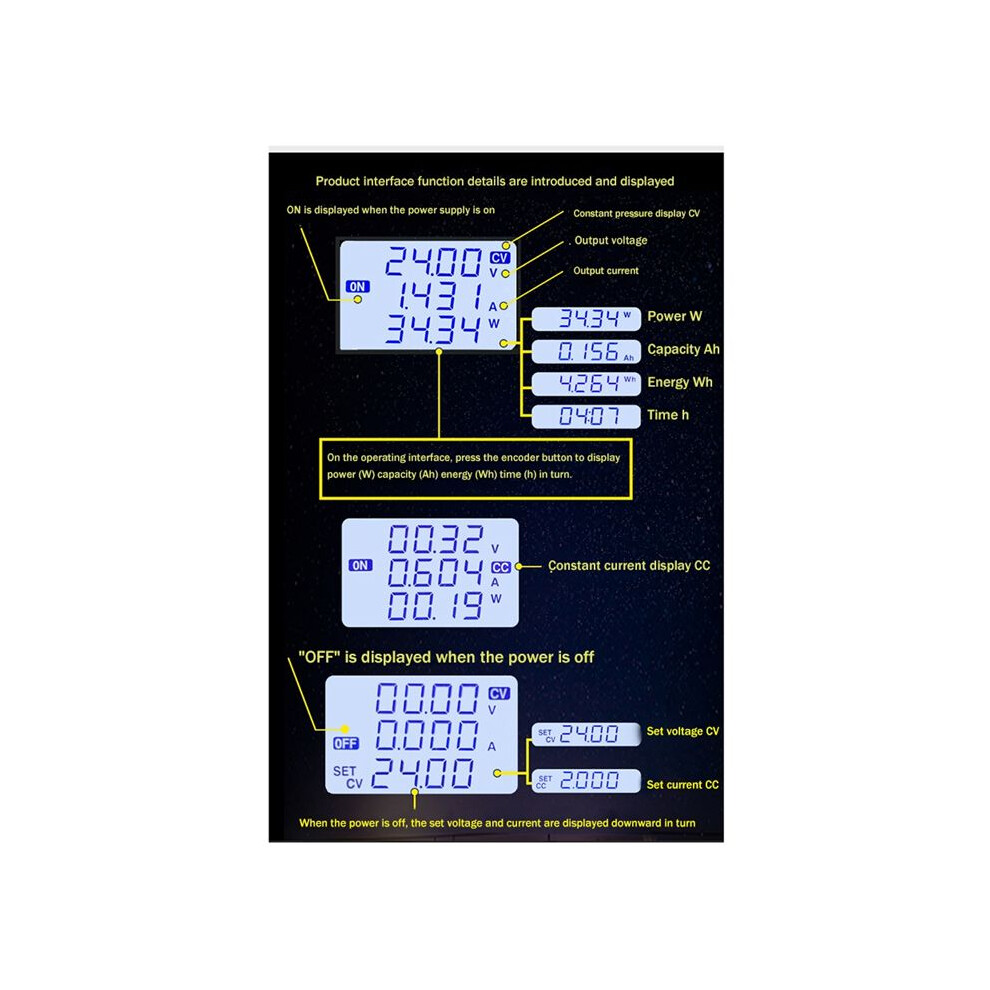

The large screen display shows the status at a glance, simple operation and more smooth experience.
Display complete, simple operation, stable performance.
Fine workmanship One-piece molding frosted panel High-quality aluminum alloy knob cap Good hand feeling.

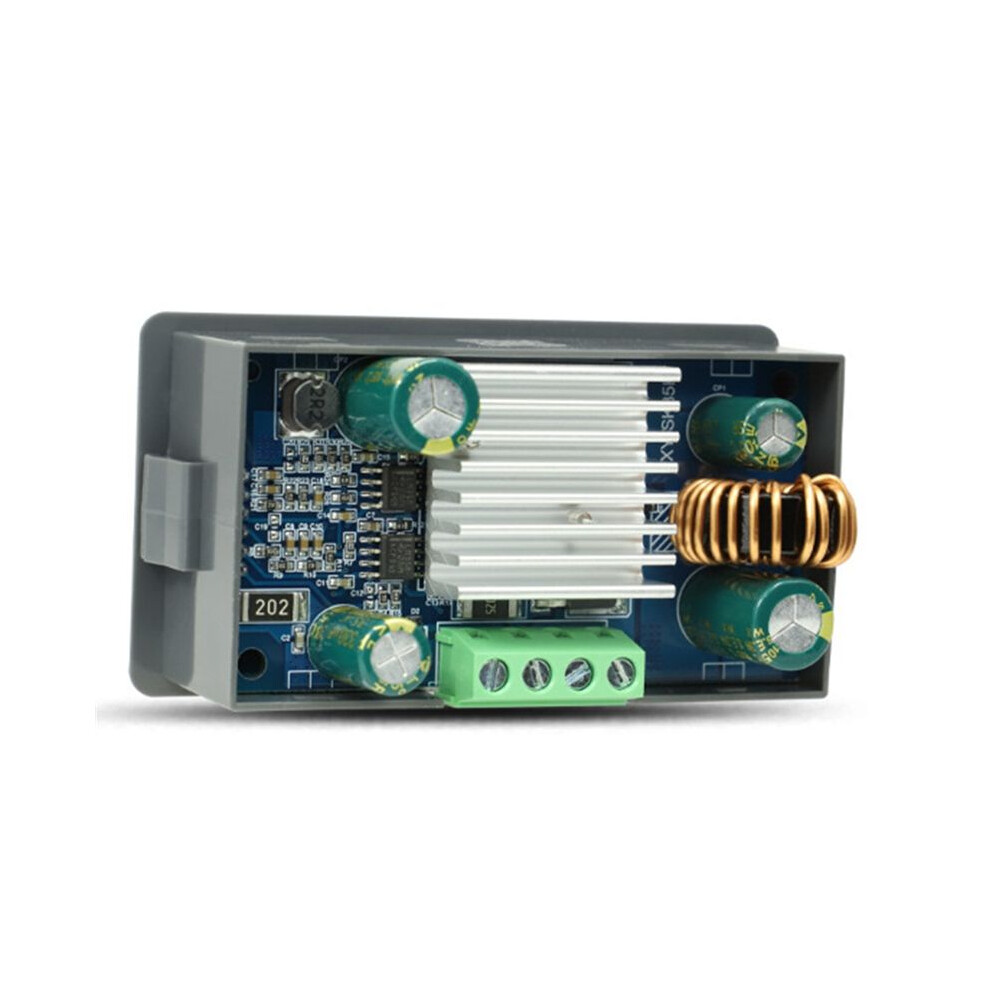

High-power high-temperature resistant iron-silicon aluminum magnetic ring inductor.
Made of high quality materials, durable.

Product parameters
Product name: CNC voltage boosting power supply
Product Model:XY-SK35H
Input voltage: 5.0~30V
Output voltage: 0.6~30V
Output current: 0~4.0A
Output power: natural heat dissipation 35W air-cooled heat dissipation 50W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Voltage accuracy: 0.5% + 1 word
Current accuracy: 0.5% + 3 words
Current resolution: 0.001A
Soft start: Yes
Protection mechanism
Input anti-reverse connection: Yes
Output anti-backflow: Yes
Input under-voltage protection: (4.7-30V adjustable, default 4.7V)
Output over-voltage protection: (0-32V adjustable, default 32V)
Output overcurrent protection: (0-4.2A adjustable, default 4.2A)
Output over power protection: (0-51W adjustable, default 36W)
Over-temperature protection: Yes, default 95
Timeout protection: (0-100H adjustable, default off)
Overcapacity protection: (0~9999AH adjustable, default off)
Super protection: (0 ~ 9999WH adjustable, default off)

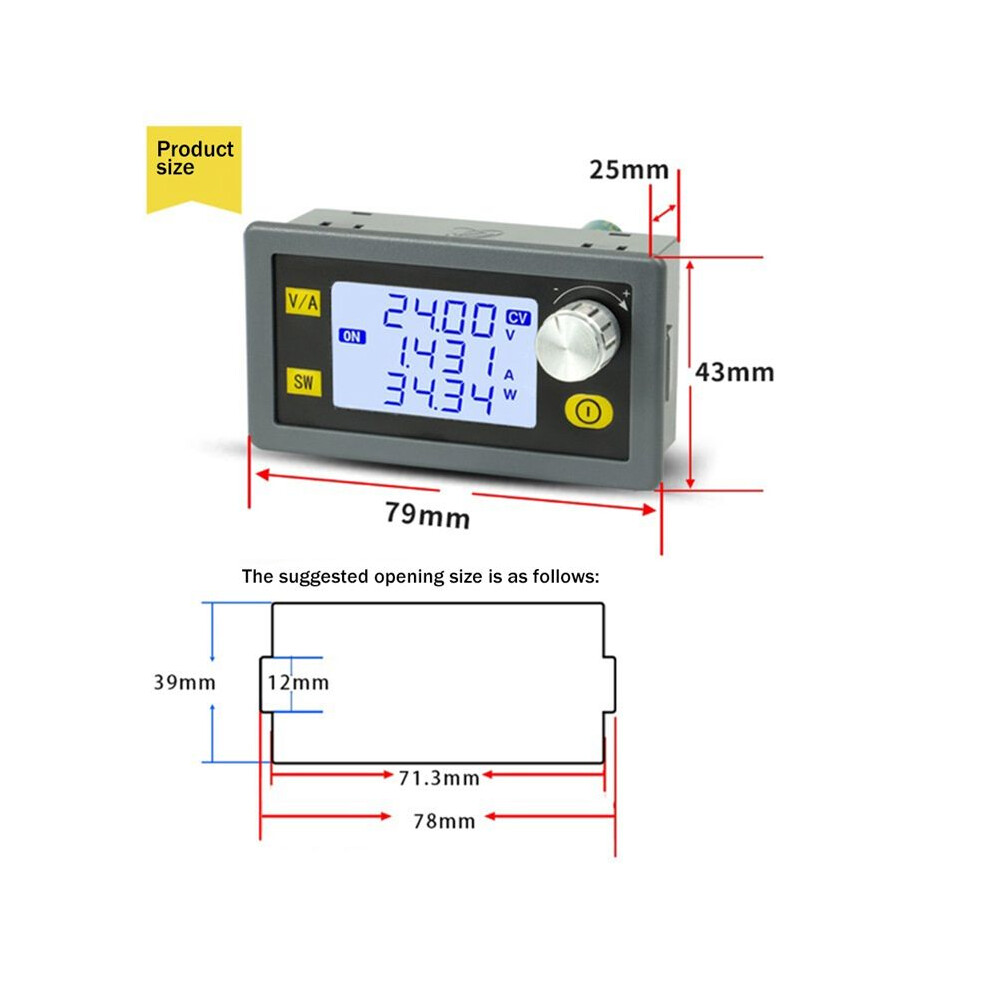

Size:79 x 43 x 25MM
Material: Plastic
colour: black

Package Contents:
1 x Voltage Converter
