DC12V 2CH Motor Remote Motor Forwards Reverse Down Stop Door Window Curtain Wireless Wire Limited

DC12V 2CH Motor Remote Motor Forwards Reverse Down Stop Door Window Curtain Wireless Wire Limited Beskrivelse

12V Motor Forward/Reverse & /Down Control (with Stop function)

Operating Voltage: 12V
Max Load: 40A relay (recommended load current < 25A; power < 350W)

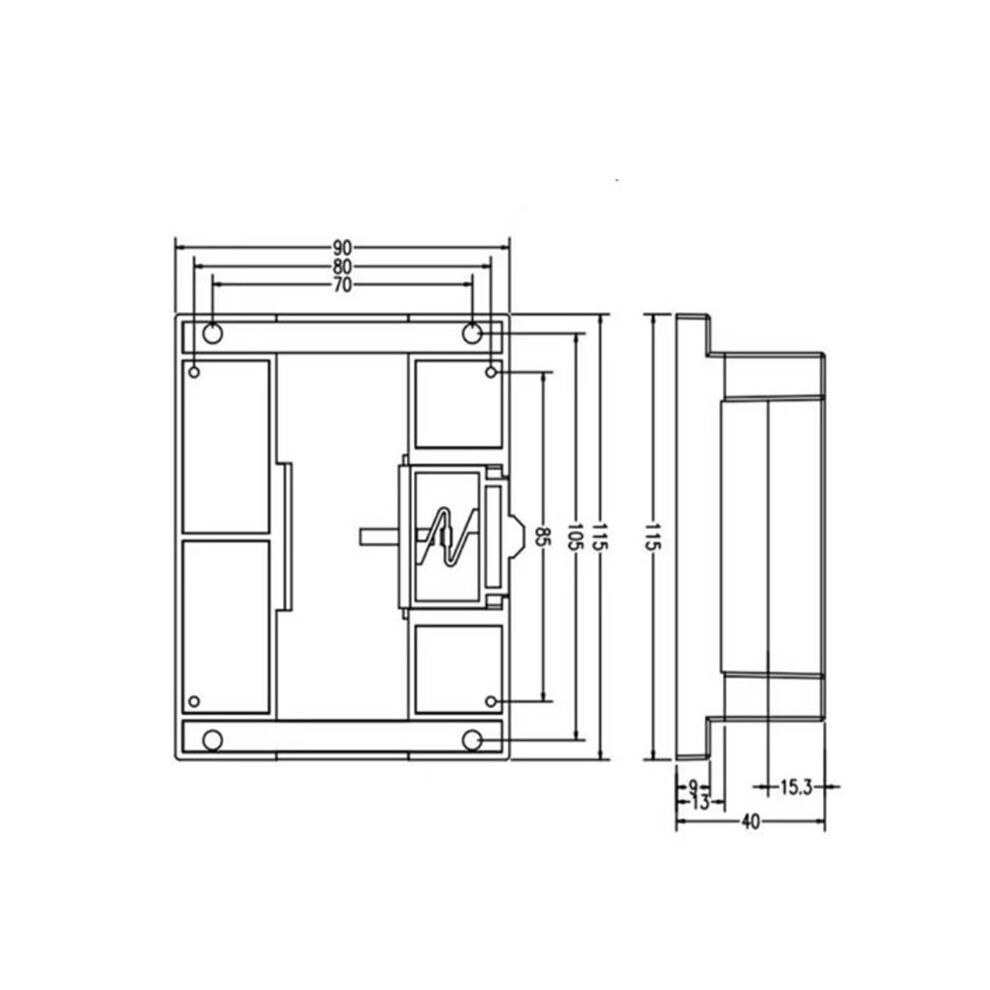

Dimensions: 115 x 95 x 40 mm
Control Method: Uses "/Down" buttons to toggle the polarity of the receiver's output; output voltage is 0V when the motor is stopped.
Pairing Method: Use the "Learn" button to add remote controls.
Power- State: The receiver remains in the "OFF" state after power is restored following a power outage.
Indicator: Receiver is equipped with a power indicator light.
Operating Modes: Momentary or Latched (selectable via ).
"Latched Mode": Includes a 1-second delay protection feature (if switching direction while the motor is running, the motor will pause for 1 second before reversing).
Momentary Mode: Set to "M" position.
Latched Mode: Set to "L" position.
Color: As Shown
Material: plastic

Package Contents:

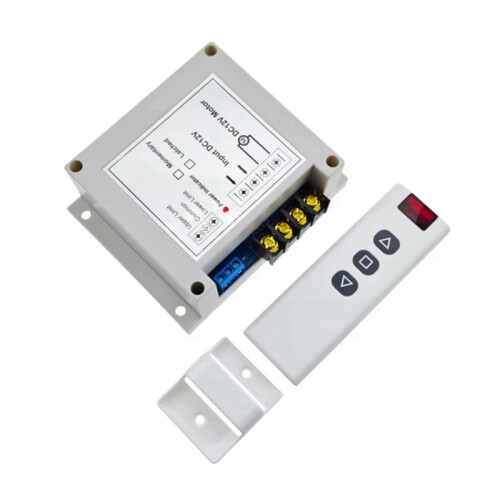

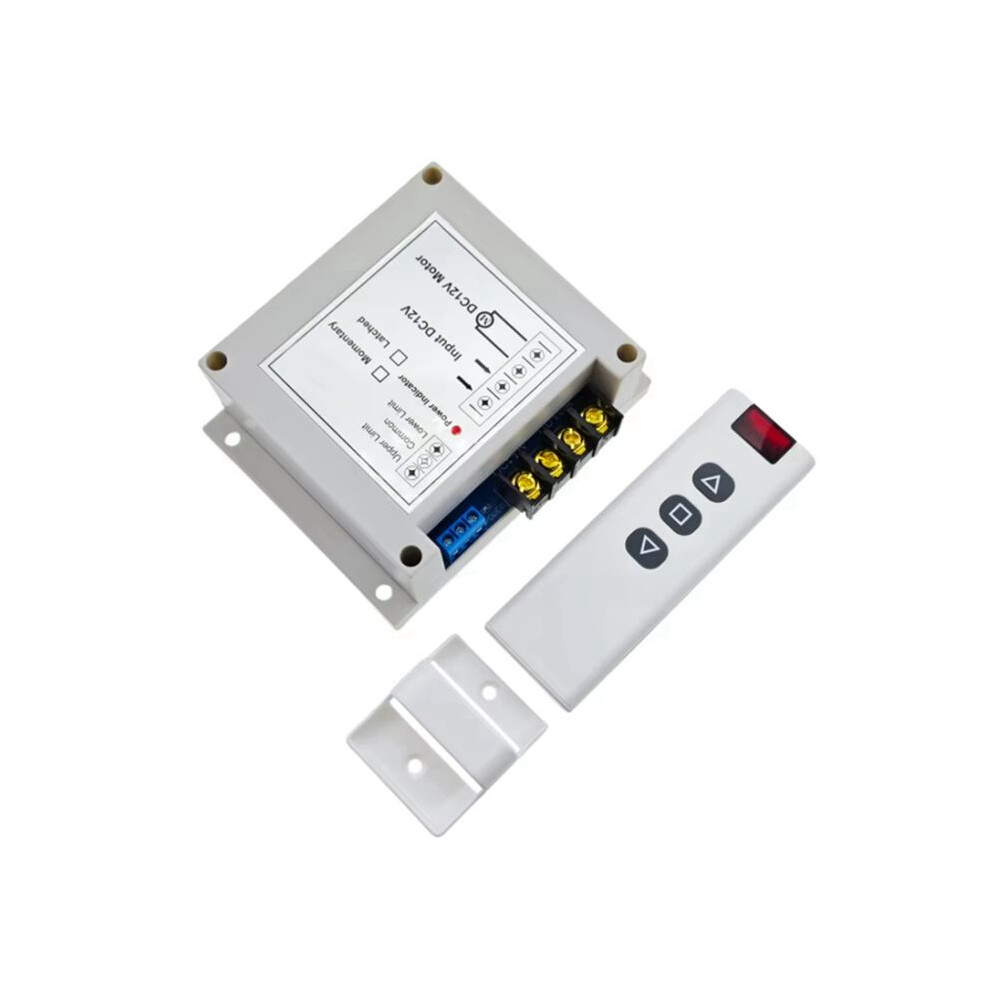

1*Receiver 1*Remote
