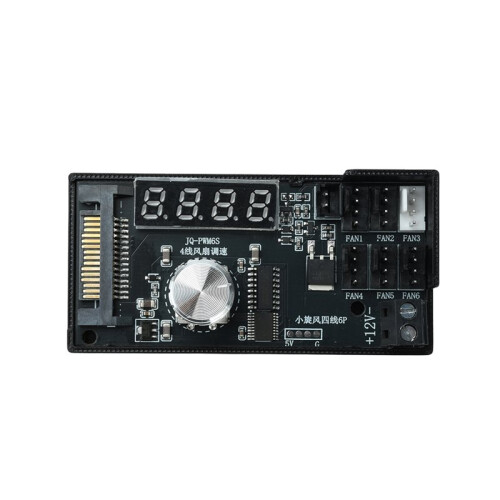

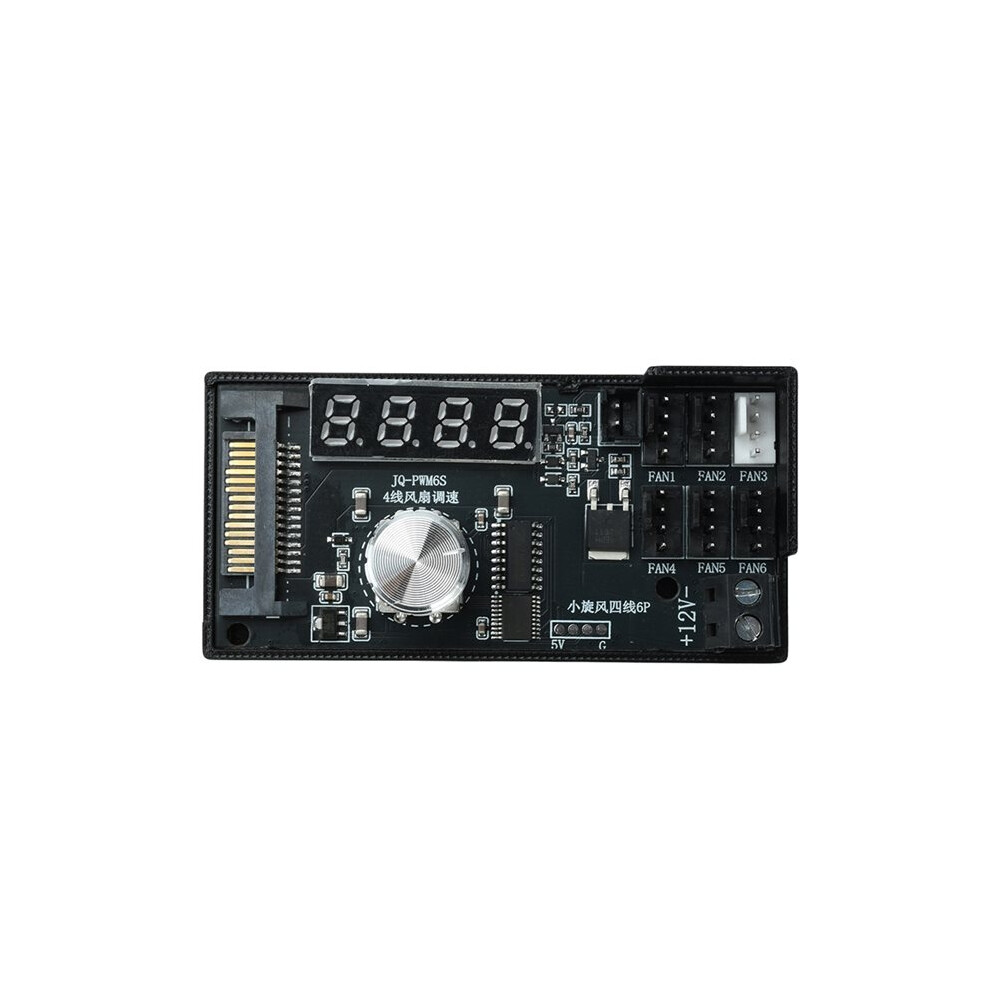

DC12V 5A 6-Channel PWM Fan Speed Controller Digital RPM Display Interface Manual Adjust PC Case Fan Regulator Hub
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 137,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (15,00 kr.) | ons. 11. - fre. 13. nov.
Solgt af: PUPUSUN
Returnering: 30 dage
180 dages betalingsbeskyttelse
Oversigt
- 1. Powerful Power Supply: 12V 5A power supply, capable of simultaneously driving 6 four-wire PWM fans.
- 2. Precise Speed Control: Supports stepless speed control of four-wire PWM from 1% to 99%, achieving both quiet operation and excellent heat dissipation.
- 3. Dual Control Mode: Intelligent temperature control for automatic speed adjustment (start/stop thresholds can be set), and manual mode can also be used to adapt to different scenarios.
- 4. Digital Display Monitoring: Real-time display of fan speed or temperature values, providing a clear overview of the operating status.
- 5. Cable Management-Friendly: Direct SATA power connector eliminates the need for adapters, saves space, and makes cable management in the chassis simpler.
DC12V 5A 6-Channel PWM Fan Speed Controller Digital RPM Display Interface Manual Adjust PC Case Fan Regulator Hub Beskrivelse
1. Powerful Power Supply: 12V 5A power supply, capable of simultaneously driving 6 four-wire PWM fans.
2. Precise Speed Control: Supports stepless speed control of four-wire PWM from 1% to 99%, achieving both quiet operation and excellent heat dissipation.
3. Dual Control Mode: Intelligent temperature control for automatic speed adjustment (start/stop thresholds can be set), and manual mode can also be used to adapt to different scenarios.
4. Digital Display Monitoring: Real- display of fan speed or temperature values, providing a clear overview of the operating status.
5. Cable Management-Friendly: Direct power connector eliminates the need for adapters, saves space, and makes cable management in the chassis simpler.
Product Parameters
Operating Voltage: 12V
Adjustment Method: Encoder Adjustment
Maximum Output Current: 5A
Speed/Temperature Display: Short press the knob to between temperature and speed display
Speed Control Mode: Disconnect the temperature probe, power off and restart to enter manual speed control mode
Temperature Probe: NTC 10K 3950B
Operating Instructions
Long press the knob for 1 second to enter settings
Short press the knob to display LXX-Initial Temperature
Short press again to display HXX-Maximum Speed Temperature
Short press again to display -XX, indicating temperature recovery
Short press again to display OFF0, indicating screen off setting (OFF0-screen , OFF1-screen off)
Short press again to display PF0, indicating output inversion setting (0-no inversion, 1-inversion)
Color: Black
Material: PCB
Package Contents:
1*Fan speed controller
Detaljer
| OPC | PY2M26X |
|---|---|
| Mærke | Semoic |
| Koder | 6033304820771 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 9cm |
| Weight | 0.04kg |
| Colour | Black |
| Material | PCB |
