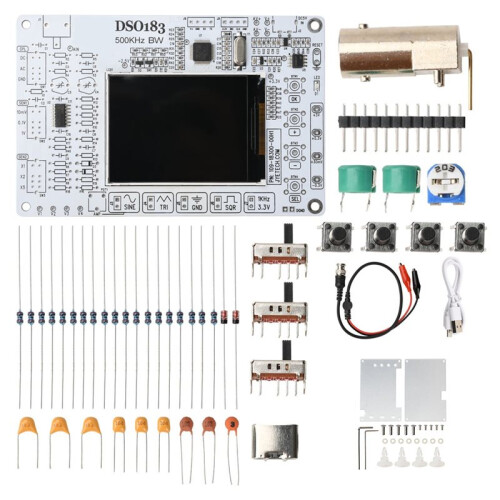

DC5V DSO183 Digital Oscilloscope DIY Loose Parts Teaching Practical Training Electronic Production Kit

DC5V DSO183 Digital Oscilloscope DIY Loose Parts Teaching Practical Training Electronic Production Kit Beskrivelse

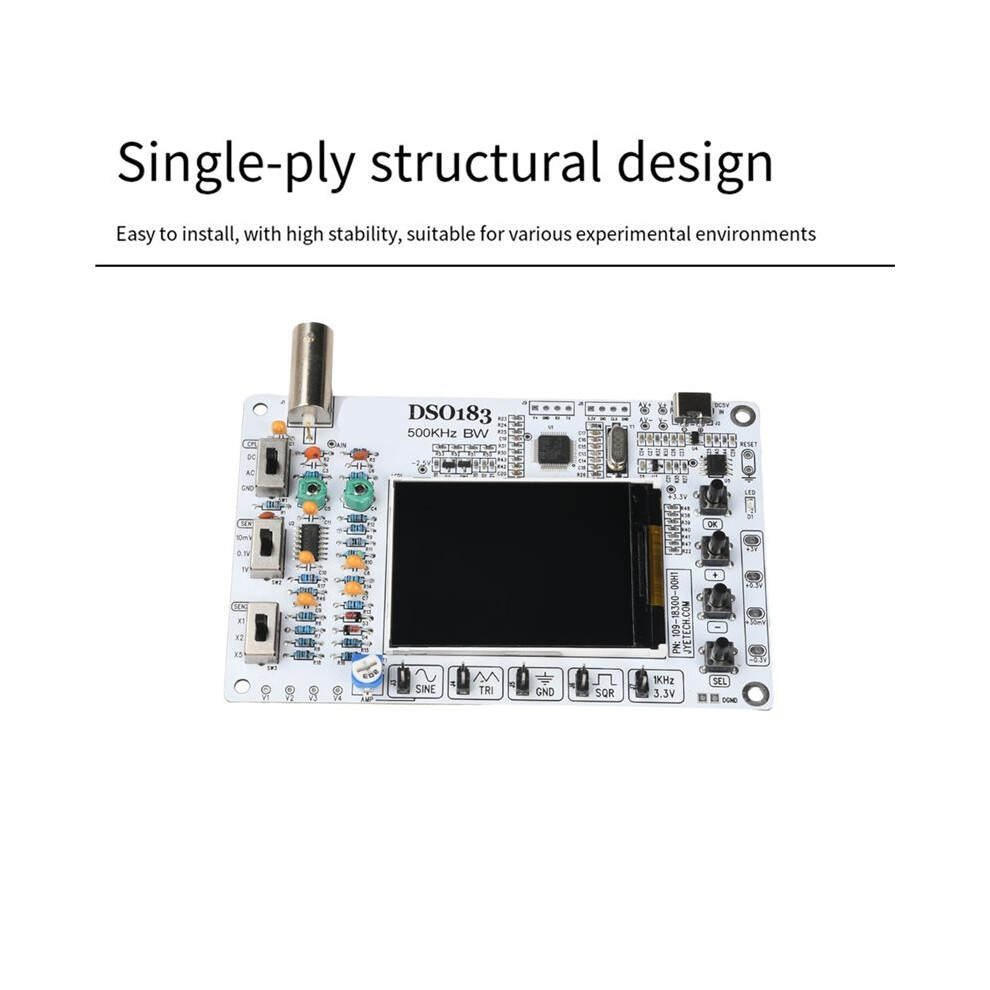

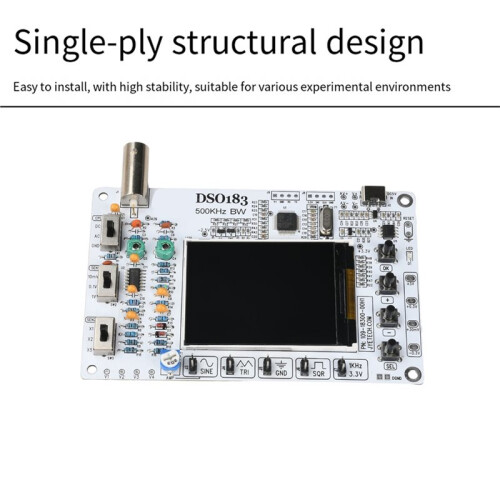

1. Single-board structure design: compact integrated structure, convenient installation, high stability, suitable for a variety of experimental environments

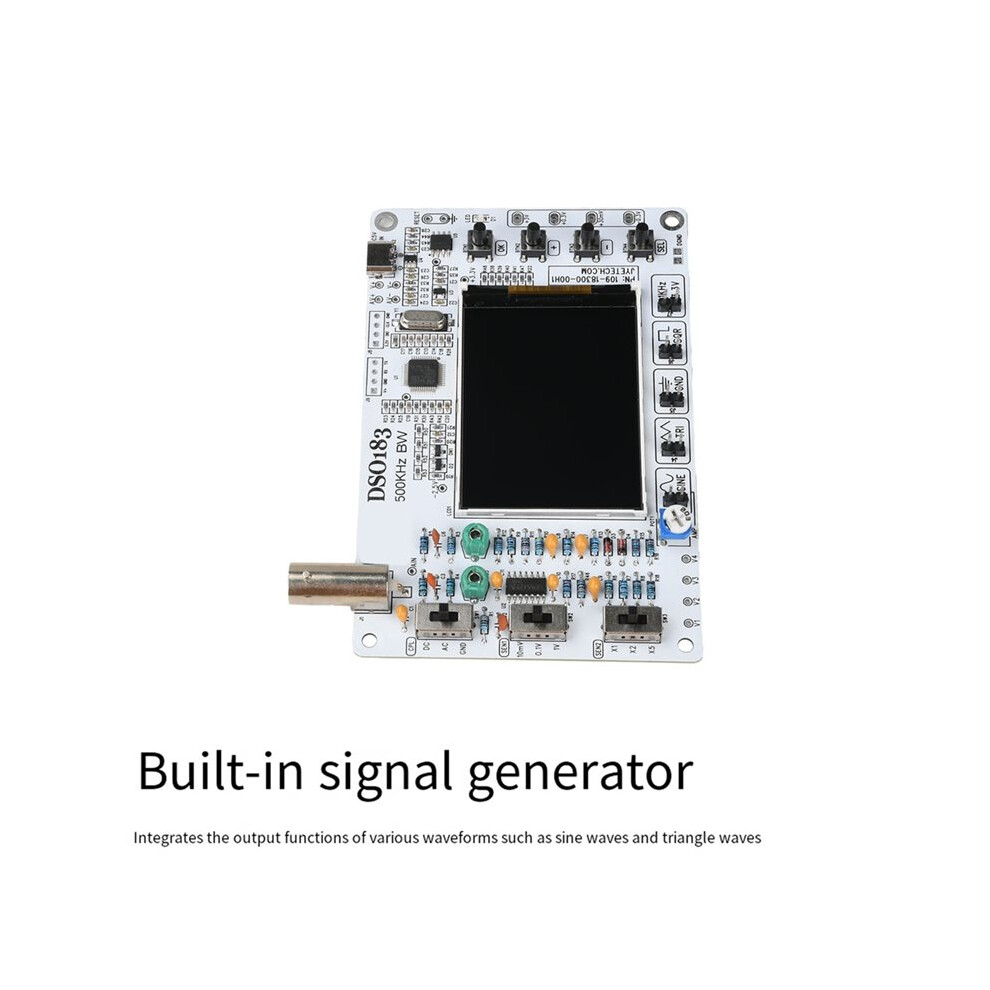

2. Built-in signal generator: integrates sine wave, triangle wave and other waveform output functions to meet diversified testing needs.
3. Waveform storage and recall: supports waveform saving and quick call-out function, which is convenient for comparative analysis and repeated use.
4. 500KHz high bandwidth: high-frequency response capability, accurately capture the details of complex signals.
5. Ideal tool for electronic enthusiasts: easy to operate, powerful, a powerful assistant for learning electronic technology and exploring the world of circuits.

Parameter:
Bandwidth: 500KHz
ADC Accuracy: 12Bit
Real- Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical Sensitivity Range: 10mV/gram-5V/gram
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Mode: , AC, GND
Horizontal Base Range: 1us/gram-500s/gram
Trigger Mode: Auto, Conventional , Single
Trigger : 1us/gram-500s/gram
Power Supply: 5V (via USB [Type C interface])
Current Consumption:Less than 100mA
Color:As Shown
Material:PCB

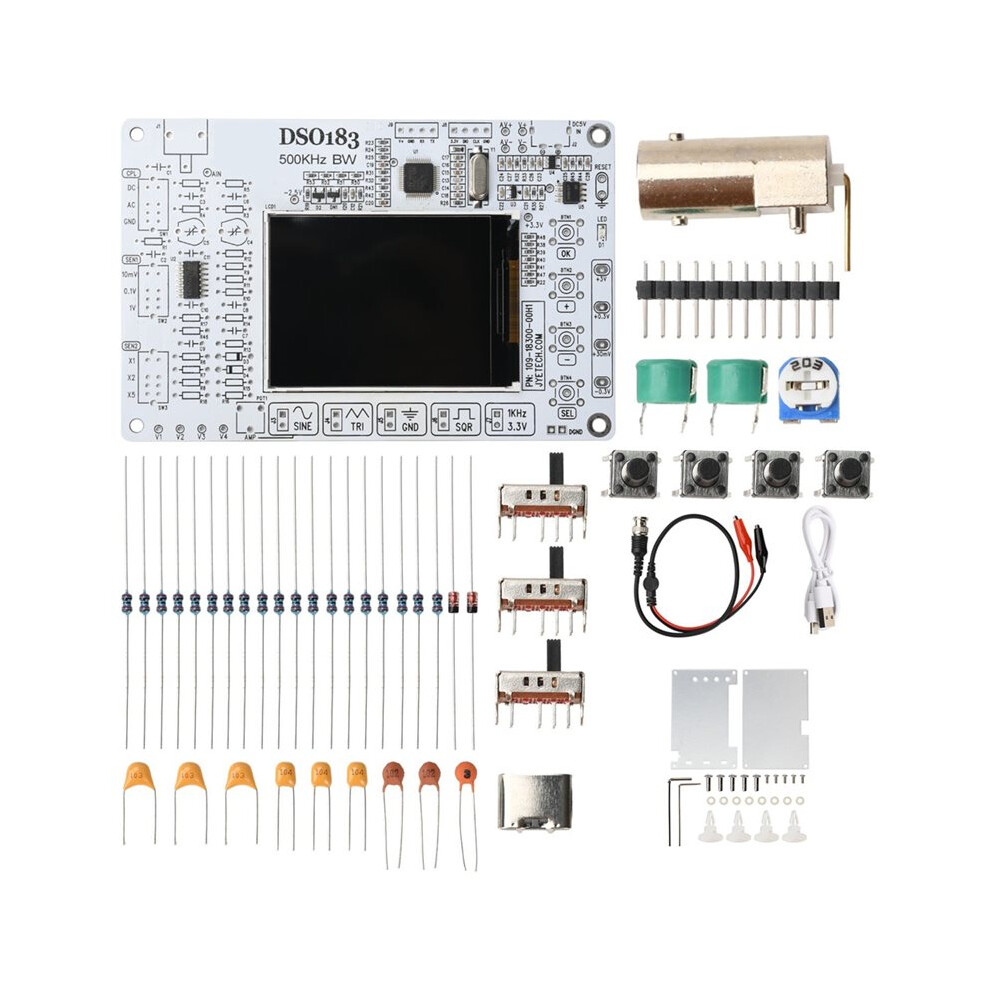

Package Contents:
1 * DC5V DSO183 Digital Oscilloscope
