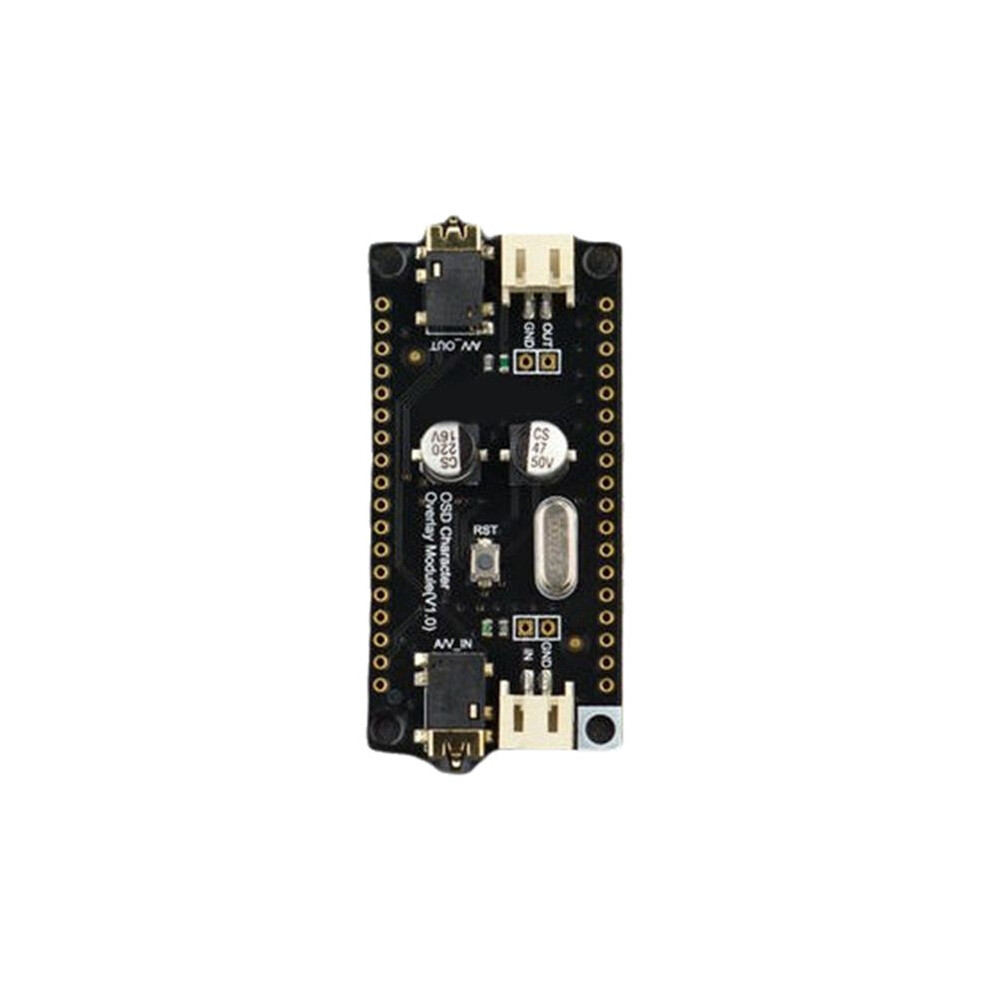

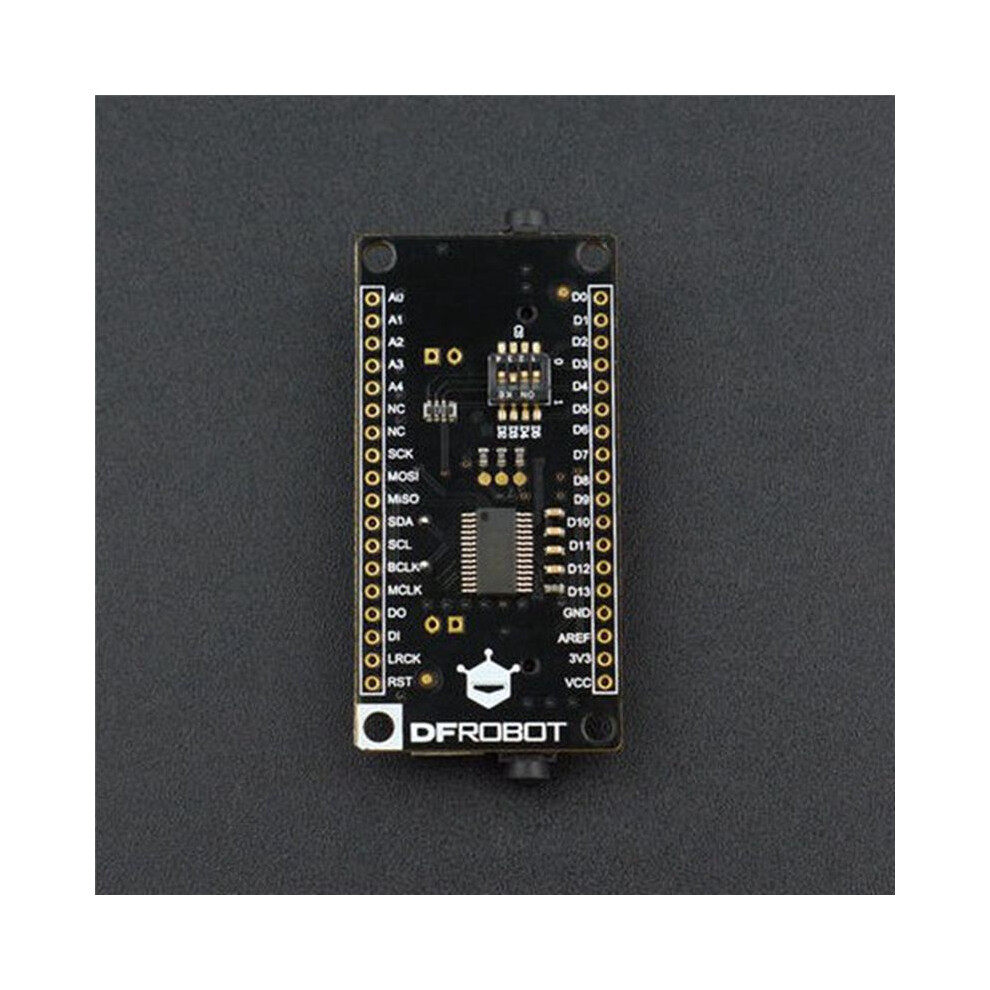

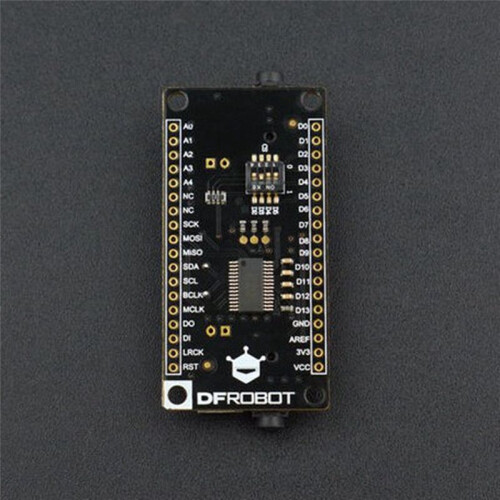

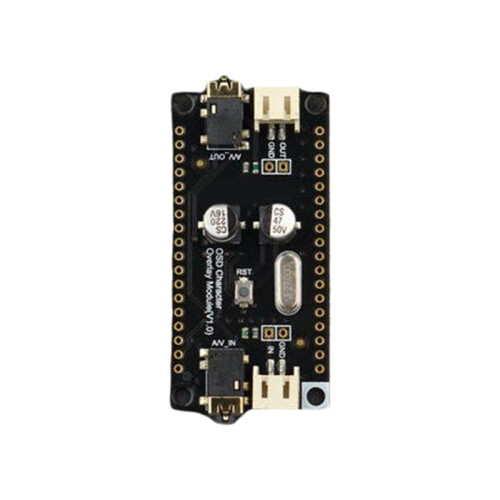

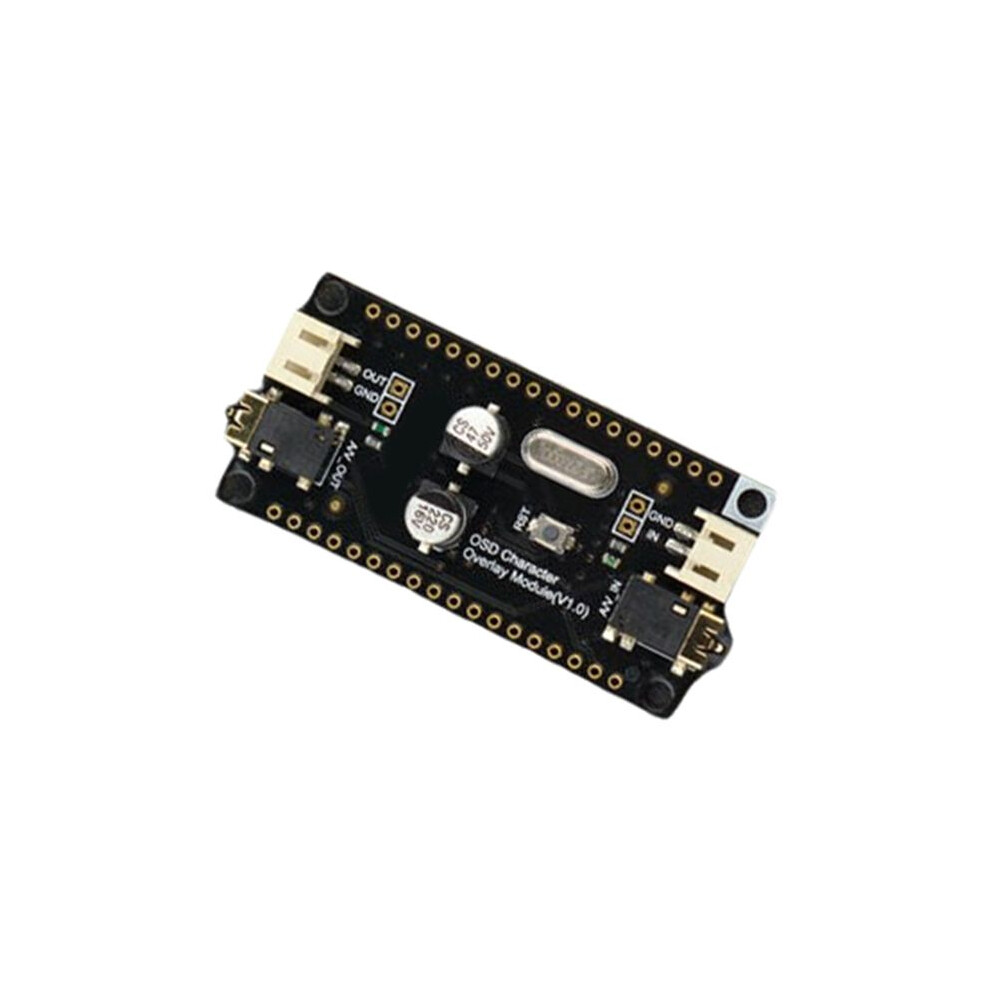

DFRobot FireBeetle OSD -Screen Display Character Overlay Module AT7456E 512B EEPROM for Road Cameras Home Automation

DFRobot FireBeetle OSD -Screen Display Character Overlay Module AT7456E 512B EEPROM for Road Cameras Home Automation Beskrivelse

-screen Display is a screen menu adjustment method: This is a technology that adds various menu characters to the screen. DFRobot's newly launched OSD video character overlay module uses the AT7456E high-performance video character overlay chip, which integrates 512Byte of EEPROM user-defined storage space. It is a single-channel, monochrome -screen display generator with functions such as video driver, synchronization separator, and video separation .
After connecting to the video source (AV signal), a layer of 540x192 pixels can be overlaid the video, which can display 16x30 characters. Users can call the font library to display the corresponding text or pattern.
Firebeetle OSD character overlay module is compatible with the FireBeetle interface and can be directly plugged into the FireBeetle series motherboard.

512 user-defined characters or stored in EEPROM
Blinking, inverting and background control characters
Brightness can be set by
Display to 16 rows x 30 columns of characters
Video driver output with attenuation compensation
Built-in sync generator, and external composite sync signal input
Compatible with NTSC and PAL
SPI compatible serial interface
Pre-programmed character groups at the factory
Operating voltage: 3.3V~5V
Operating current: 75mA
Character display: 16 rows x 30 columns
Character pixels: 18x12
Resolution: 540x192
Display Color: monochrome (white)
Signal source: AV input/AV output
Communication interface: SPI
Operating temperature: -10~85
Color: Black
Material: PCB

Package Contents:
1 * FireBeetle OSD -screen Display Character Overlay Module
