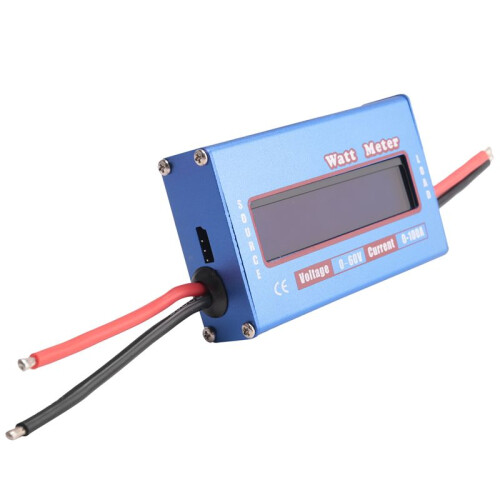

Digital Wattmeter Watt Meter Power Meter 60V 100A Balance Voltage Battery Checker

Digital Wattmeter Watt Meter Power Meter 60V 100A Balance Voltage Battery Checker Beskrivelse

new and high quality. Digital LCD screen gives clear crisp number readings. Handles to 100 amps intermittently and 50 amps continuous duty.

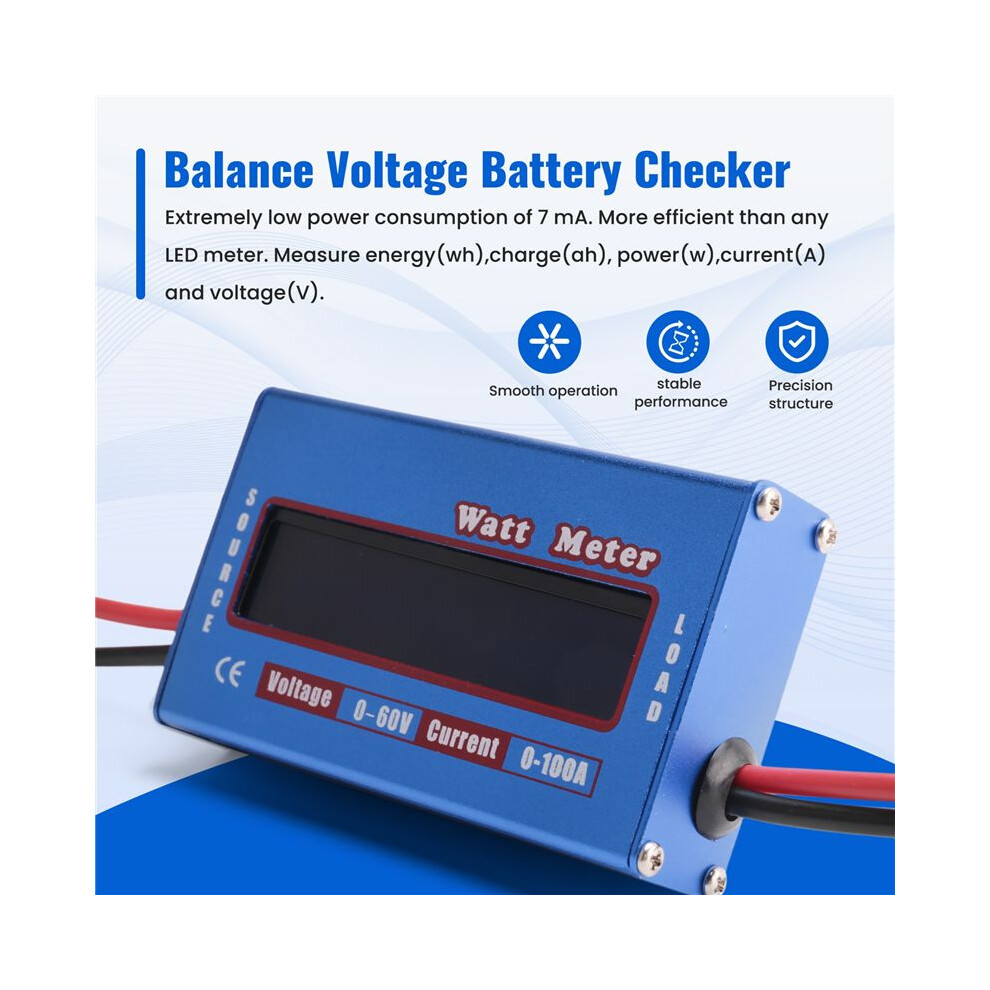

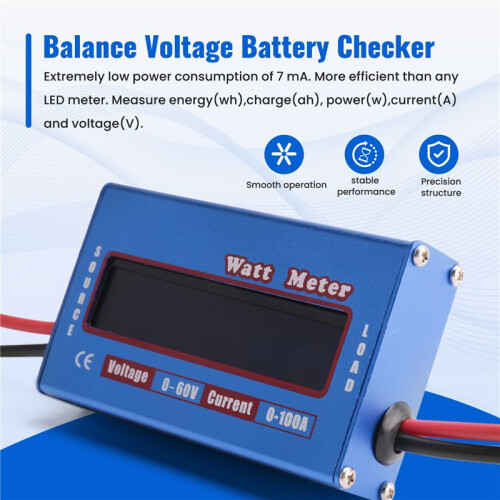

Connecting load end to the battery provides real- battery charging reading. Handles 0 to 60 volts. Works 12, 24, 36, and 48 volt battery bank systems. Extremely low power consumption of 7 mA. More efficient than any LED meter. Measure (wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions. Measures Amps, Watts(except for Doc Wattson) and Voltage minimum(sag).Rugged- handles 50A continuous and 100 A at 60V.
Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 36 mA. USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.

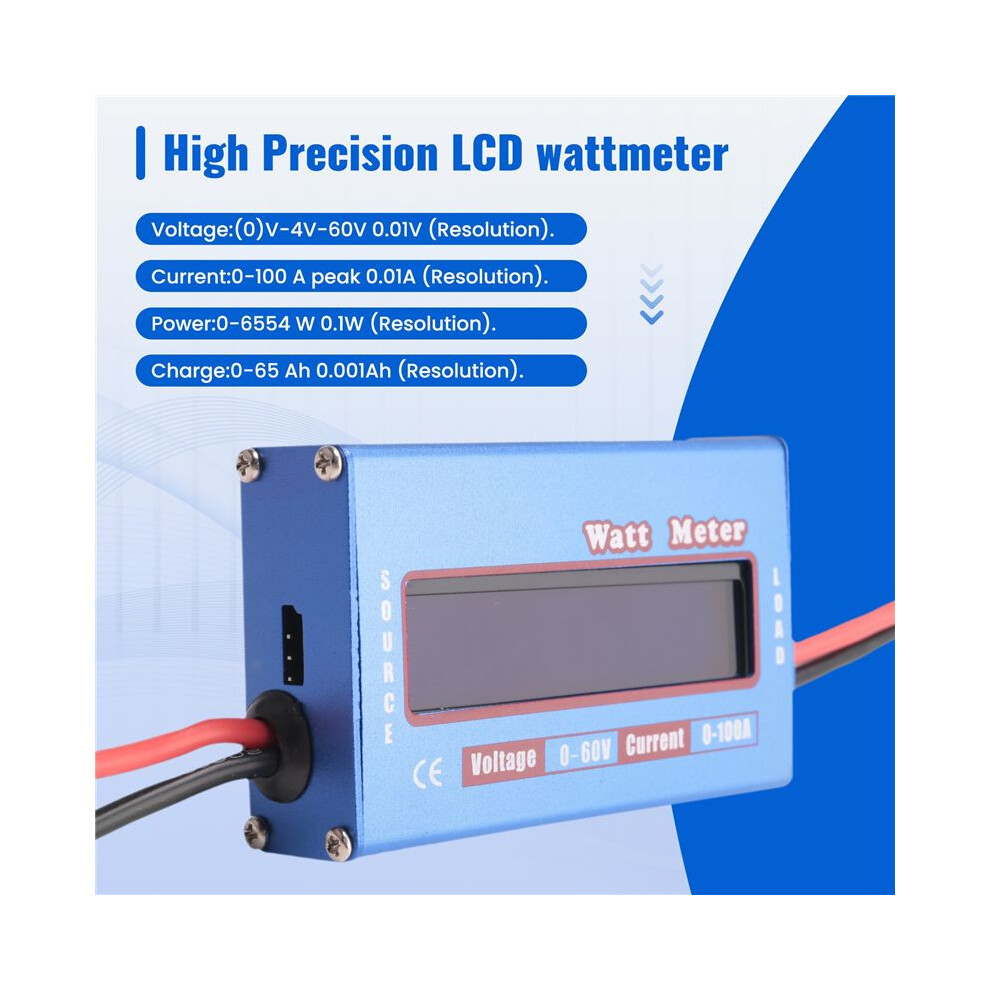

Voltage:(0)V-4V-60V 0.01V (Resolution).
Current:0-100 A 0.01A (Resolution).
Power:0-6554 W 0.1W (Resolution).
Charge:0-65 Ah 0.001Ah (Resolution).
:0-6554 wh 0.1 Wh (Resolution).

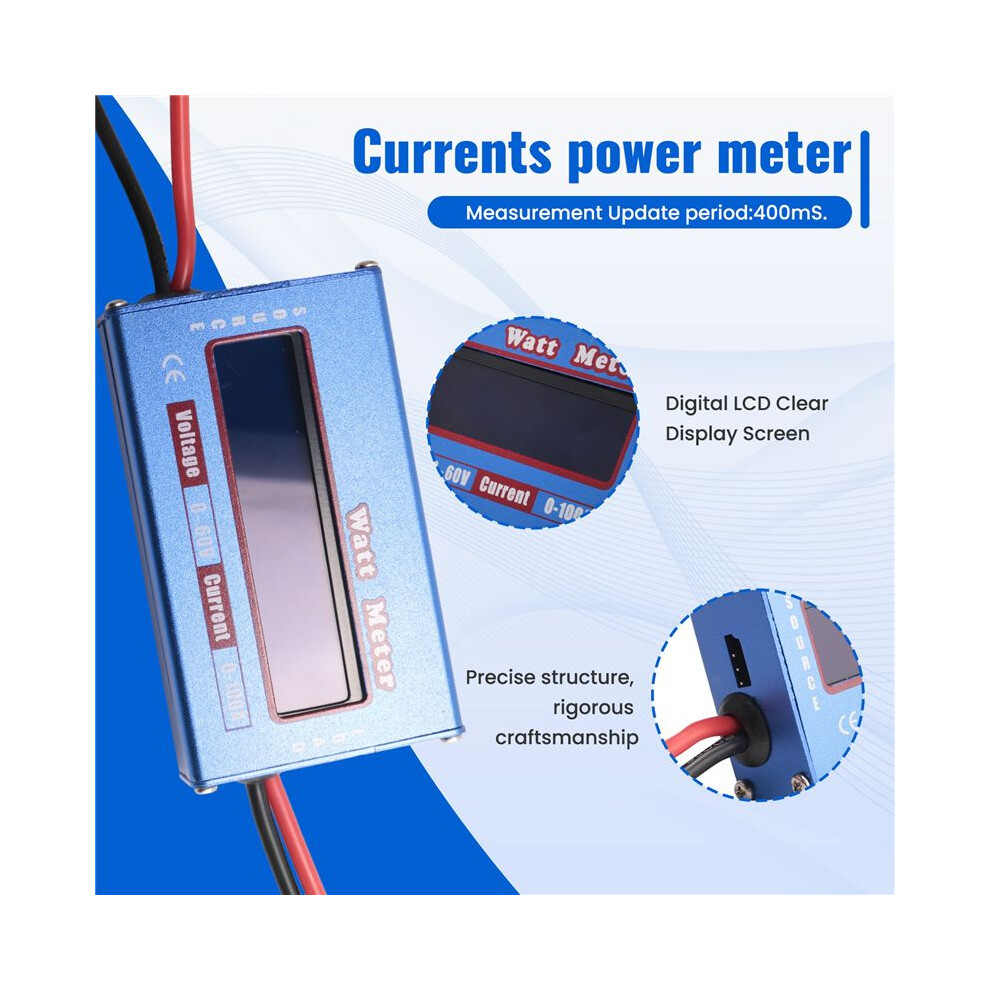

Measurement Update period:400mS.
Signal Sampling Rate:sample/s.
Data Queue Sequence : 2 seconds.
In Circuit Resistance:0.001 Ohms.
Operation Current: 36 mA.
Material:plastic
colour:

Package Contents:
1 x Watt Meter
