Beskrivelse og detaljer
Oversigt
- GC-6100 is a communication protocol converter from DLT645 to Modbus-TCP&RTU.

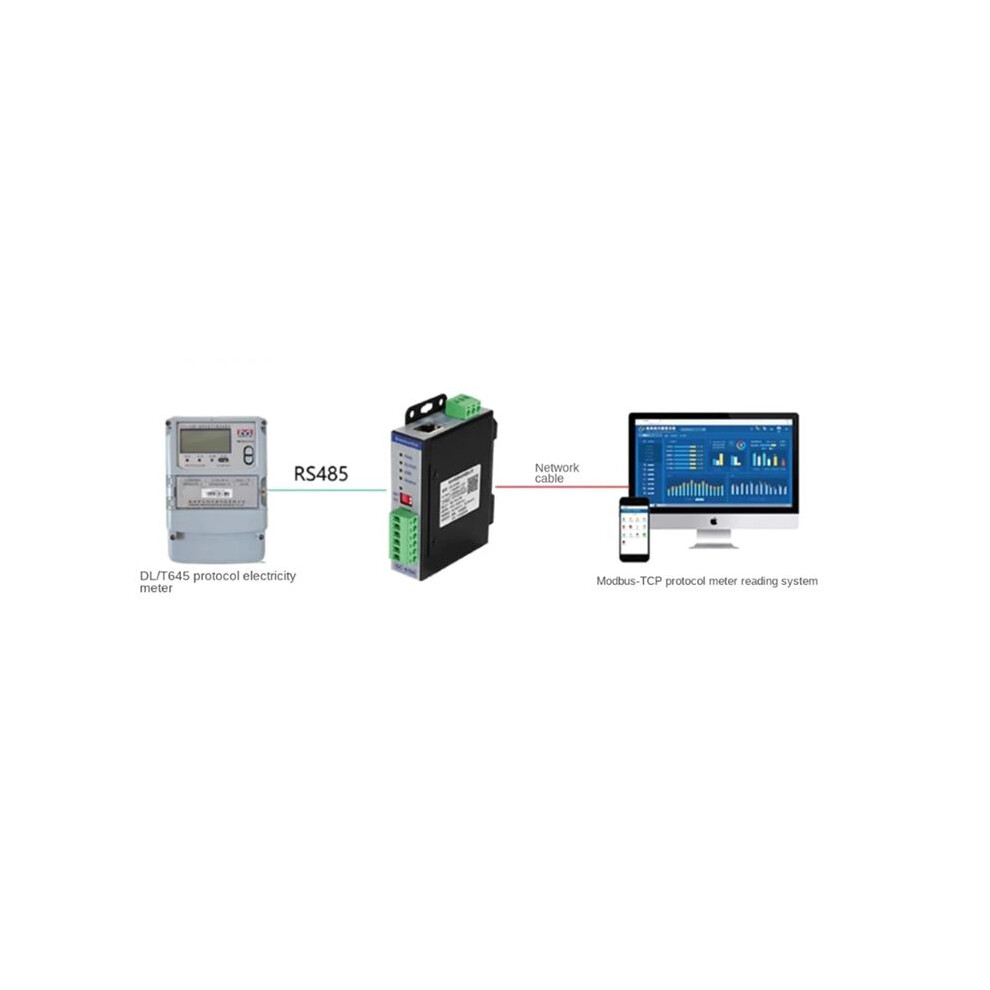

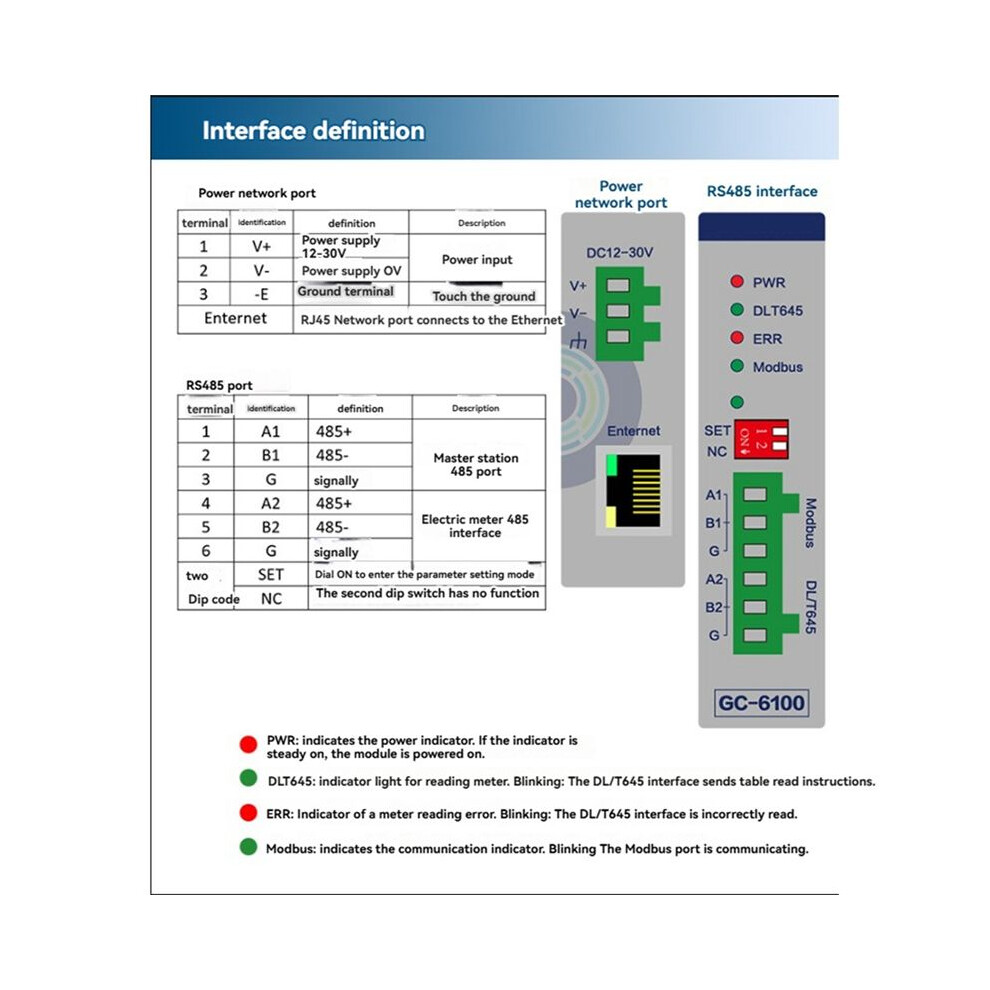

- The module supports DLT645-2007 protocol and DLT645-1997 protocol. It reads the data of the meter through the DLT645 interface polling and then stores it in the module cache. The host computer can use Modbus-TCP (network port) and Modbus-RTU (RS485 interface) protocols to read the meter data in the module.
- The module supports up to 20 meters.
- This module has 2 data reading modes: "reading from separate meters" and "centralized reading"
- Centralized Protocol Converter
DLT645 to Network Modbus RTU Protocol Converter DL Protocol Centralized Meter Reader Electricity to Ethernet Beskrivelse

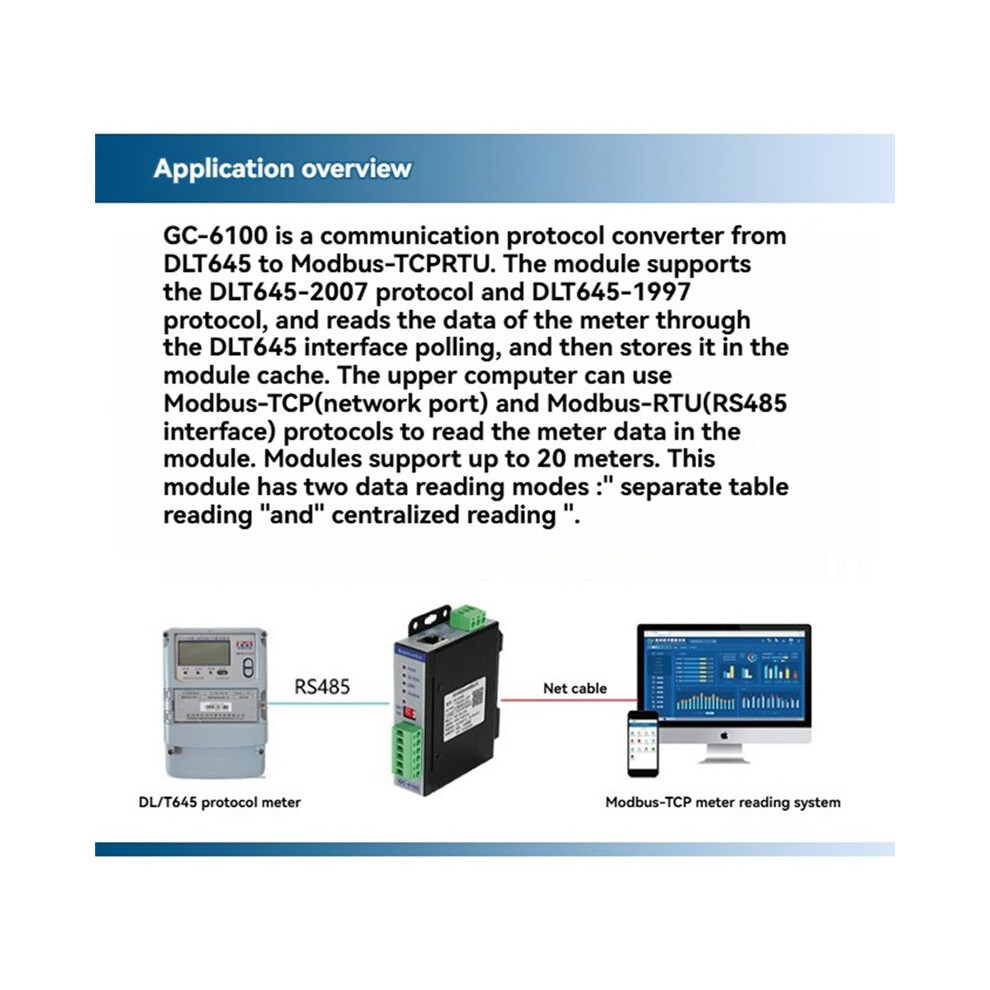

GC-6100 is a communication protocol converter from DLT645 to Modbus-TCP&RTU.

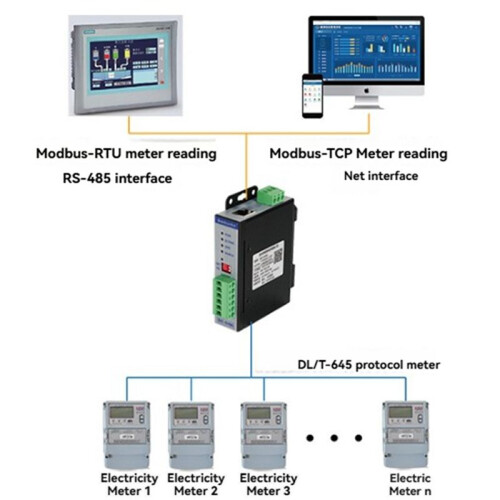

The module supports DLT645-2007 protocol and DLT645-1997 protocol. It reads the data of the meter through the DLT645 interface polling and then stores it in the module cache. The host computer can use Modbus-TCP (network port) and Modbus-RTU (RS485 interface) protocols to read the meter data in the module.
The module supports to 20 meters.
This module has 2 data reading modes: "reading from separate meters" and "centralized reading"

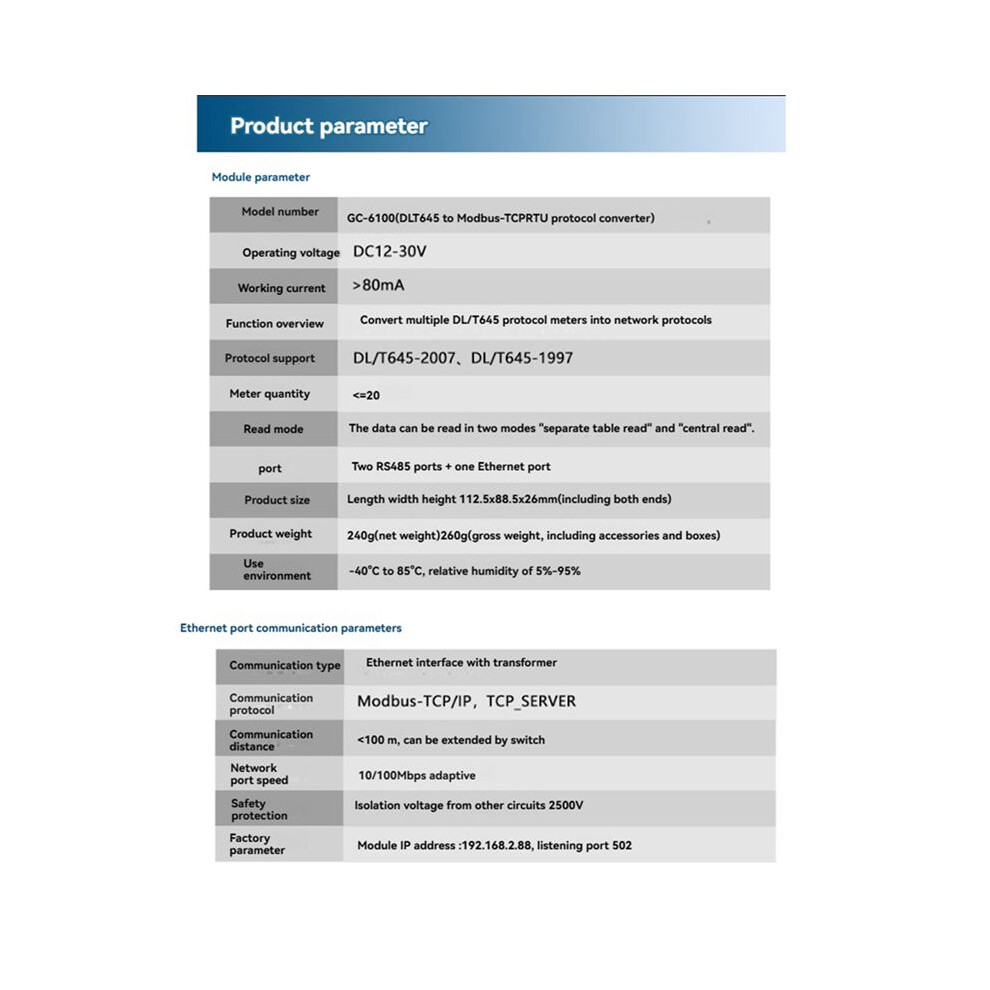

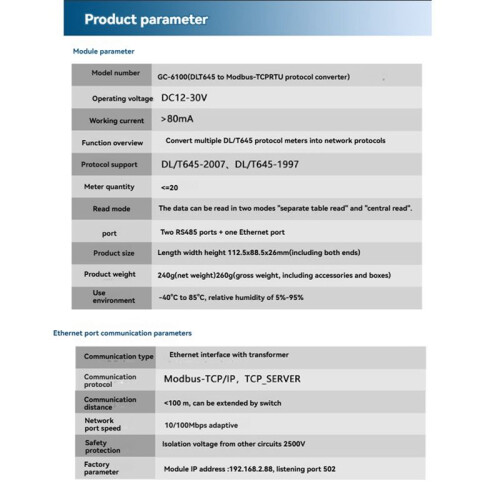

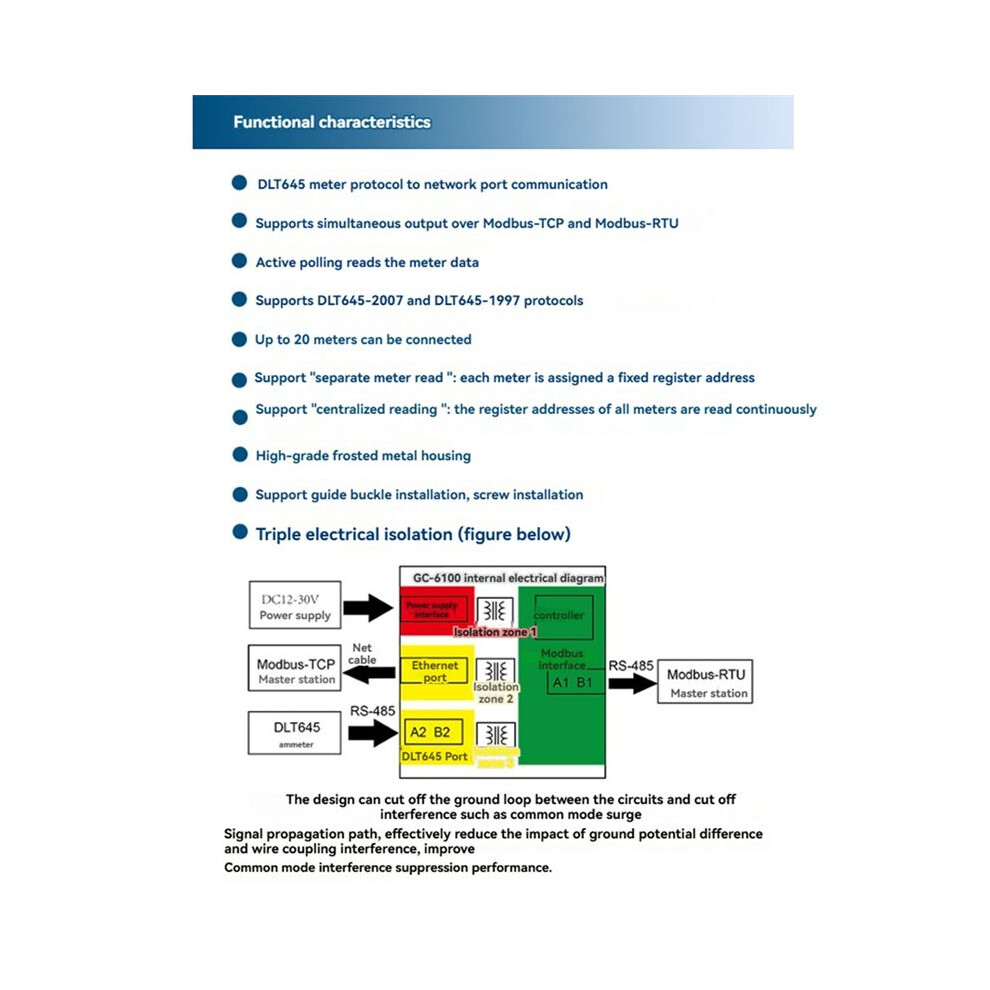

Functional features:
DLT645 meter protocol to network port communication
Support Modbus-TCP and Modbus-RTU simultaneous output
Active polling to read meter data
Support DLT645-2007 protocol and DLT645-1997 protocol
Can connect to 20 meters
Support "reading from separate meters": each meter is assigned a fixed register address
Support "centralized reading": the register addresses of all meters are read continuously

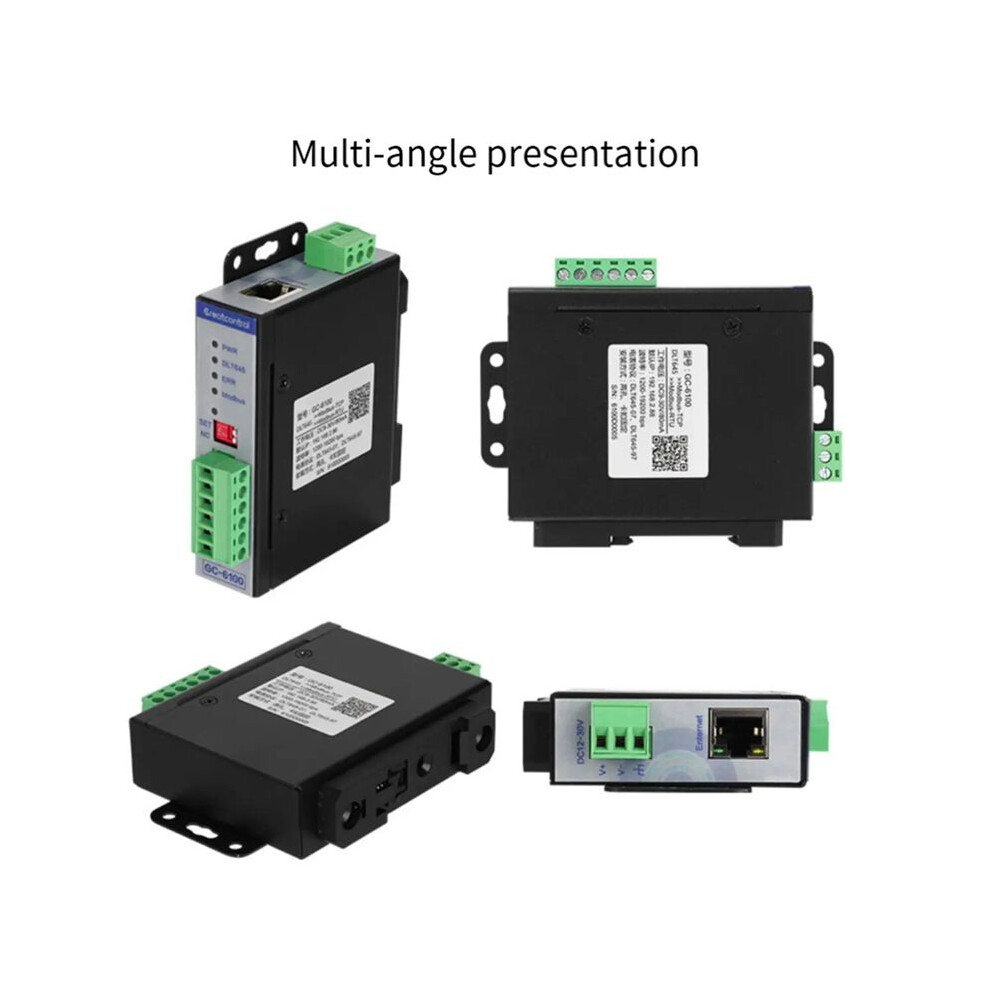

Support rail clip installation and screw fixed installation
Note:Due to different factory batches, if there is slight difference in appearance, it will not affect the use.
Colour:Black
Material:ABS
Package Contents:
1 * DLT645 module
Detaljer
| OPC | PV9QM8T |
|---|---|
| Koder | 6031342768024 (EAN) |
Produktdata

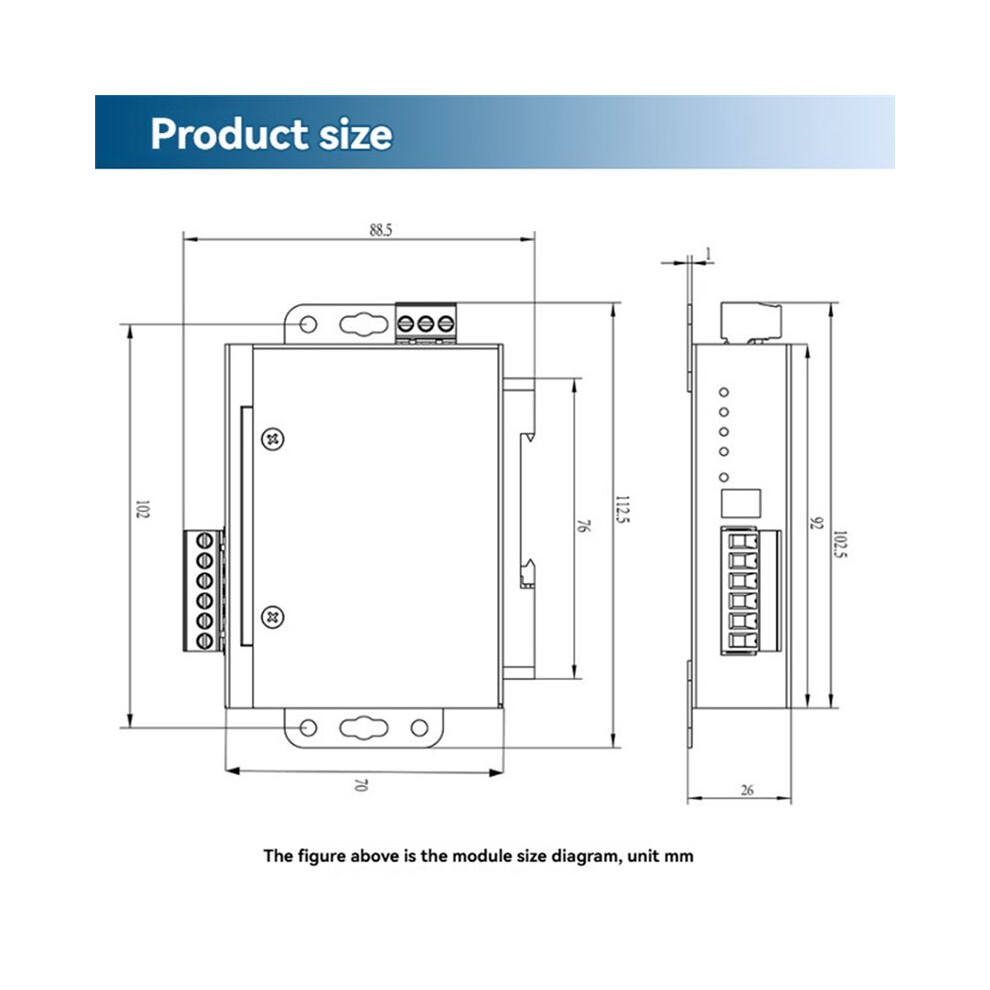

| Height | 16cm |
|---|---|
| Width | 13cm |
| Length | 23cm |
| Weight | 0.34kg |
| Colour | Black |
| Material | ABS |
