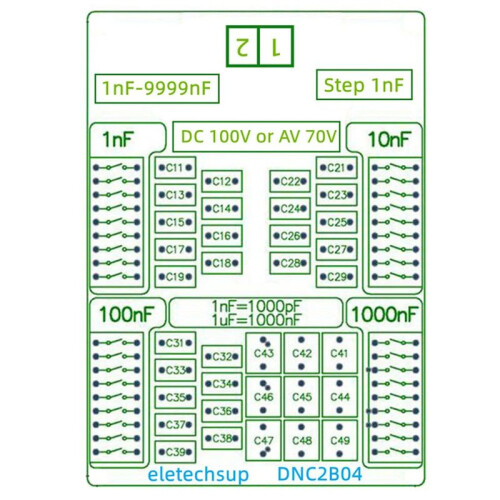

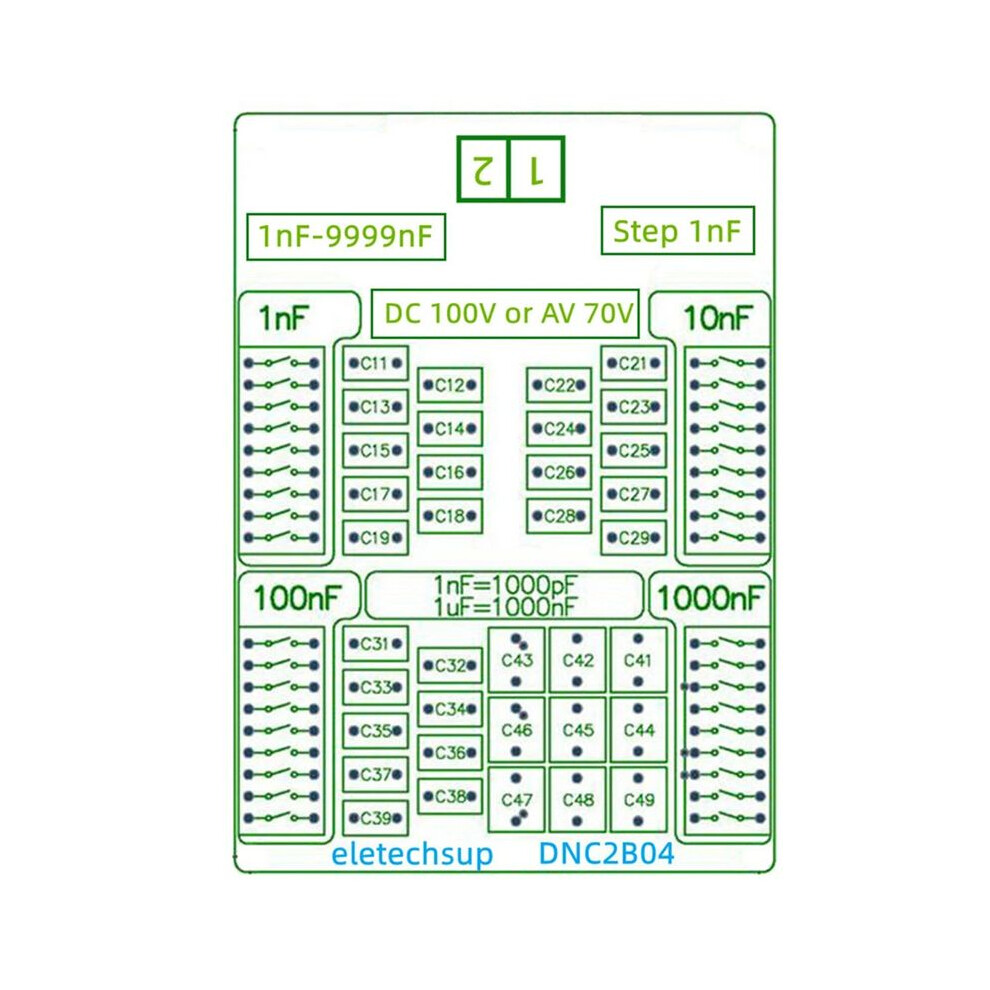

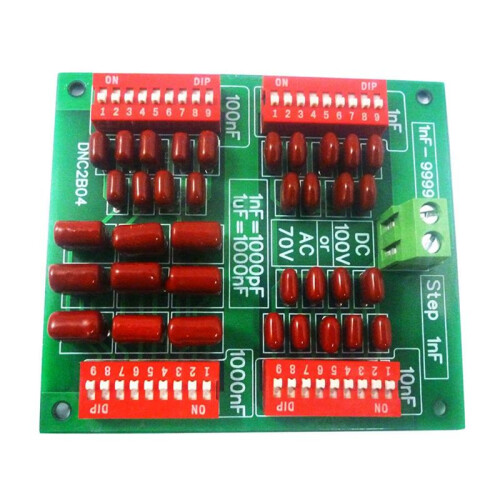

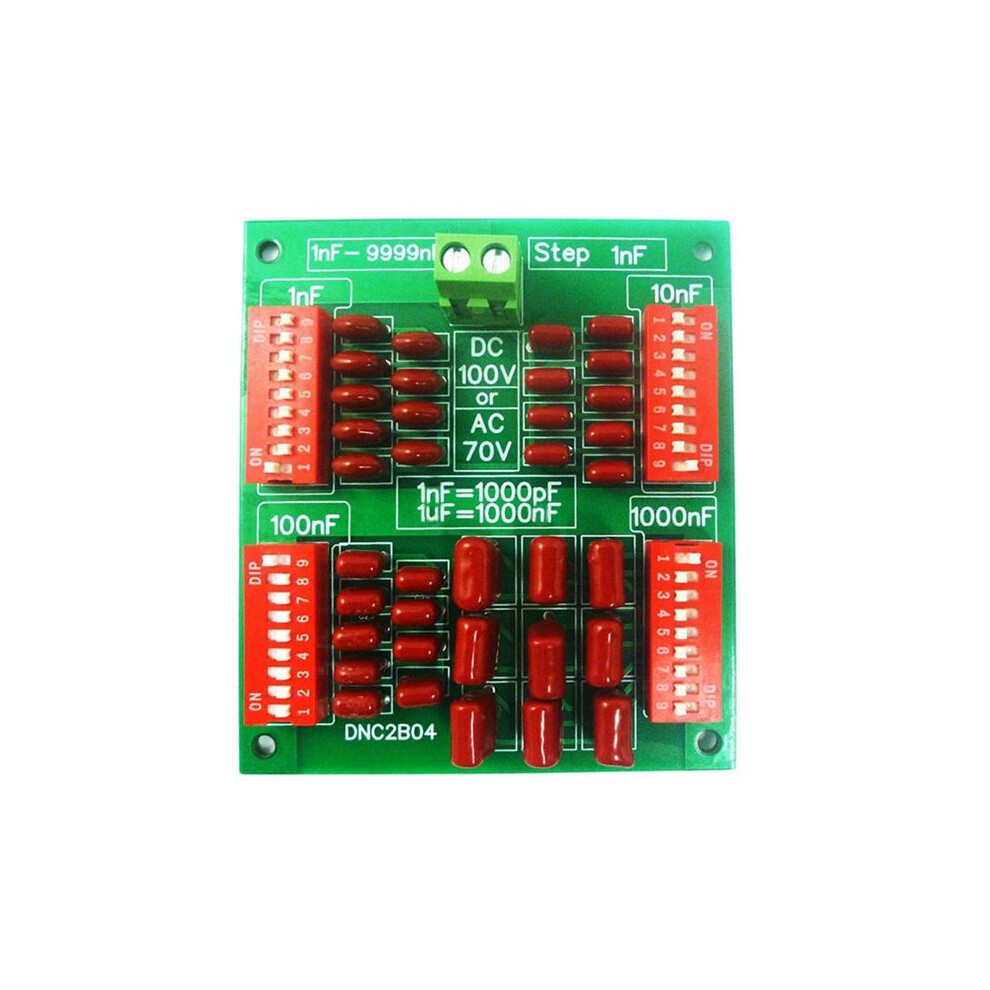

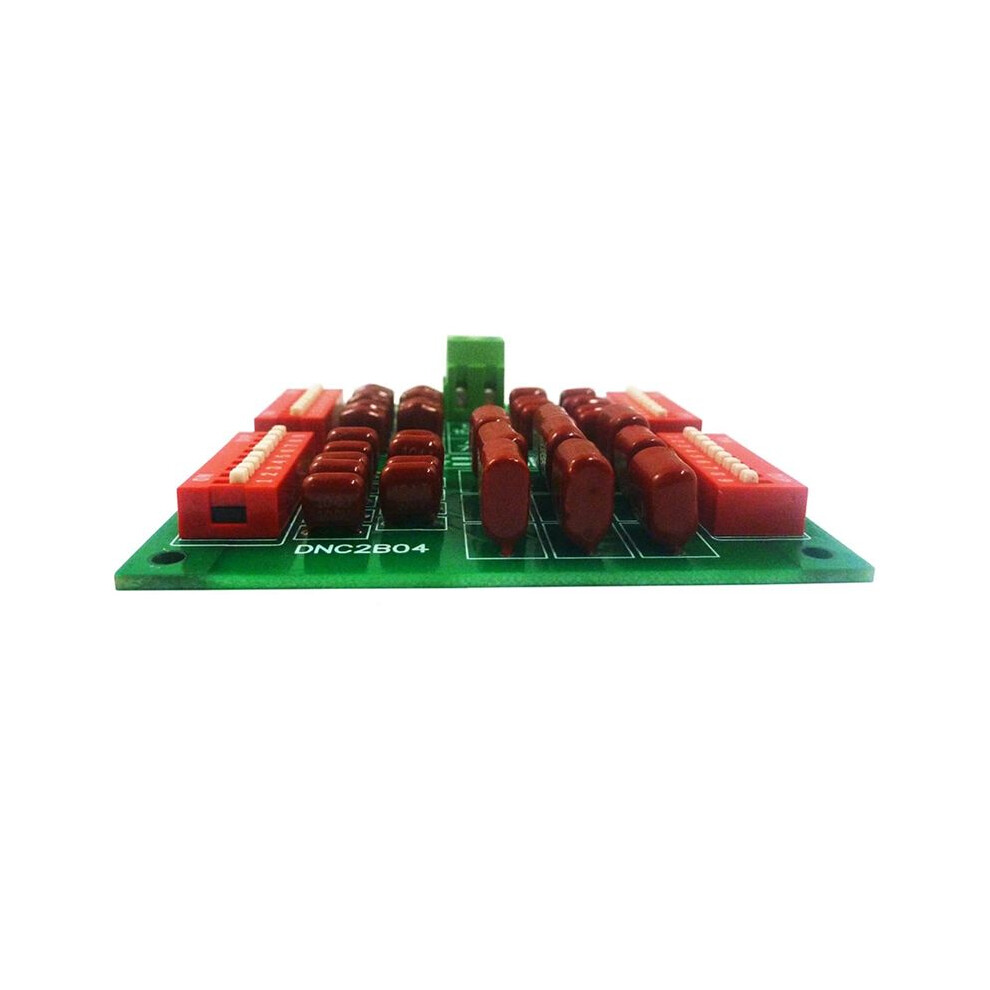

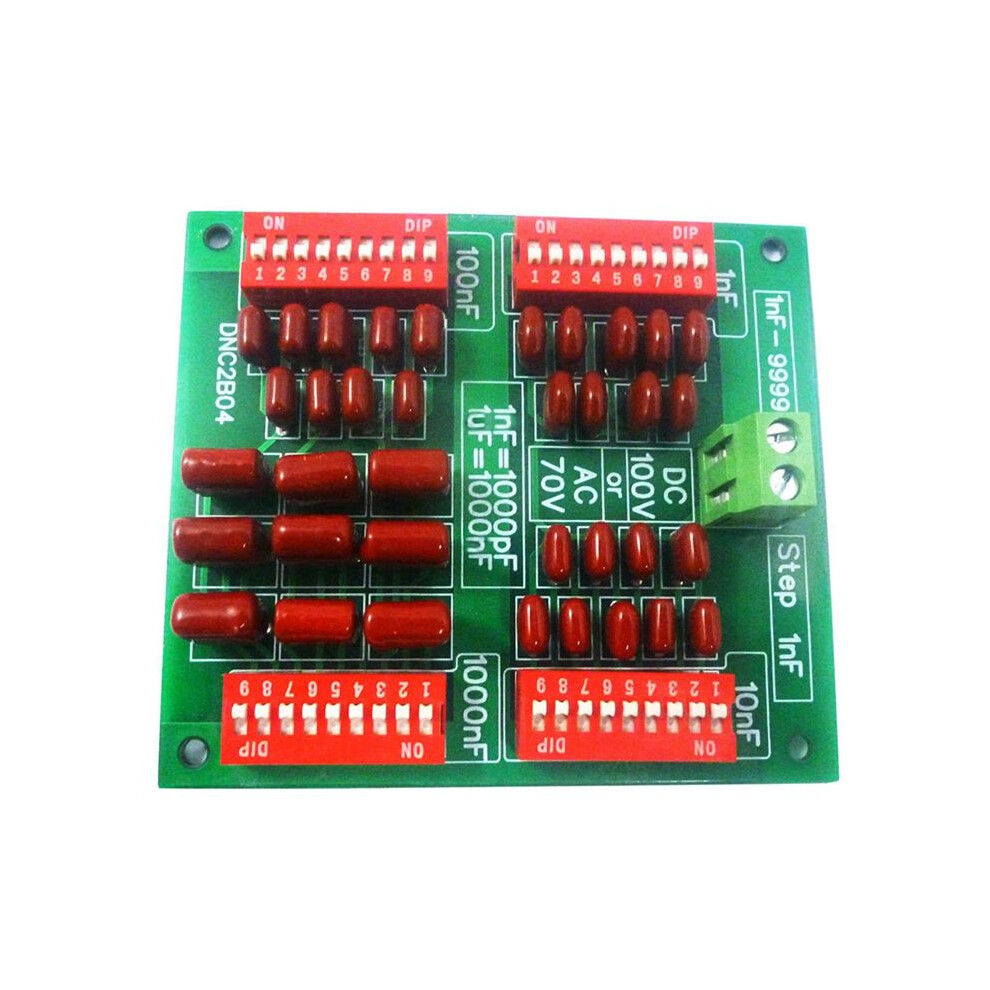

Dnc2B04 1Nf to 9999Nf Step-1Nf Four Decades Programmable Capacitor Board Polypropylene Film Capacitor C35 Din,No Case

Dnc2B04 1Nf to 9999Nf Step-1Nf Four Decades Programmable Capacitor Board Polypropylene Film Capacitor C35 Din,No Case Beskrivelse

Low-cost alternative to "capacitor replacement box", this module can flexibly and quickly set the capacitance range you need.
The adjustable range of this module is 1nF~9999nF, the step is 1nF, the accuracy is 5%, 100V or AV 70V capacitor module, 4 decimal numbers Programmable Capacitor Module.
It can be used in education, experiment, testing, electronic engineering design and other fields.

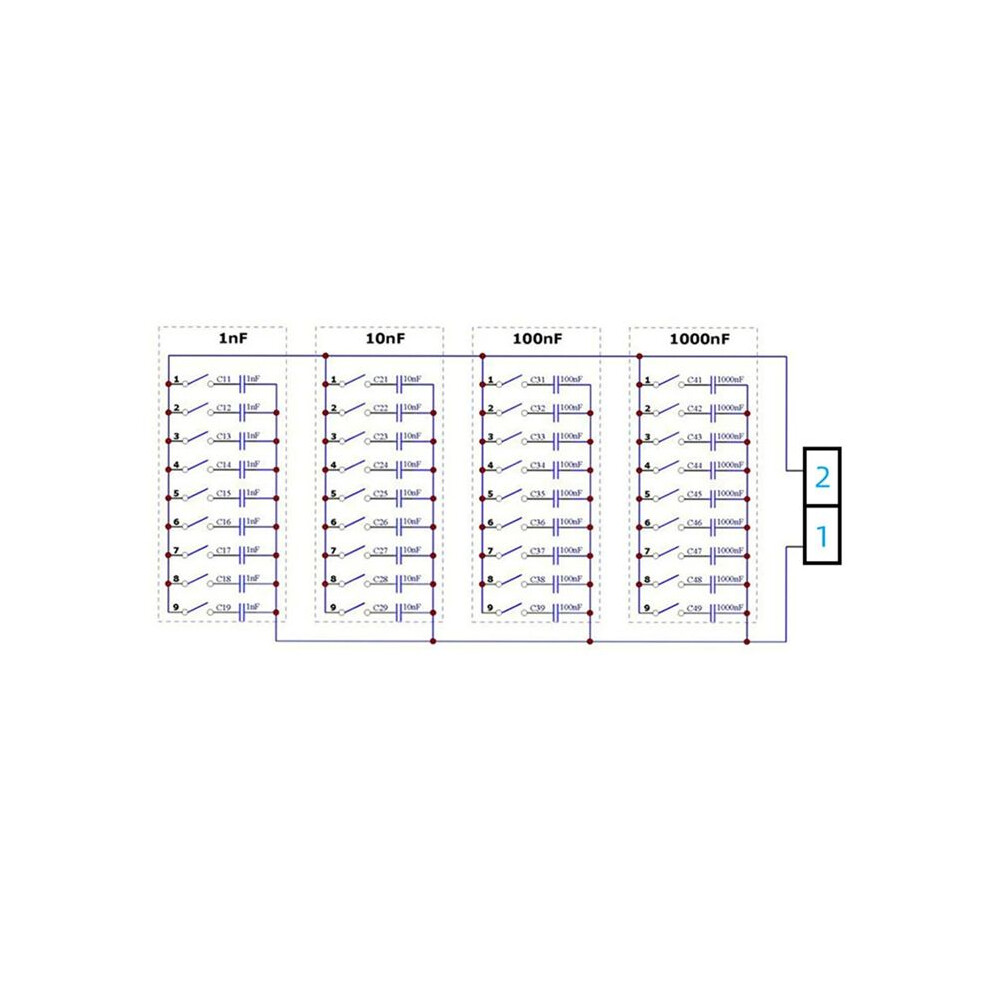

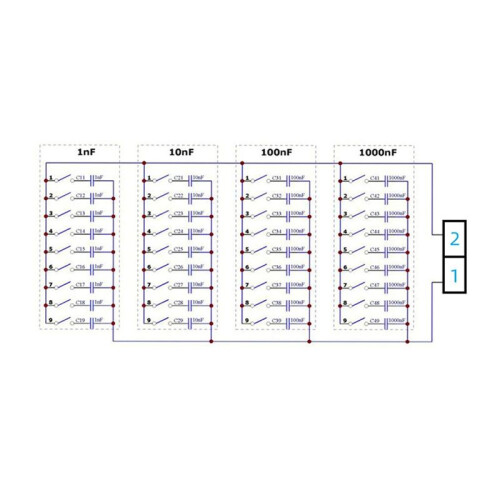

Design principle: Design based the "capacitor parallel" theorem.

Color: green
Material: PCB + electronic components
Product parameters:
Precision: 5%
Stepping: 1nF
Capacitance difference: 5%
Adjustable range 1nF~9999nF
Working voltage: DC100V / AC70V
4 decimal numbers Programmable Capacitor Module
Terminals: screw terminals are used to connect wires quickly and easily
How to use: Use the DIP to select the parameter value you need.

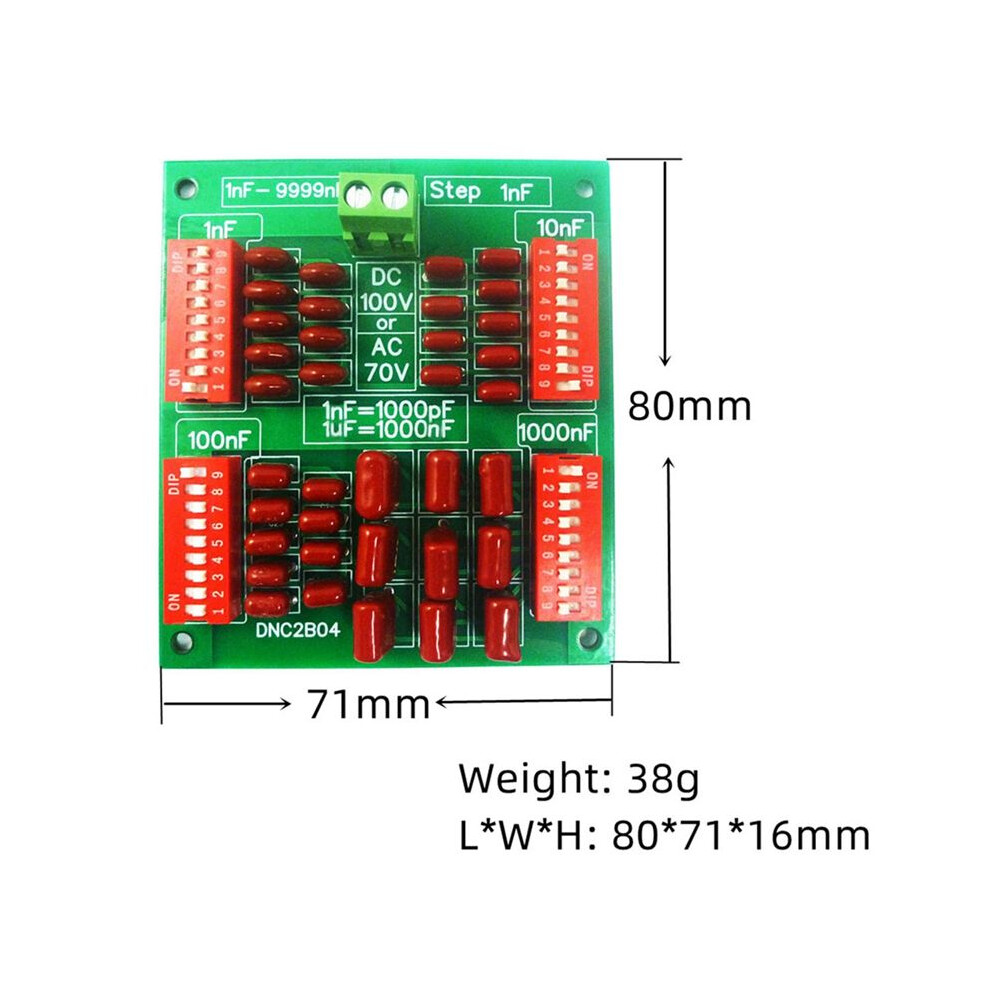

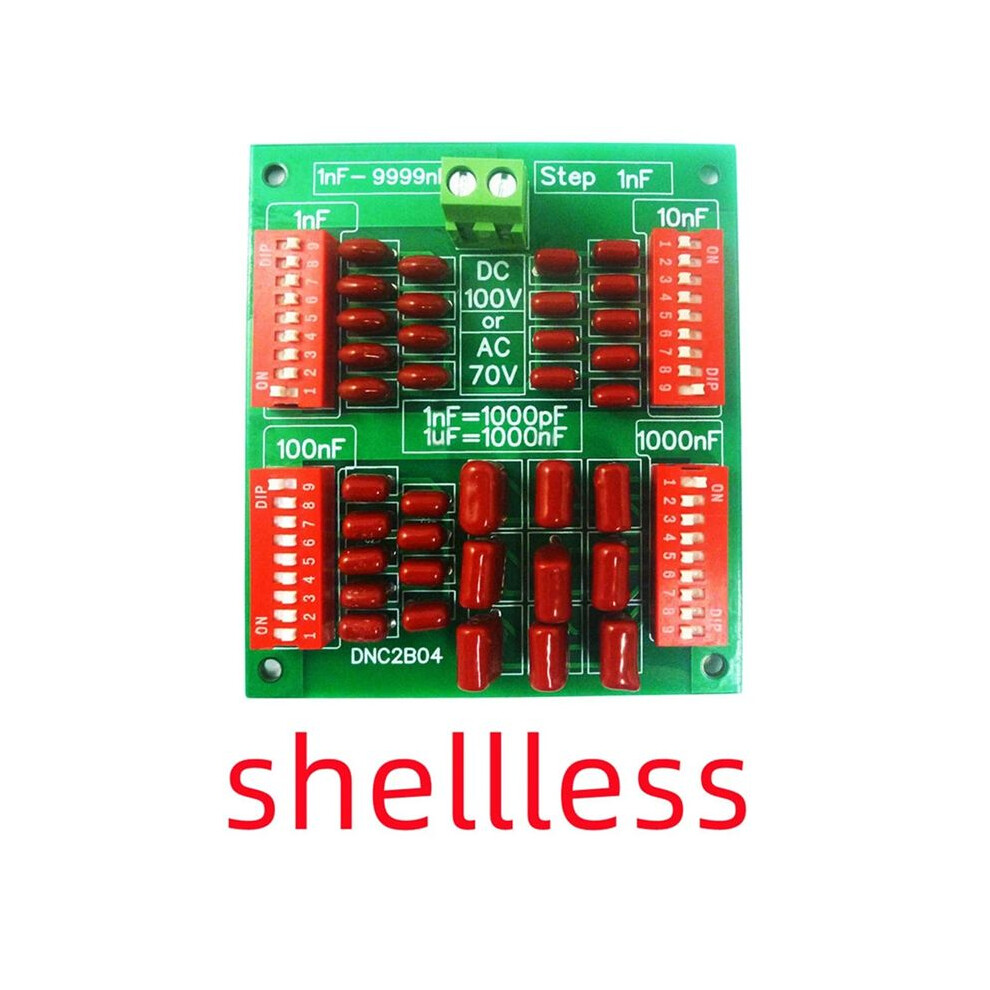

Weight without shell: 38g
Size without shell: 80 x 72 x 16mm
Different batches may have different appearance, which does not affect use.

Package Contents:
1 x Capacitor Board
