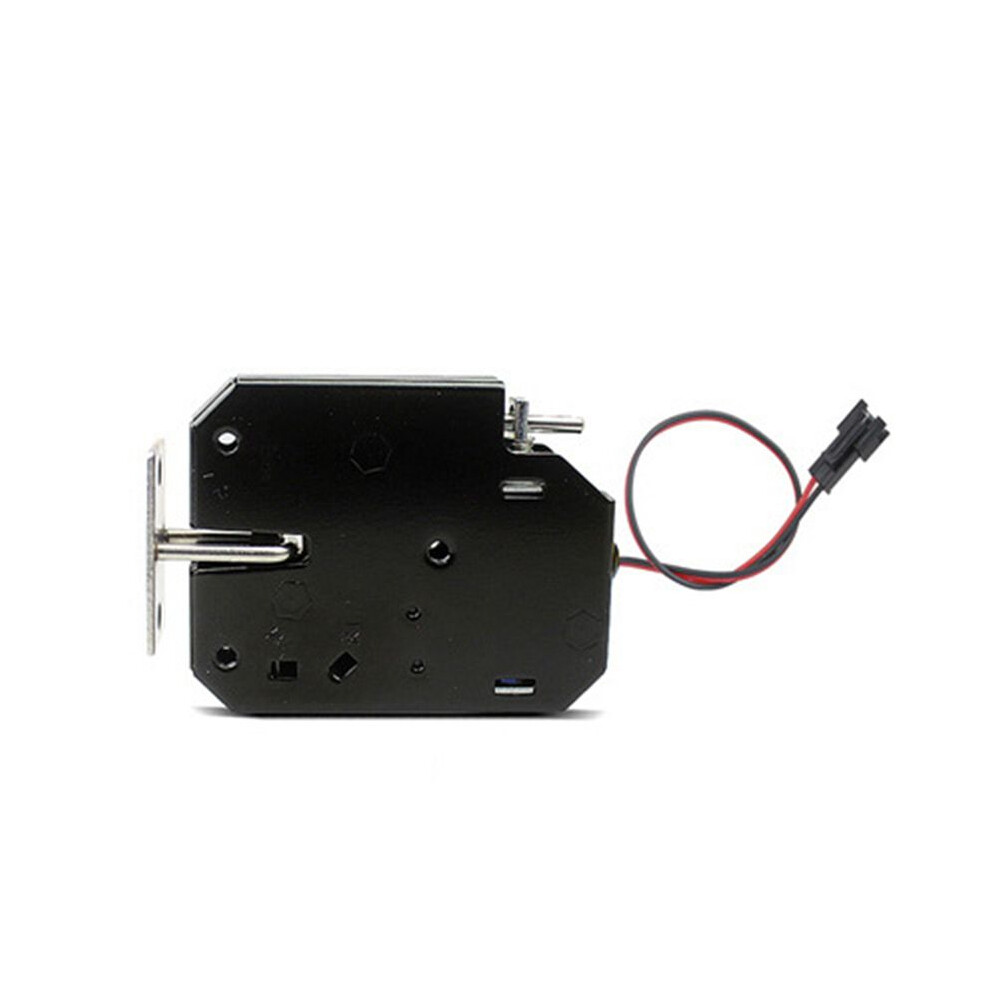

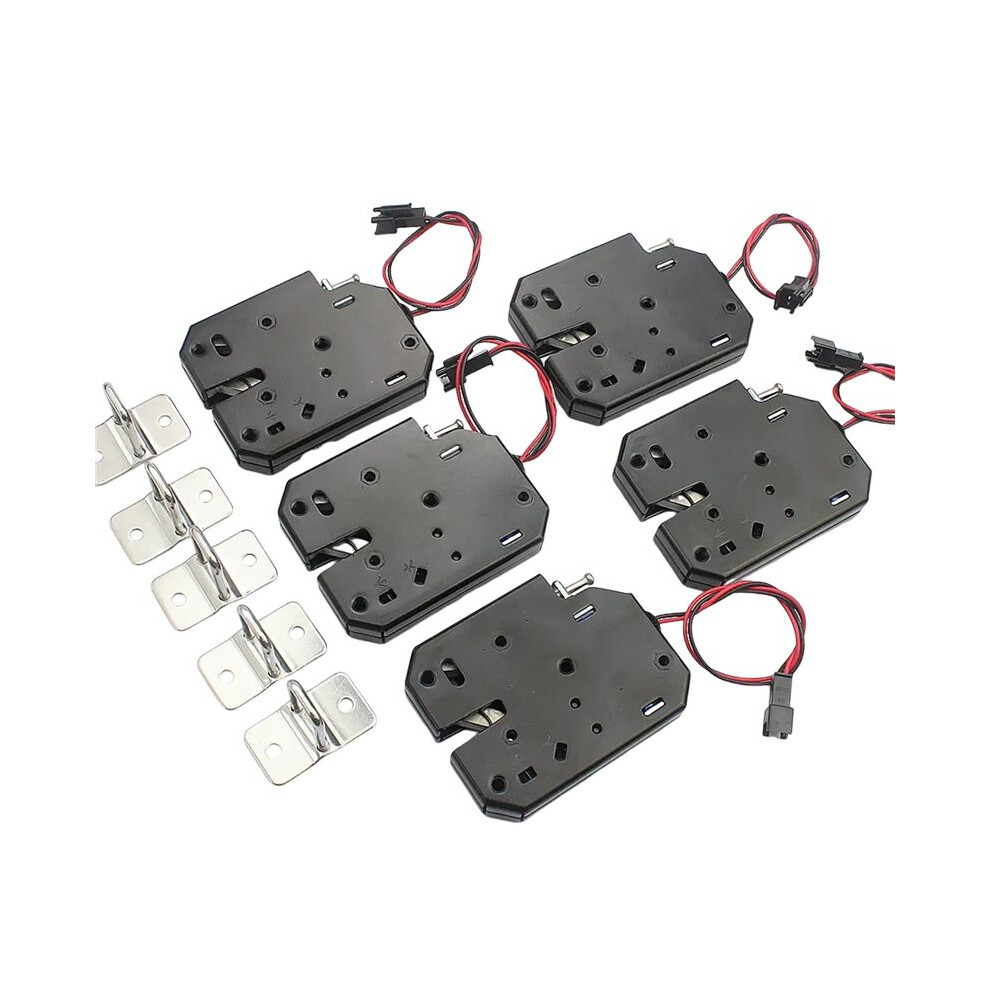

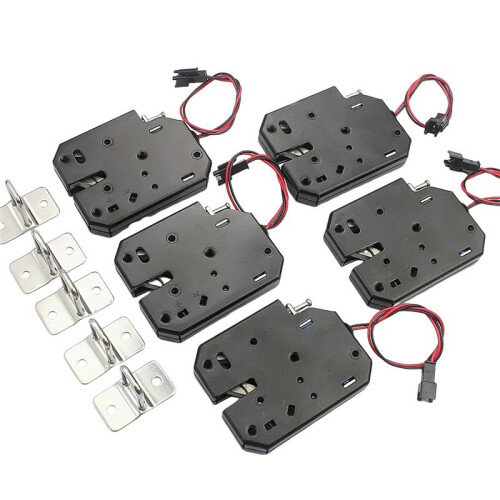

Door Locks 5PCS 12V Small Electromagnetic Lock Automatic Vending Electric Control Cabinet Door Electronic Lock

Door Locks 5PCS 12V Small Electromagnetic Lock Automatic Vending Electric Control Cabinet Door Electronic Lock Beskrivelse

The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.
Features:
The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.
Security: hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.c ompact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash- unlocking position.

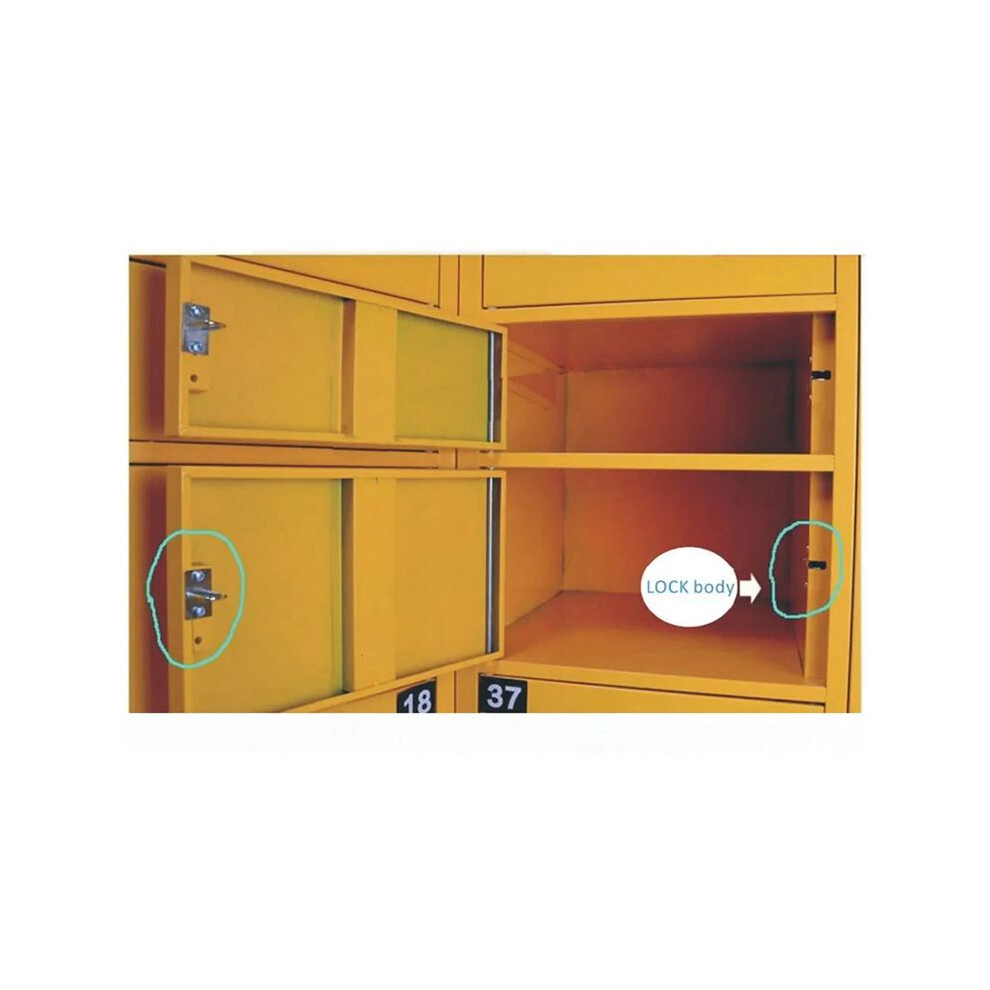

Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.

Specifications:
Condition: New
Material: Steel
color:black
Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)
Work Mode: Independent type (Power off and close the door-Locked; Power -Unlocked)
Electrical Parameters: 12V
Working current: 2A
Working mode: power unlock / power off, close the door and lock
Mechanical Life: In Designing Load Condition, about 500 000 times
Electromagnet Life: In Rated Working Condition, more than 1 000 000 times
Strength of Lock Hook: 150kg force (no permanent deformation)
Ambient Temperature: -20~60
Description of the feedback signal :
The signal produces a short-circuit signal. There is a small inside the electromagnetic lock. When the electromagnetic lock is locked, the signal outputs a short circuit signal; when the electromagnetic lock is unlocked, the signal is disconnected.
Instructions for use: It is recommended to set the power- within 1-3 seconds. If the electromagnetic lock is energized for too long, the internal elec
