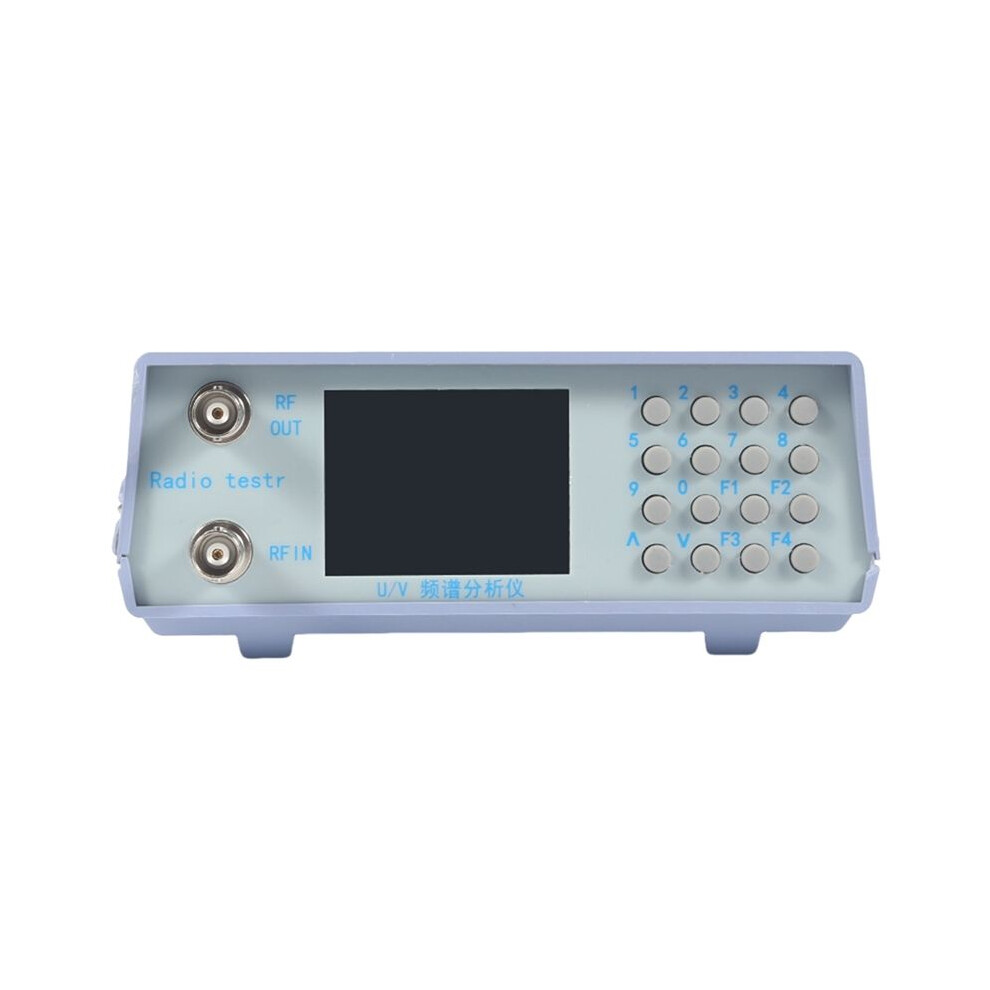

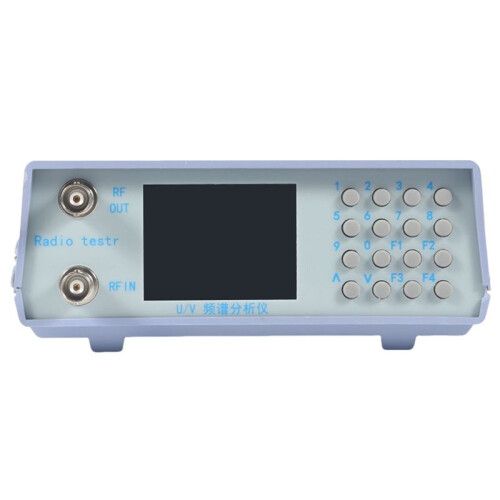

Duplexer U/V Dual Band Spectrum Analyzer with Tracking Source VHF Dual Band Spectrum Analyzer Portable Spectrum Analyzer

Duplexer U/V Dual Band Spectrum Analyzer with Tracking Source VHF Dual Band Spectrum Analyzer Portable Spectrum Analyzer Beskrivelse

The Spectrum Mode Is Displayed In The Upper Right Corner Of The Spectrum, And The Tracking Mode Is Spectrum + Tracking Mode.
The First Is The Center Frequency Center Frequency Power; The Second Captures The Strongest Or Weakest Frequency, Or The Specified Frequency And Power (Displays The Capture Of The Strongest Signal In Capture Mode, And The Collection Of The Weakest Signal In Capture + Capture Mode , "Adjust Duplexer Step Size") Frequency And Power)
The Third Frequency Range (Center Frequency Addition And Subtraction) Frequency Step; F1: Cursor Movement Center Frequency, Frequency Range, Step Cycle Selection (Long Press To Select In The Spectrum And Tracking Mode); F2: Backspace. The Cursor Points To The Frequency Center: Enter Directly With The Numeric Keys Or Adjust The Frequency Step By Step With The And Down Keys F3 And F4 To Adjust The Frequency Within 1m
The Cursor Points To The Frequency Range: The Value Is Centered The Positive And Negative Range Of The Central Frequency, For Example: 0128000 Is The Center Of Or Minus 12.8 M. This Is A Range Of 25.6 Meters
Directly Enter The Numeric Keys And Use The And Down Keys To Increase Or Decrease The Range. The Cursor Points To The Step Size: Directly Enter The Numeric Keys Or Use The And Down Keys To Adjust The Step Size. There Will Be A Slight Change Within The 5k Scan Range To Adapt To The Size Of The Grid.

Description.
1. Frequency Range: 136-173 400-470
2. Spectrum Dynamic Range: -127dbm --- 0dbm
3. Resolution: 1db
4. Tracking Source Output Power: -38 Dbm
5.Interface: Bnc
6. Power Supply: External 8---12v Required
Material: ABS
Color as shown

Package Contents:1 x Duplexer Analyzer
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which
