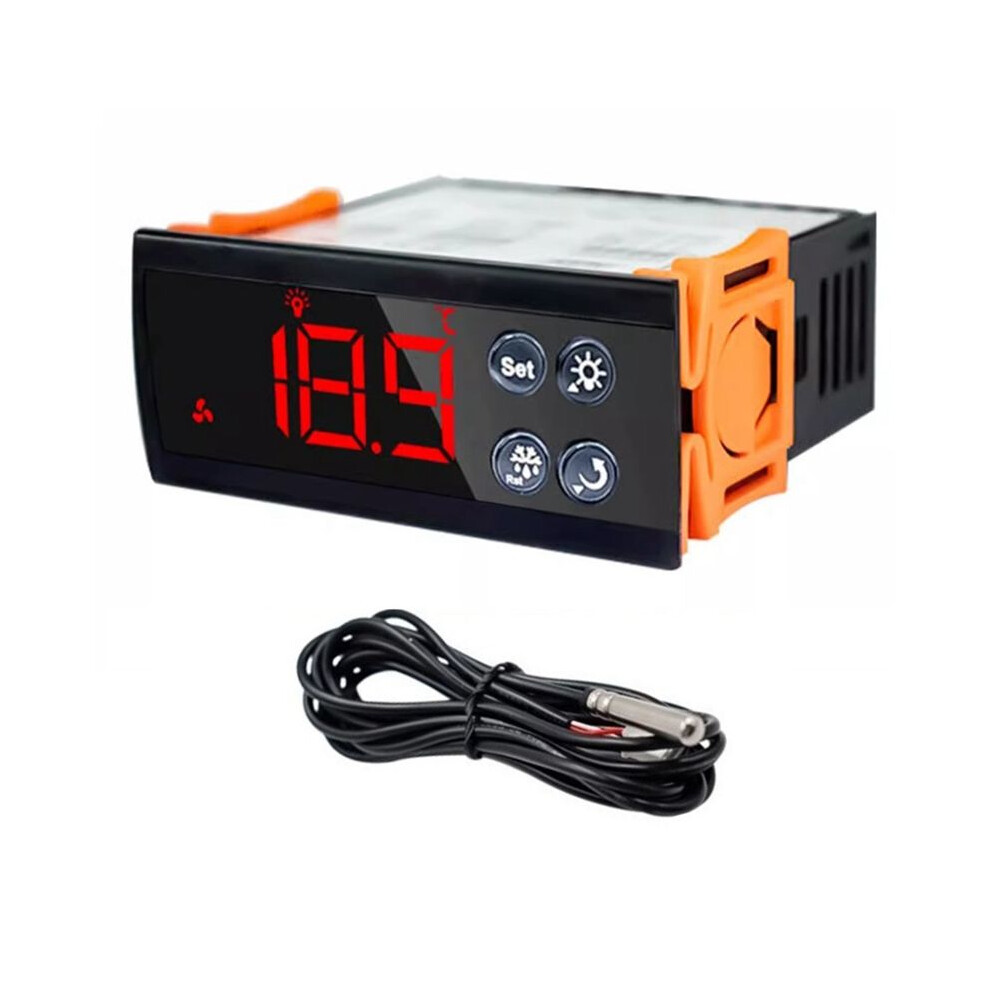

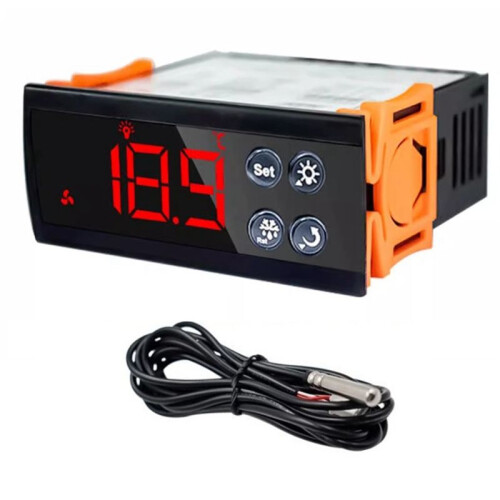

ECS-310 Digital Display Freezer Thermostat Electronic Refrigerator Automatic Temperature Control 220V

ECS-310 Digital Display Freezer Thermostat Electronic Refrigerator Automatic Temperature Control 220V Beskrivelse

Power supply voltage: 220VAC10% / 50Hz
Temperature measurement range: -50 - 99
Temperature measurement accuracy:1
Load power:Cooling 16A, fan 10A, lighting 3A
Power consumption of the whole machine:less than equal 5W

Sensor cable length:NTC/2.0 m
Installation size:71x29mm(width x height)
Front panel size:75x34.5mm(width x height)
Whole machine size:75x34.5x64mm(width x height x depth)
Parameter setting
1. In the running state, press to control the light;
2. Set the temperature: Press and hold the Set key for more than 3 seconds to enter the internal parameter setting menu. The digital tube displays St for the first . Press the key to select the parameter code. Press the Set key again to enter the parameter value represented by the corresponding parameter code. Press the key or, key to add or subtract the current parameter value, and then press the Set key to save the current parameter and return to the parameter code interface. Press the parameter key in any state to exit the parameter setting, automatically save, and return to the working state.
3. Forced cooling: In non-setting state, press and hold the parameter key for more than 3 seconds to enter the forced cooling state. After forced cooling C3 , it enters the normal working state. In the forced cooling state, press and hold this key to exit forced cooling.
Colour:Black
Material:ABS

Package Contents:
1 set * Digital display freezer thermostat

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
