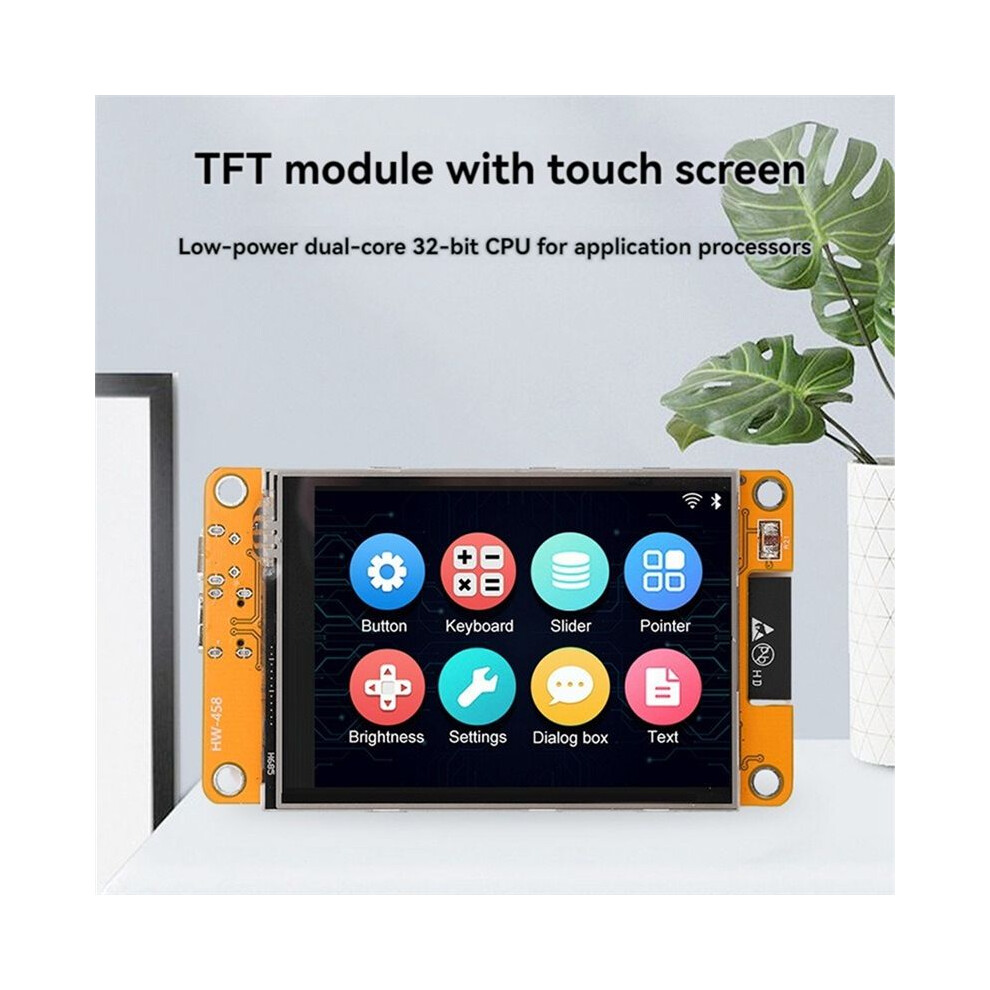

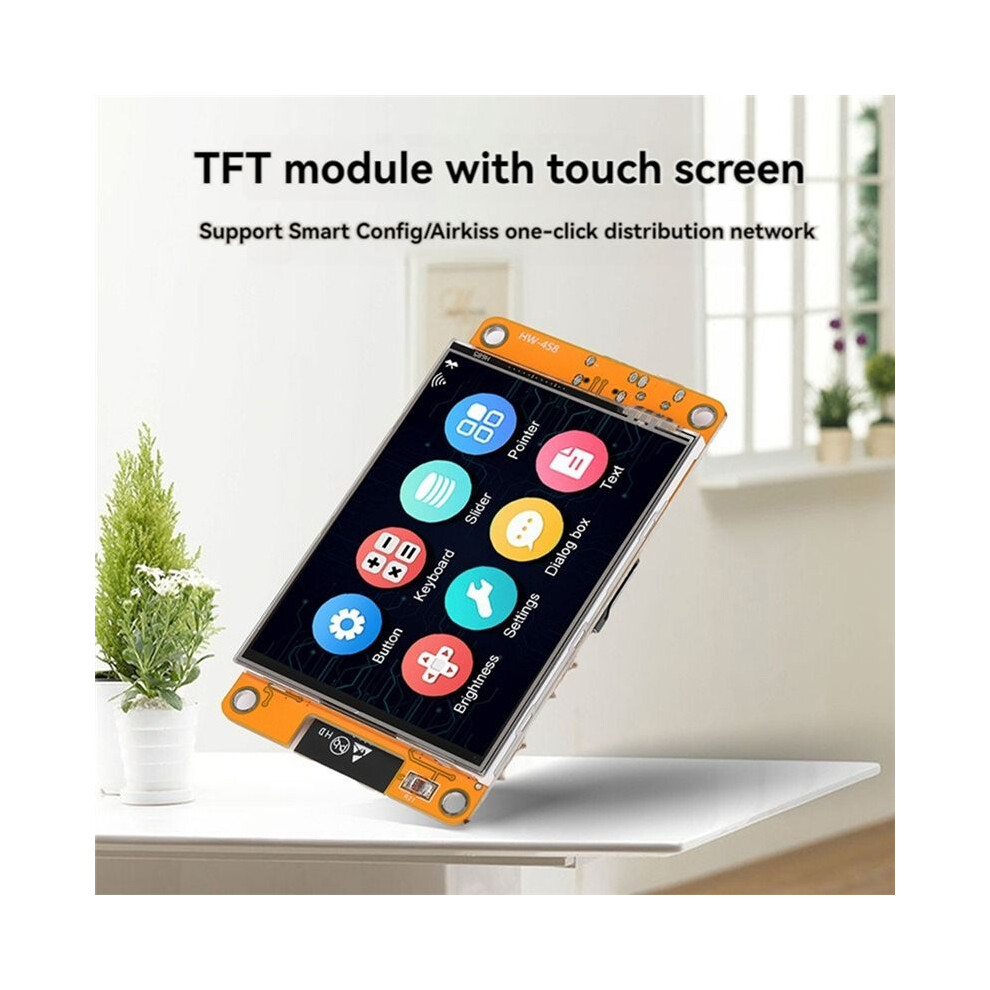

ESP32 Development Board 2.8 Inch Touch Screen WIFI+BT Development Board 240x320 TFT LCD Module with Touch Pen
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
157,45 kr.
186,35 kr.
Spar 16%!
+1,00 kr. levering
1%
Tjen 1,57 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (1,00 kr.) | lør. 20. - tir. 23. jun.
Solgt af: YPDblue
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Dockingstationer til computere
Beskrivelse og detaljer
Oversigt

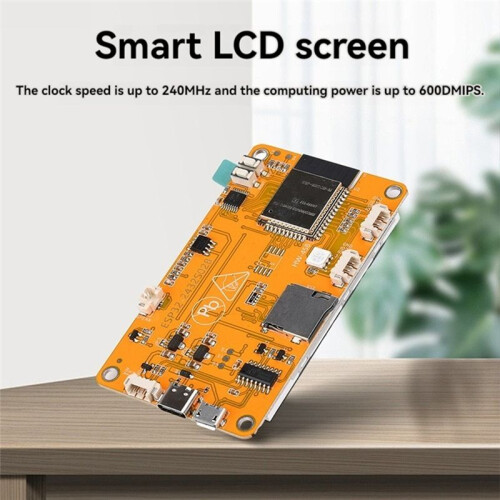

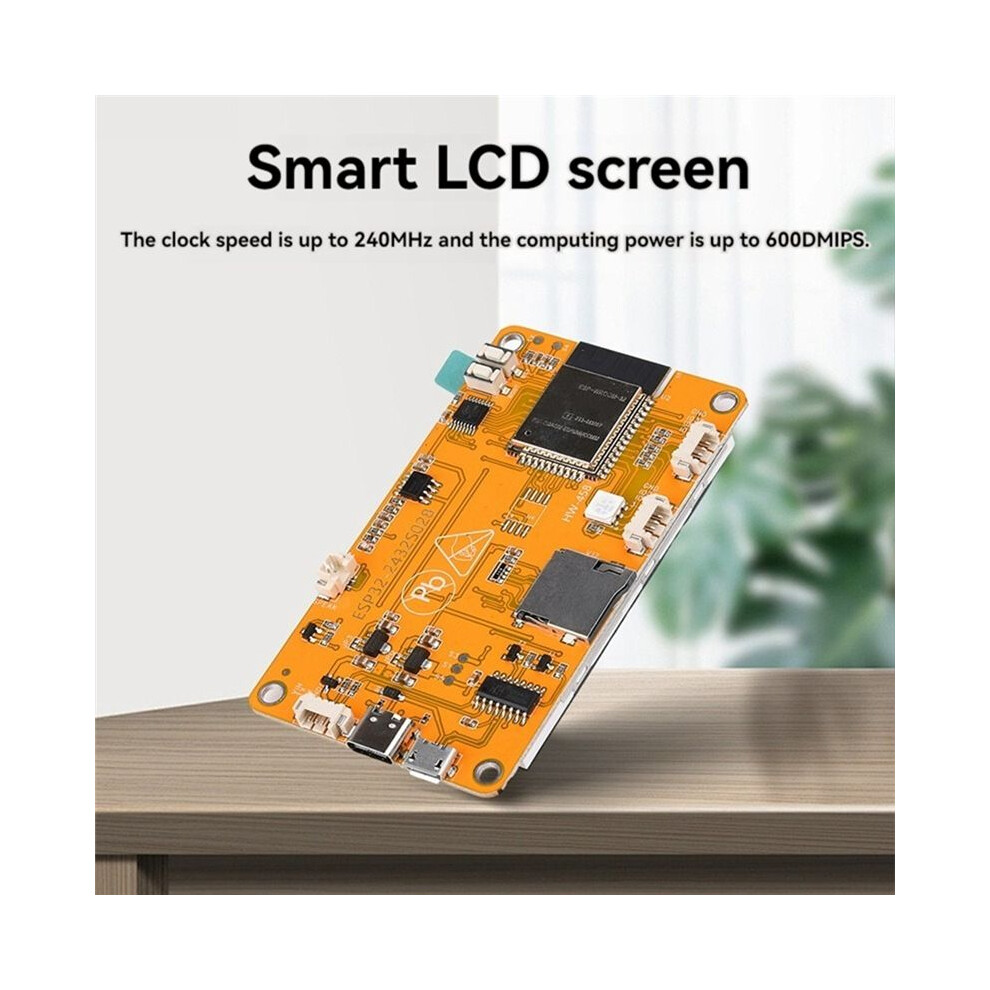

- Low-power dual-core 32-bit CPU, can be used as application processor
- Main frequency up to 240MHz, computing power up to 600DMIPS
- Built-in 520KB SRAM, supports UART/SPI/PWM/DAC/ADC and other interfaces
- With TF card slot for easy storage expansion

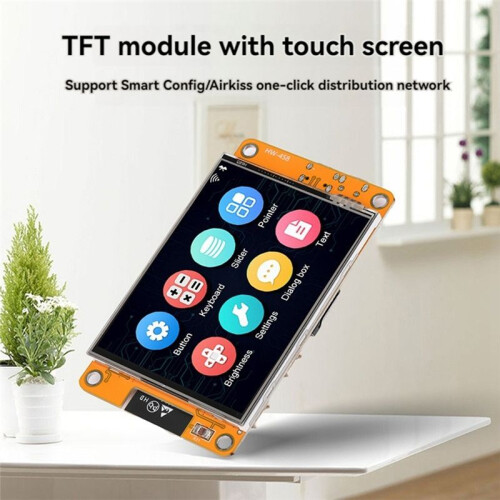

- 2.8-inch color screen, supports 16-bit RGB 65K color display, supports Smart Config/Airkiss one-click network configuration
ESP32 Development Board 2.8 Inch Touch Screen WIFI+BT Development Board 240x320 TFT LCD Module with Touch Pen Beskrivelse
Low-power dual-core 32-bit CPU, can be used as application processor
Main frequency to 240MHz, computing power to 600DMIPS
Built-in 520KB , supports UART/SPI/PWM/DAC/ADC and other interfaces
With TF card slot for easy storage expansion
2.8-inch color screen, supports 16-bit RGB 65K color display, supports Config/Airkiss one-click network configuration
Product name: ESP32 WIFI+BT dual-mode development board display
Display color: RGB 65K color
Size: 2.8 inches
Type: TFT
Driver chip: ILI9341
Resolution: 320x240
Viewable area: 43.2x57.6mm
Viewing angle: Greater than 60
Operating temperature: -20~70
Operating voltage: 5V
Power consumption: 115mA
: 4.2BR/EDR and BLE standards
WIFI: 802.11b/g/n/
Supported interfaces: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM
IO : 22
Serial port rate: default 115200bps
Spectrum range: 2412~2484MHZ
Antenna type: onboard PCB antenna, gain 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Transmit power: 802.11b:172dBm(@11Mbps)/802.11b:142dBm(@54Mbps) /802.11b:132dBm(@MC57)
Interface sensitivity:
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6Mbps(1/2BPSK):-88dBm
54Mbps(3/464-QAM):-70dBm
MCS7(65Mbps,72.2Mbps)-67dBm
Colour:As Shown
Material:ABS+PCB

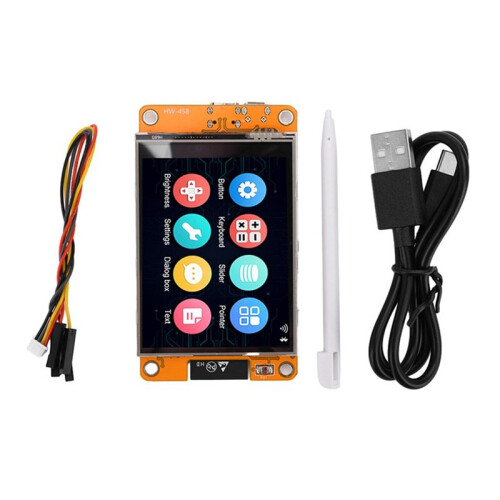

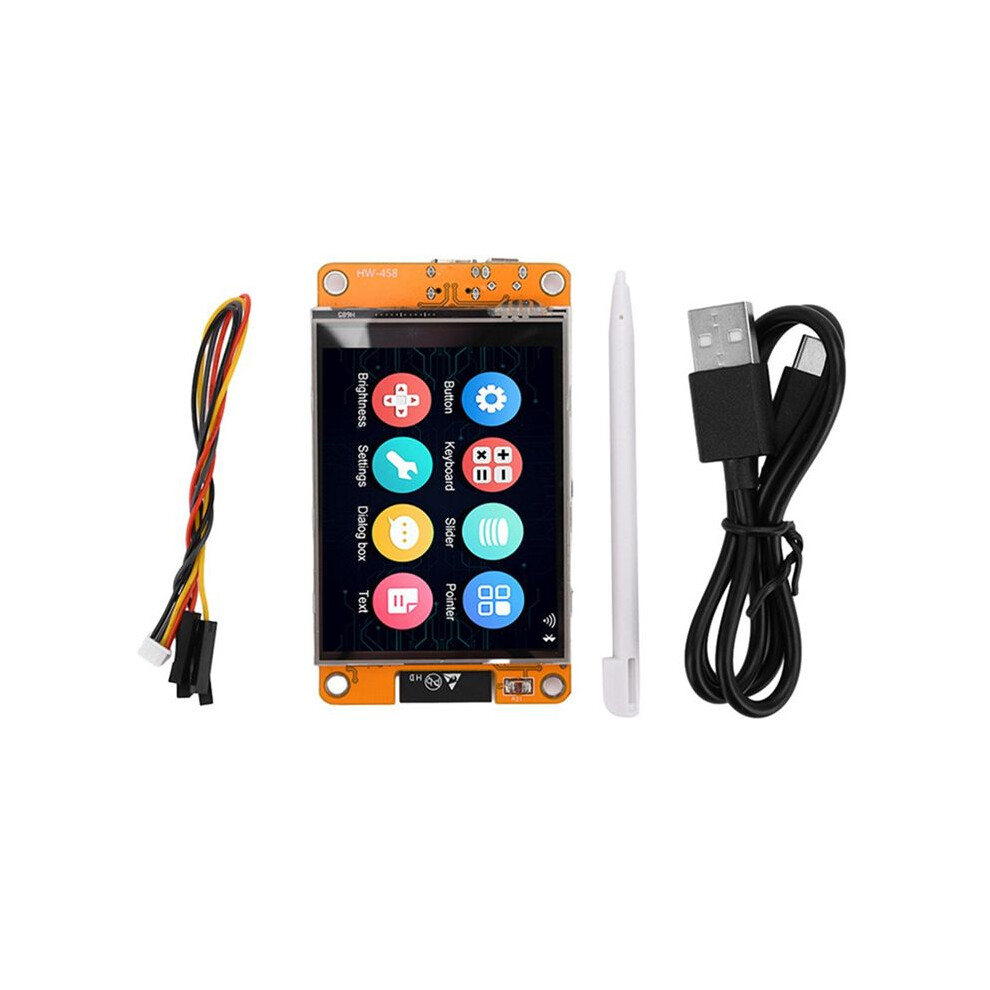

Package Contents:
1 x Display
1 x Touch Pen
1 x Type-C Data Cable
1 x 4p Terminal To Dupont Cable
Detaljer
| OPC | PT9PMHS |
|---|---|
| Koder | 6031263448340 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.0715kg |
| Colour | As Shown |
| Material | ABS+PCB |
