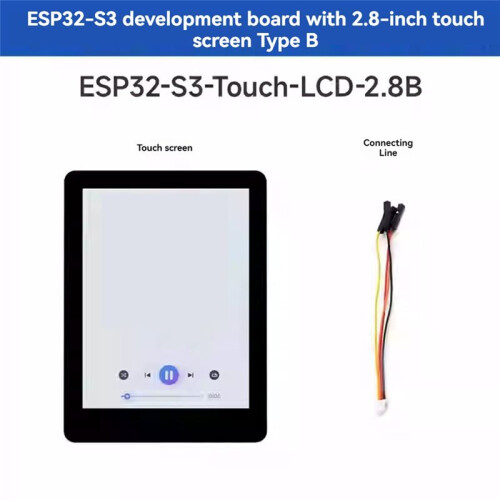

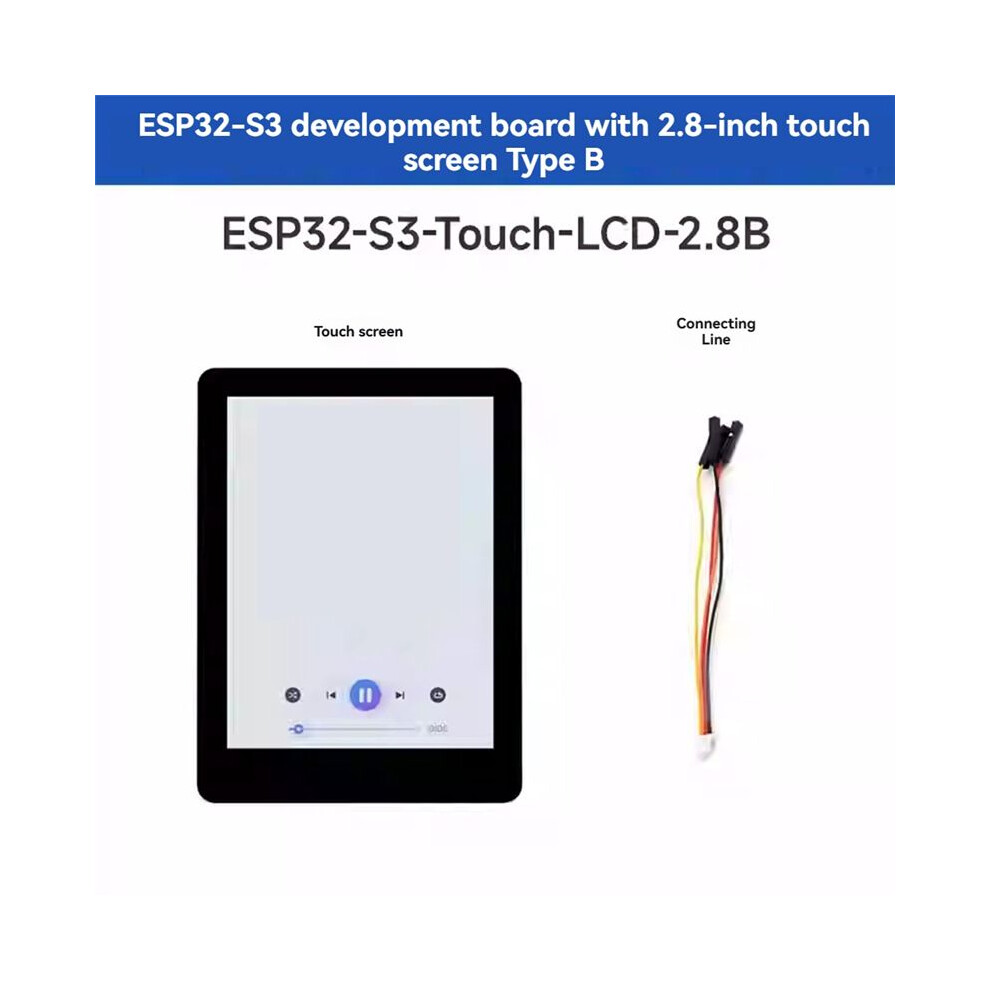

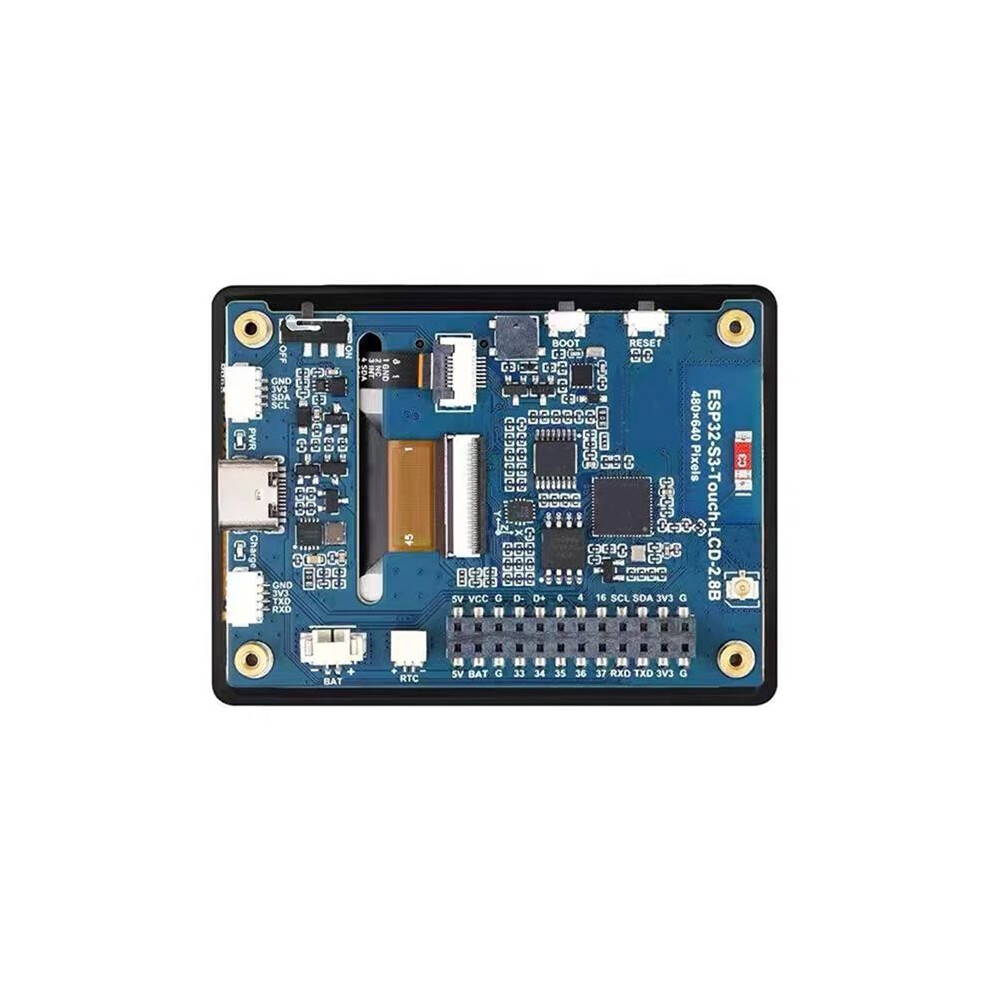

ESP32-S3 2.8inch IPS Capacitive Touch Display Development Board with Onboard Antenna ESP32 with Display
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
428,95 kr.
518,56 kr.
Spar 17%!
+60,69 kr. levering
1%
Tjen 4,29 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (60,69 kr.) | tir. 4. - man. 10. aug.
Solgt af: GCuppt
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Dockingstationer til computere
Beskrivelse og detaljer
Oversigt
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Onboard 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash,Onboard 2.8-inch touch screen, 480x640 resolution

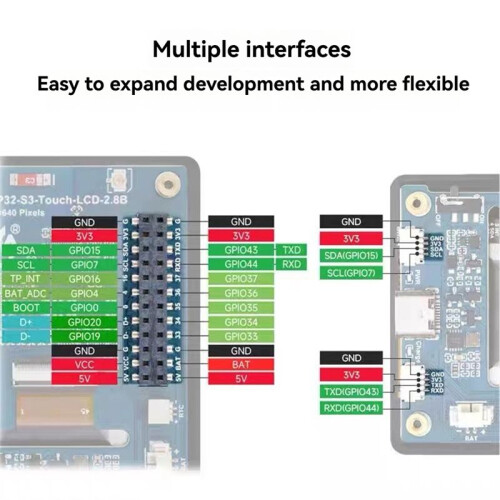

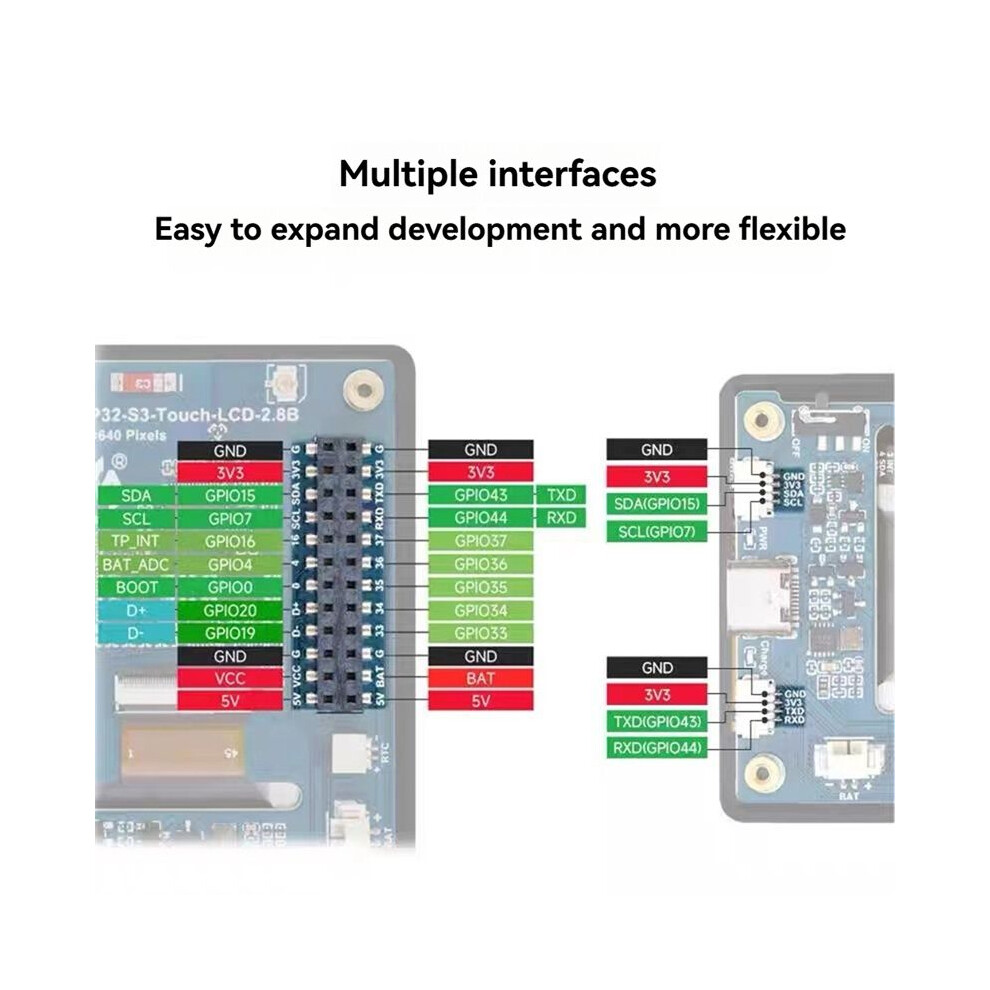

- Lead out UART, I2C and some 10 interfaces, integrated full-speed USB serial port,Onboard QM18658 six-axis sensor, RTC clock sensor, Micro-SD card slot and battery charging management module, etc.
- Support flexible clock, multiple power modes and other accurate control to achieve multi-scenario low power consumption mode
ESP32-S3 2.8inch IPS Capacitive Touch Display Development Board with Onboard Antenna ESP32 with Display Beskrivelse
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of to 240MHz
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and 5 (LE), with onboard antenna
Onboard 512KB , 384KB ROM, 8MB PSRAM and 16MB Flash,Onboard 2.8-inch touch screen, 480x640 resolution
Lead out UART, I2C and some 10 interfaces, integrated full-speed USB serial port,Onboard QM18658 six-axis sensor, RTC clock sensor, Micro- card slot and battery charging management module, etc.
Support flexible clock, multiple power modes and other accurate control to achieve multi-scenario low power consumption mode

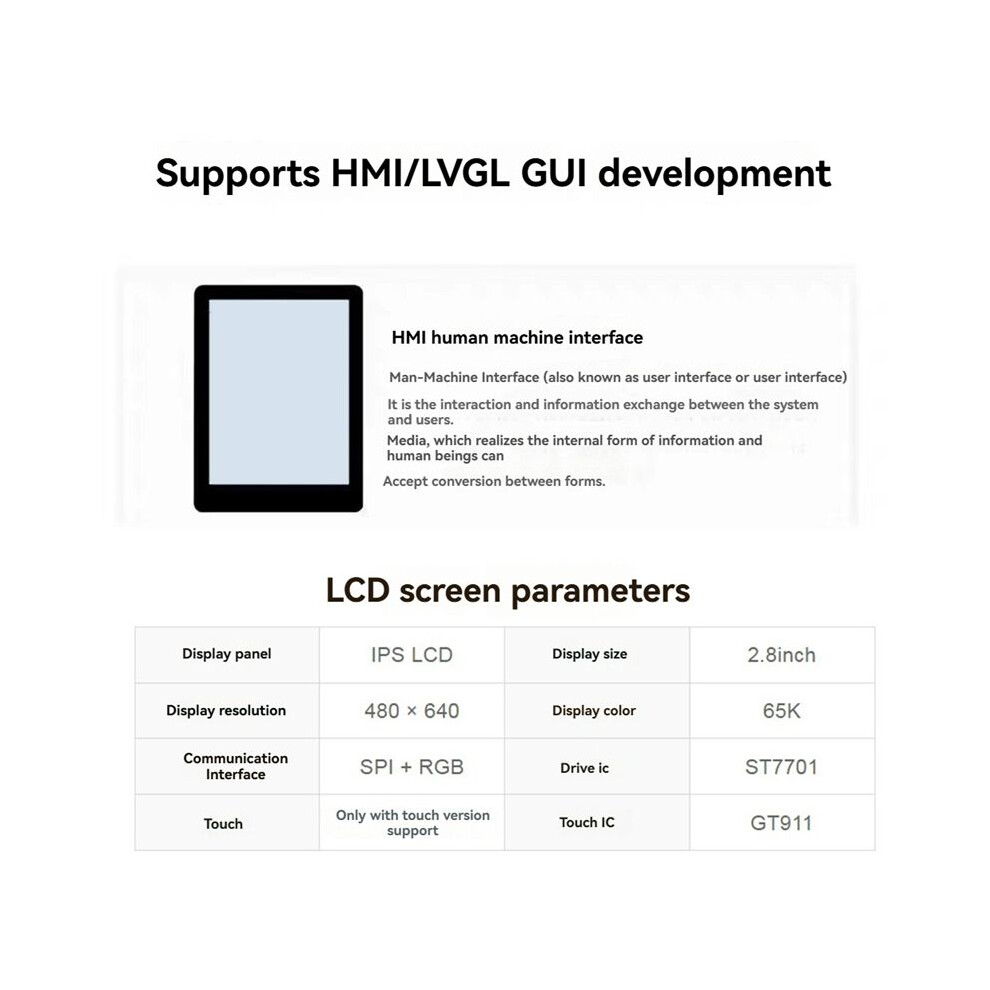

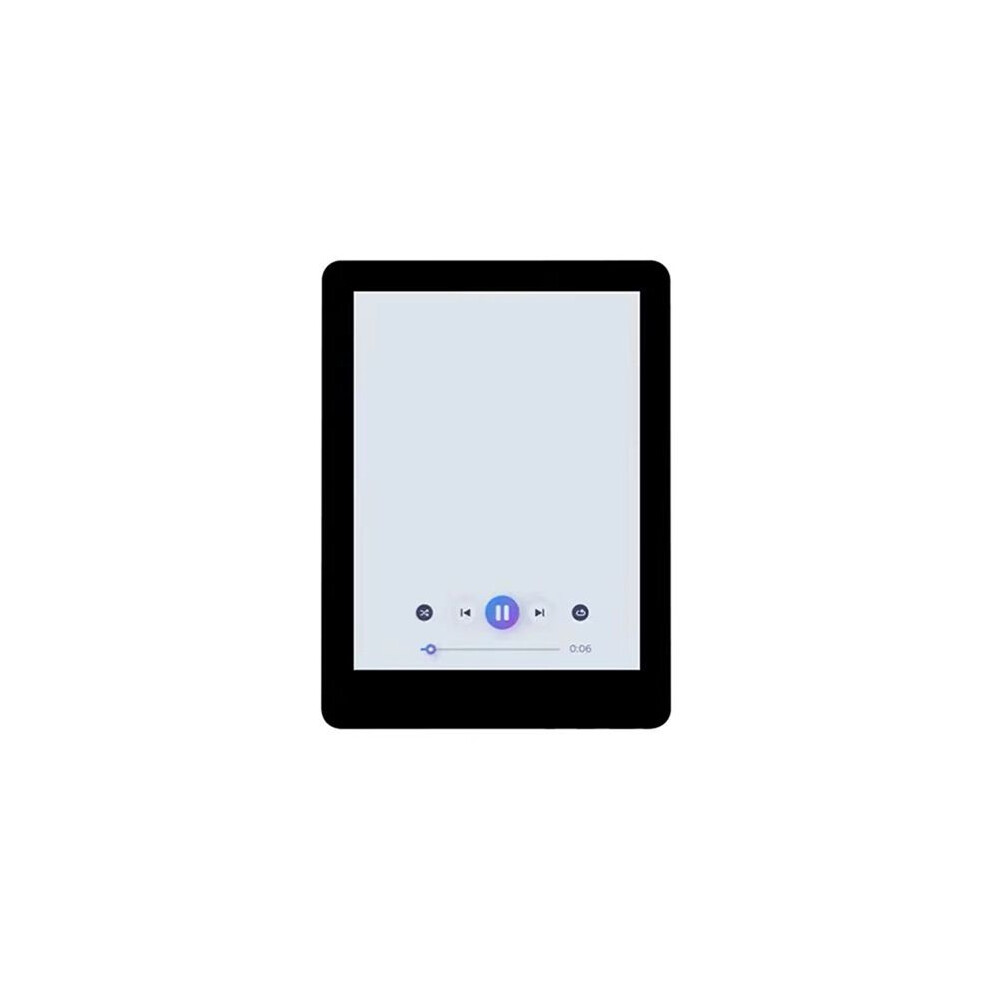

display panel:IPS LCD
display size:2.8inch
display resolution:480 x 640
Display color:65K
Communication interface:SPI+RGB
Driver IC:ST7701
Touch:supported with touch version
Touch IC:GT911
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:As Shown
Material:PCB
Package Contents:
1 * Display Development Board
Detaljer
| OPC | PWNJSD2 |
|---|---|
| Koder | 6034011673278 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0575kg |
| Colour | As Shown |
| Material | PCB |
