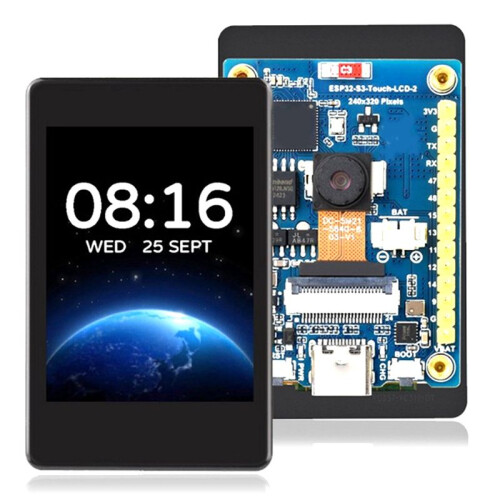

ESP32-S3 2inch IPS Capacitive Touchscreen Development Board 240x320 LCD Display 262k Color Support WiFi &

ESP32-S3 2inch IPS Capacitive Touchscreen Development Board 240x320 LCD Display 262k Color Support WiFi & Beskrivelse

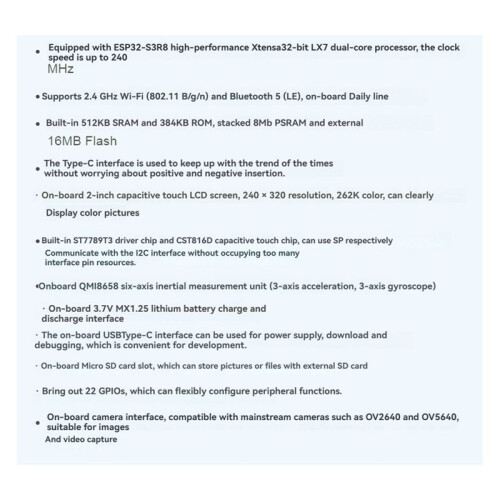

Onboard Micro- card slot and camera interface,Built-in ST7789T3 display driver chip and CST816D capacitive touch chip
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), with onboard antenna
Use Type-C interface, keep with the trend of the times, no need to worry about plugging in the right or wrong direction
Onboard USB Type-C interface, can be used for power supply and download debugging, convenient for development and use,Onboard Micro- card slot, can be connected to an external card to store pictures or files
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video acquisition

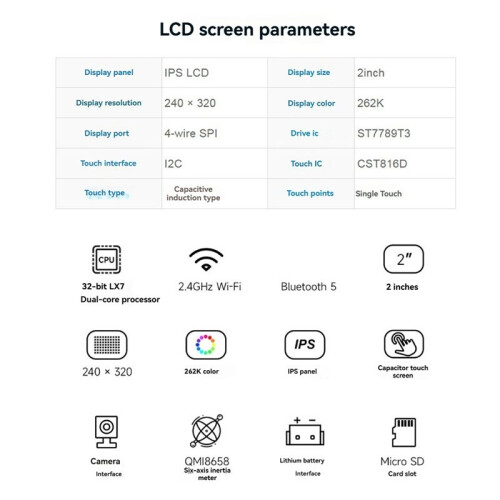

LCD screen parameters
display size:2inch
display panel:IPS LCD
display resolution:240 x 320
Display color:262K
display interface:4-wire SPI
Driver IC:ST7789T3
touch interface:12C
Touch IC:CST816D
Touch type:capacitive sensing
Touch points:Single touch
Colour:As Shown
Material:LCD

Package Contents:
1 * Touchscreen Board
