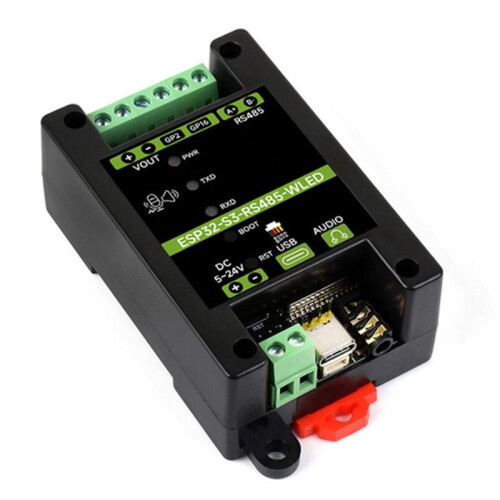

ESP32-S3 RS485 Development Board ESP32-S3-RS485-WLED Development Board Wi-Fi Bluetooth5 Audio Function

ESP32-S3 RS485 Development Board ESP32-S3-RS485-WLED Development Board Wi-Fi Bluetooth5 Audio Function Beskrivelse

Based ESP32-S3-WROOM-1-N16R8 module, equipped with Xtensa 32-bit LX7 dual-core processor to 240 MHz main frequency.

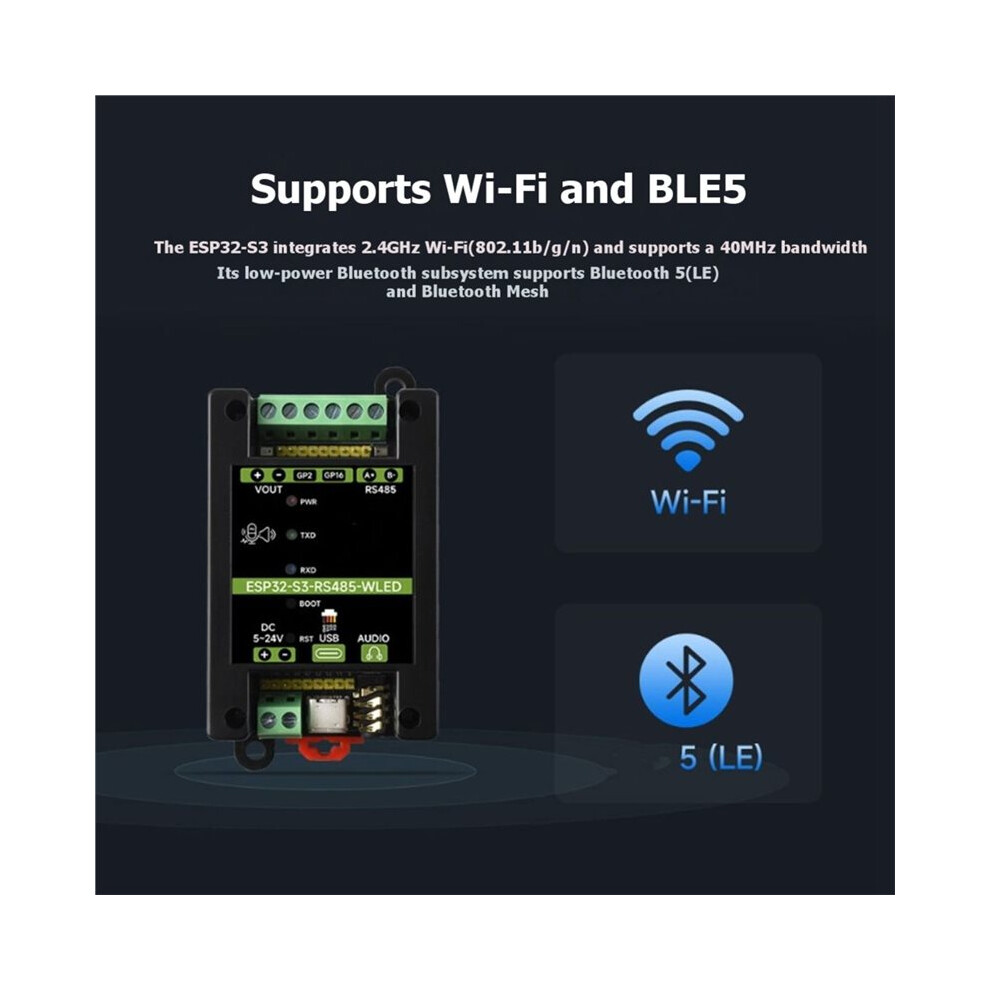

Integrated 2.4 GHz Wi-Fi and 5 (LE) wireless communication for wireless control, device networking and IoT application development.
Equipped with 16 MB Flash and 8 MB PSRAM, providing sufficient storage and runtime memory for light-effect control, audio processing and complex application development.

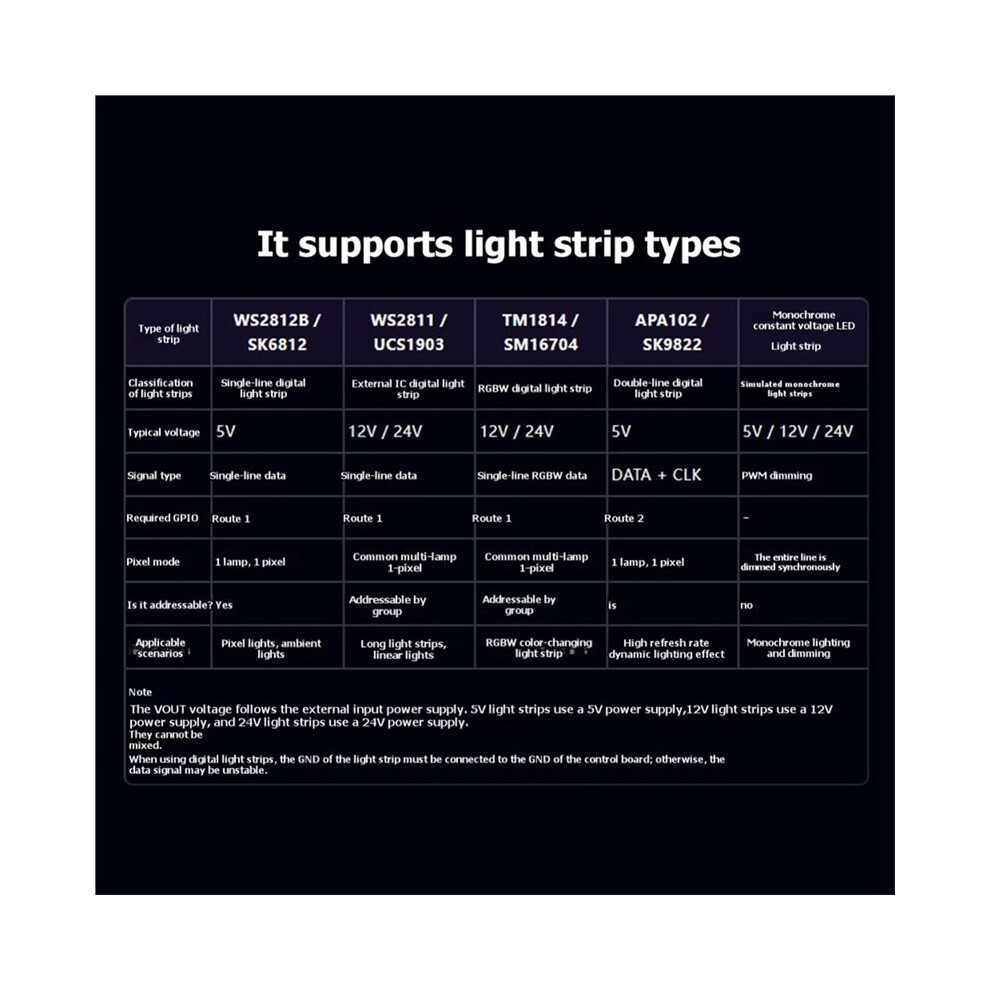

-board LED strip data output port with 5 V level conversion, compatible with various digital LED strips for WLED, ambient light and custom lighting-effect projects.
Integrated isolated RS485 communication interface for connecting sensors, PLC, Modbus and other hardware for communication development.

Due to different batches, there may be differences in product appearance and printed text, which will not affect use
-board RS485 TX/RX status indicator LEDs for data transmission monitoring and program debugging.
Built-in integrated isolated power supply delivers stable isolated voltage; no extra power supply required for the isolated side.
Integrated ES7210 audio ADC and ES8389 audio codec, supporting multi-channel microphone input and stereo audio output for AI voice and speech-interaction development.

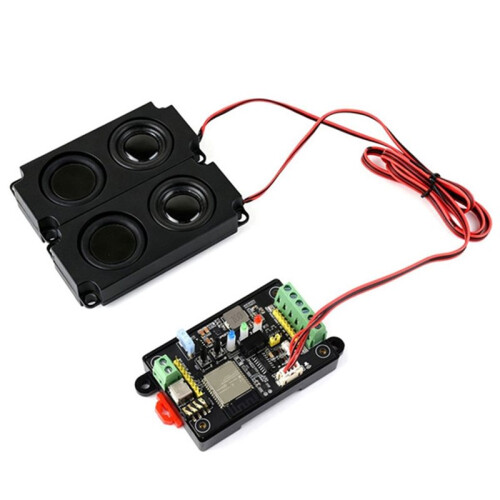

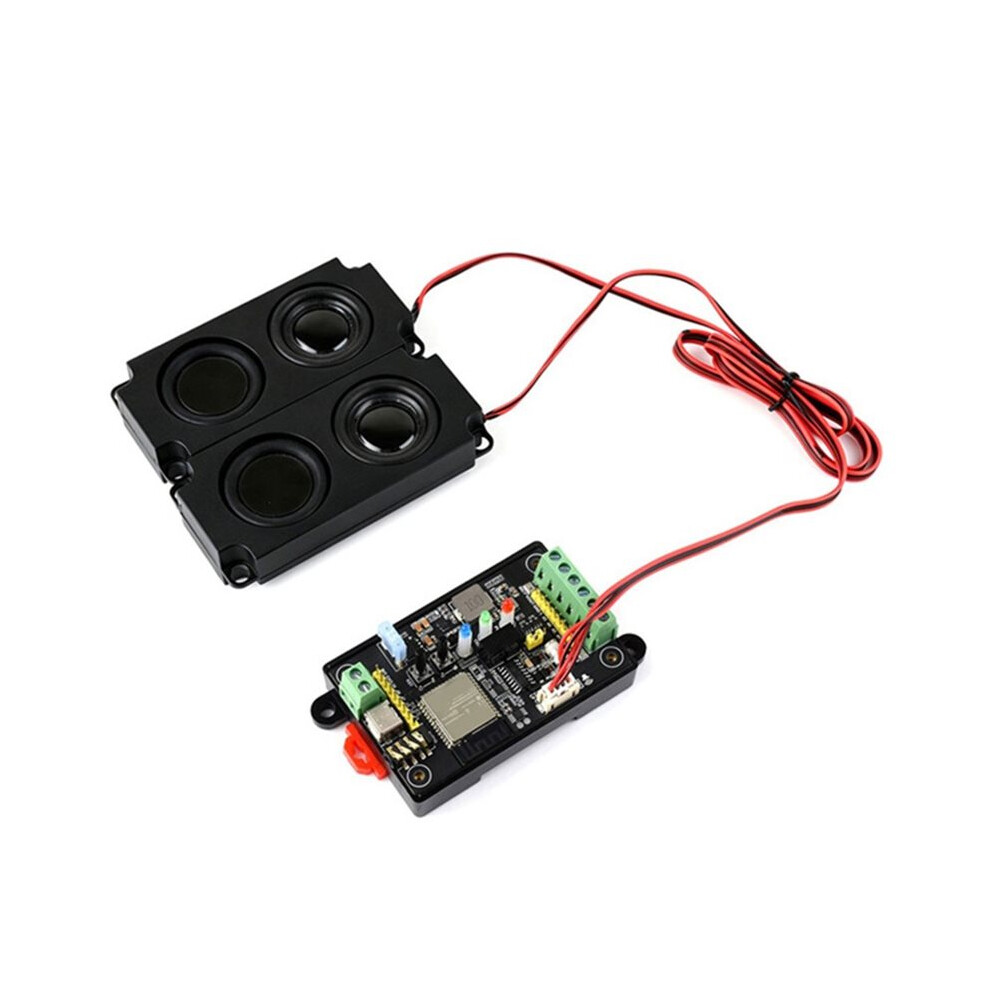

-board 3.5 mm audio jack and PH2.0 4-PIN speaker port for audio input-output application development.
Wide-voltage power input: 5 ~ 24 V .
-board USB Type-C port for program downloading and debugging.
Multiple GPIO expansion user buttons for connecting sensors, actuators and other peripherals for function expansion.
Supports ESP-IDF, and other development environments. Comes with sample codes and development documents for quick start and secondary development.

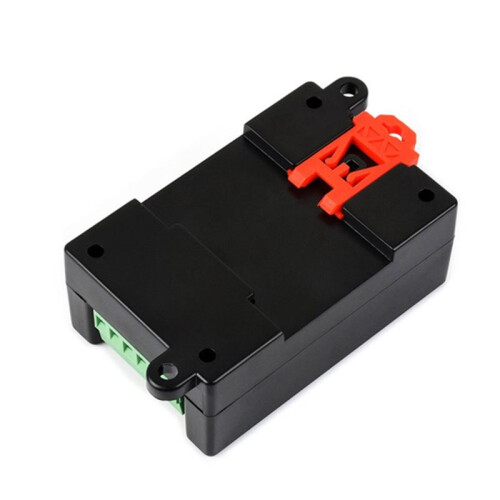

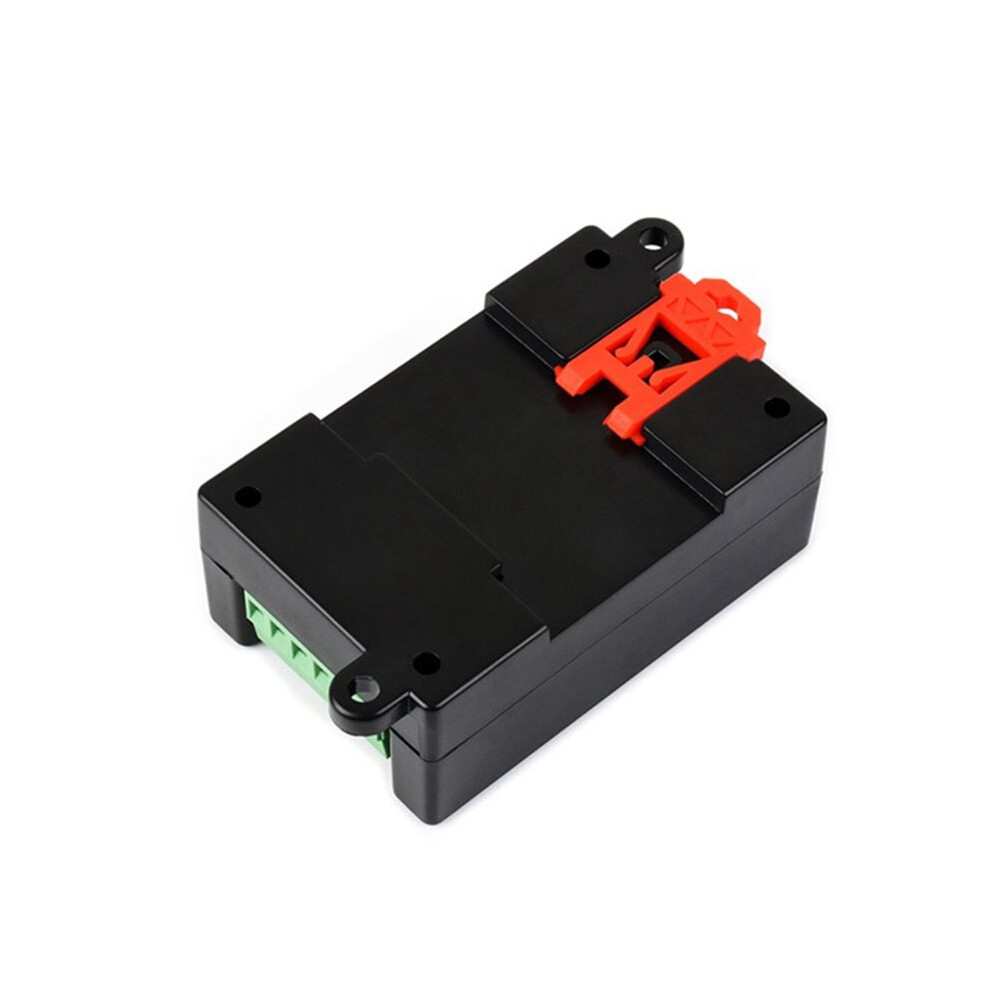

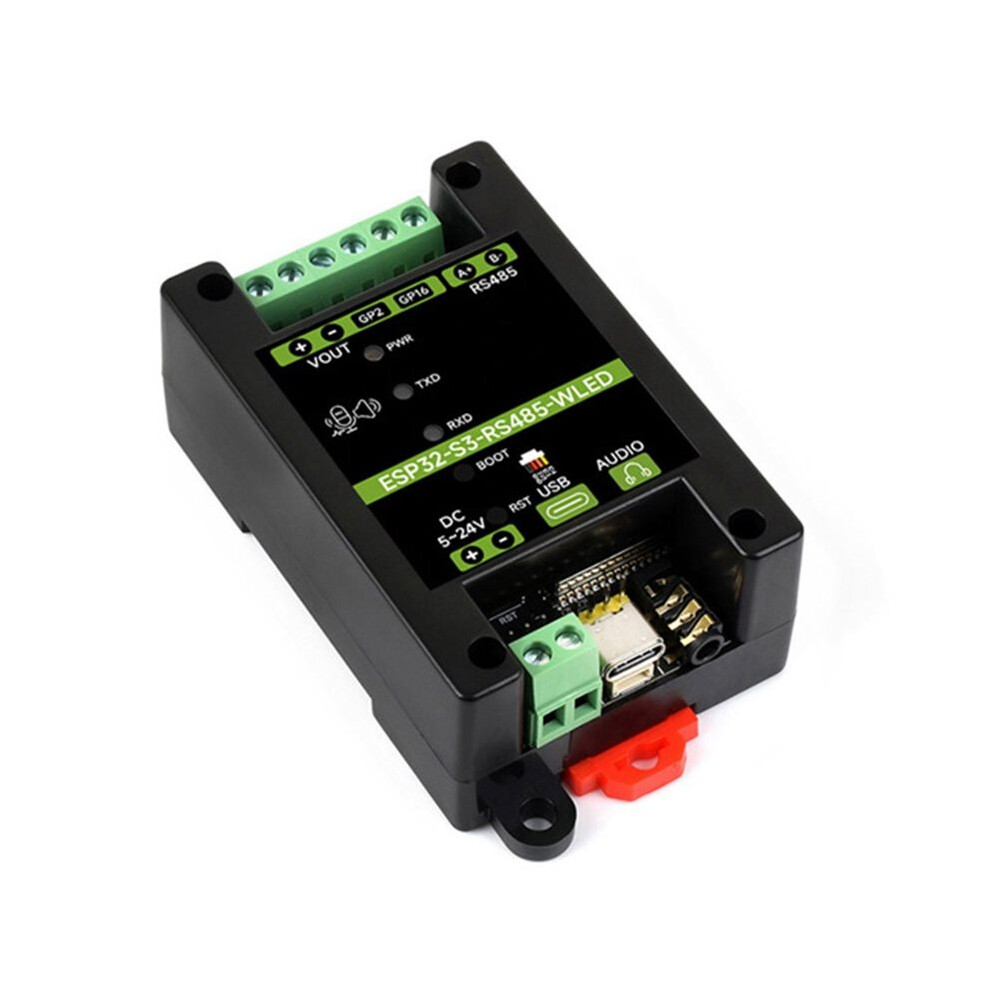

DIN-rail protective enclosure included, suitable both for lab debugging and real-wor
