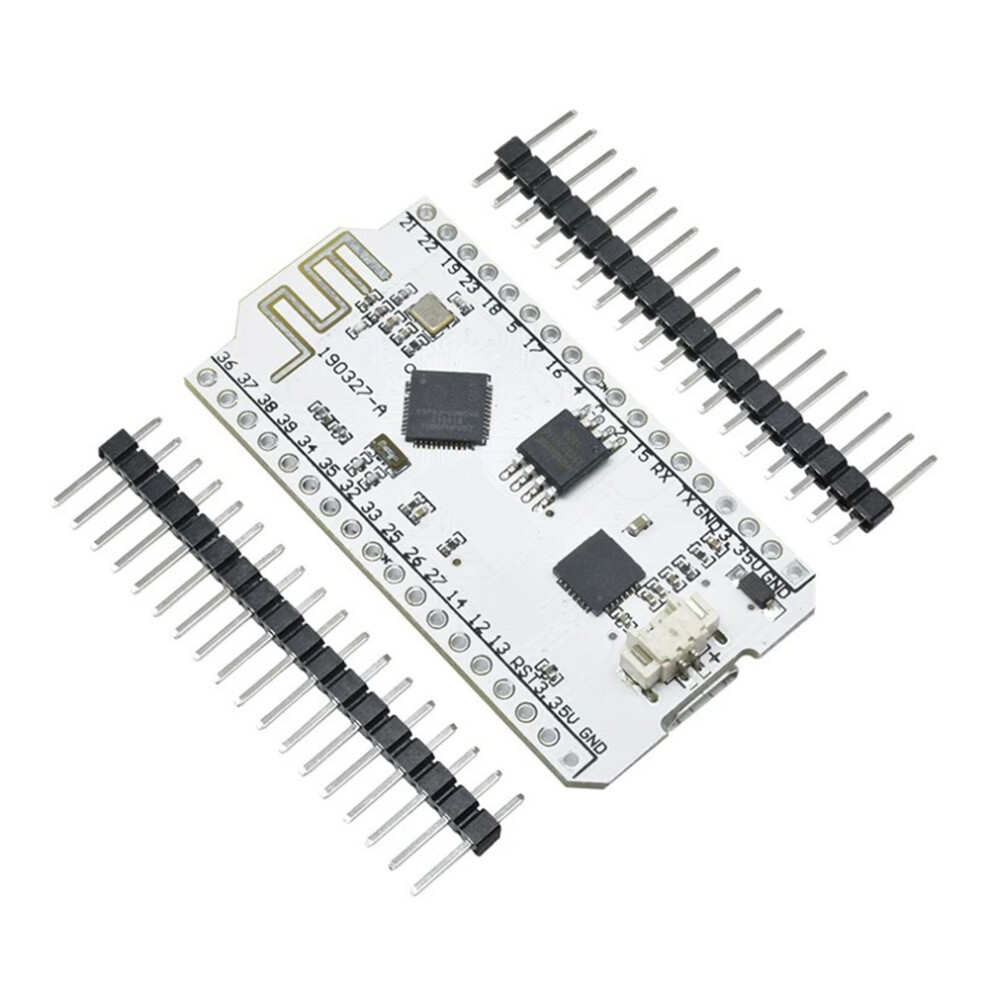

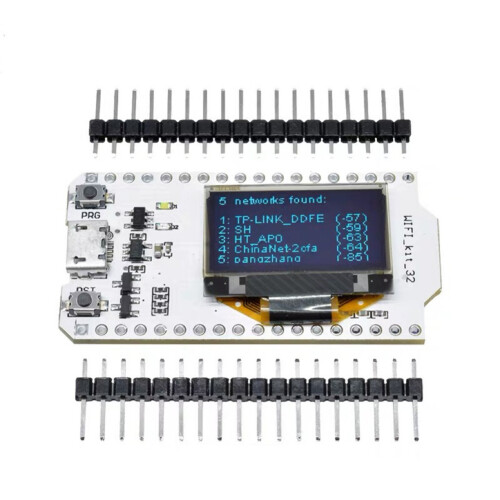

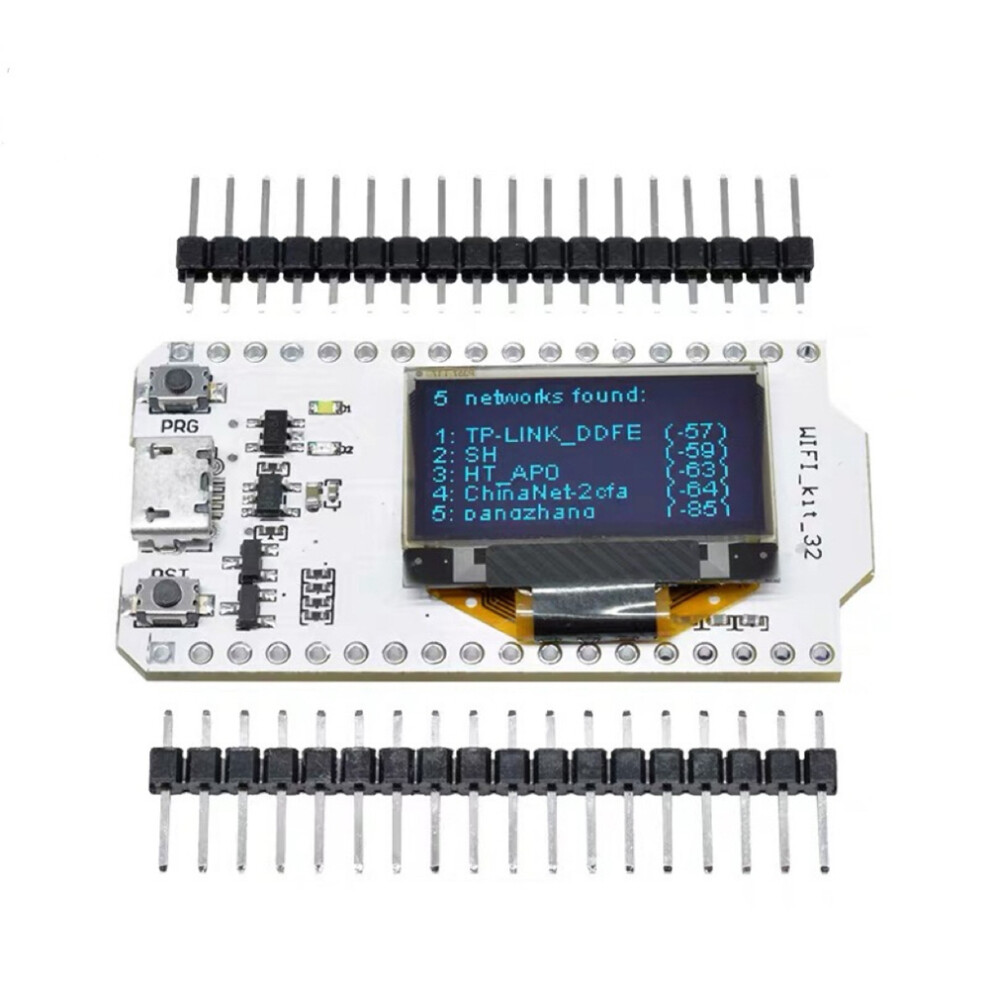

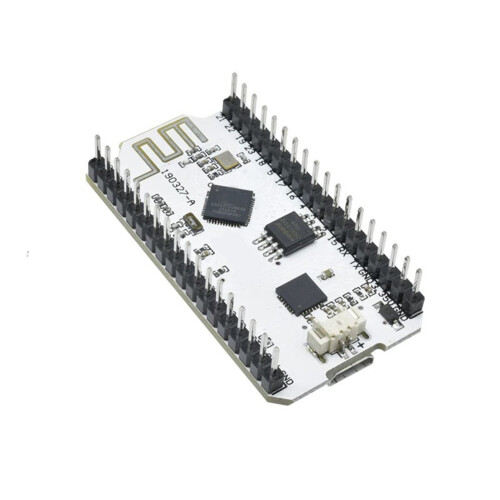

ESP32 WiFi CP2012 Development Board with 0.96inch OLED Display WIFI Kit 32 Module with Pin DIY Electronic Kit
Brand ISTOVO
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
142,35 kr.
170,55 kr.
Spar 17%!
+11,19 kr. levering
1%
Tjen 1,42 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (11,19 kr.) | ons. 8. - man. 13. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Bilforstærkere
Beskrivelse og detaljer
Oversigt
- WIFI Kit series is the new development of the cost-effective networking program, the main chip using for Lexin ESP32, for Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
- Onboard 32MBit Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment
- ESP32 Bluetooth WIFI Board
- CP2102 Internet Development Board
- ESP32 0.96 Inch Blue OLED
ESP32 WiFi CP2012 Development Board with 0.96inch OLED Display WIFI Kit 32 Module with Pin DIY Electronic Kit Beskrivelse
WIFI Kit series is the new development of the cost-effective networking program, the main chip using for Lexin ESP32, for Tensilica LX6 dual-core processor, 240MHz, computing to 600DMIPS, chip built-in 520 KB , 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode (traditional and BLE low power ).
Onboard 32MBit Flash, Wi-Fi antenna, 0.96-inch OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for development environment
Operating voltage: 3.3V to 7V
Operating temperature range: -40C to 90C
Data rate: 150 Mbps 11n HT40, 72 Mbps 11n HT20, 54 Mbps 11g, 11 Mbps 11b
Transmit power: 19.5dBm 11b, 16.5dBm 11g, 15.5dBm 11n
Flash Size: 32MByte
Lithium battery interface: 2Pin-1.25mm interface
Receiver sensitivity to - 98 dBm
UDP continues to throughput by 135 Mbps
Supports for Sniffer, for Station, for softAP and for Wi-Fi Direct modes
Color: As Shown
Material: PCB
Package Contents:
1 x ESP32 WiFi CP2012 Development Board
Detaljer
| OPC | PPZJZ7F |
|---|---|
| Mærke | ISTOVO |
| Koder | 6031884511430 (EAN) |
Produktdata
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.036kg |
| Colour | As Shown |
| Material | PCB |
