Beskrivelse og detaljer
Oversigt

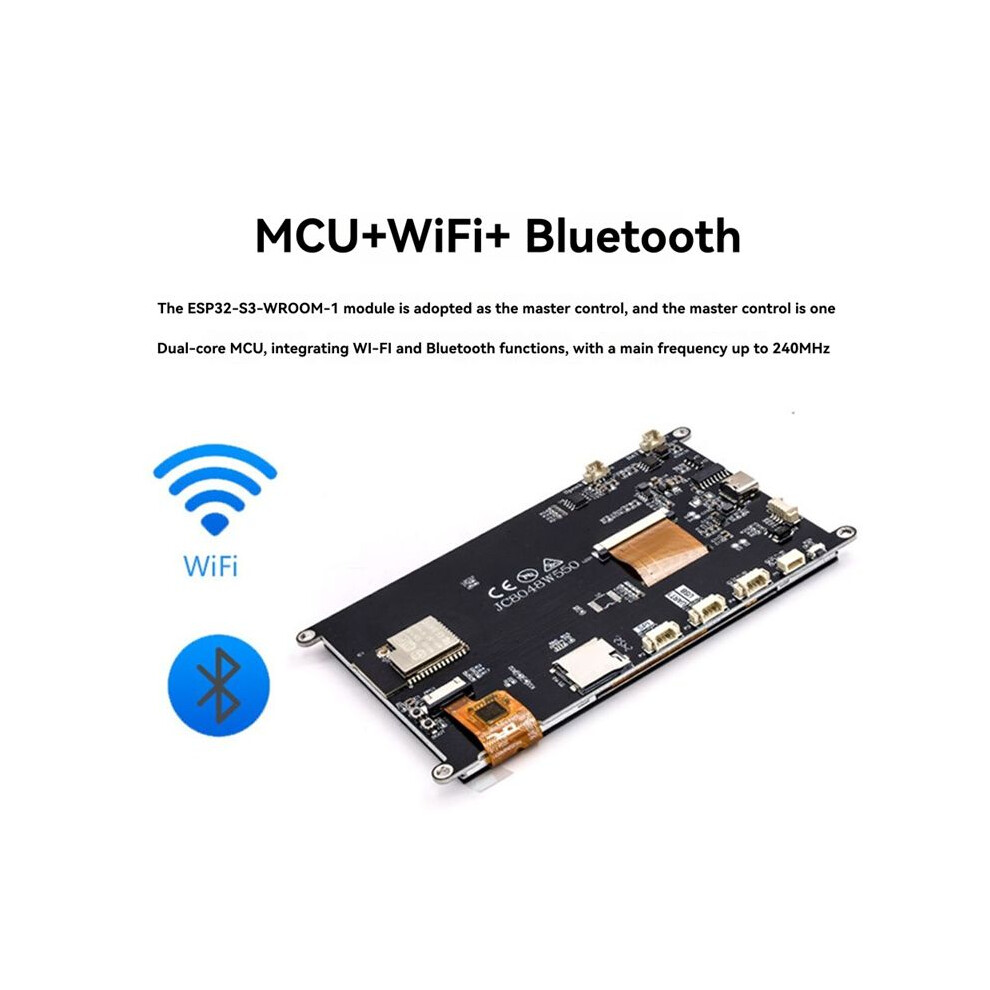

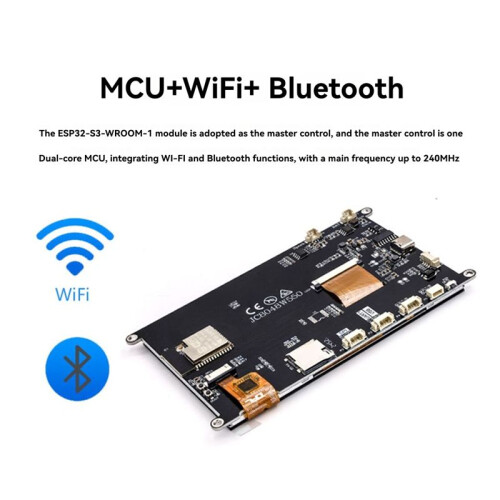

- This LCD module uses the ESP32-S3-WROOM-1 module as the main controller. The main controller is a dual-core MCU that integrates WI-FI and Bluetooth functions. The main frequency can reach 240MHz.
- The module features 512KB SRAM, 384KB ROM, and 8MB PSRAM (4MB Flash for the 4.3-inch non-touchscreen and capacitive touchscreen, with a display resolution of 480x272) It includes an LCD display, backlight control circuitry, and touchscreen control circuitry. It also has a reserved TF card slot, providing up to 10 slots. It supports development with the for Arduino IDE, for ESPIDE, for MicroPython, and for Guition
- ESP32S3 WiFi Bluetooth Module
- ESP32S3 4.3inch IPS Display
- 4.3-inch IPS Display Development Board
ESP32S3 4.3-Inch IPS Display Development Board Module 480x272 LCD 8M PSRAM 4M FLASH WiFi for LVGL Programming Beskrivelse
This LCD module uses the ESP32-S3-WROOM-1 module as the main controller. The main controller is a dual-core MCU that integrates WI-FI and functions. The main frequency can reach 240MHz.
The module features 512KB , 384KB ROM, and 8MB PSRAM (4MB Flash for the 4.3-inch non-touchscreen and capacitive touchscreen, with a display resolution of 480x272) It includes an LCD display, backlight control circuitry, and touchscreen control circuitry. It also has a reserved TF card slot, providing to 10 slots. It supports development with the for IDE, for ESPIDE, for MicroPython, and for Guition
Display color:RGB 65K color
screen size:4.3 inch
Type:TFT
Pixel:480*272
Display panel:IPS
Operating temperature:-20-70
Storage temperature:-30-80
Working voltage:5V
power consumption:About 260mA
(The product printed words may vary depending the batch, but this does not affect use)
Color:As shown
Material:PCB+LCD
Package Contents:
1 * ESP32S3 4.3inch IPS Display Module
Detaljer
| OPC | PPZ2CFF |
|---|---|
| Mærke | ISTOVO |
| Koder | 6033777689622 (EAN) |
Produktdata
| Height | 5cm |
|---|---|
| Width | 12cm |
| Length | 14cm |
| Weight | 0.1375kg |
| Colour | As Shown |
| Material | PCB+LCD |
