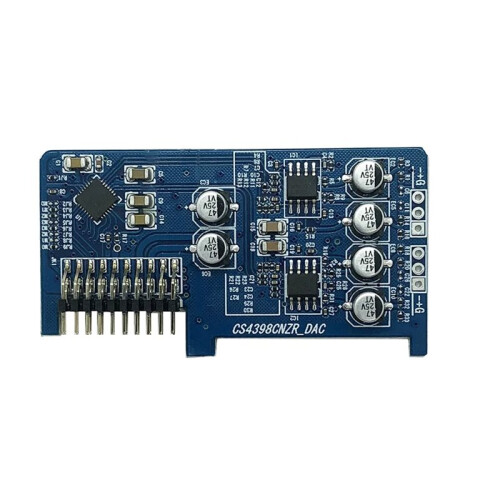

For CS4398 DAC Decoding Board CS4398+OPA1612 CS4398 for DAC Decoder 2 Channels Balanced Output Standard I2S Interface
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (50,98 kr.) | tir. 4. - man. 10. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Stereo-adaptere
Oversigt
- Channel output 2
- Resolution (bits) 24
- Dynamic range (dB) 120
- Total harmonic distortion (THD) + N (dB) -107
- Sampling frequency (kHz) 30-216
For CS4398 DAC Decoding Board CS4398+OPA1612 CS4398 for DAC Decoder 2 Channels Balanced Output Standard I2S Interface Beskrivelse
Channel output 2
Resolution (bits) 24
Dynamic range (dB) 120
Total harmonic distortion (THD) + N (dB) -107
Sampling frequency (kHz) 30-216
Product parameters:
For DAC decoder made by CS4398 can be directly matched with the ADSP21489/ADAU1463/67 DSP board in the store. It adopts a plug-in structure and 2-channel balanced output. The circuit is a high-performance circuit verified by the official performance. The high-precision resistance and capacitance fully guarantee the product's quality. Consistency, the interface is a standard I2S interface, the height is specially designed for 1U models, personal diy can replace the factory op amp MC33078 and the output coupling capacitor (the capacitor of the plug-in can be replaced, there are reserved holes,) reserved the board Different working modes can be set with the resistance, support 44.1KHz-192KHz, I2S/left-justified, right-justified 16 and 24Bit.
Channel output 2
Resolution (bits) 24
Dynamic range (dB) 120
Total harmonic distortion (THD) + N (dB) -107
Sampling frequency (kHz) 30-216
Analog power (V) 5
Digital power (V) 3.3-5
Logic Power (V) 1.8-5.0
Color: As Shown
Material: PC
Package Contents:
1*decoding board
Detaljer
| OPC | PWWMGWH |
|---|---|
| Koder | 6032735450458 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.0125kg |
| Colour | As Shown |
| Material | PC |
