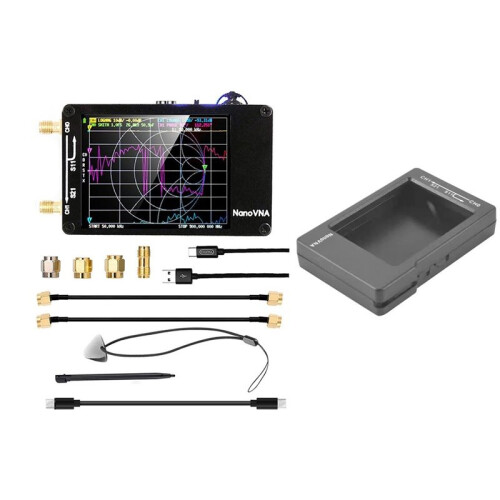

For -H Vector Network Analyzer 50KHz - 1.5GHz, VHF UHF Antenna Analyzer,Measuring S Parameters,SWR,Phase,Delay

For -H Vector Network Analyzer 50KHz - 1.5GHz, VHF UHF Antenna Analyzer,Measuring S Parameters,SWR,Phase,Delay Beskrivelse

Measurement frequency: 50 kHz - 1.5 GHz


RF output: -13 dBm (max. -9 dBm)
Frequency accuracy: < 2 ppm
Frequency stability: < 0.5 ppm
Measurement range: 70 dB (50 kHz - 300 MHz), 50 dB (300 MHz - 900 MHz), 40 dB (900 MHz - 1500 MHz)
Port SWR: < 1.1
Display: 2.8-inch TFT (320 x 240)
USB interface: USB Type-C; communication mode: CDC (serial)
Power supply: USB 5V 120mA; built-in 400mAh battery; max. charging current 1A; over 4 hours of continuous use
Calibration points: 101 (fixed)
Scan points: 101 (fixed)
Display traces: 4; markers: 4; saved settings: 5
The product contains battery accessories, Please keep the product out of reach of children to avoid accidental ingestion!
Color: As Shown
Material: Plastic+Metal

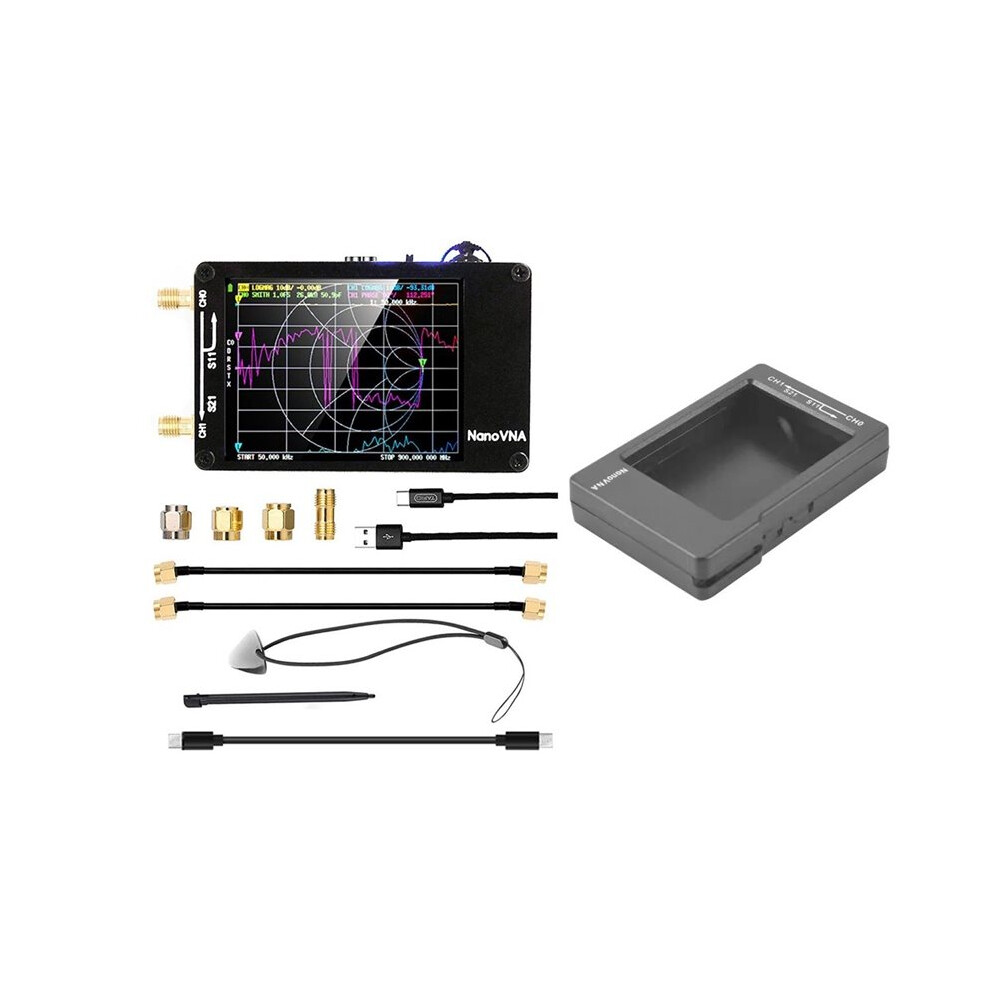

Package Contents:
1 * main unit 1 * housing 4 * connection interfaces 1 * pen 4 * cables 4 * screws
