For Handheld Spectrum Analyzer 50KHz-2.7GHz Vector Network Antenna Analyzer MF VHF UHF Antenna Tuner

For Handheld Spectrum Analyzer 50KHz-2.7GHz Vector Network Antenna Analyzer MF VHF UHF Antenna Tuner Beskrivelse

portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After several upgrades, is the highest performance version at present, with the measurement frequency range upgraded to 50KHz-2.7GHz, and the performance is better than the previous 1.5GHZ old version
product parameters:
Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR: Less than 1.1

Frequency accuracy: Less than 0.5 ppm
Frequency stability: Less than 2.5 ppm
Scan points: 101
Built-in 1000mAh battery
Add RTC support;
Change port names to Port1 and Port2
Measure S parameters, VSWR, phase, delay, chart, etc
(The product printed words may vary depending the batch, but this does not affect use)
Color: Black
Material: plastic

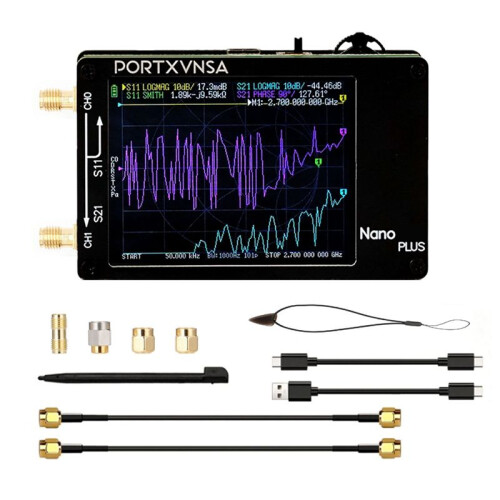

Package Contents:
1 x host (with 2.8-inch touch screen, 1000mAh battery)
2 x 20cm SMA male to male RG174 RF cable
1 x Type-C to Type-C cable
1 x USB Type-C data cable
1 x Touch pen
1 x Pick
1 x SMA simple calibration kit LOAD
1 x SMA simple calibration kit OPEN
1 x SMA simple calibration kit SHORT
1 x SMA female to female connector
